Disassembly and Assembly

REVERSE IDLER GEAR

DISASSEMBLY AND ASSEMBLY

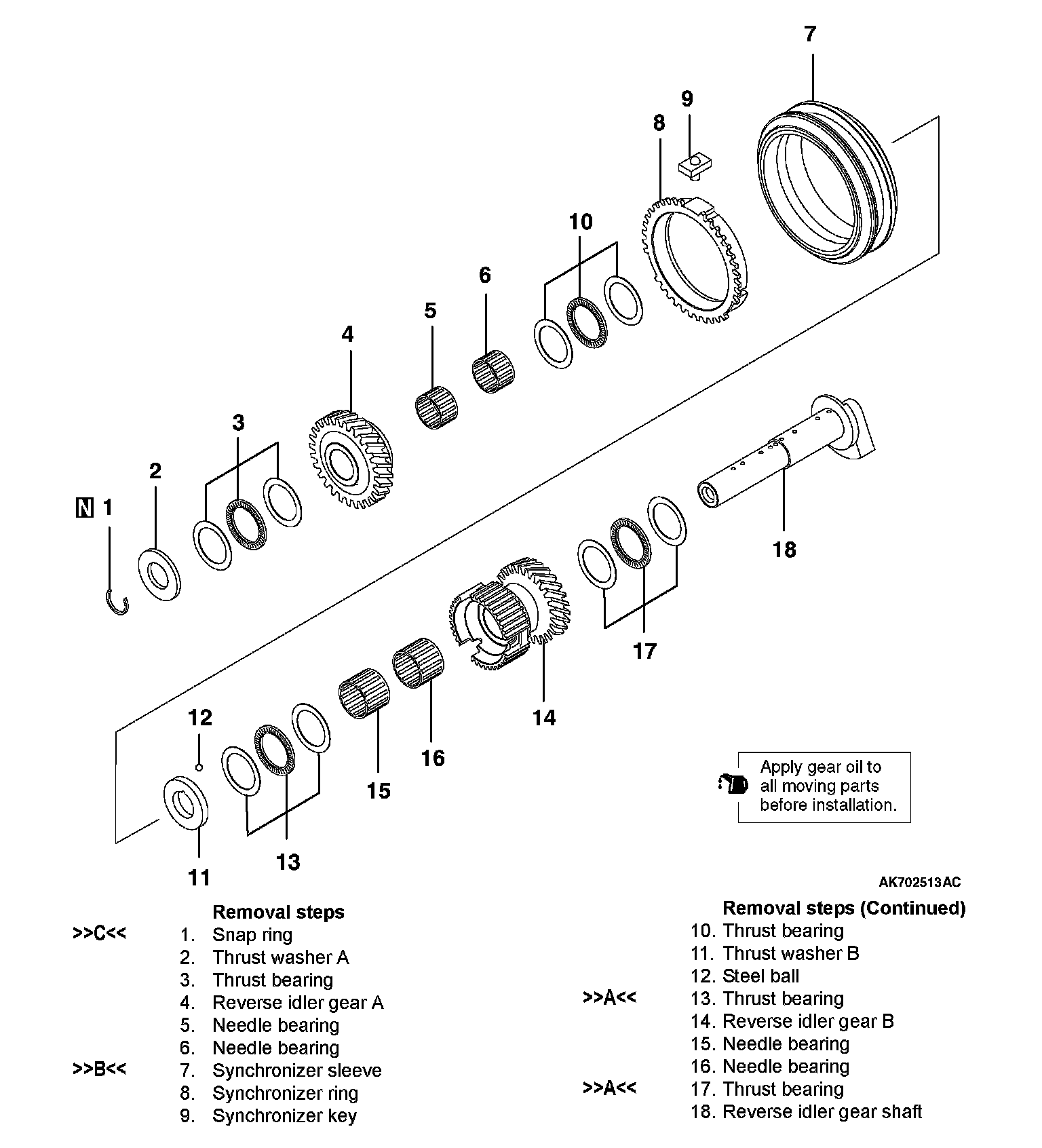

Removal Steps 1-18:

DISASSEMBLY SERVICE POINTS

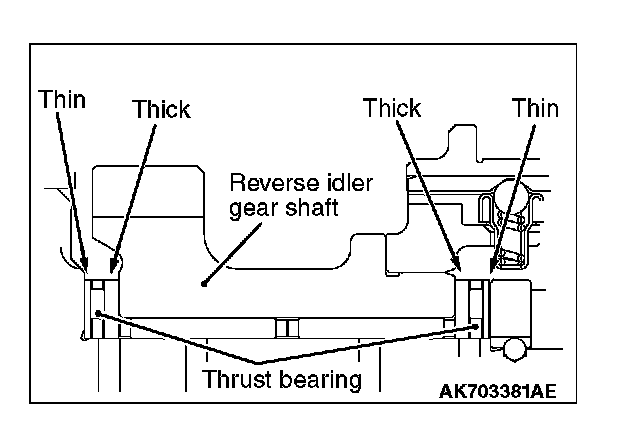

[A] THRUST BEARING INSTALLATION





Install the thrust bearing as shown.

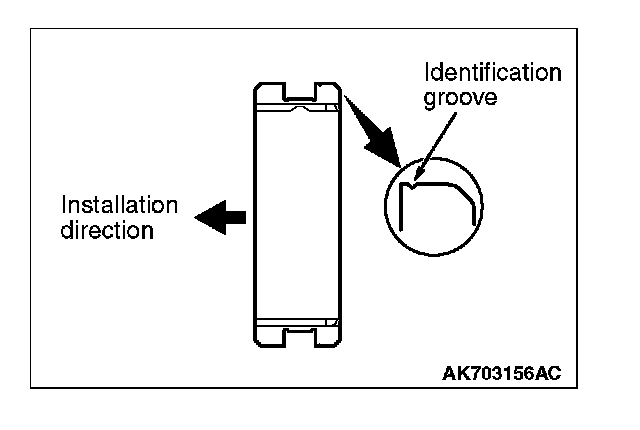

[B] SYNCHRONIZER SLEEVE INSTALLATION





Install the synchronizer sleeve in the illustrated direction.

[C] SNAP RING INSTALLATION





Select and install appropriate snap ring onto the reverse idler gear shaft so that the clearance of the thrust washer A meets the standard value.
Standard Value: 0 -0.11 mm (0 -0.0043 inch).
