Snap Rings, Spacers and Thrust Plate For Adjustment

ADJUSTMENT SNAP RING AND SPACERS

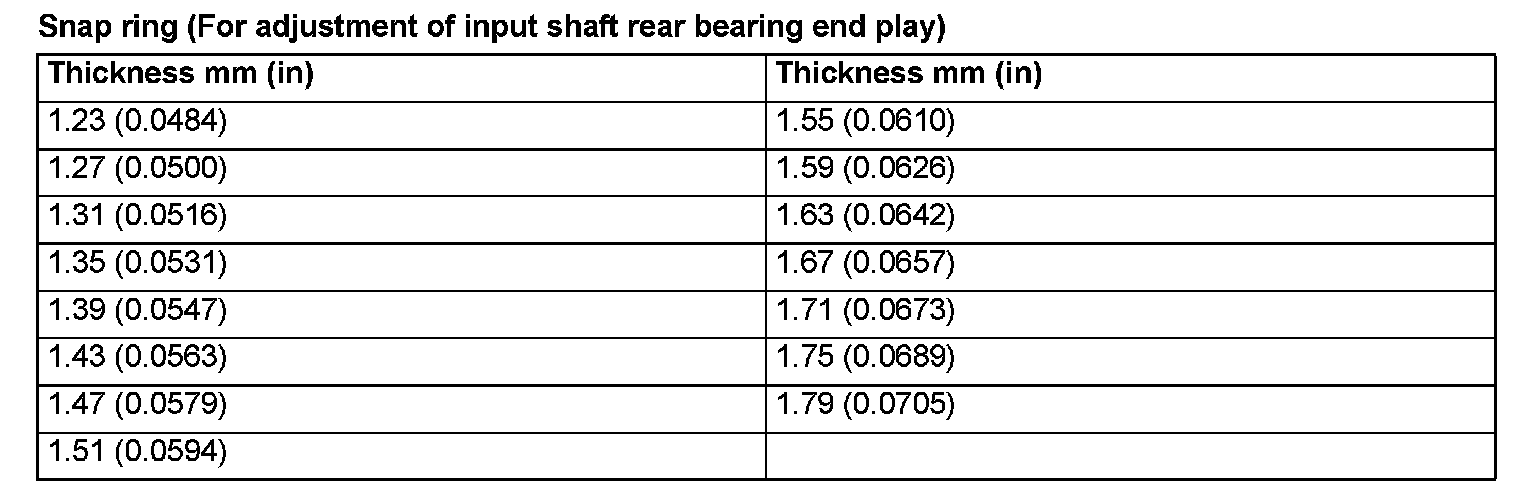

Snap ring (For adjustment of input shaft rear bearing end play)

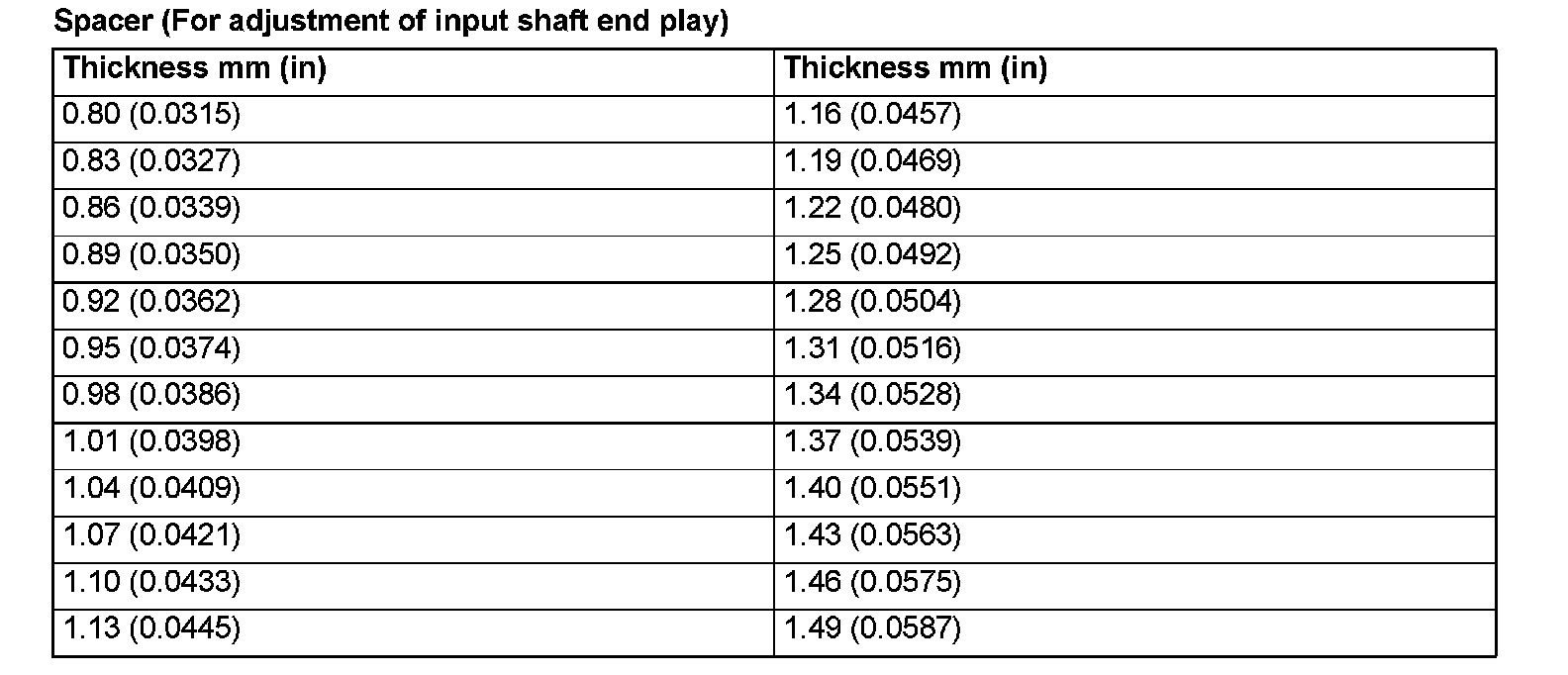

Spacer (For adjustment of input shaft end play)

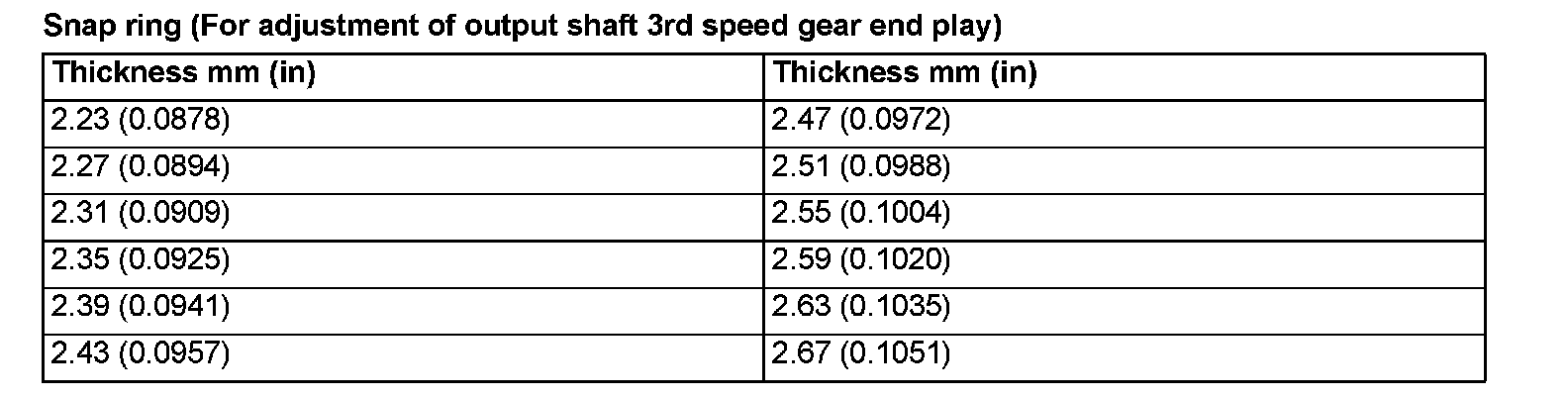

Snap ring (For adjustment of output shaft 3rd speed gear end play)

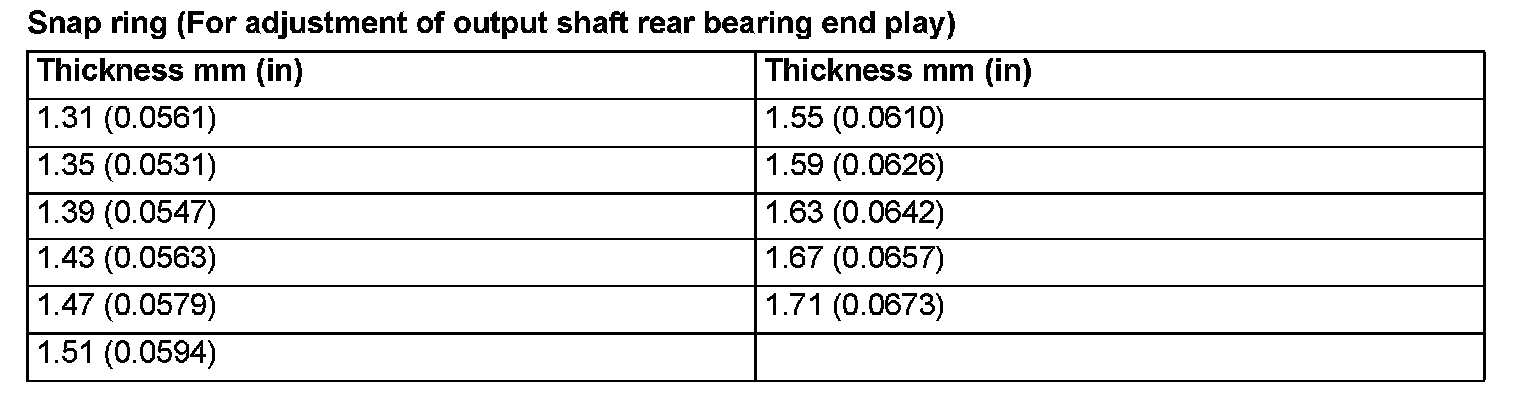

Snap ring (For adjustment of output shaft rear bearing end play)

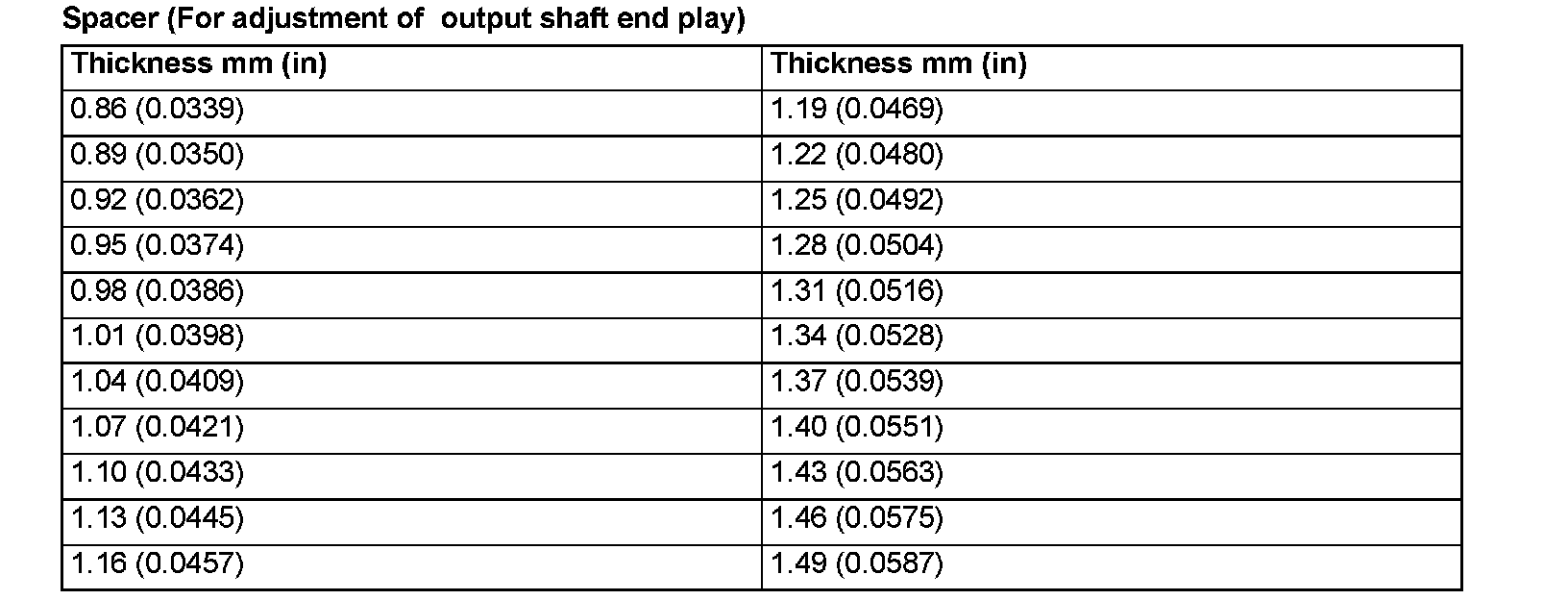

Spacer (For adjustment of output shaft end play)

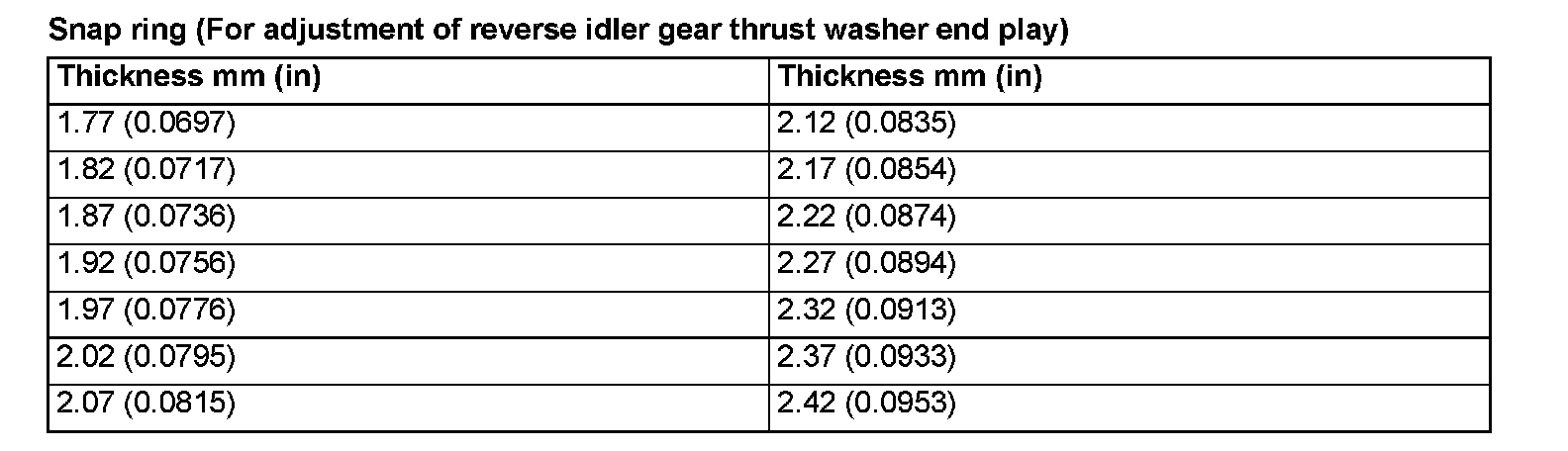

Snap ring (For adjustment of reverse idler gear thrust washer end play)

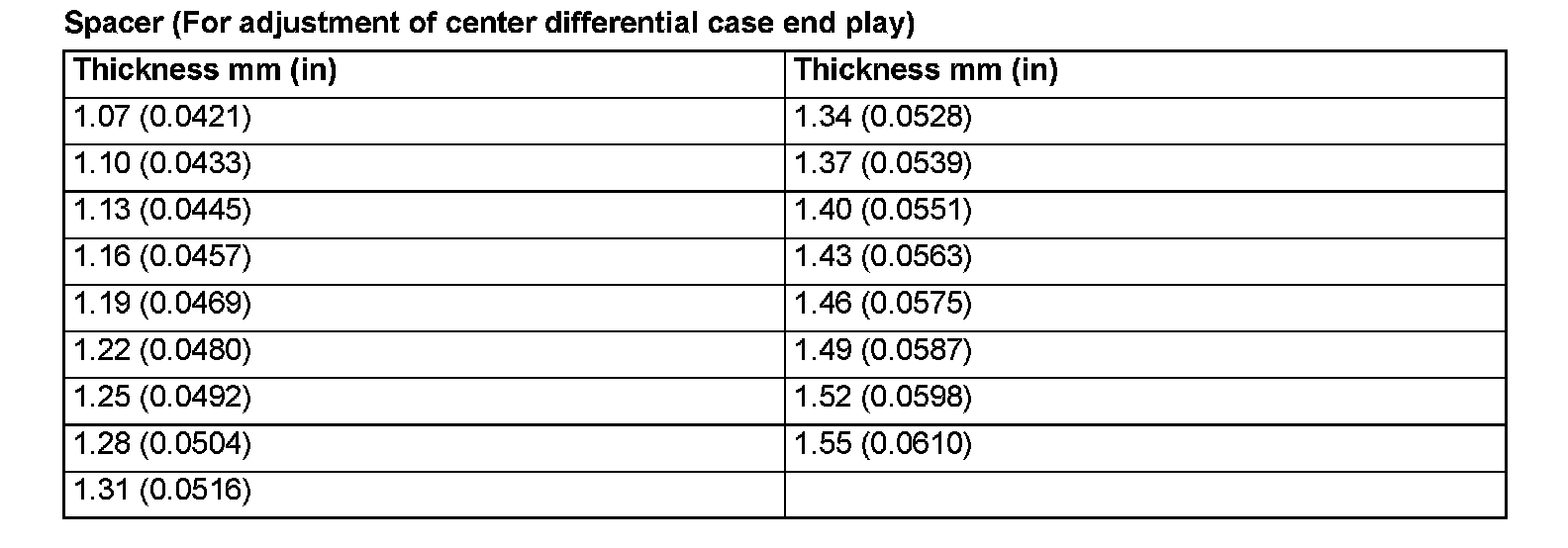

Spacer (For adjustment of center differential case end play)
