Symptom Chart

TROUBLE SYMPTOM CHART

CAUTION
During diagnosis, a DTC associated with other system may be set when the ignition switch is turned ON with connector(s) disconnected. On completion, confirm all systems for diagnostic trouble code(s). If diagnostic trouble code(s) are set, erase them all.

NOTE: For trouble symptom not mentioned, Diagnostic Trouble Code Descriptions

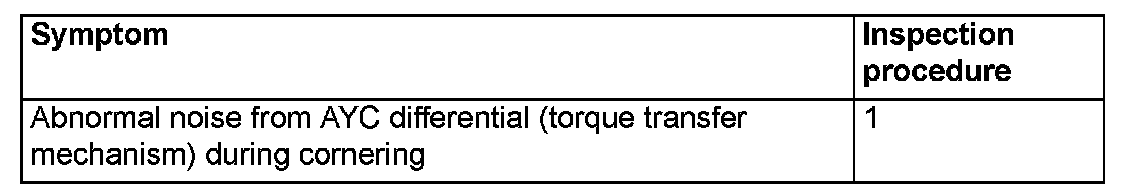

Symptom Chart:
