Disassembly and Assembly

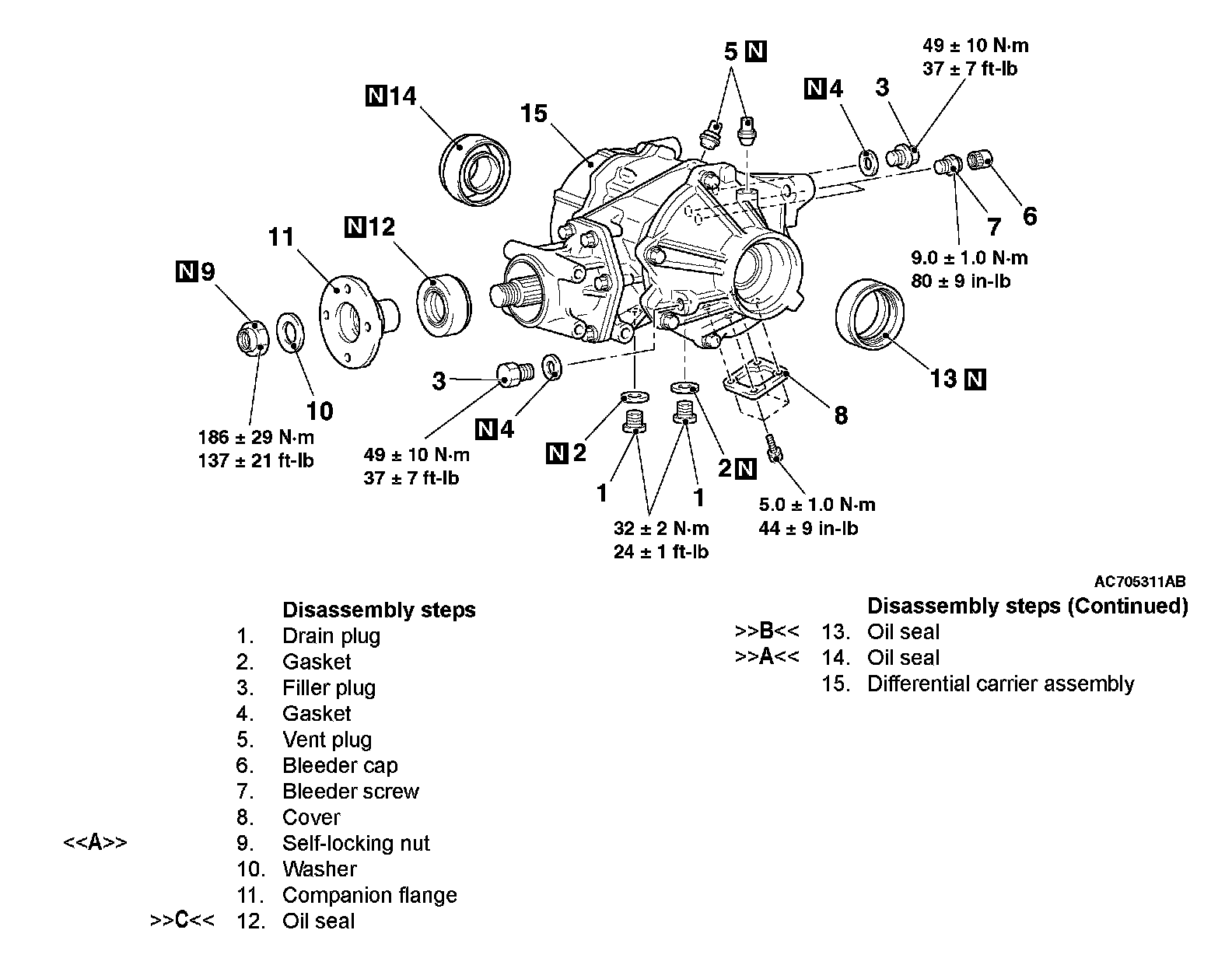

DISASSEMBLY AND REASSEMBLYDisassembly Steps 1-15:
Required Special Tools:
^ MB990727: Oil Seal Installer
^ MB990850: End Yoke Holder
^ MB990938: Installer Bar
^ MB991245: Lower Arm Bush Ring
^ MB991551: Bearing Outer Race Installer

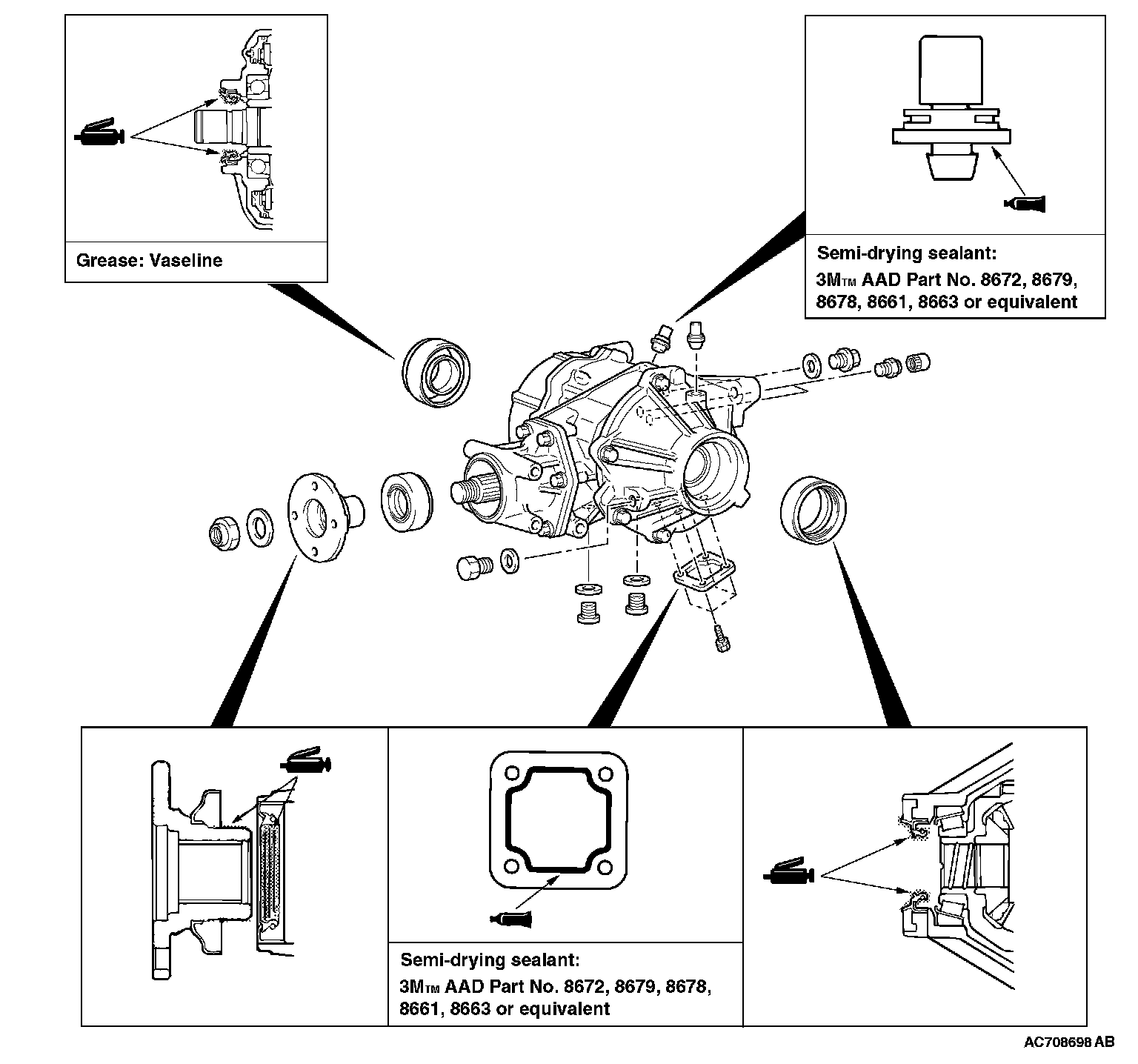

LUBRICATION AND ADHESIVE POINTS
DISASSEMBLY SERVICE POINT
[A] SELF-LOCKING NUT REMOVAL

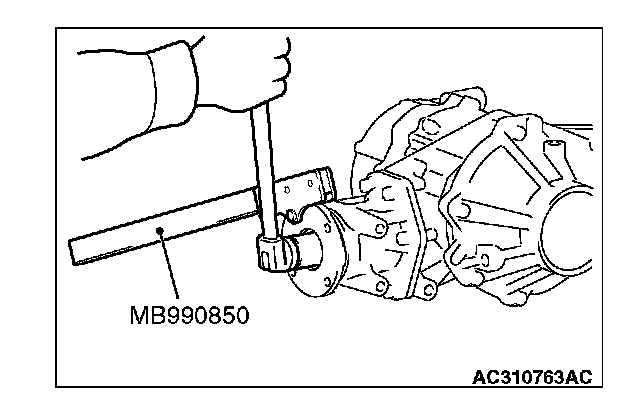

Use special tool MB990850 to hold the companion flange, and then remove the companion flange self-locking nut.
ASSEMBLY SERVICE POINTS
[A] OIL SEAL INSTALLATION

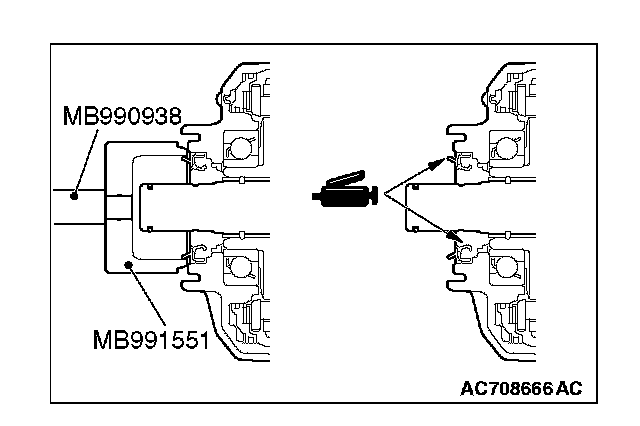

1. Use special tools MB990938 and MB991551 to press-fit the oil seal.
2. Apply specified grease to the oil seal lip and driveshaft oil seal seating area.
Specified grease: Vaseline
[B] OIL SEAL INSTALLATION

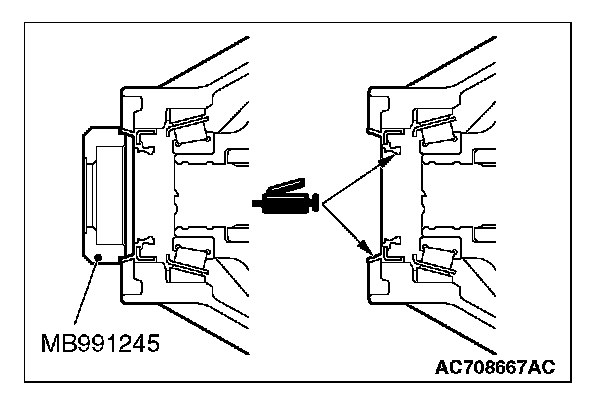

1. Use special tool MB991245 to press-fit the oil seal.
2. Apply multi-purpose grease to the oil seal lip and driveshaft oil seal seating area.
[C] OIL SEAL INSTALLATION

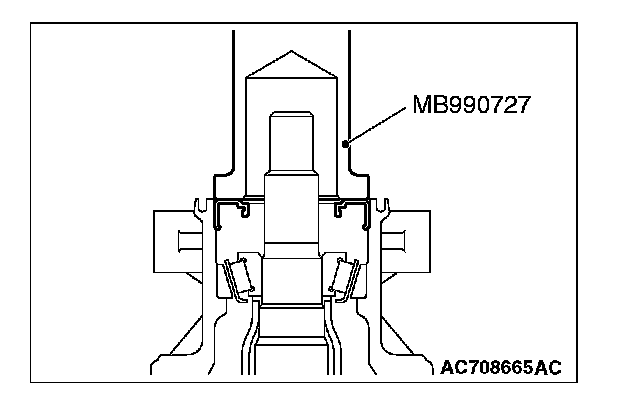

Use special tool MB990727 to press-fit the oil seal.
