Hydraulic Unit

HYDRAULIC UNIT

REMOVAL AND INSTALLATION

CAUTION
^ When connecting the reservoir hose assembly, do not apply lubricant.
^ No foreign matter should be allowed in the hydraulic unit and hose connection part.

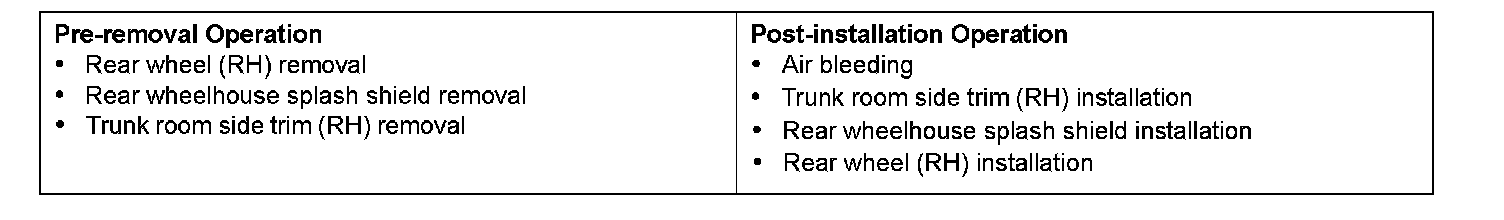

Pre-removal & Post-installation Operation:

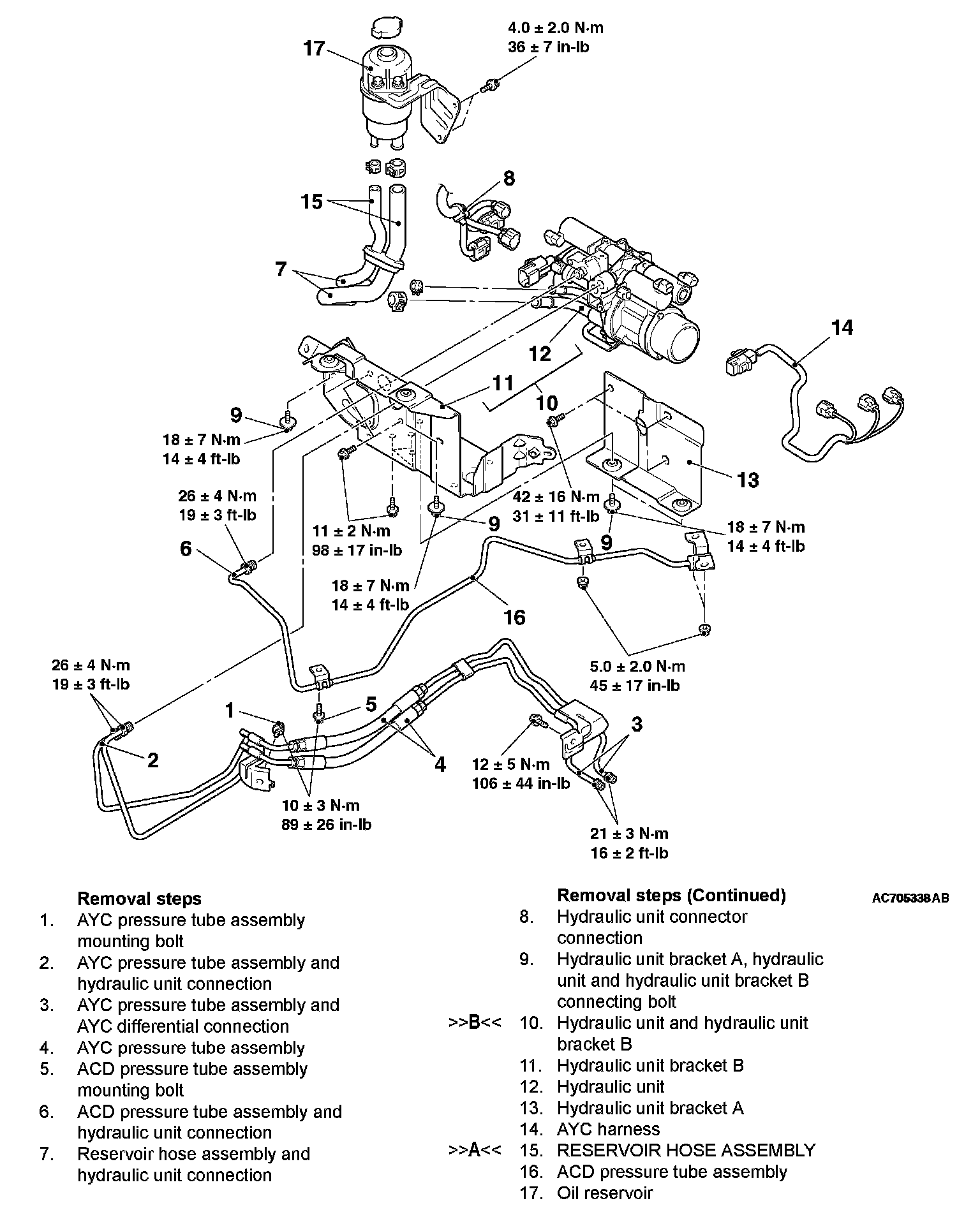

Removal Steps 1-17:

INSTALLATION SERVICE POINTS

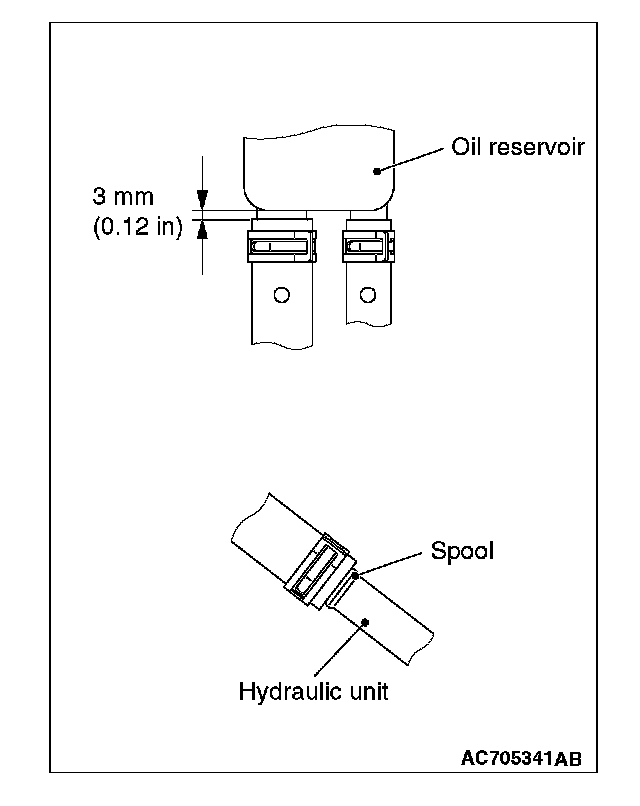

[A] RESERVOIR HOSE ASSEMBLY INSTALLATION





1. On the oil reservoir side, insert the hose to the position shown in the figure.
2. On the hydraulic unit side, insert the hose to the spool shown in the figure.

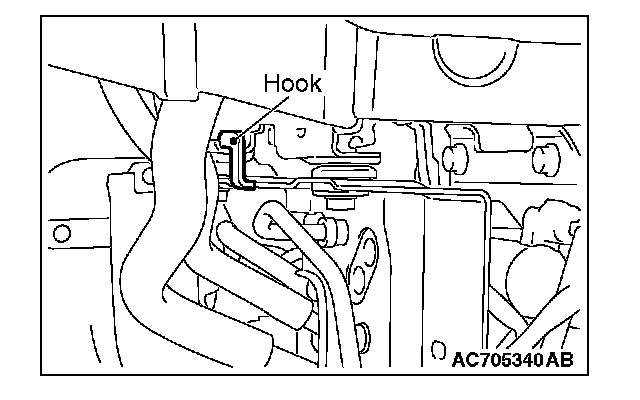

[B] HYDRAULIC UNIT AND HYDRAULIC UNIT BRACKET B INSTALLATION





Insert the hook of hydraulic unit bracket B into the body-side bracket, and tighten the installation bolt.
