Clutch: Service and Repair
CLUTCHREMOVAL AND INSTALLATION

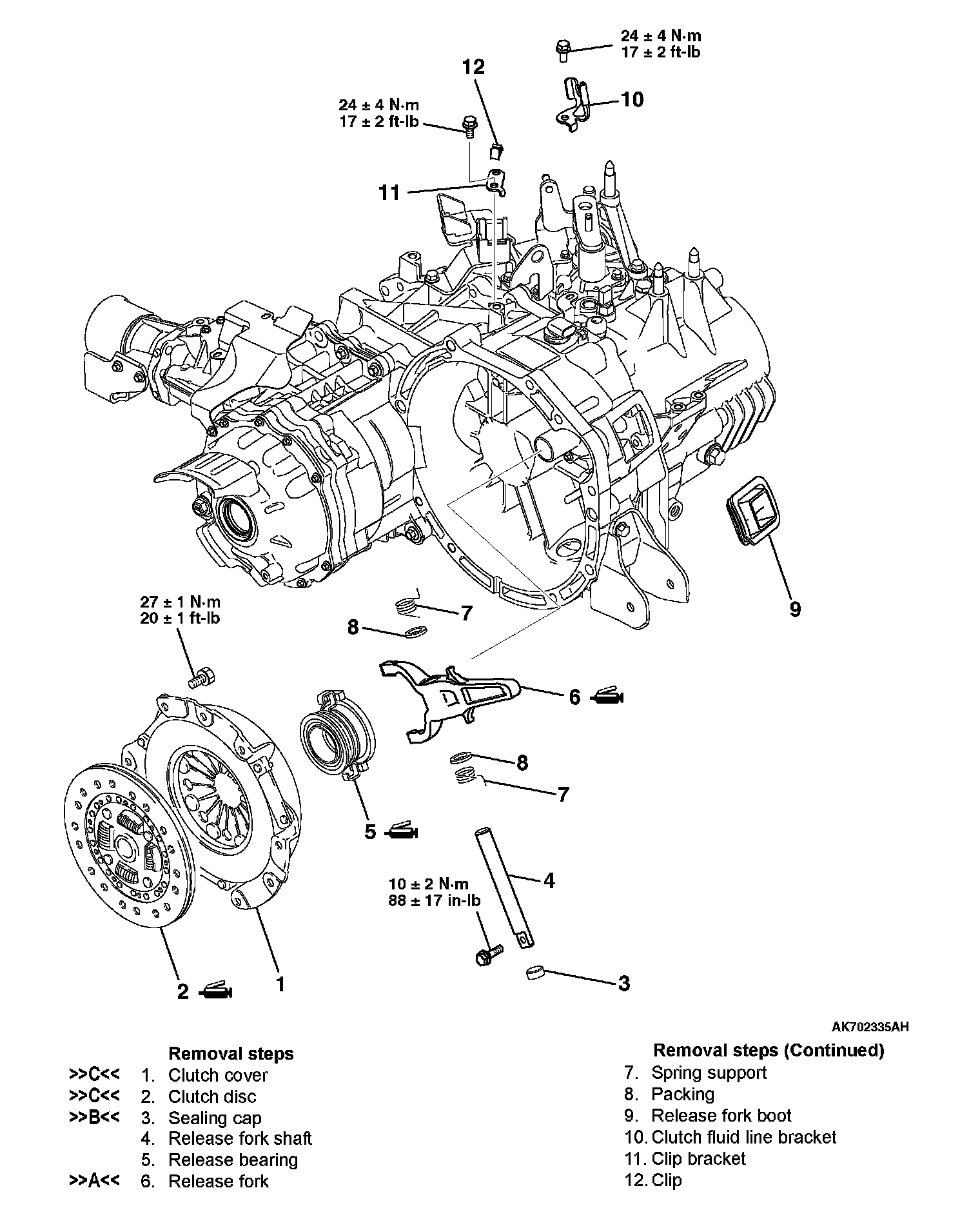

Removal Steps 1-12:
Required Special Tools:
^ MD999601: Valve stem seal installer
INSTALLATION SERVICE POINTS
[A] RELEASE FORK INSTALLATION

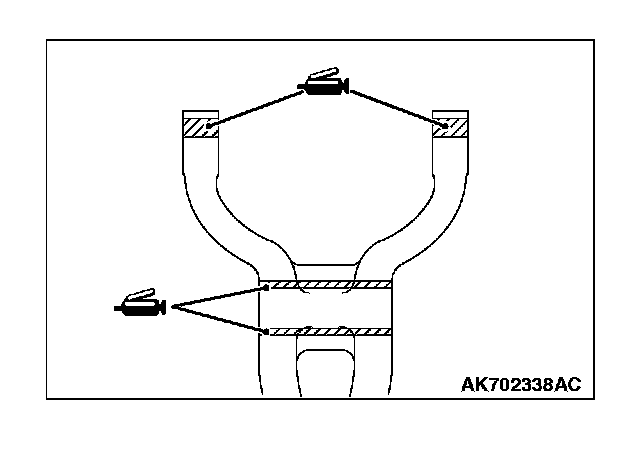

Apply specified grease to the illustrated positions of the release fork.
Specified grease: Mitsubishi Part No. 0101011 or equivalent
[B] SEALING CAP INSTALLATION

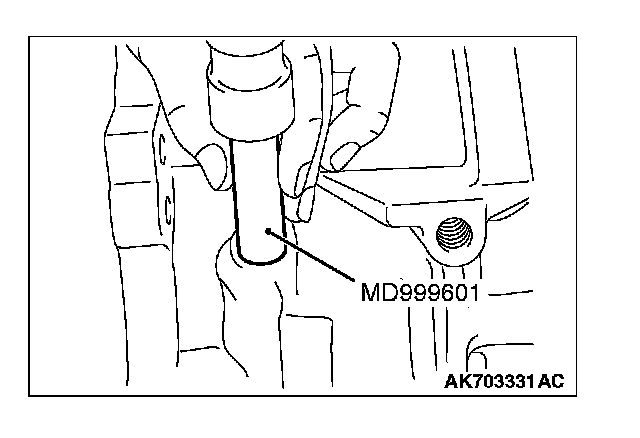

Using the special tool, MD999601, press-fit the sealing cap into the end face of the clutch housing.
[C] CLUTCH DISC / CLUTCH COVER INSTALLATION
1. Apply specified grease to the clutch disc splines.
Specified grease: Mitsubishi Part No. 0101011 or equivalent

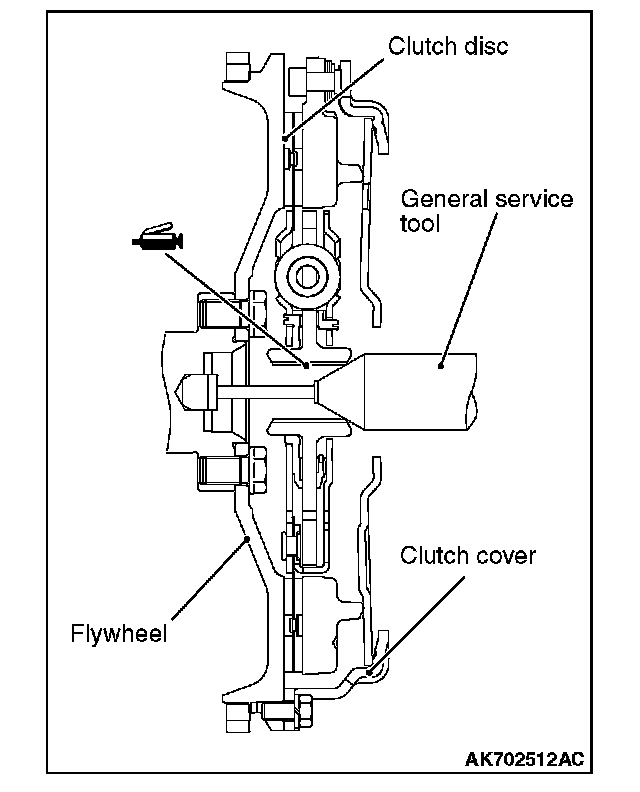

2. Using a general service tool, position the clutch disc on the flywheel
3. Install the clutch cover onto the flywheel, and tighten bolts in the diagonal order.
4. Remove the general service tool
