Removal and Replacement

CLUTCH CONTROL

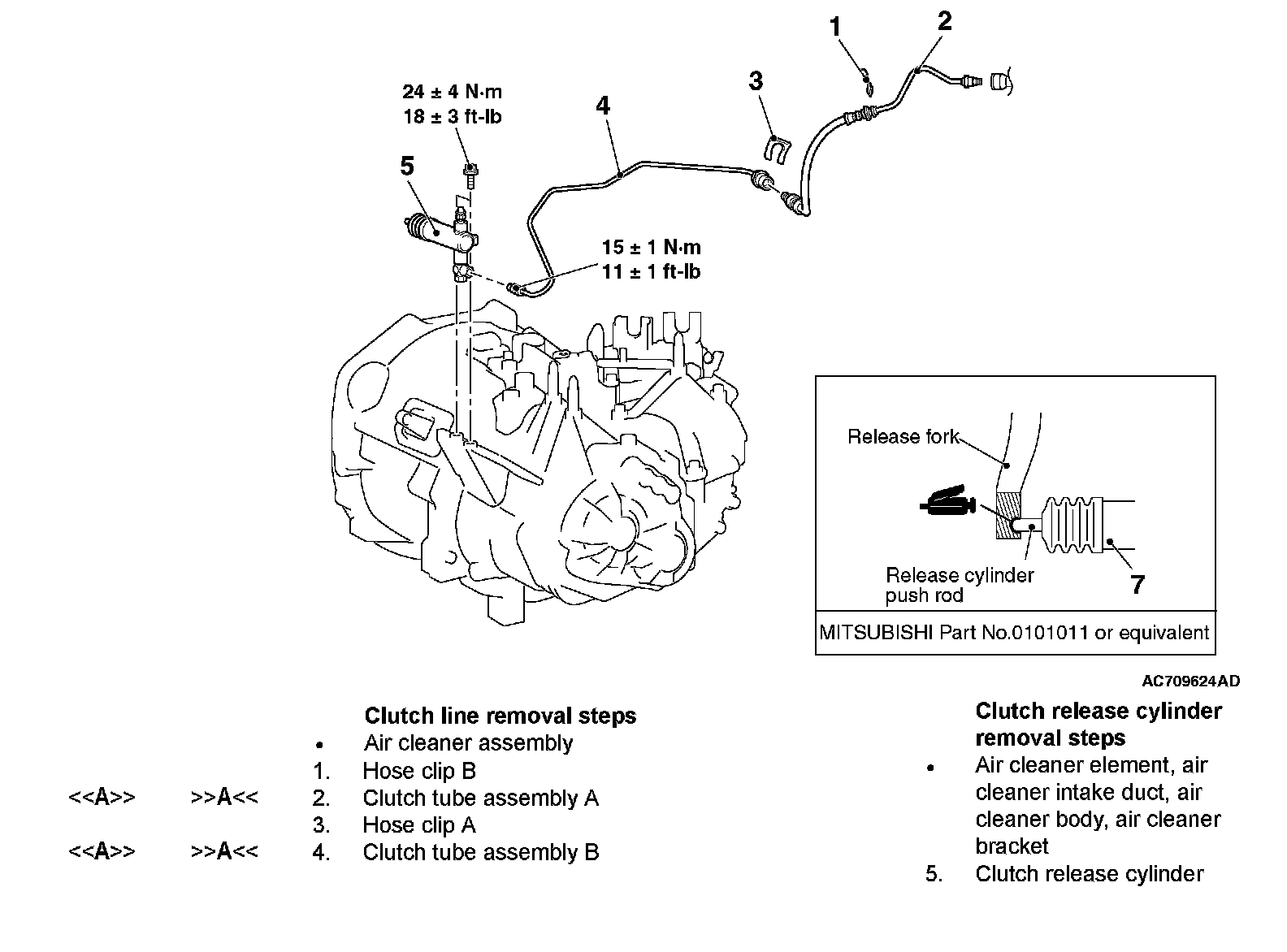

REMOVAL AND INSTALLATION

Pre-removal & Post-installation Operation:

Removal Steps 1-5:

REMOVAL SERVICE POINTS

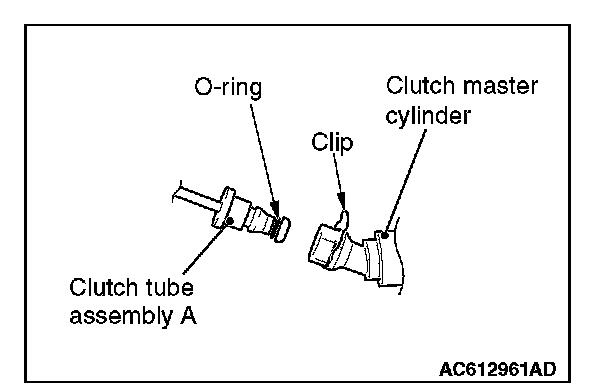

[A] CLUTCH TUBE ASSEMBLY DISCONNECTION

CAUTION

^ Do not remove O-rings and clips from the clutch tube assembly and clutch master cylinder.
^ When the O-ring or clip is damaged, always replace the relevant clutch tube assembly or clutch master cylinder.





INSTALLATION SERVICE POINTS

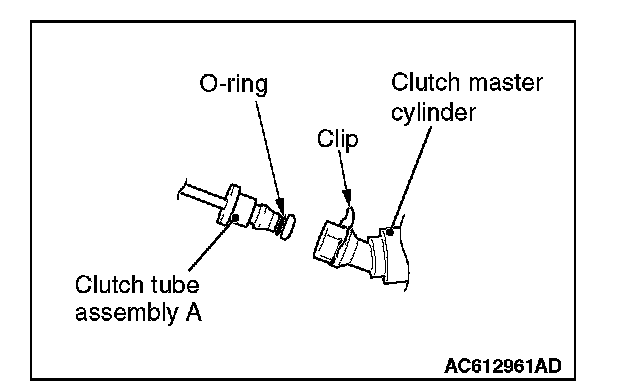

[A] CLUTCH TUBE ASSEMBLY INSTALLATION

CAUTION

^ When connecting each part, check that the O-ring and clip are not damaged.
^ If any connection area or O-ring is dirty, clean with the clutch fluid.

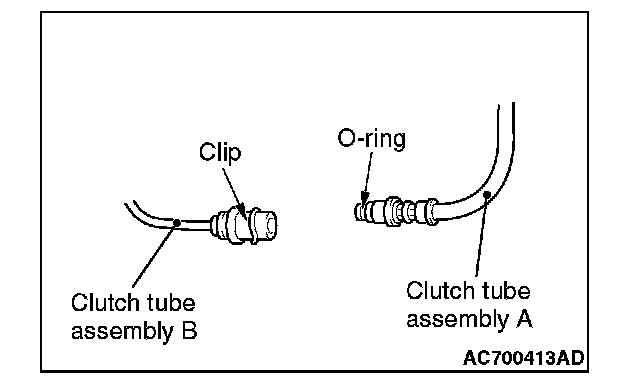

Assemble the clips to the clutch master cylinder and clutch tube assembly B. Then, connect the clutch tube assembly A.
