Mechanical Specifications
FASTENER TIGHTENING SPECIFICATIONTRANSAXLE
TRANSFER

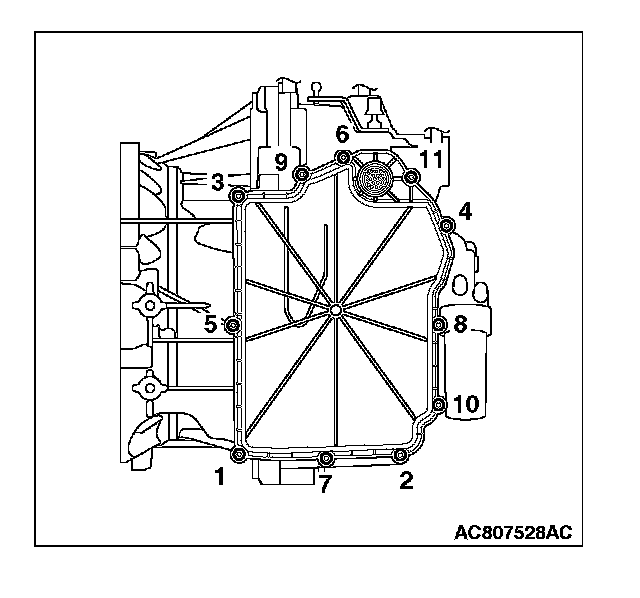

FLUID PAN
Tightening torque 10 ± 1 Nm (89 ± 8 in-lb)

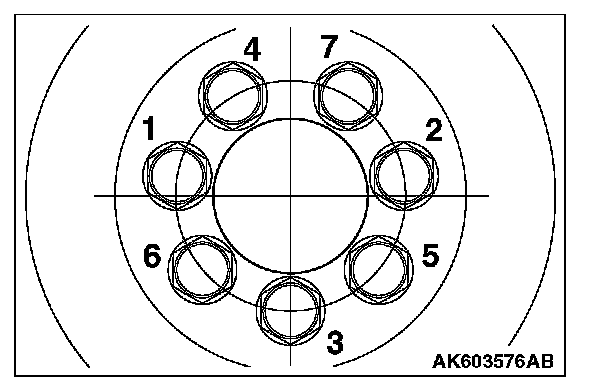

FLYWHEEL BOLT
Stage 1 40 Nm (30 ft-lb)
Stage 2 130 Nm (96 ft-lb)
TRANSAXLE
TRANSFER
FLUID PAN
Tightening torque 10 ± 1 Nm (89 ± 8 in-lb)
FLYWHEEL BOLT
Stage 1 40 Nm (30 ft-lb)
Stage 2 130 Nm (96 ft-lb)
