Navigation Radio - 'AUX' Not Displayed On A.N.D. System
No: TSB-10-54-005DATE: April, 2010
MODEL: See below
SUBJECT:
"AUX" NOT DISPLAYED ON AUDIO NAVIGATION DISPLAY (A.N.D.) SYSTEM
PURPOSE

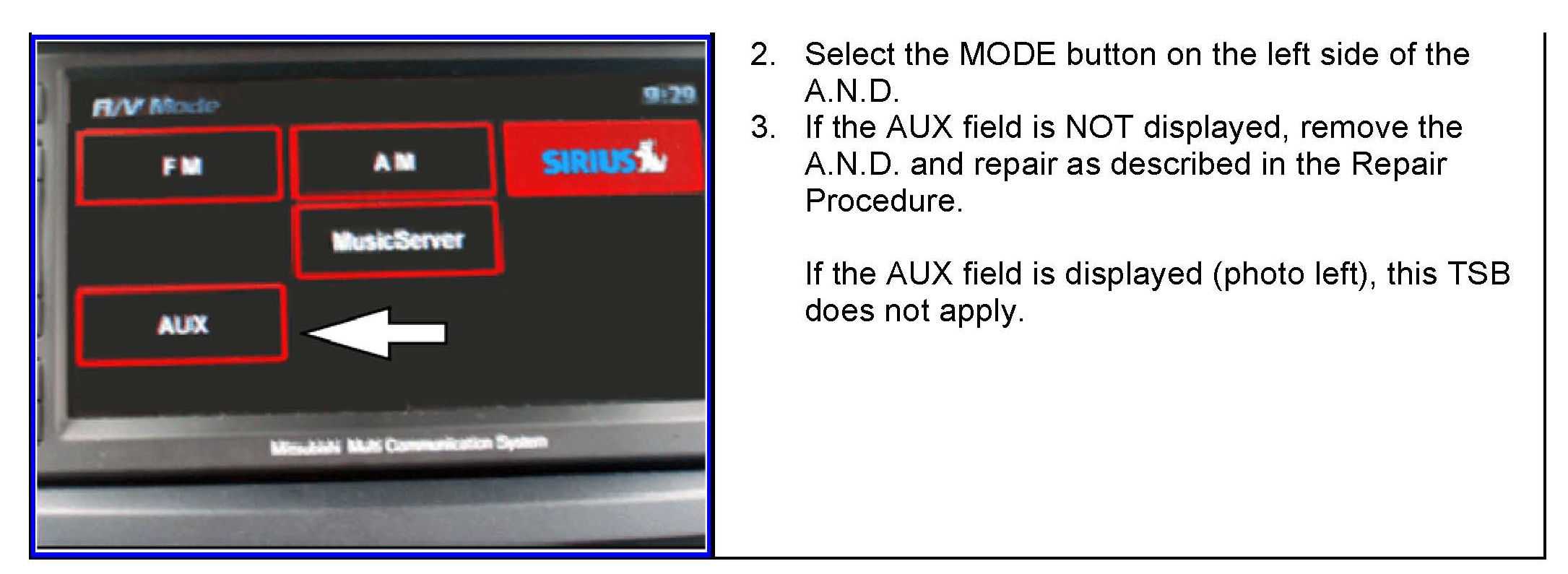

The audio AUX mode will not be displayed or function on the port or dealer installed accessory Audio Navigation Display (A.N.D.) System. The condition is due to a missing ground for the RCA circuit detection wire which prevents the A.N.D. System from recognizing an auxiliary playback device.
REPAIR PROCEDURE

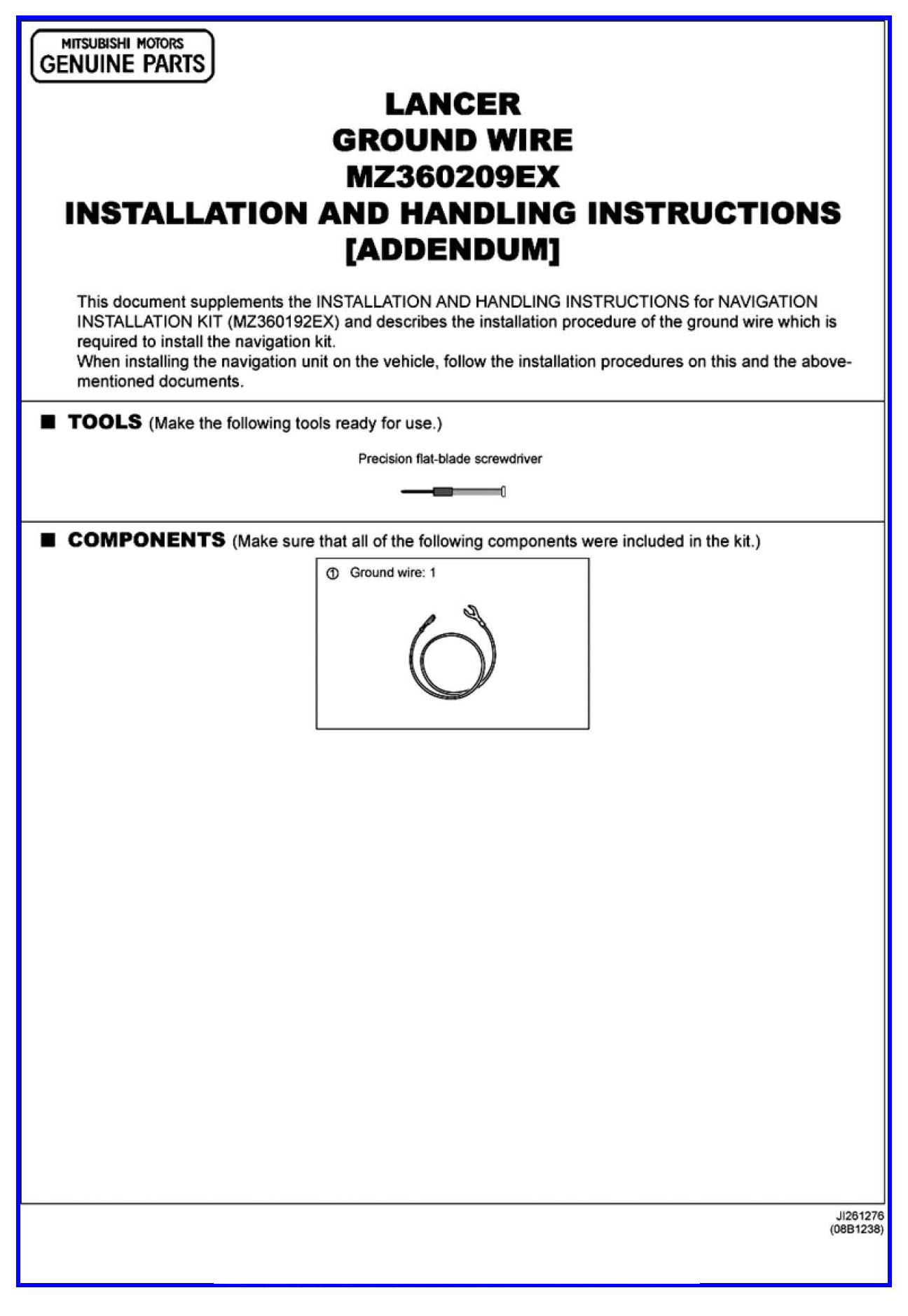

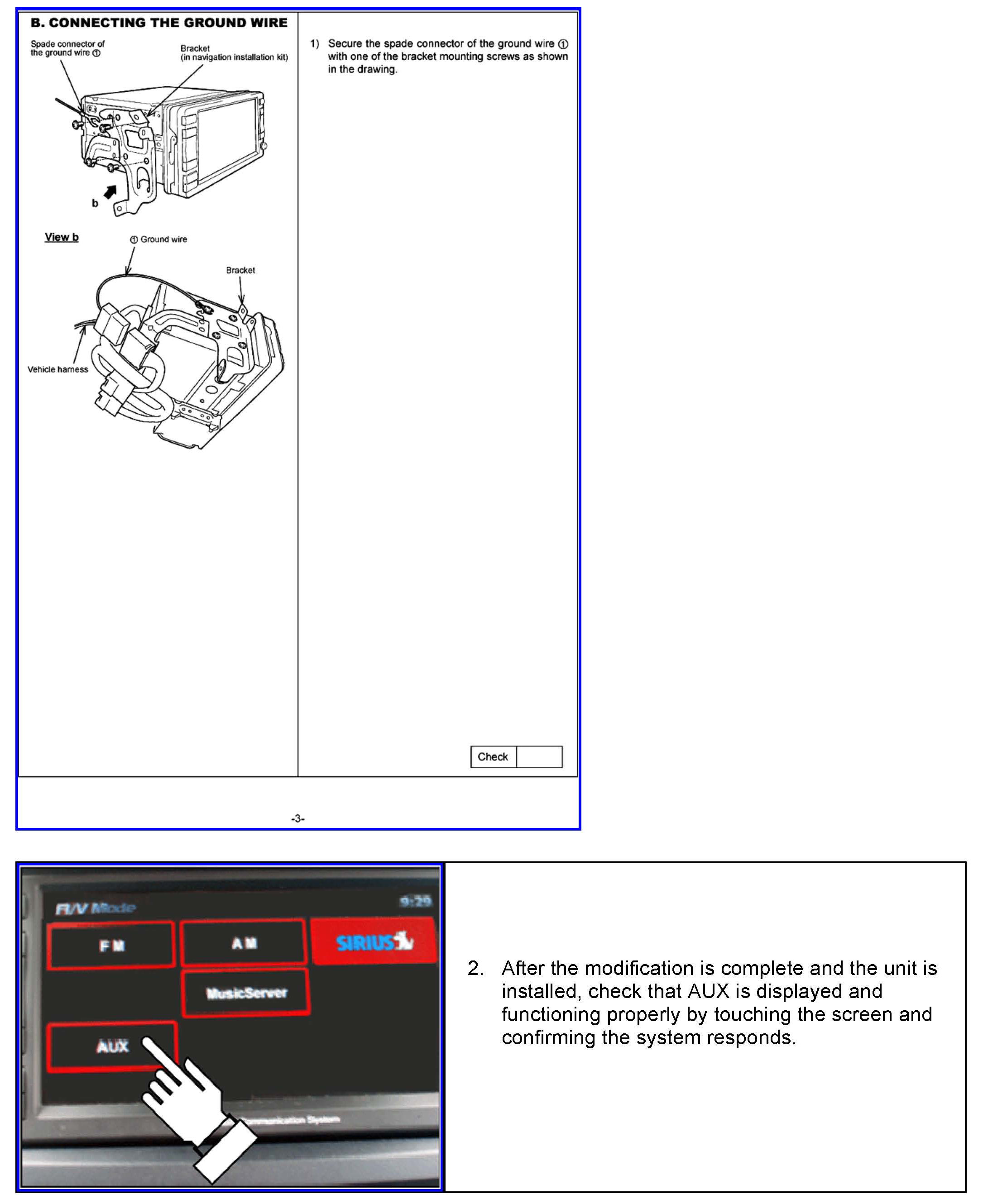

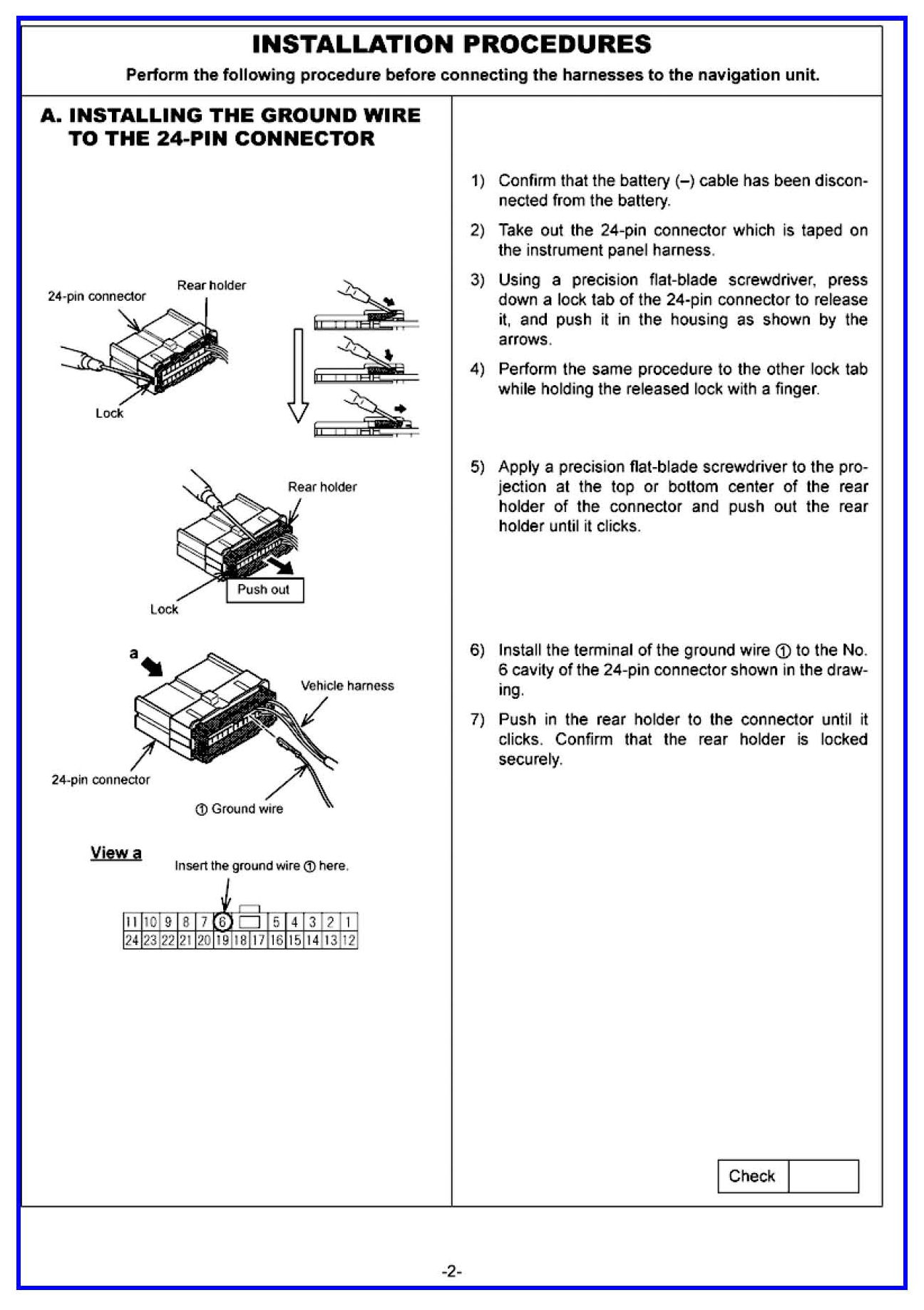

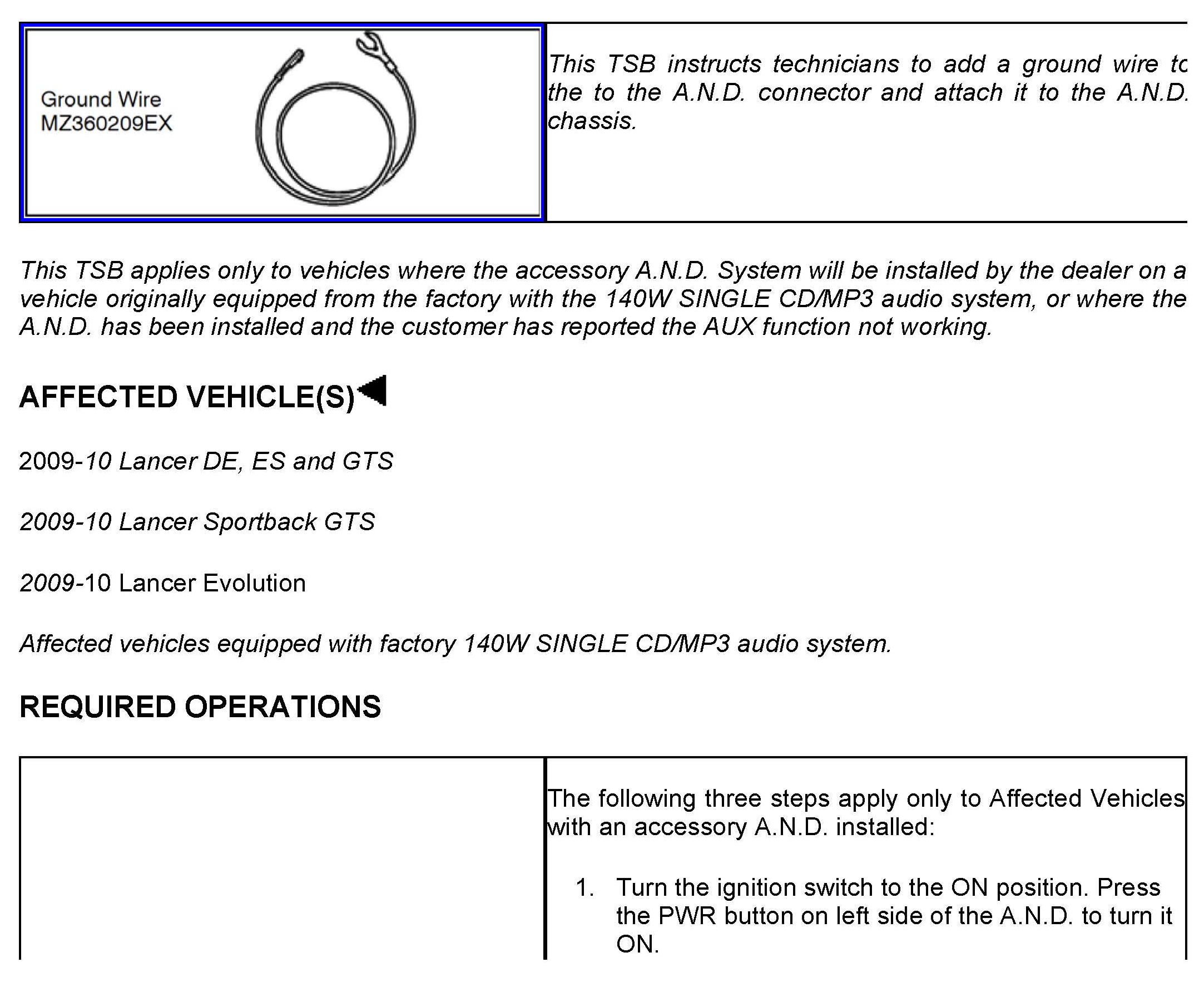

1. Install a ground wire (MZ360209EX) to the A.N.D. according to the following instructions. NOTE: The instructions are also packaged with the ground wire.

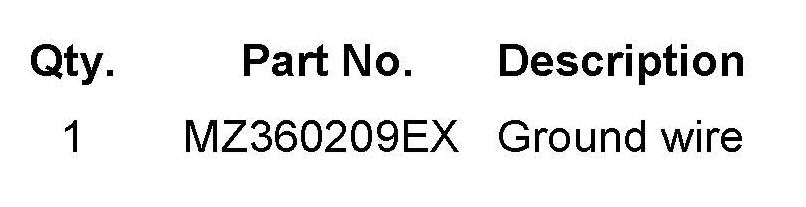

REQUIRED PARTS
WARRANTY INFORMATION

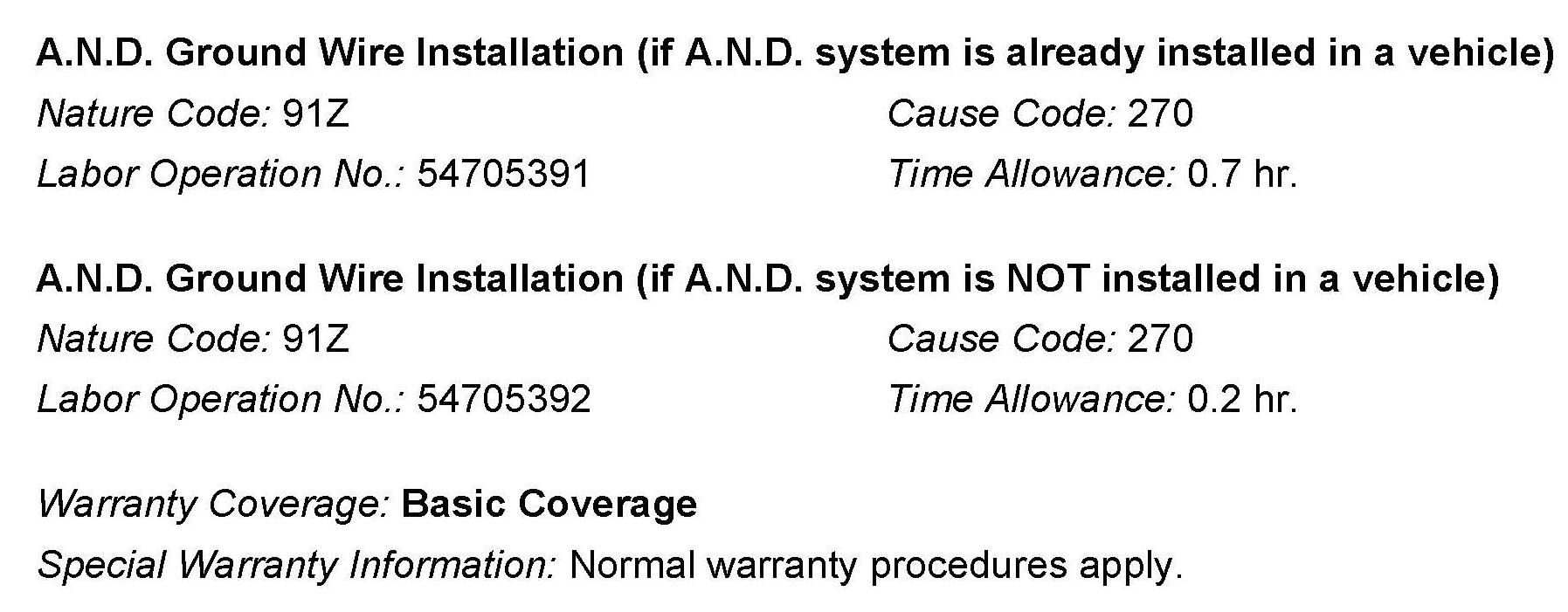

If an affected vehicle is already equipped with an accessory dealer or port installed A.N.D. System remove the CD/MP3 player repair as described in this bulletin and submit a normal warranty claim using the appropriate labor operation below.
If the dealer will install an accessory A.N.D. System in an affected vehicle add a ground wire as described in this bulletin and submit a normal warranty claim using the appropriate labor operation below.
