Lighting - Revised Stop Light Switch Installation/Adjustment
No: TSB-12-35-003DATE: December, 2012
MODEL: See below
SUBJECT:
STOP LIGHT SWITCH INSTALLATION AND ADJUSTMENT - SERVICE MANUAL REVISION
[TSB Revision: TSB-12-35-003]
PURPOSE
This TSB clarifies the stop light switch installation and adjustment procedure in the affected service manuals.
AFFECTED VEHICLES
2007-2012 Outlander
2008-2012 Lancer
2008-2012 Lancer Evolution
2009-2012 Lancer Sportback
2011-2013 Outlander Sport
AFFECTED SERVICE MANUALS
2007-2012 Outlander Service Manual Group 35A: Basic Brake System > On-Vehicle Service > Brake Pedal Inspection
2011-2013 Outlander Sport Service Manual Group 35A: Basic Brake System > On-Vehicle Service > Brake Pedal Inspection
2008-2012 Lancer Evolution Service Manual Group 35A: Basic Brake System > On-Vehicle Service > Brake Pedal Inspection
2008-2010 Lancer Service Manual Group 35A: Basic Brake > On-Vehicle Service > Brake Pedal Check and Adjustment
2009-2010 Lancer Sportback Service Manual Group 35A: Basic Brake System > On-Vehicle Service > Brake Pedal Check and Adjustment
2011-2012 Lancer/Lancer Sportback Service Manual Group 35A: Basic Brake System > On-Vehicle Service> Brake Pedal Check and Adjustment

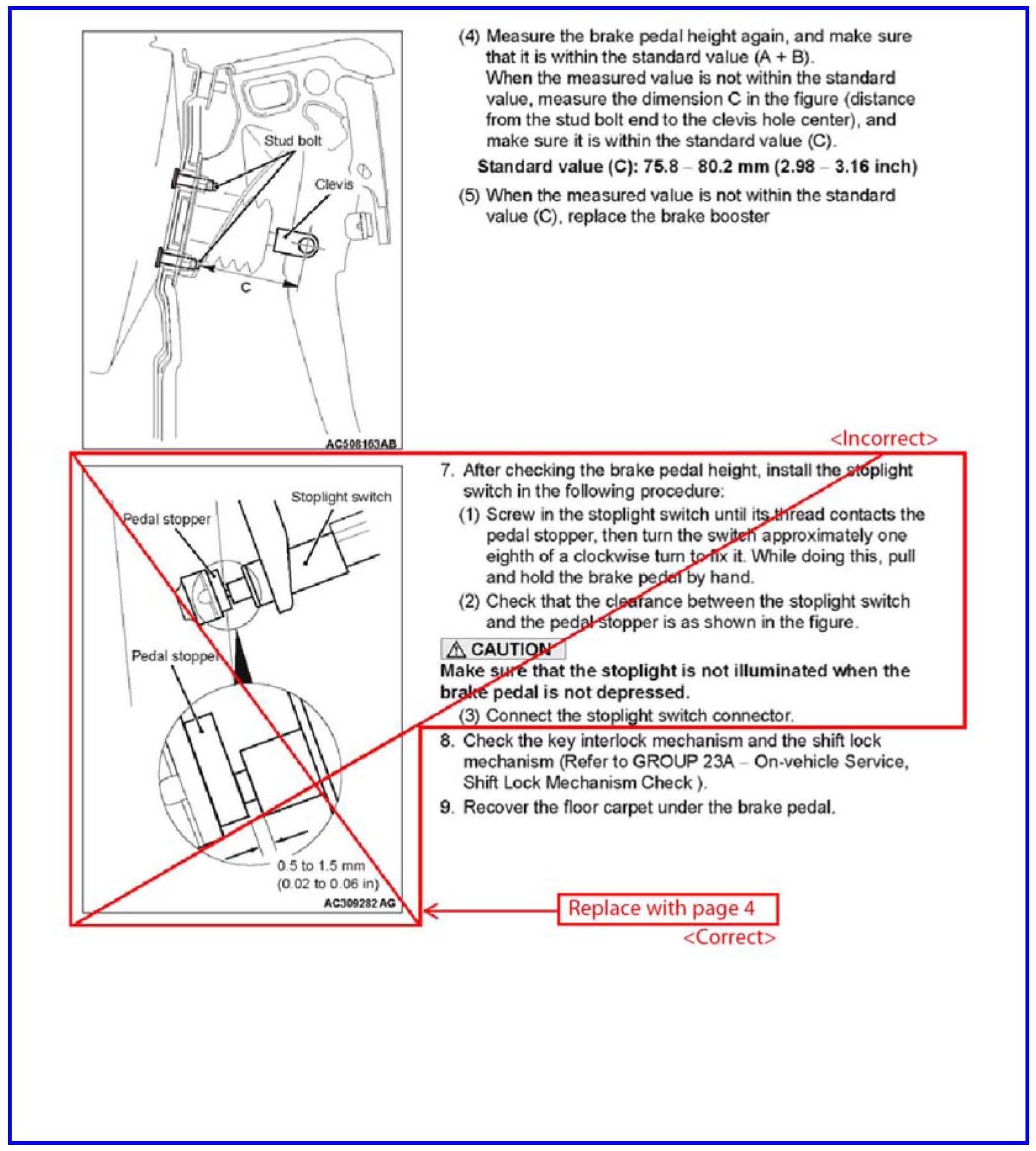

Apply the following changes to:
2007-2013 Outlander Service Manual Group 35A: Basic Brake System > On-Vehicle Service > Brake Pedal Inspection
2011-2013 Outlander Sport Service Manual Group 35A: Basic Brake System > On-Vehicle Service > Brake Pedal Inspection

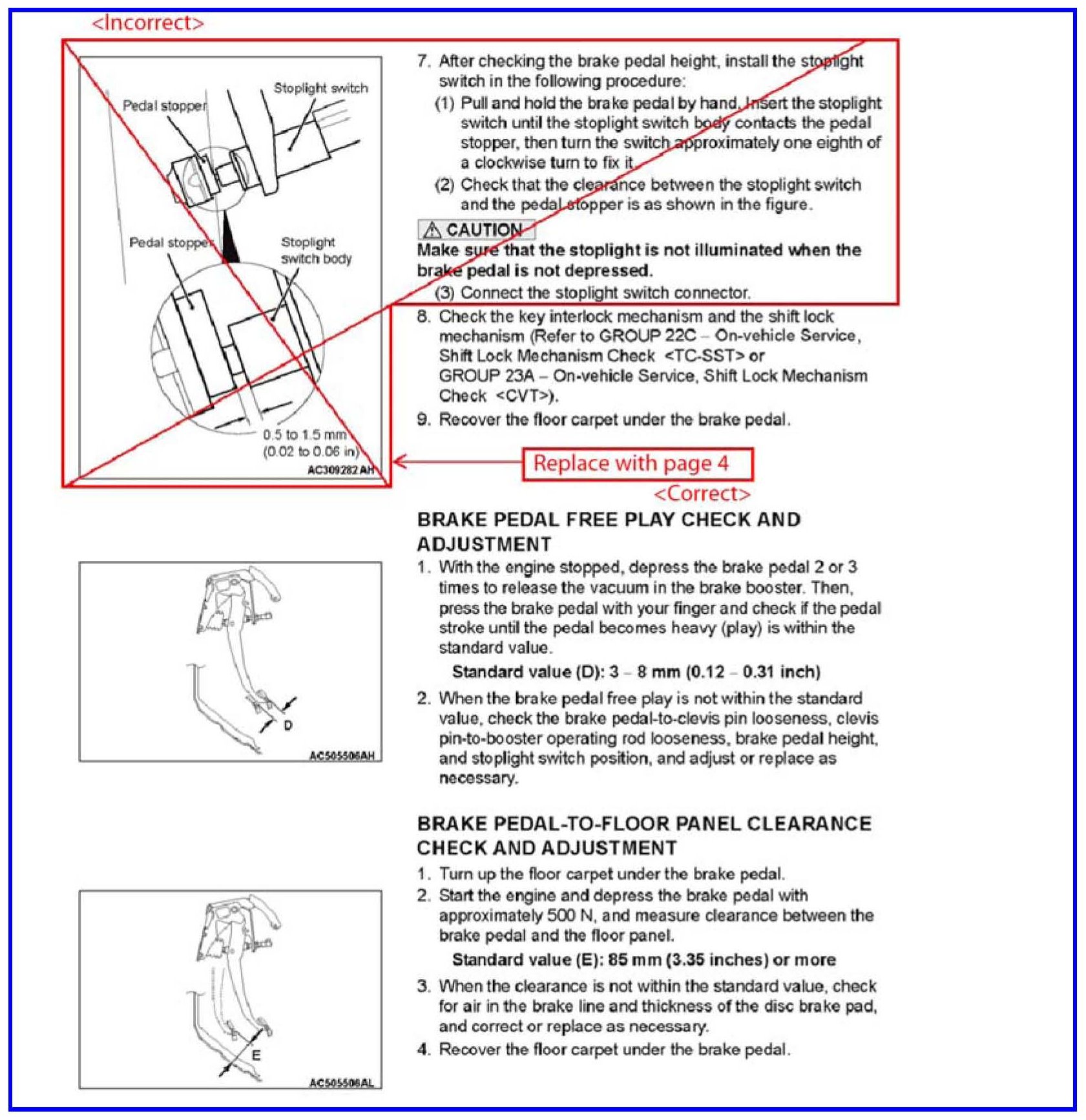

Apply the following changes to:
2008-2013 Lancer Evolution Service Manual Group 35A: Basic Brake System > On-Vehicle Service > Brake Pedal Inspection
2008-2010 Lancer Service Manual Group 35A: Basic Brake > On-Vehicle Service > Brake Pedal Check and Adjustment
2009-2010 Lancer Sportback Service Manual Group 35A: Basic Brake System > On-Vehicle Service > Brake Pedal Check and Adjustment
2011-2013 Lancer/Lancer Sportback Service Manual Group 35A: Basic Brake System >

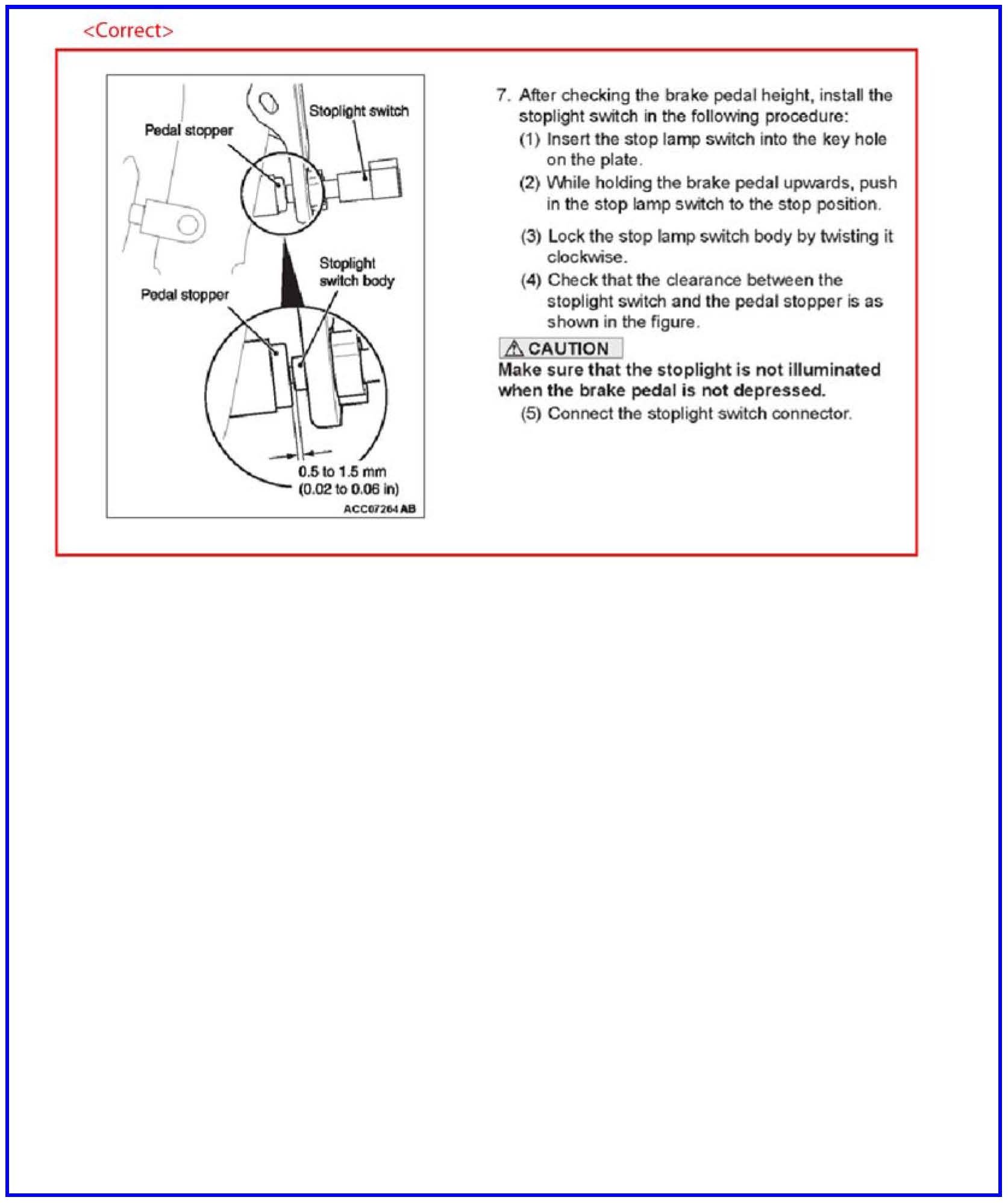

Insert the information where indicated.
