Drivetrain - Revised Center Differential Service Proc.
No: TSB-11-22-001DATE: March, 2011
MODEL: 2008-10 Lancer
SUBJECT:
CENTER DIFFERENTIAL ASSEMBLY SERVICE PROCEDURE - SERVICE MANUAL REVISION
[TSB Revision: TSB- 11-22-001]
PURPOSE
Center differential sub-assemblies for manual transaxle are now available for the affected vehicles. New service procedures must be followed for these components. This bulletin provides new center differential service procedures for the affected service manuals.
AFFECTED VEHICLES
2008 - 2010 Lancer Evolution M/T models
AFFECTED SERVICE MANUALS
2008 Lancer Evolution pages 22B-3 22B-4 22B-53 thru -55
2009 Lancer Evolution pages 22B-3 22B-4 22B-52 thru -54
2010 Lancer Evolution pages 22B-3 22B-4 22B-52 thru -54

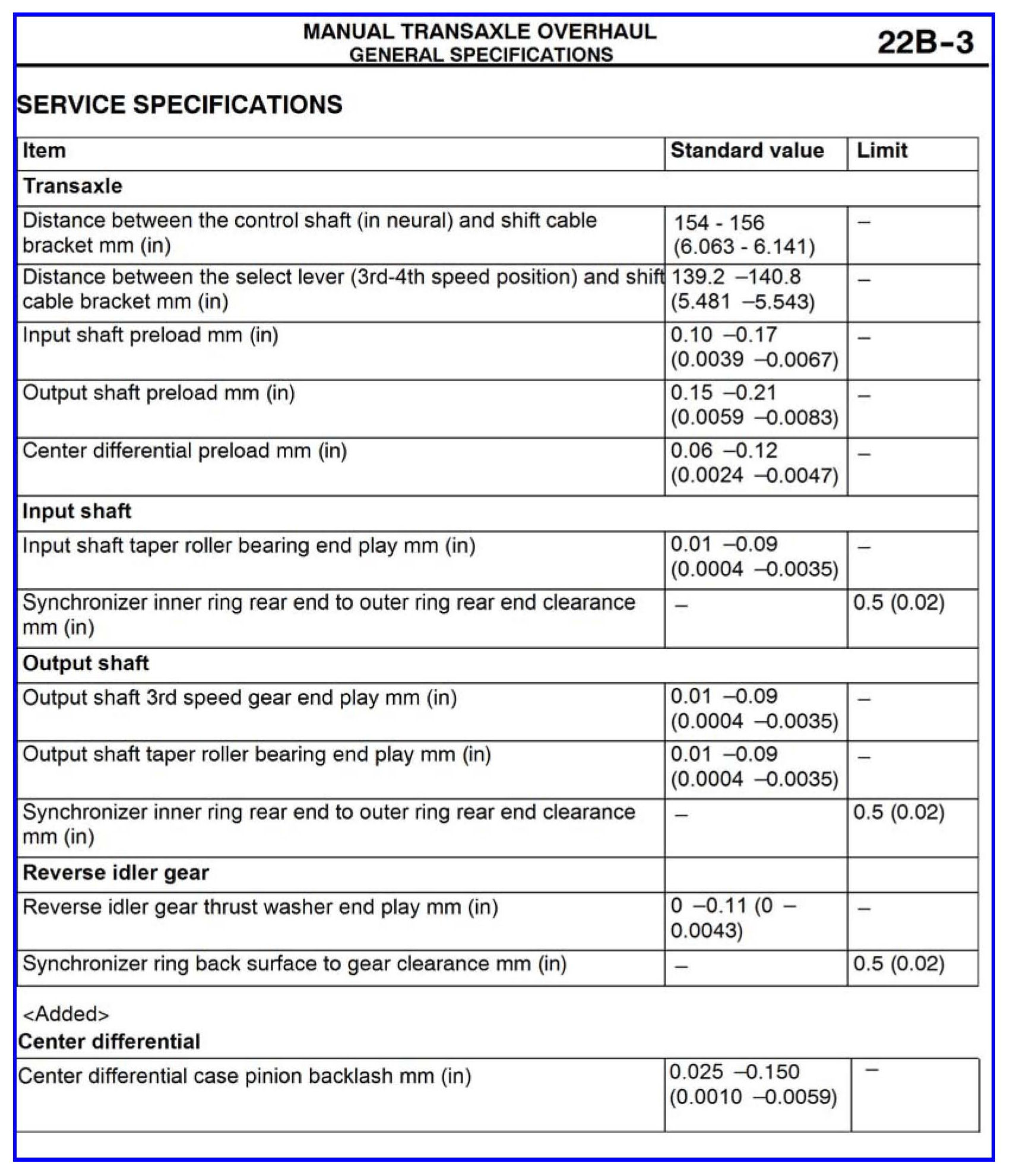

2008 Lancer Evolution, page 22B-3

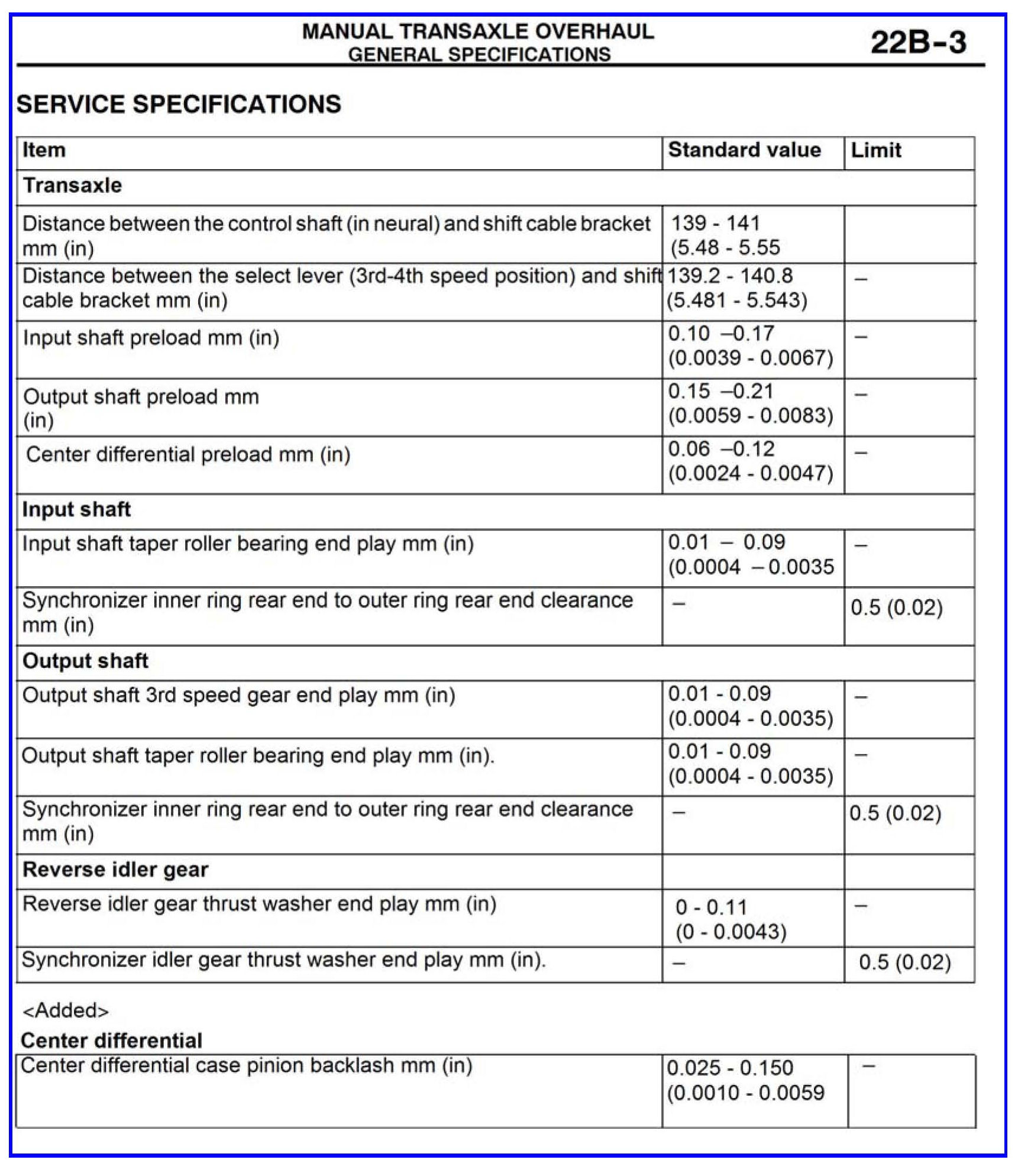

2009 & 2010 Lancer Evolution page 22B-3

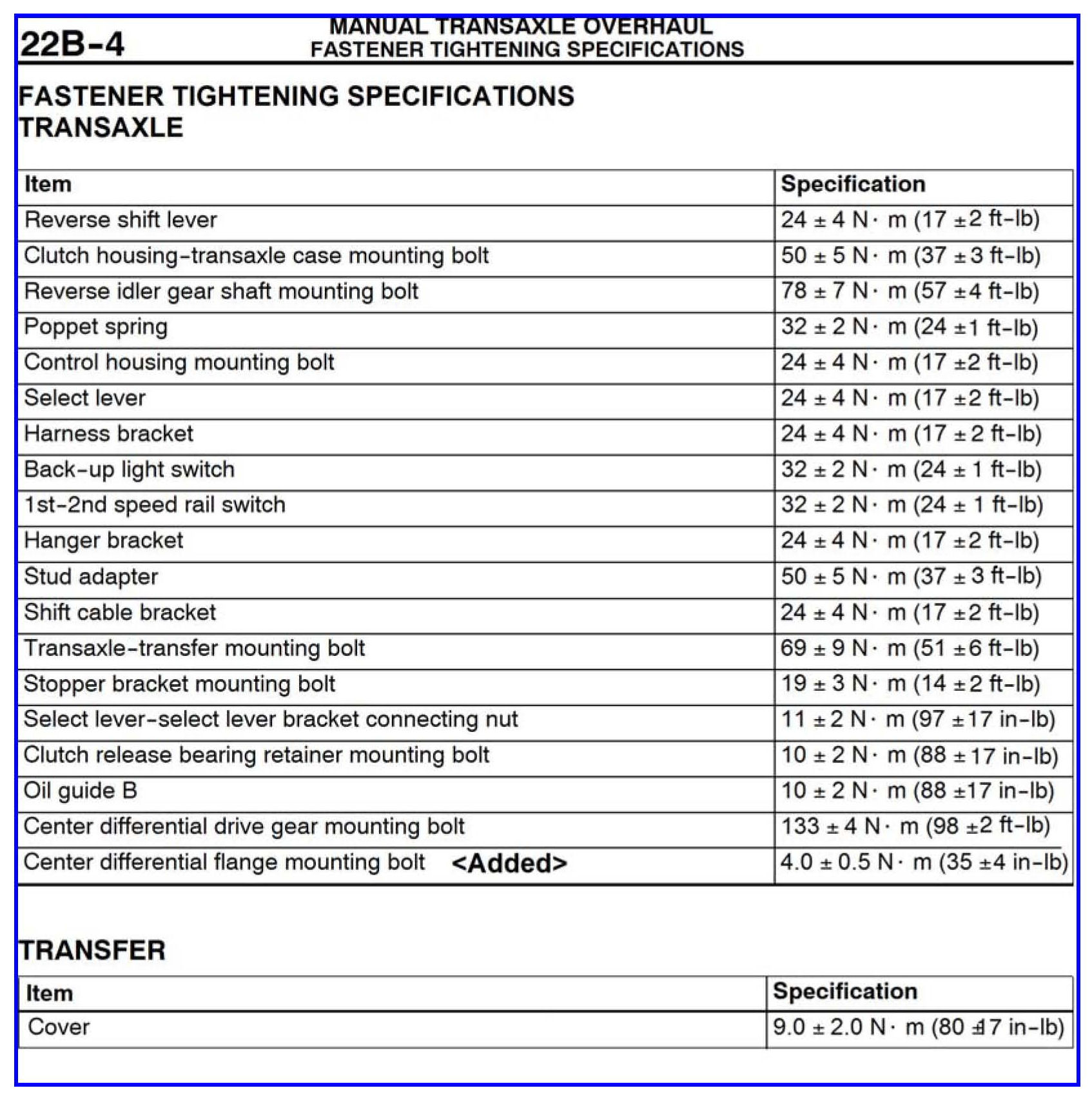

2008 2009 & 2010 Lancer Evolution page 22B-4

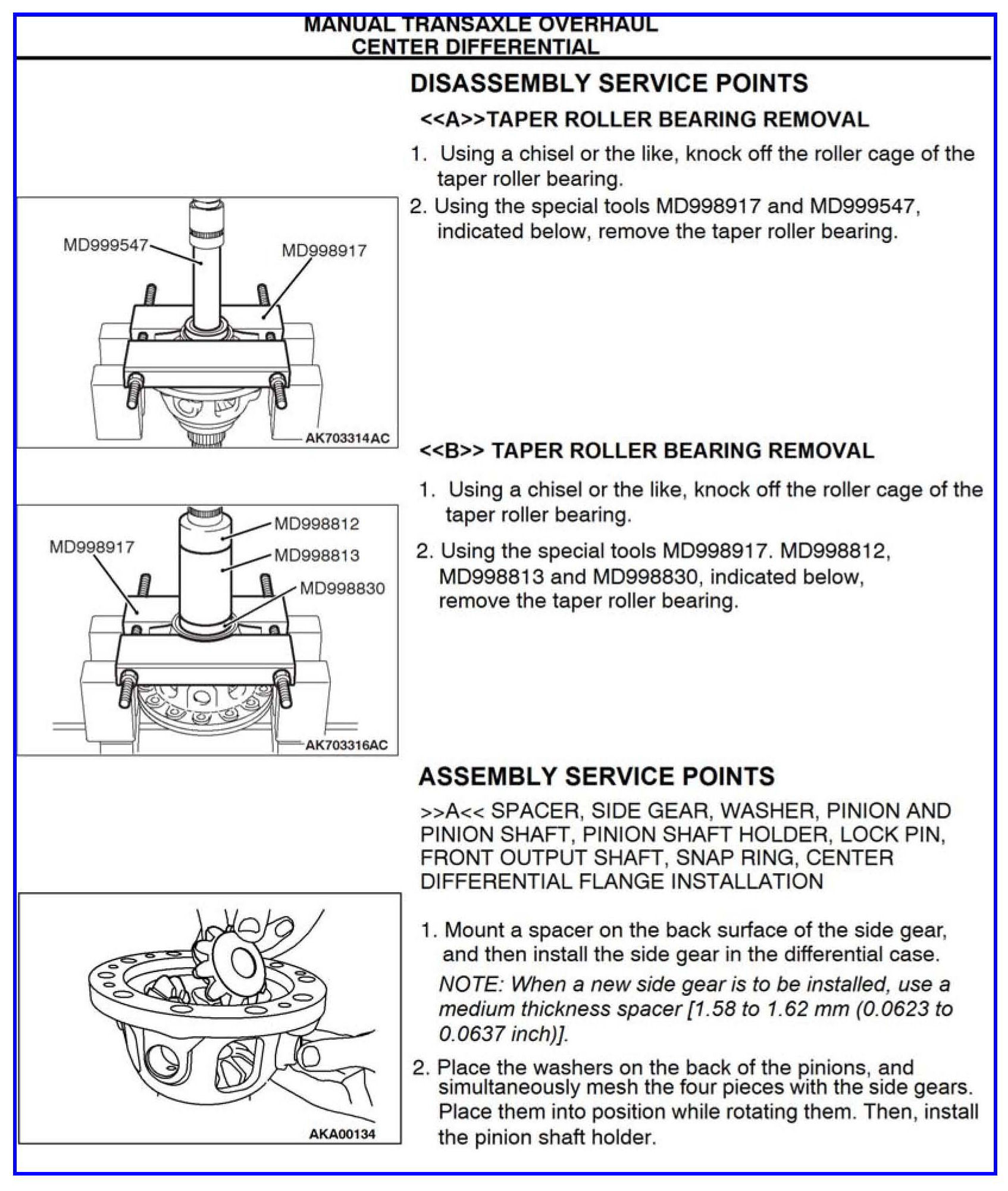

2008 Lancer Evolution page 22B-53; 2009 & 2010 Lancer Evolution page 22B-52 Replace the Center Differential service information with the following:

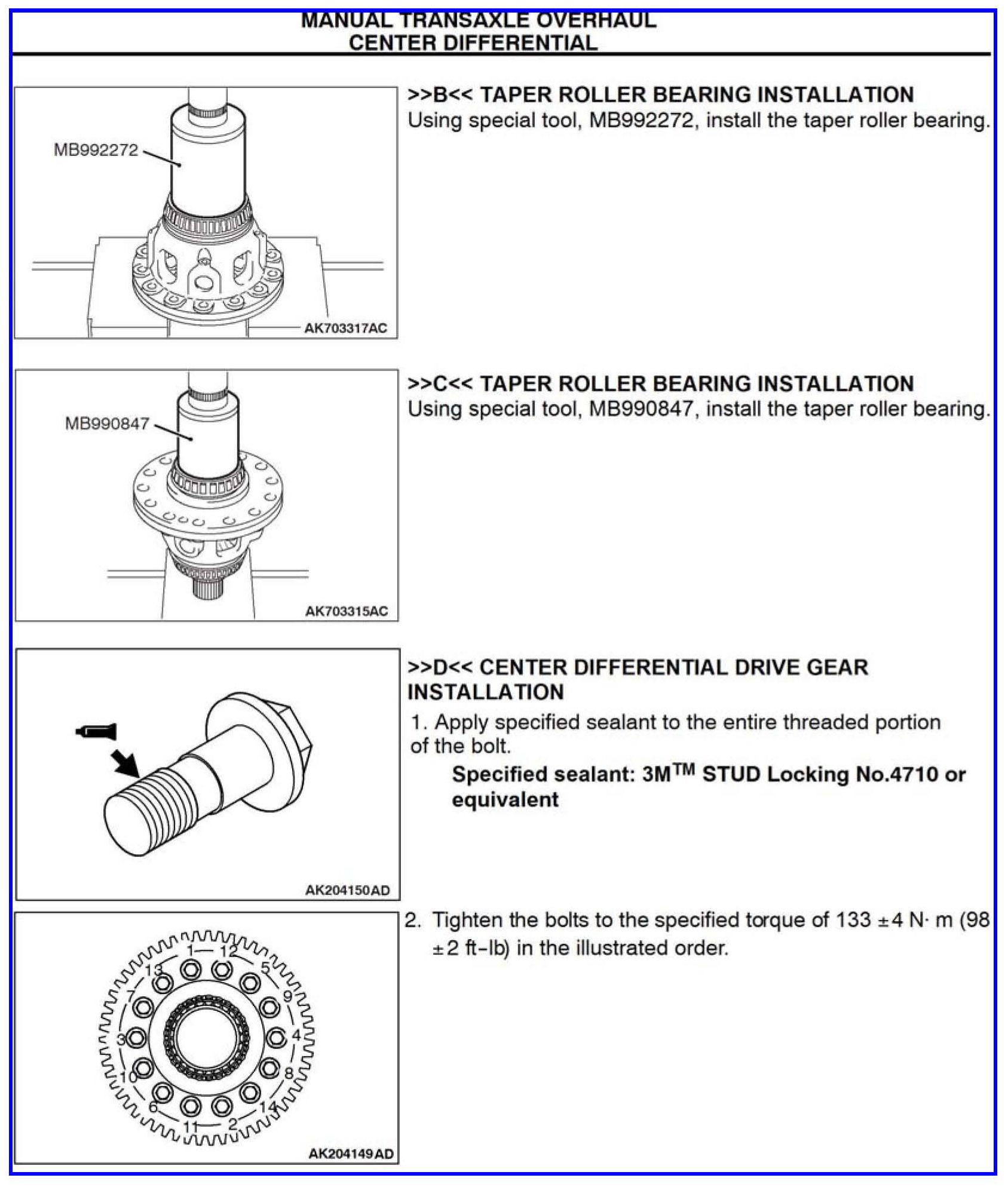

2008 Lancer Evolution page 22B-54; 2009 & 2010 Lancer Evolution page 22B-53 Replace the Center Differential service information with the following:

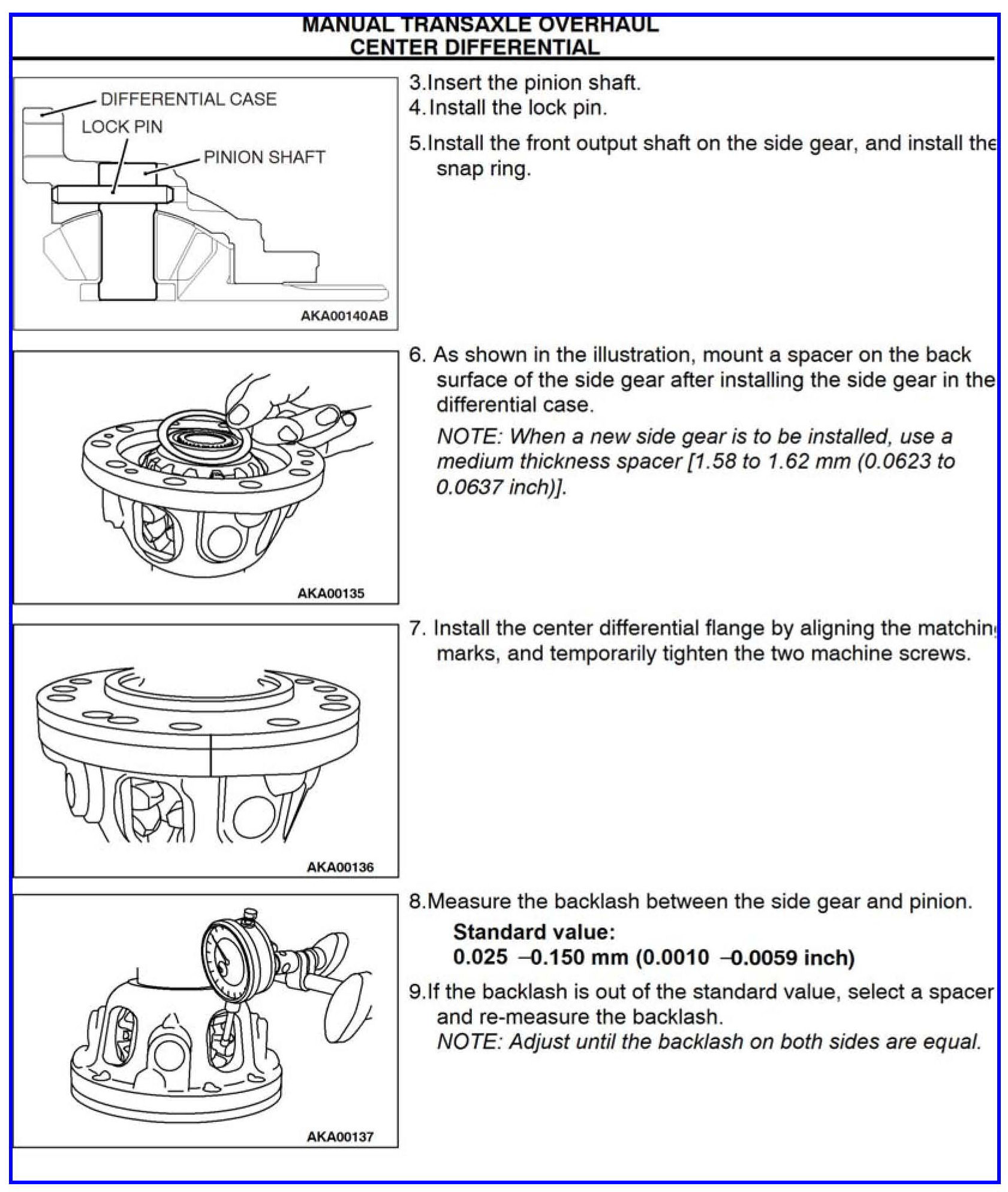

2008 Lancer Evolution page 22B-55; 2009 & 2010 Lancer Evolution page 22B-54 Replace the Center Differential service information with the following:
2008 Lancer Evolution page 22B-56; 2009 & 2010 Lancer Evolution page 22B-55 Replace the Center Differential service information with the following:
