Phone Testing and Diagnosis

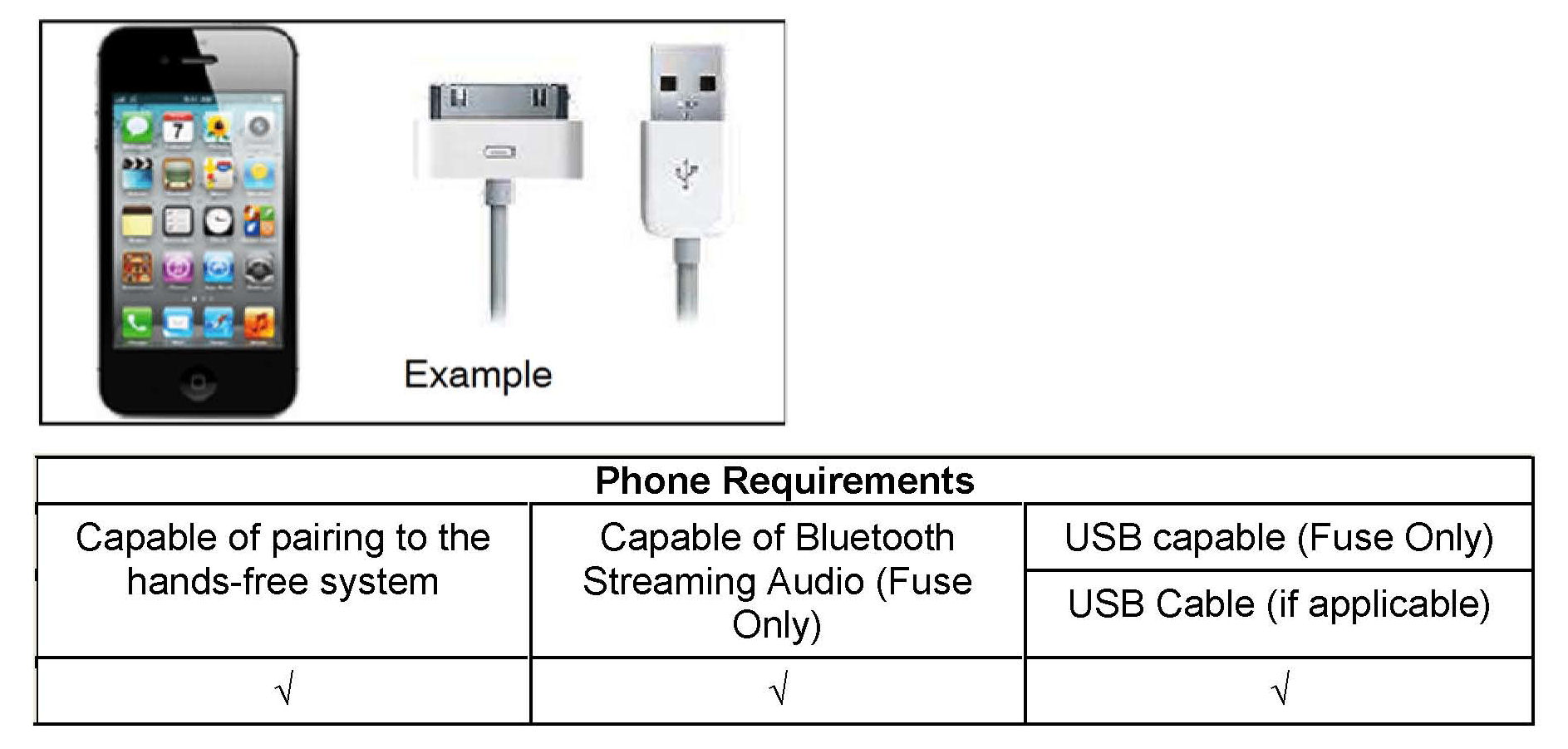

Use a Bluetooth compatible phone and applicable USB cable (see
www.mitsubishicars.com/owners and select Technology Features for a list of compatible phones).





The USB cable may be phone specific. Use the cable recommended by the phone manufacturer.

Validation and Identification of Test Phone

Prior to testing with a compatible phone, it must be paired to a known good vehicle and pass the following tests.

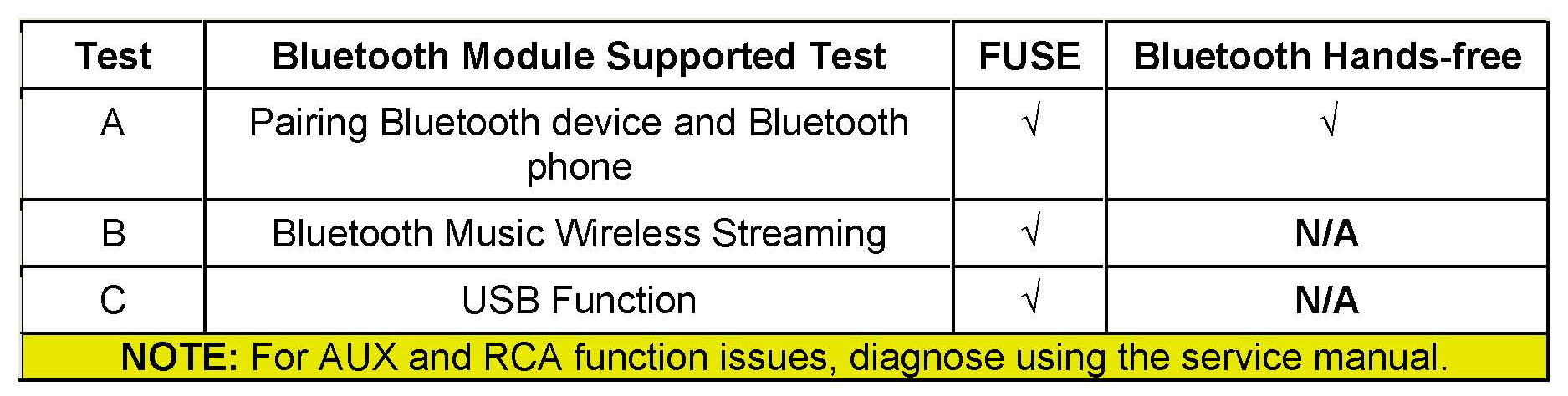

Based on the customer's symptoms and the hands-free system, complete the
following tests.

If the phone passes all tests applicable to the vehicle's hands-free system, it is an acceptable test phone.

!! IMPORTANT !! - The test phone must be reconfirmed if its software is updated.

Phone Test Preparation

1. Turn the phone on.

2. Confirm the phone's Bluetooth connection is turned on.

3. Remove all other Bluetooth devices (headphones, laptops, other phones, etc.) from the vehicle.

Audio System Preparation

1. Turn the ignition switch to the ACC position.

2. Turn on the audio system.

3. Set mode to AM or FM

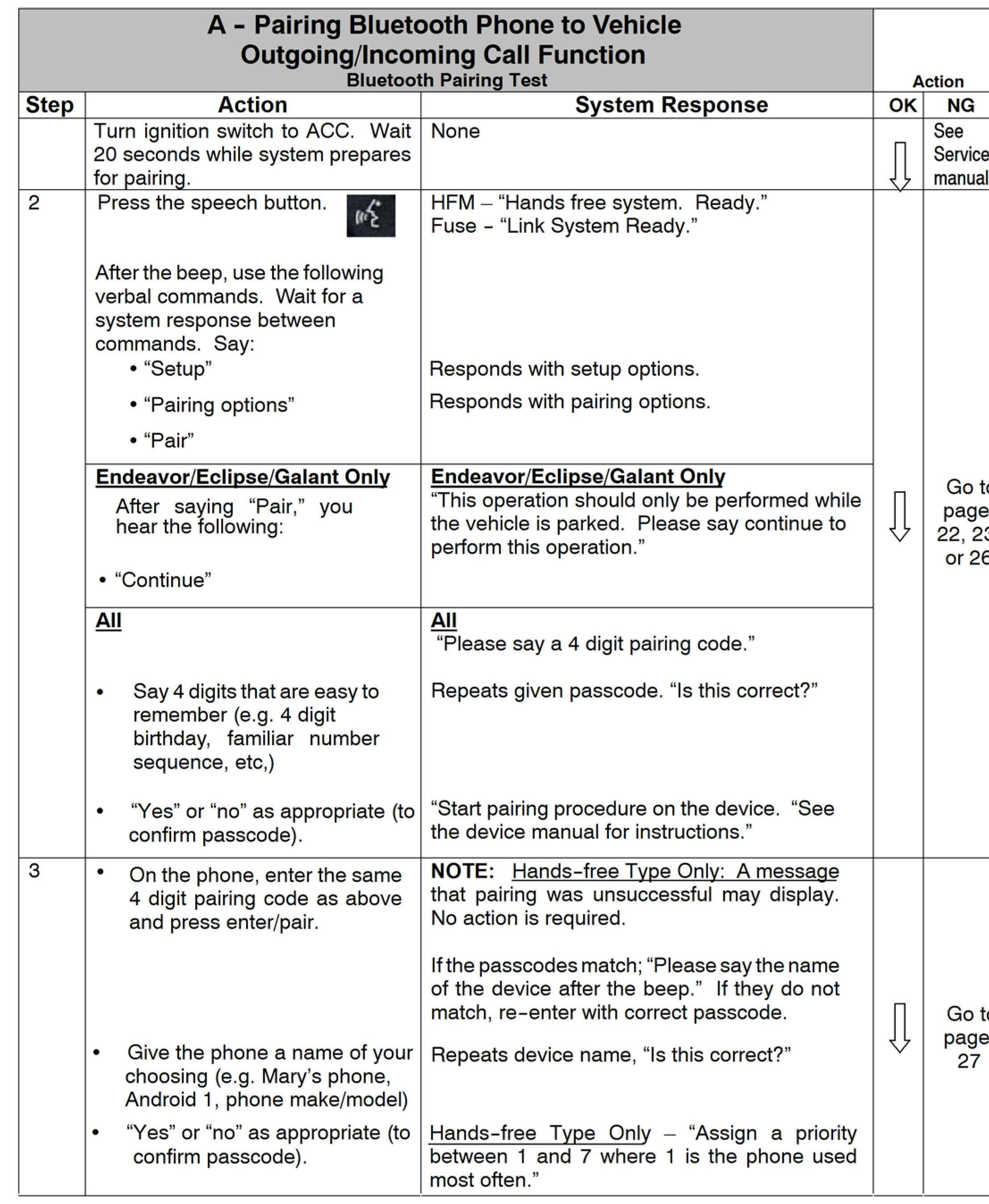

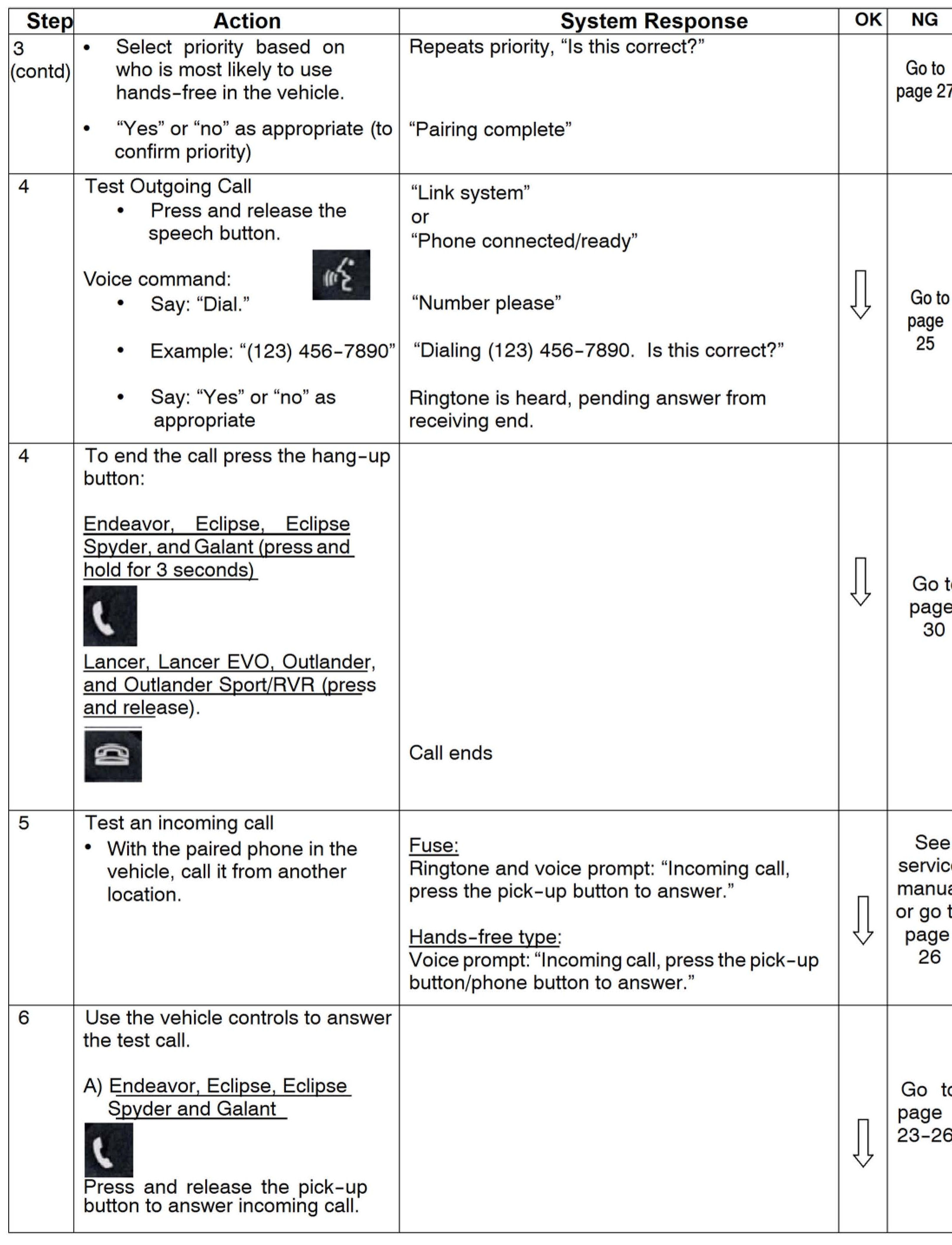

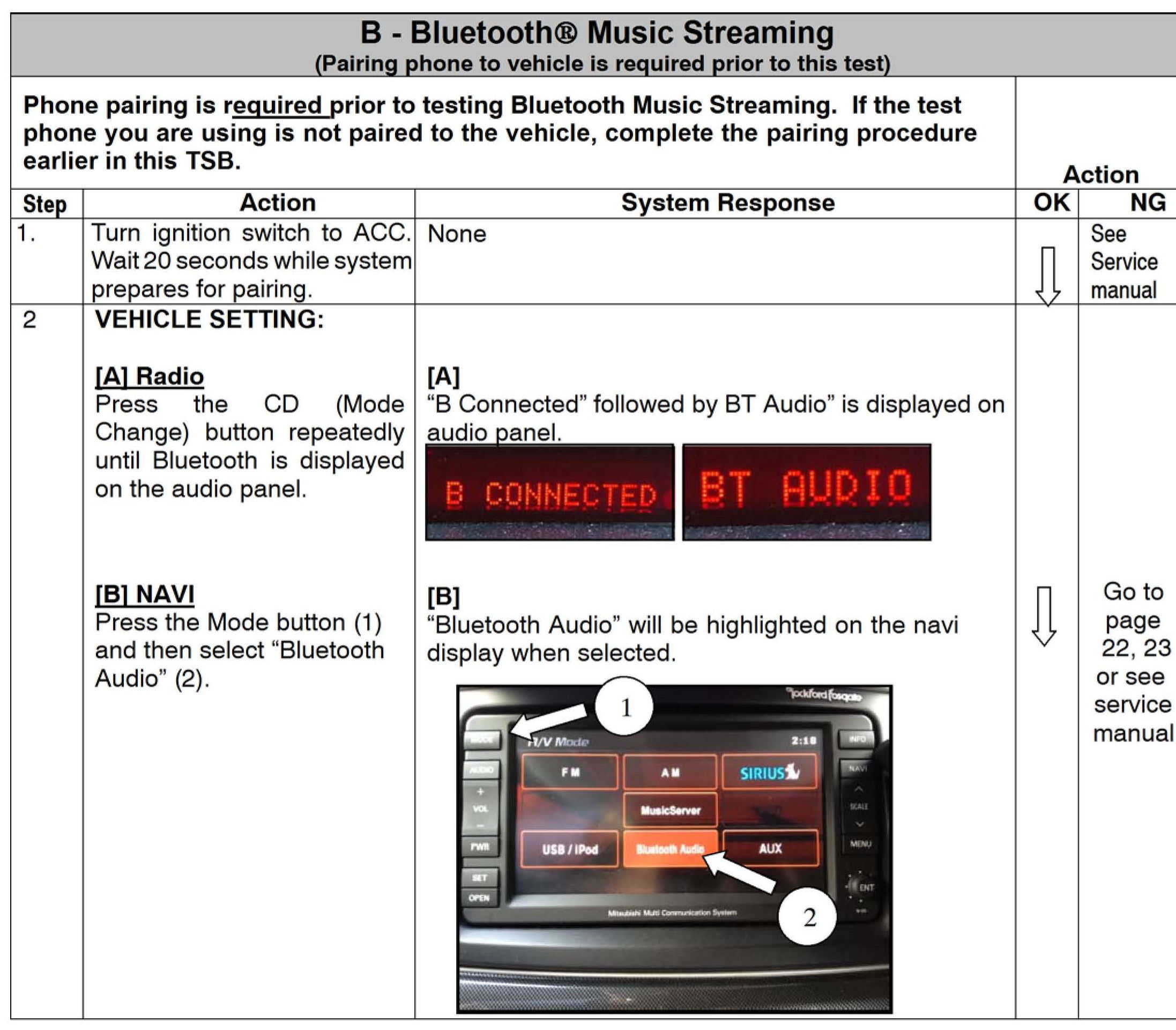

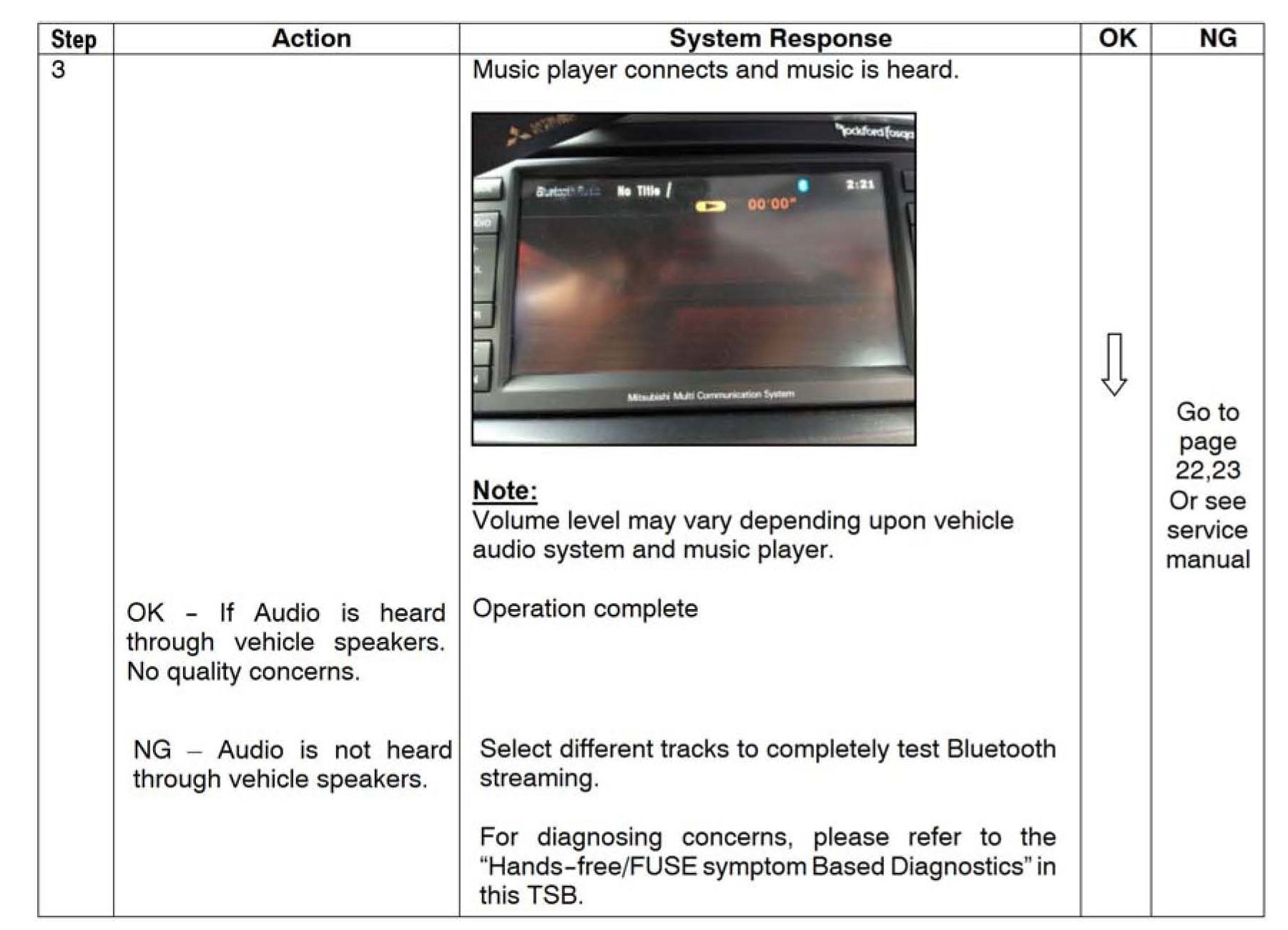

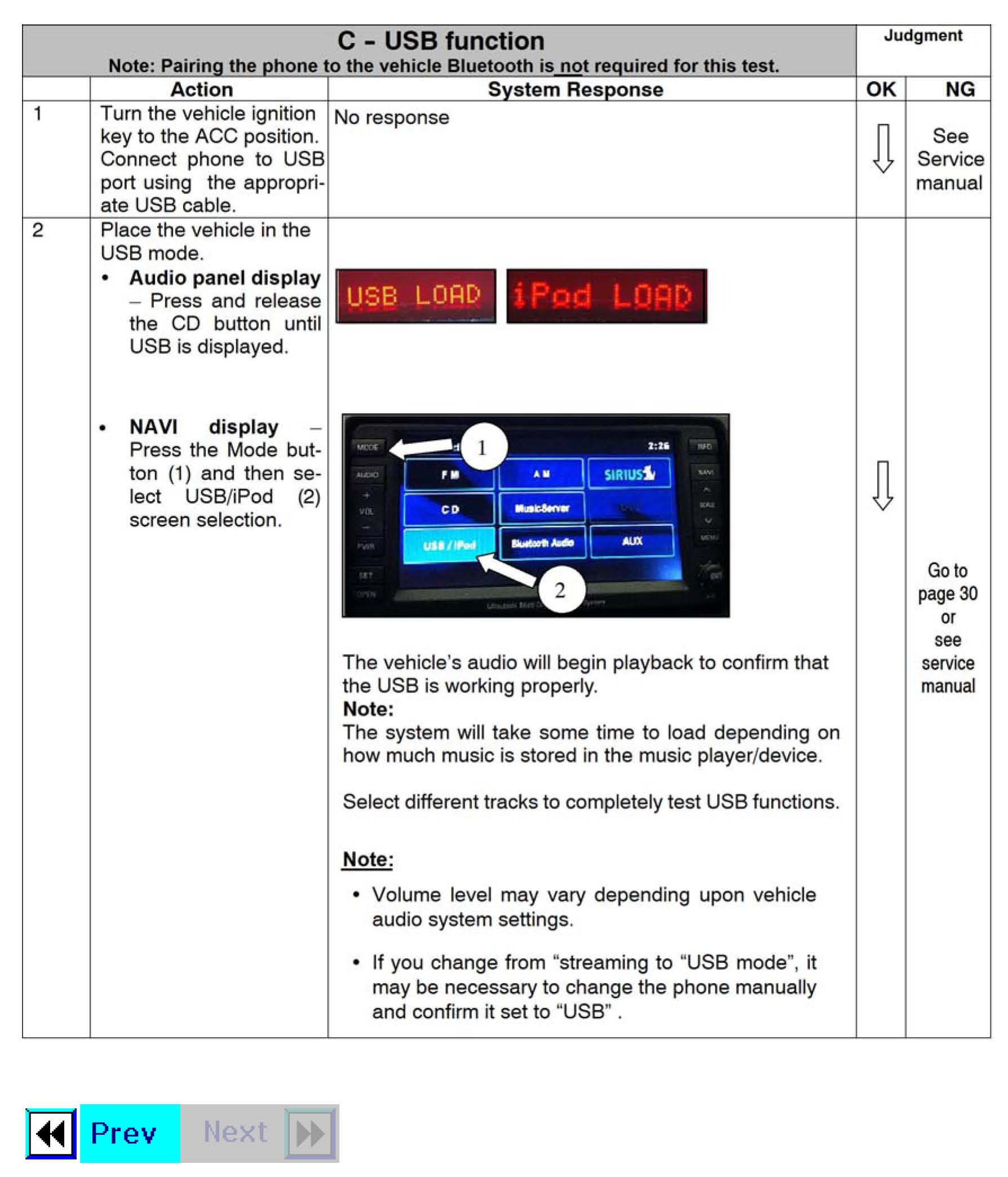

4. Complete applicable procedures from charts A, B, or C that follow.

NOTE:
Remember to delete your phone from the customer's phone list when all testing is completed.

^ Press the speech button.

^ Say "Setup."

^ Say "Pairing Options."

^ Say "Delete.

^ Follow the spoken instruction to complete deletion.

Most phones have a maximum number of connections that can be stored. You may want to delete the customer's vehicle from your test phone. Refer to your phone's user's manual for instructions.
