Reprogram 2008 Lancer Evolution TCM With Correct Software

This procedure is only done AFTER all previous instructions have been completed.

1. On the MUT-III Main Menu, click the Special Function button.
2. Click the ECU Reprogramming button.

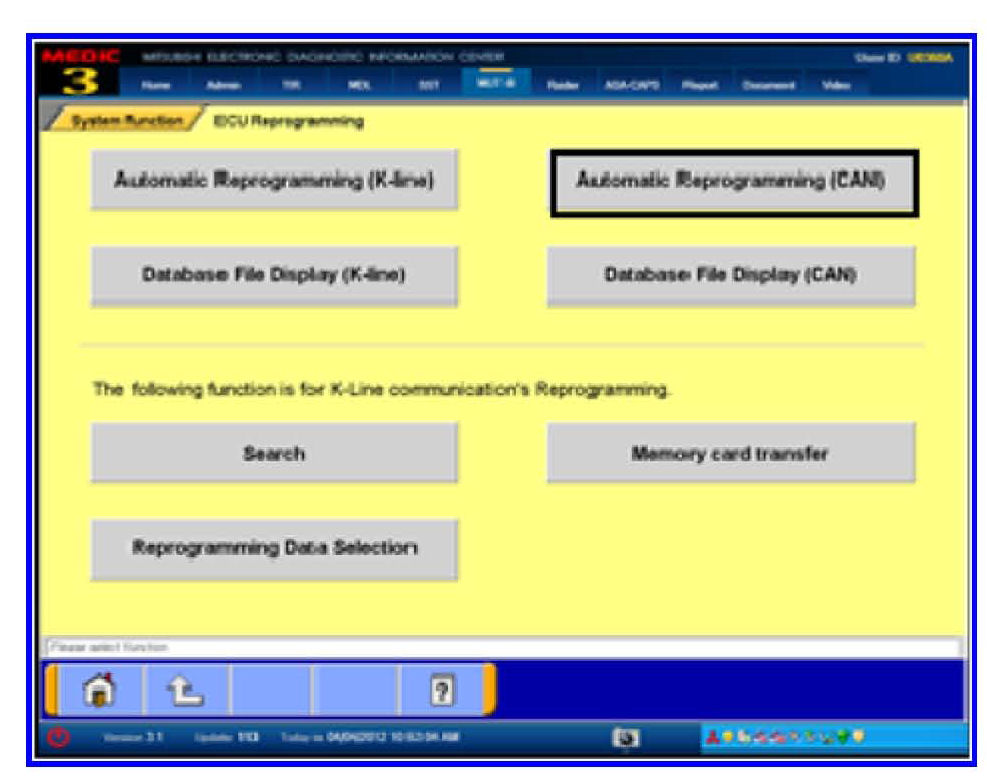

3. Click the Automatic Reprogramming (CAN) button.

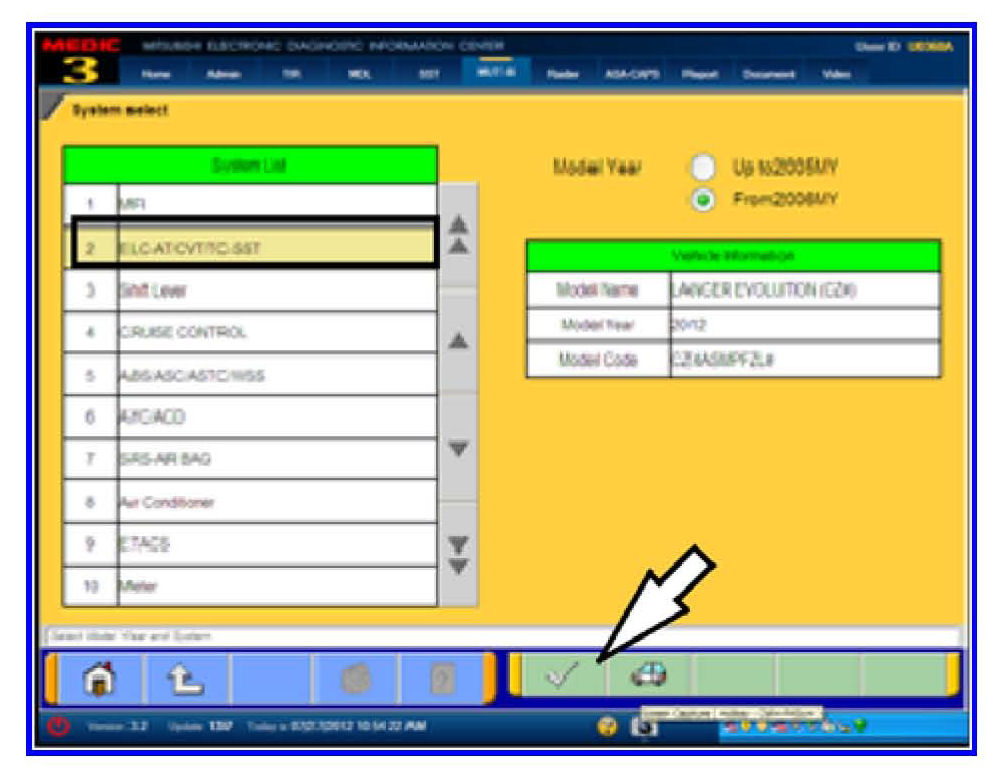

4. Select ELC-AT/CVT/SST and click the check mark to continue.

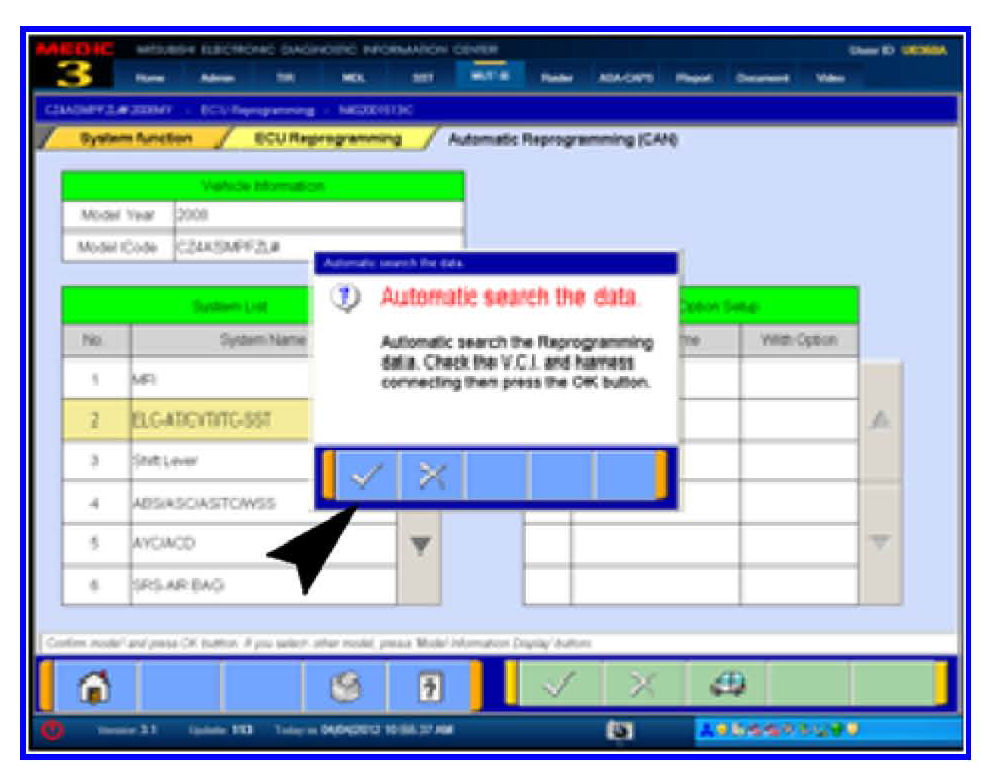

5. Click the check mark to begin an automatic search for reprogramming data.

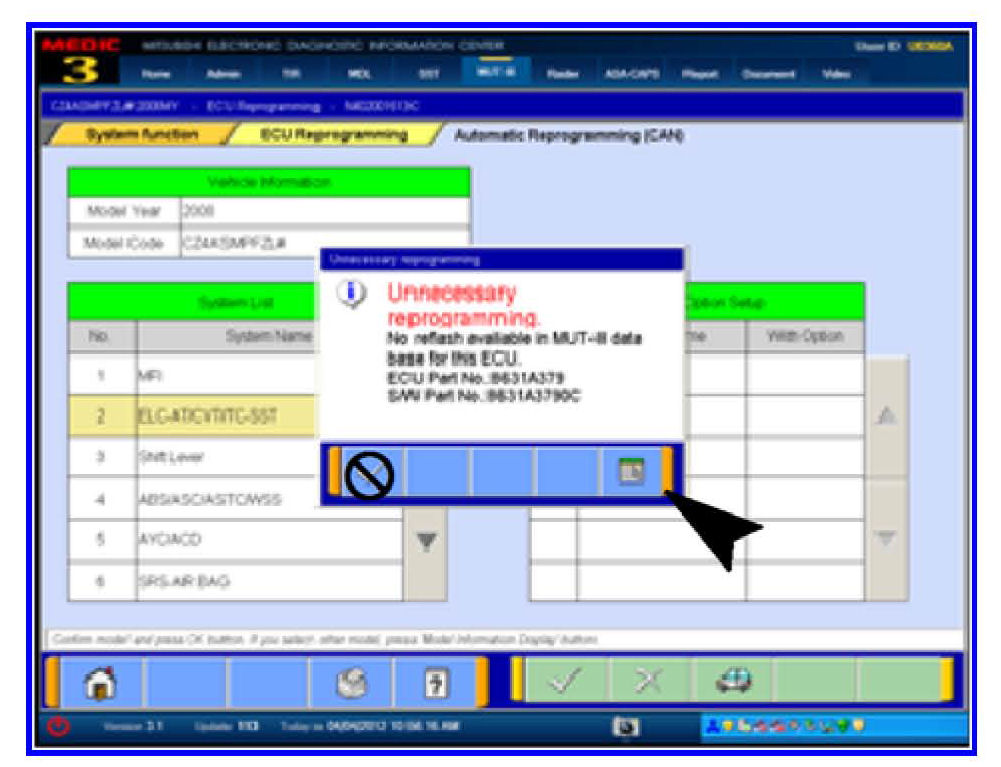

6. Click the Data Screen icon (not the check mark) on the the "Unnecessary Reprogramming" dialog box.





7. Once the Automatic Reprogramming (CAN) screen appears, all data in the data storage system is displayed.

To access the proper TC-SST data, click the Data Drive icon at the bottom of the screen.

8. Scroll down the Directory List until Program Files is displayed.





9. Select Program Files and click the file folder icon at the bottom of the screen.

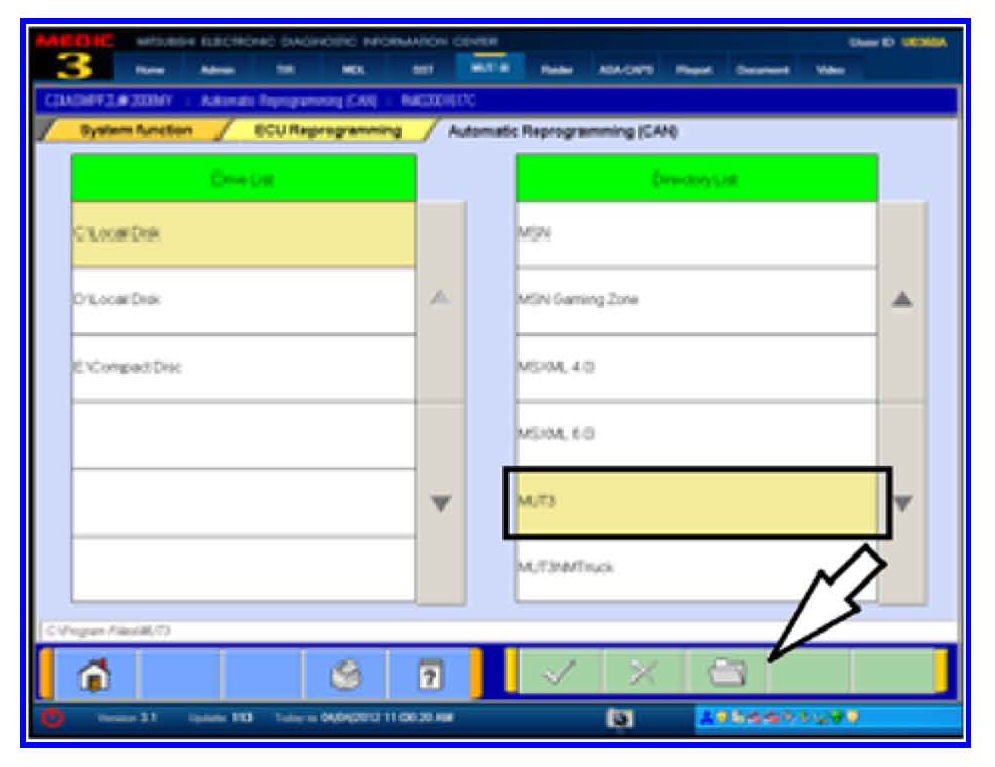

10. Scroll down the Directory List until MUT3 is displayed.
11. Select MUT3 and click the file Folder icon at the bottom of the screen.

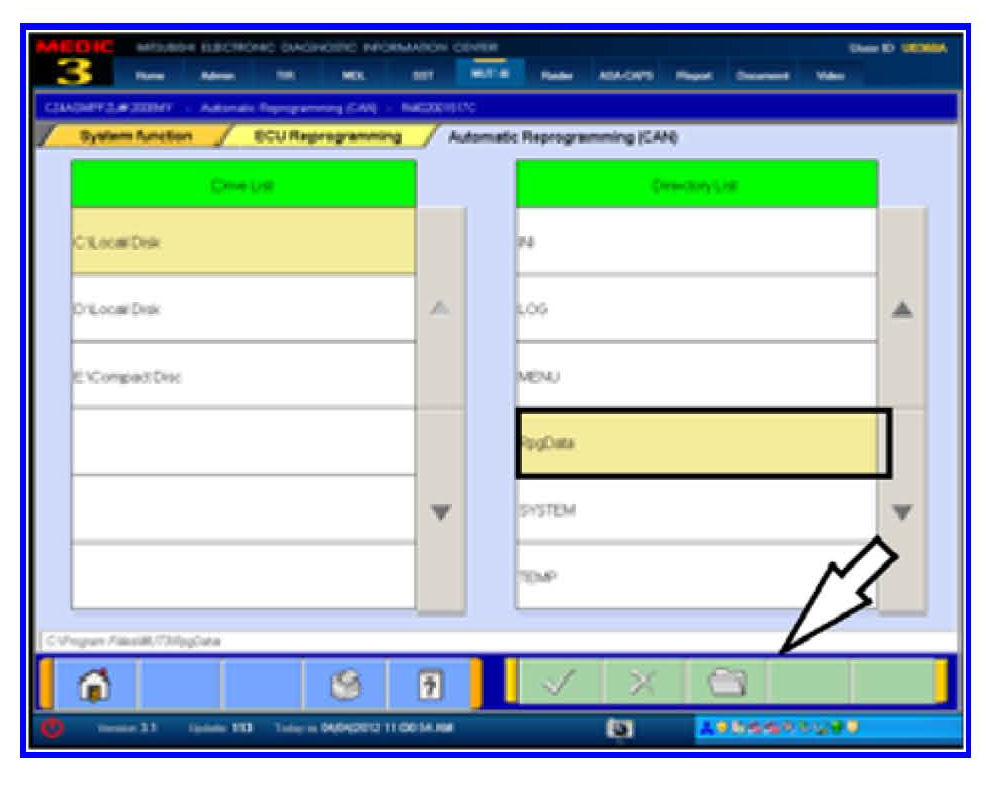

12. Scroll down the Directory List until RpgData is displayed.
13. Select RpgData and click the file folder icon.

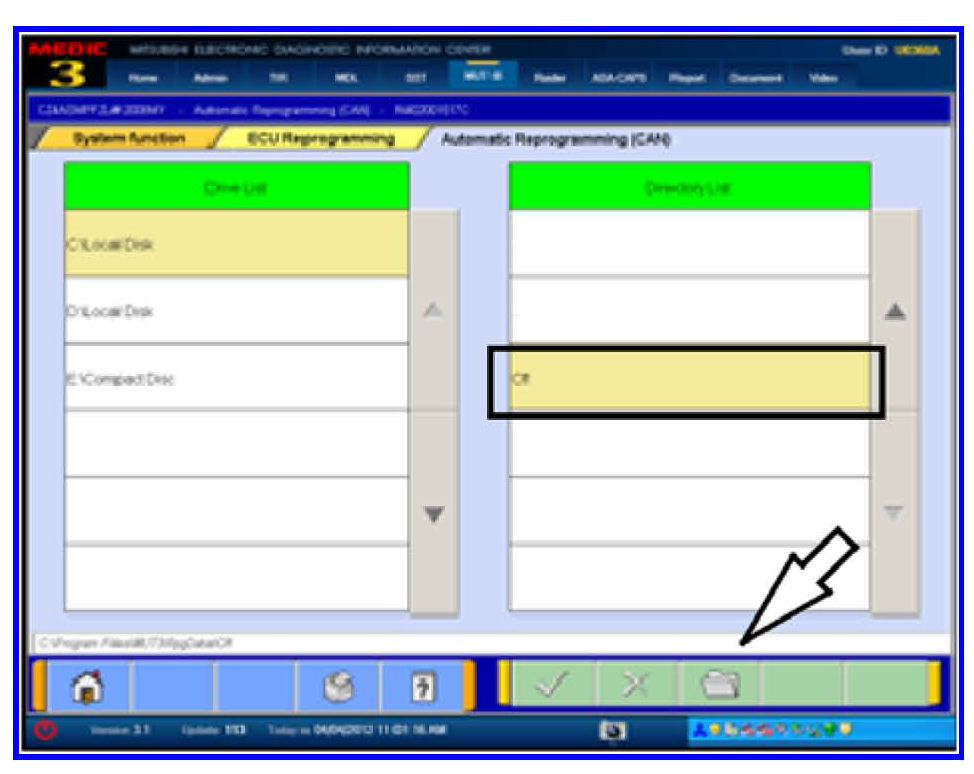

14. Select CFF and click the file folder icon.

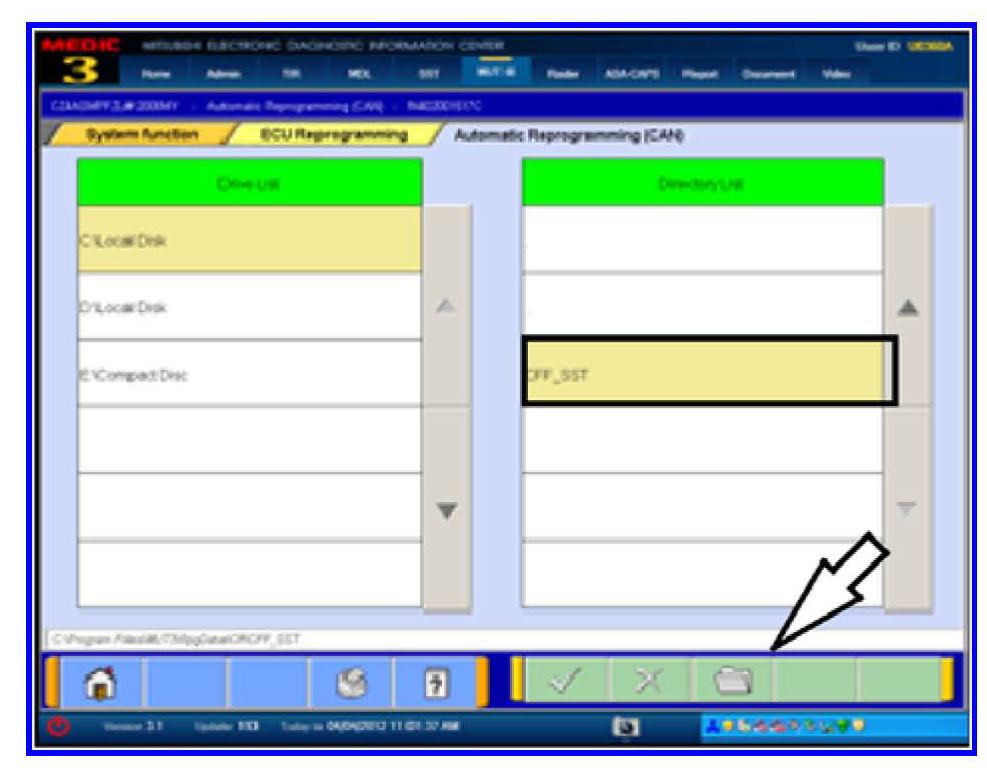

15. Select CFF_SST and click the file folder icon.

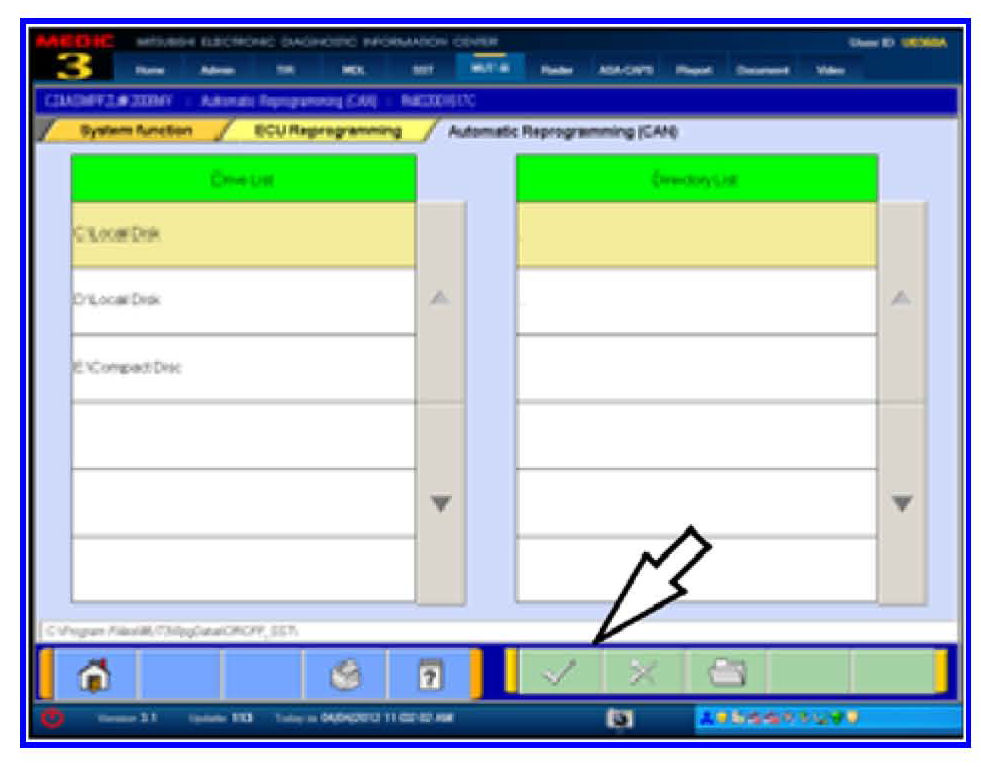

16. Once a blank Directory List is displayed, click the check mark to continue.

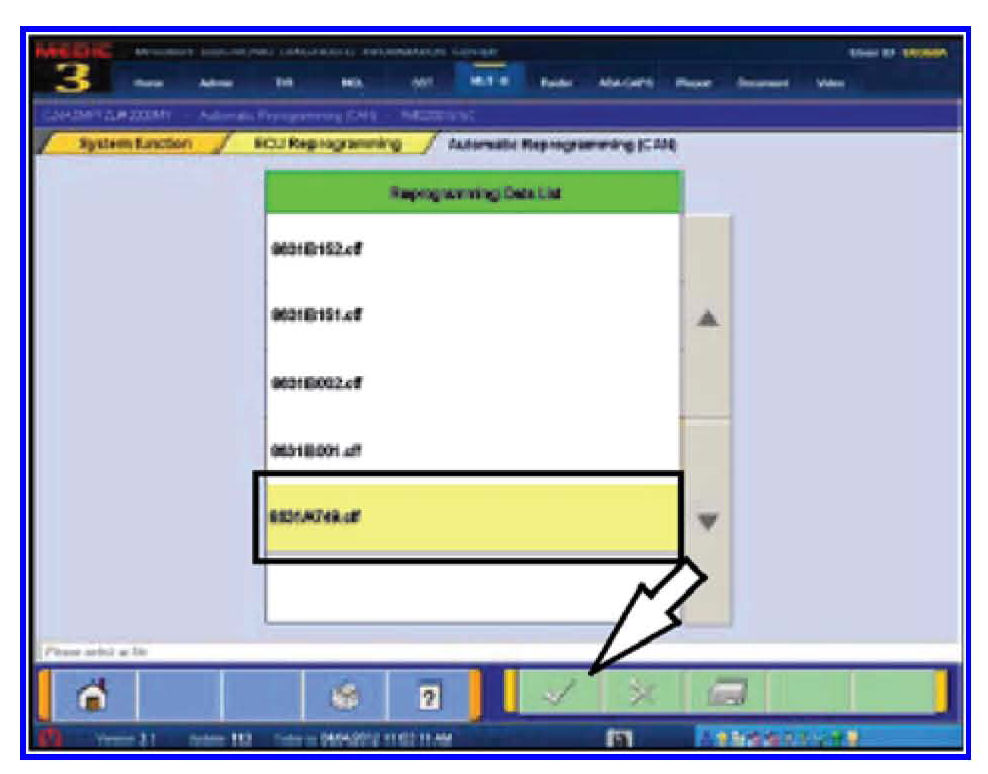

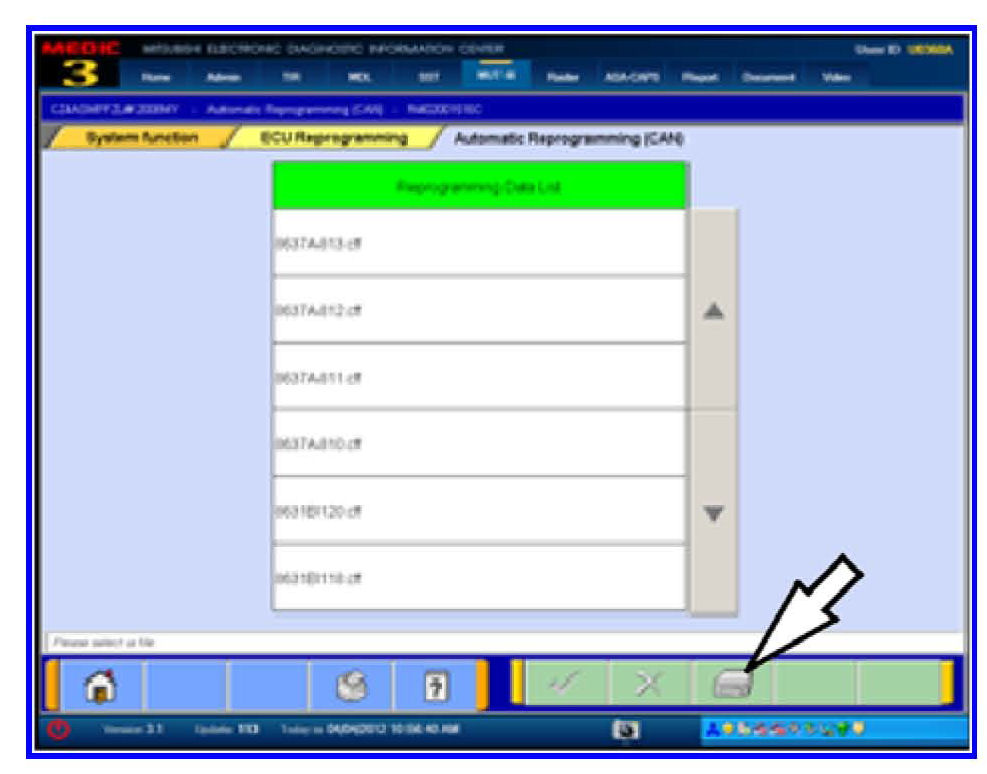

17. Select file 8631A749.cff from the Reprogramming Data List and click the check mark to continue.





18. Click the check mark in the Check Reprogramming Data dialog box to continue.





WARNING

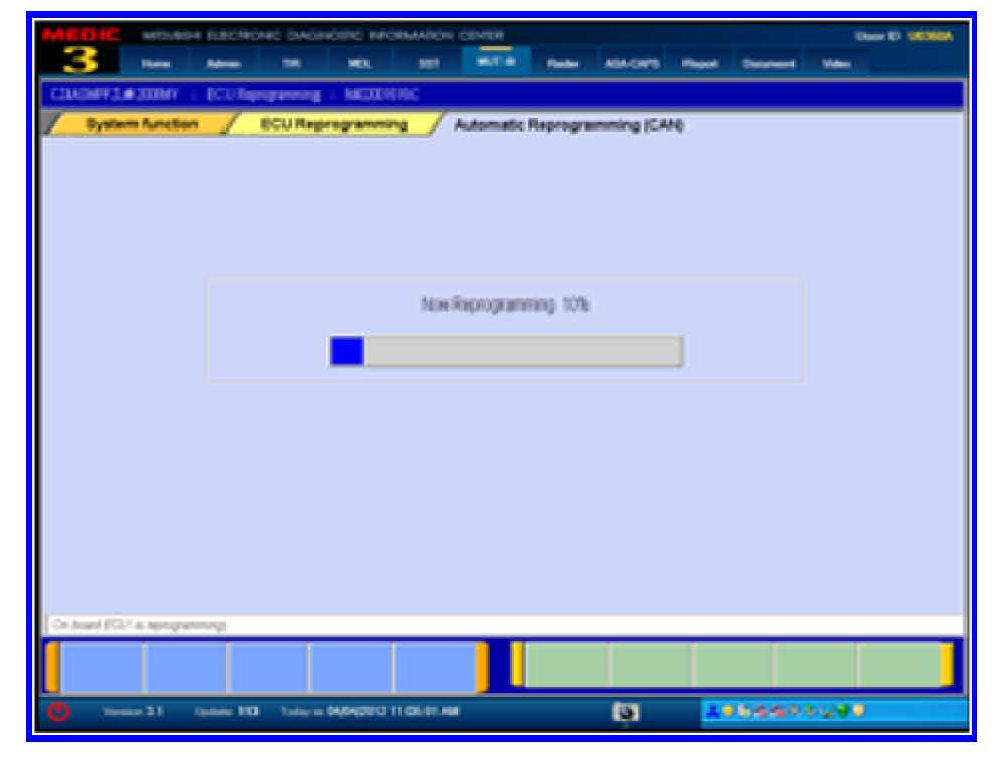

19. Data will load from MUT-III to the TCM.

NOTE:
This process takes approximately seven minutes to complete. A battery charger should be attached to the vehicle battery and the MUT III should be plugged into it's charger to prevent the program from stopping prior to completion.

Stopping prior to completion could permanently
damage the TCM.

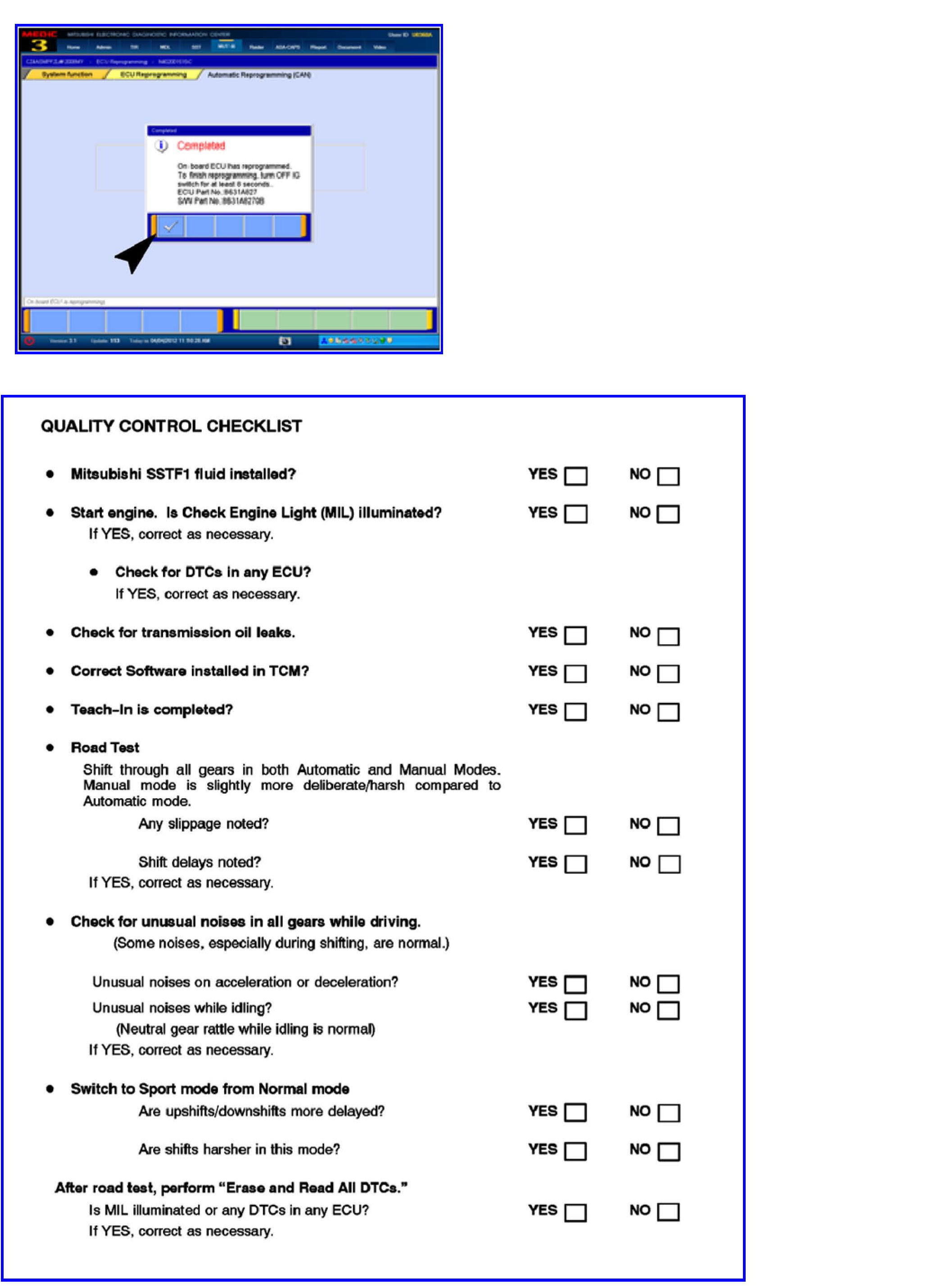

20. Once the programming is completed, the Completed dialog box is displayed.

21. Repair and programming procedures for a 2008 Lancer Evolution are complete. Turn the ignition to the LOCK position, disconnect the MUT-III and the battery charger and proceed to the Quality Control Checklist to verify repairs.
