Home >> Mitsubishi >> 2010 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Technical Service Bulletins >> All Technical Service Bulletins >> ASMT - Revised Diagnostics and Overhaul Procedures >> Diagnosis <TC-SST> >> Section 22-86 Thru Section 22-127

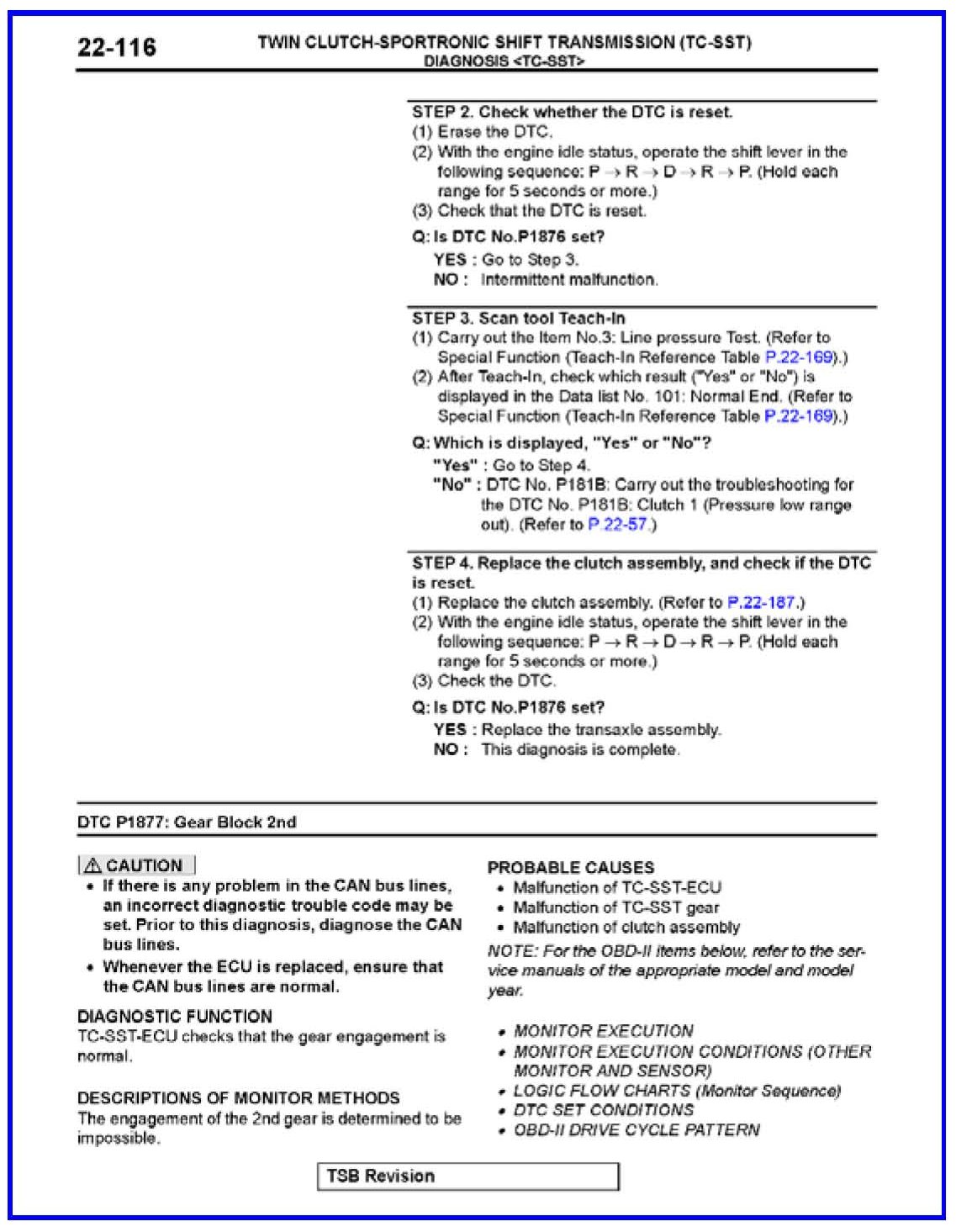

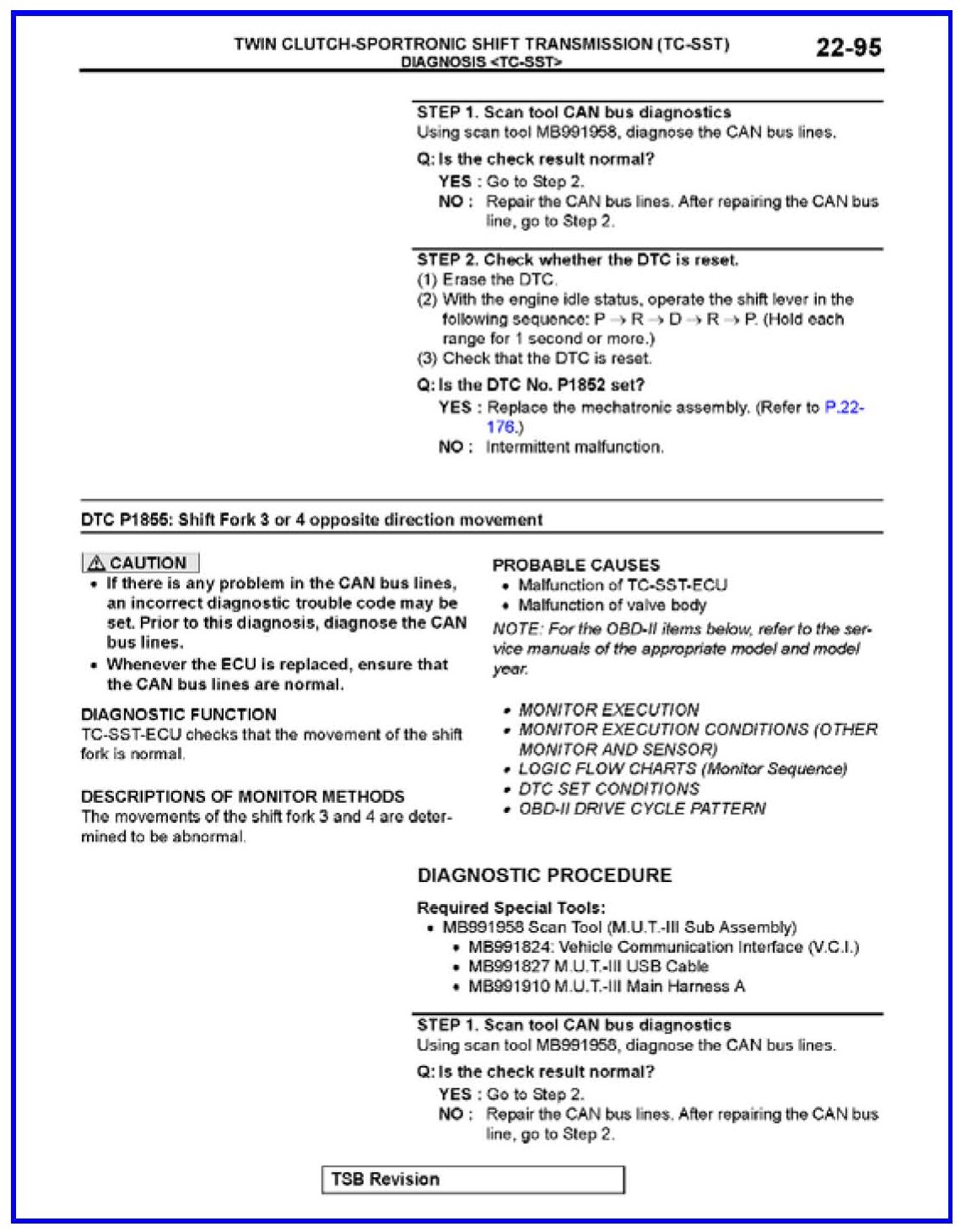

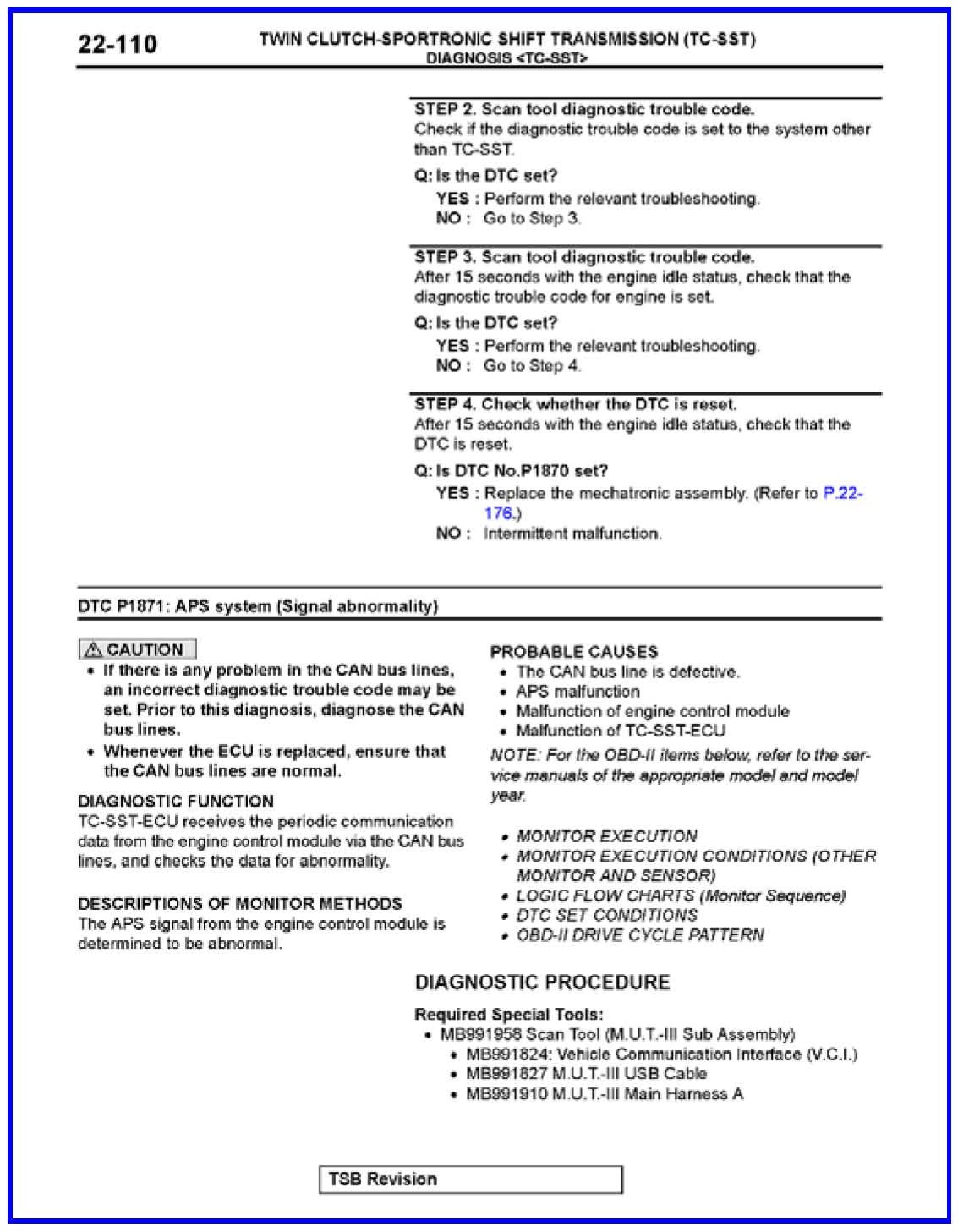

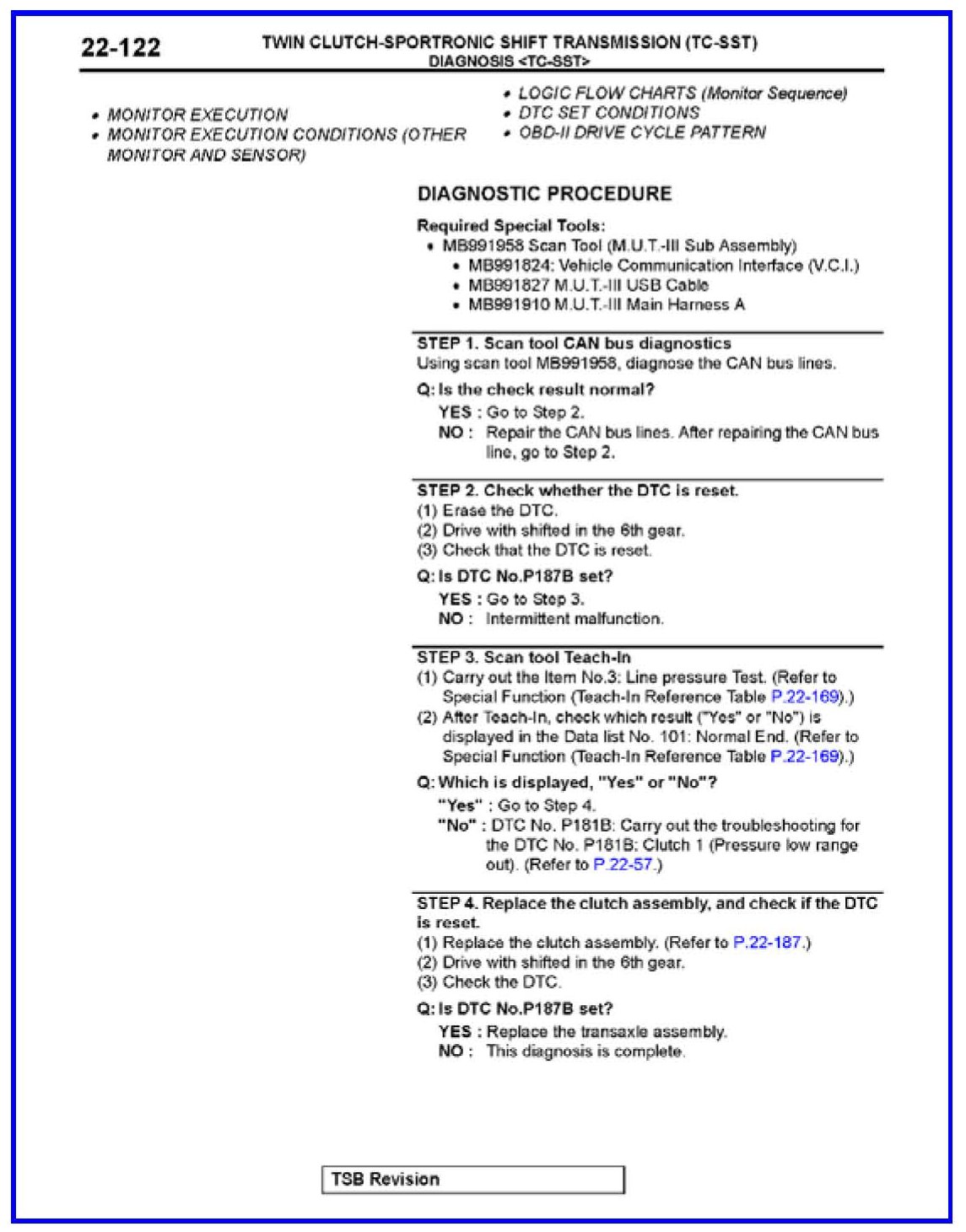

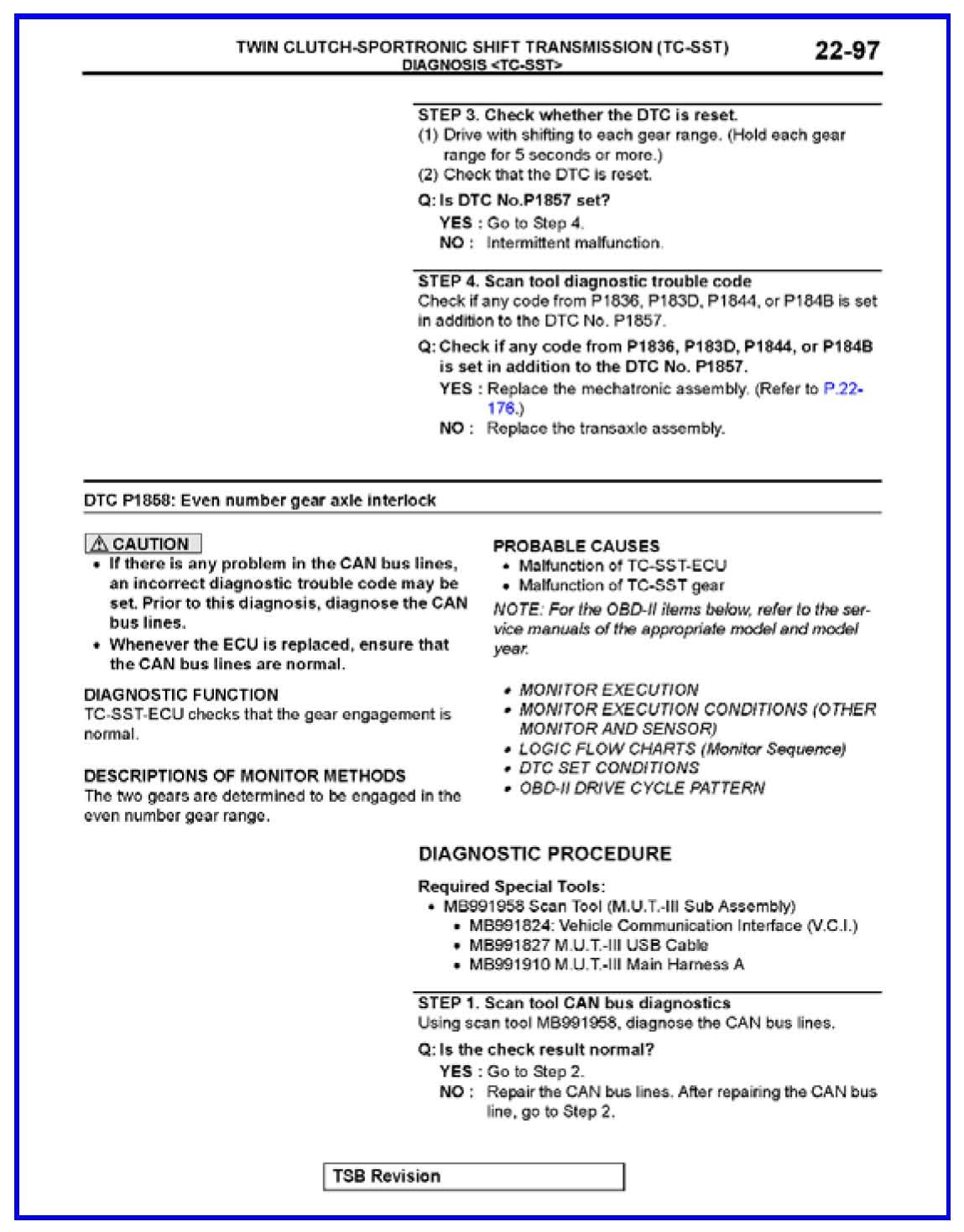

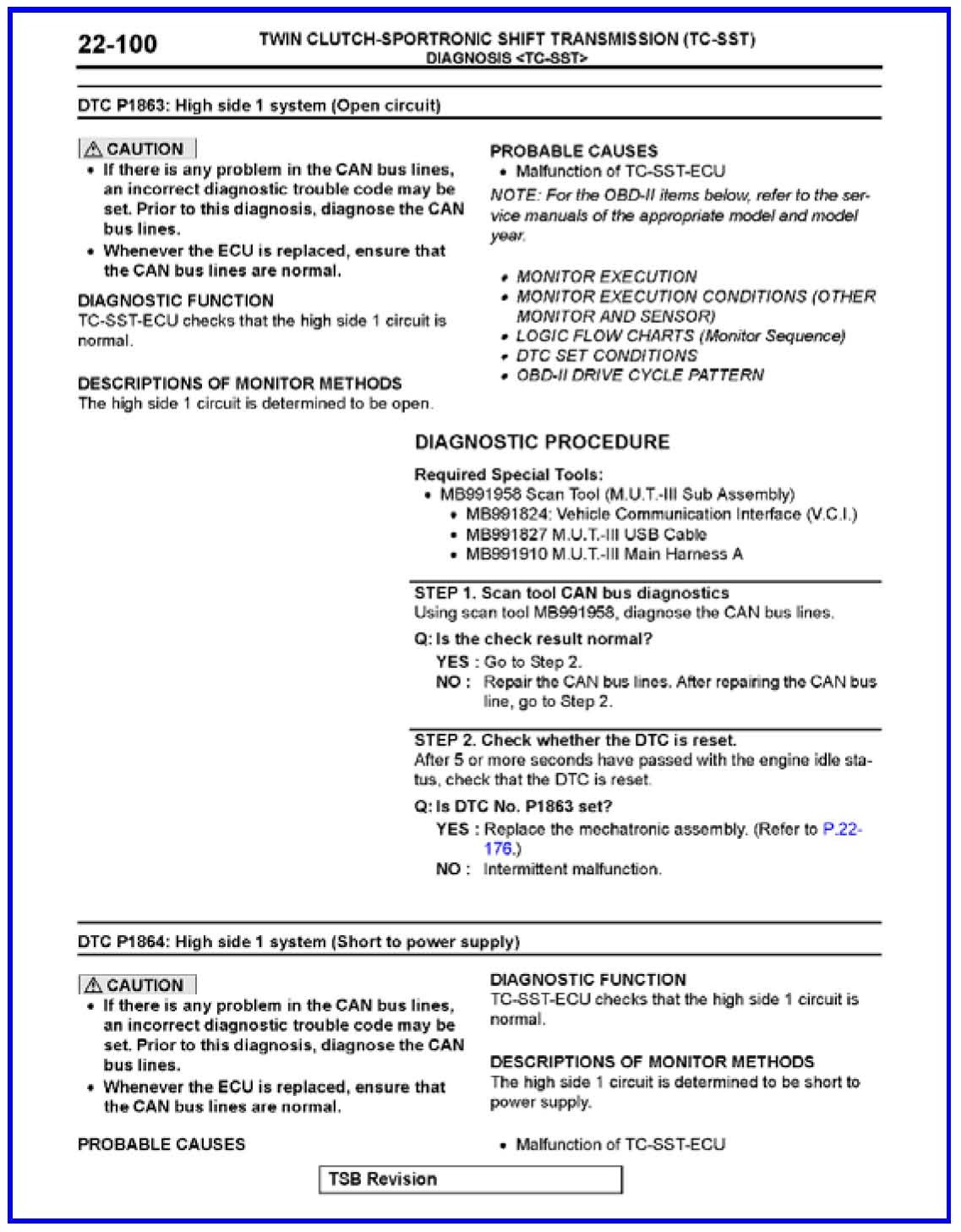

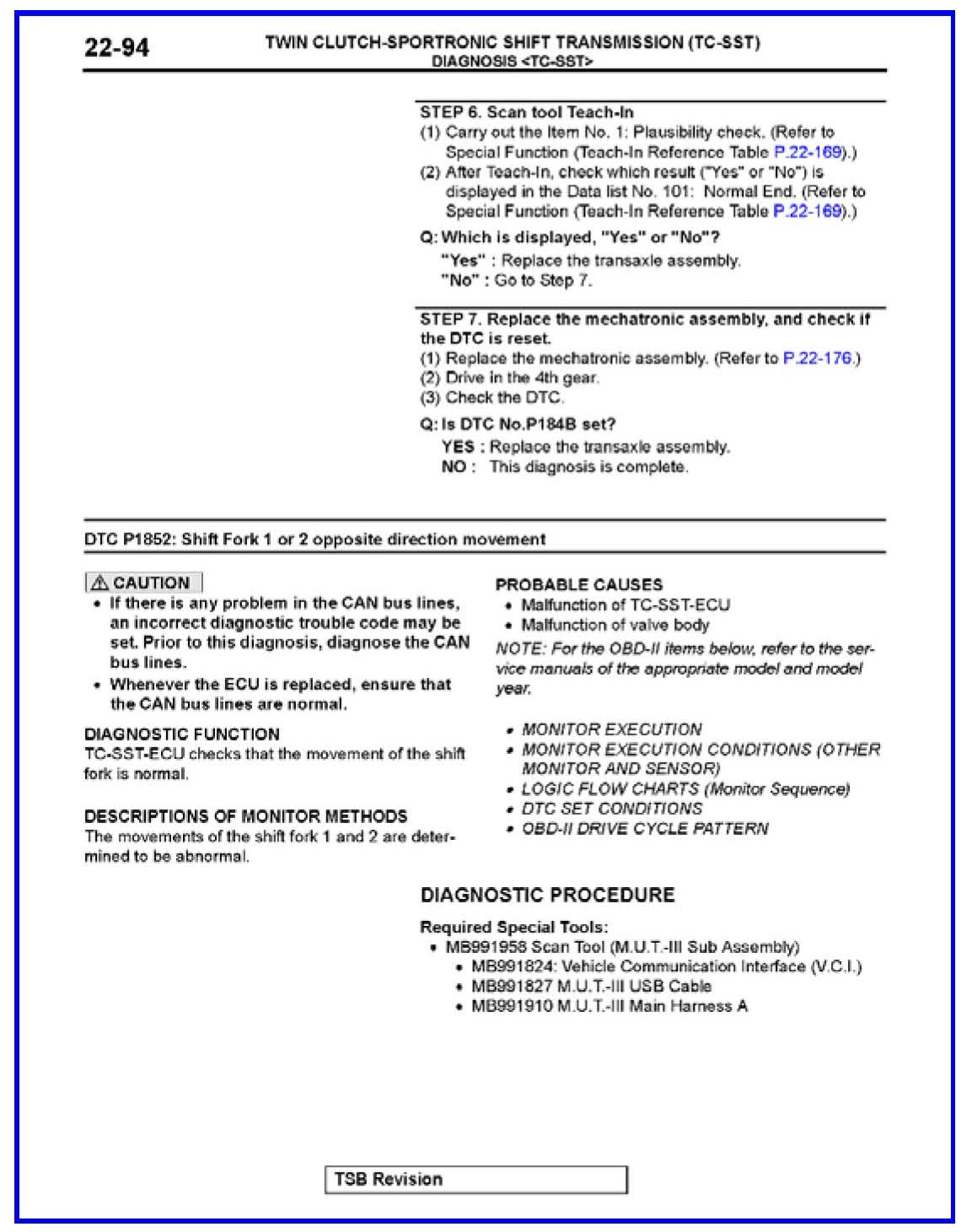

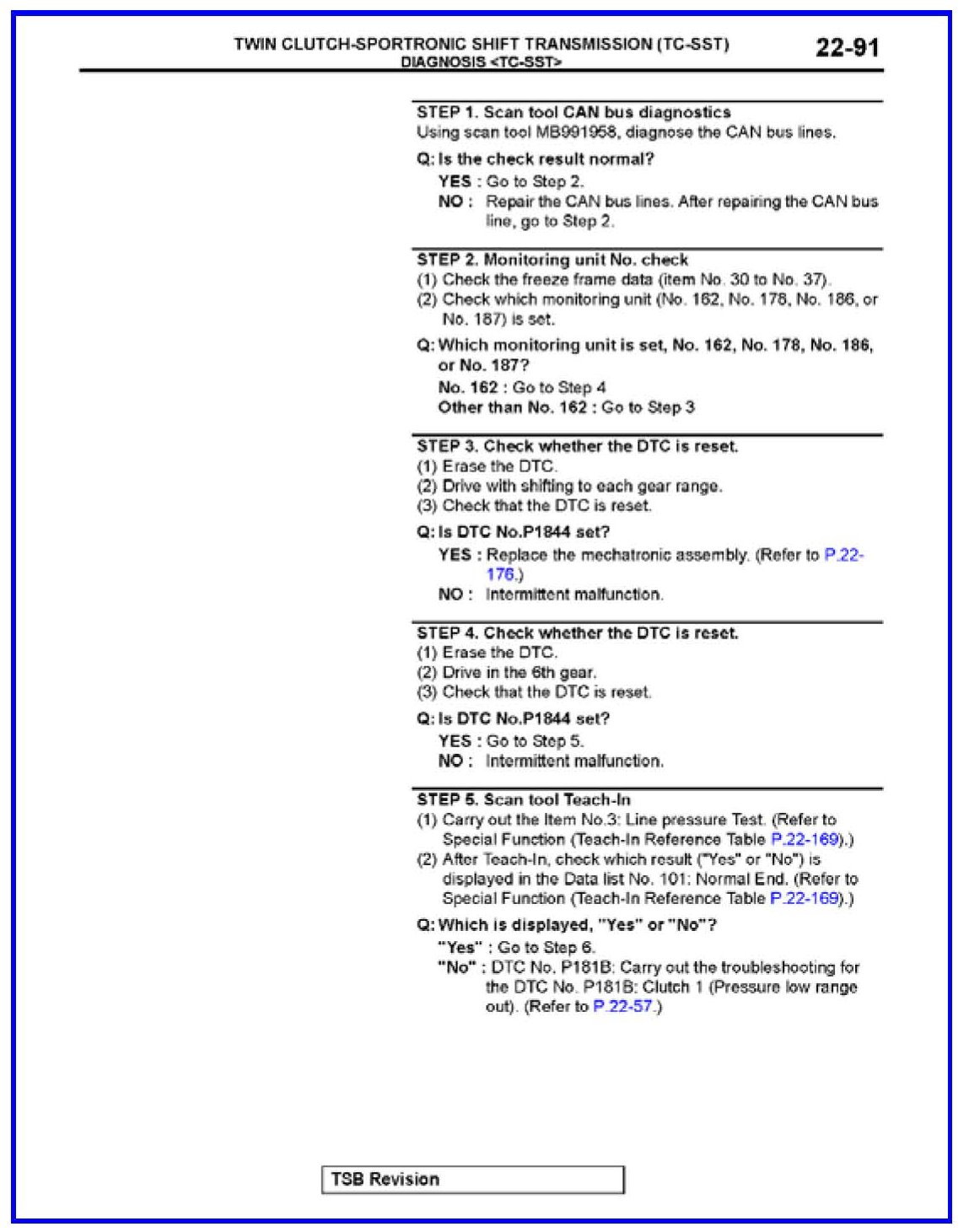

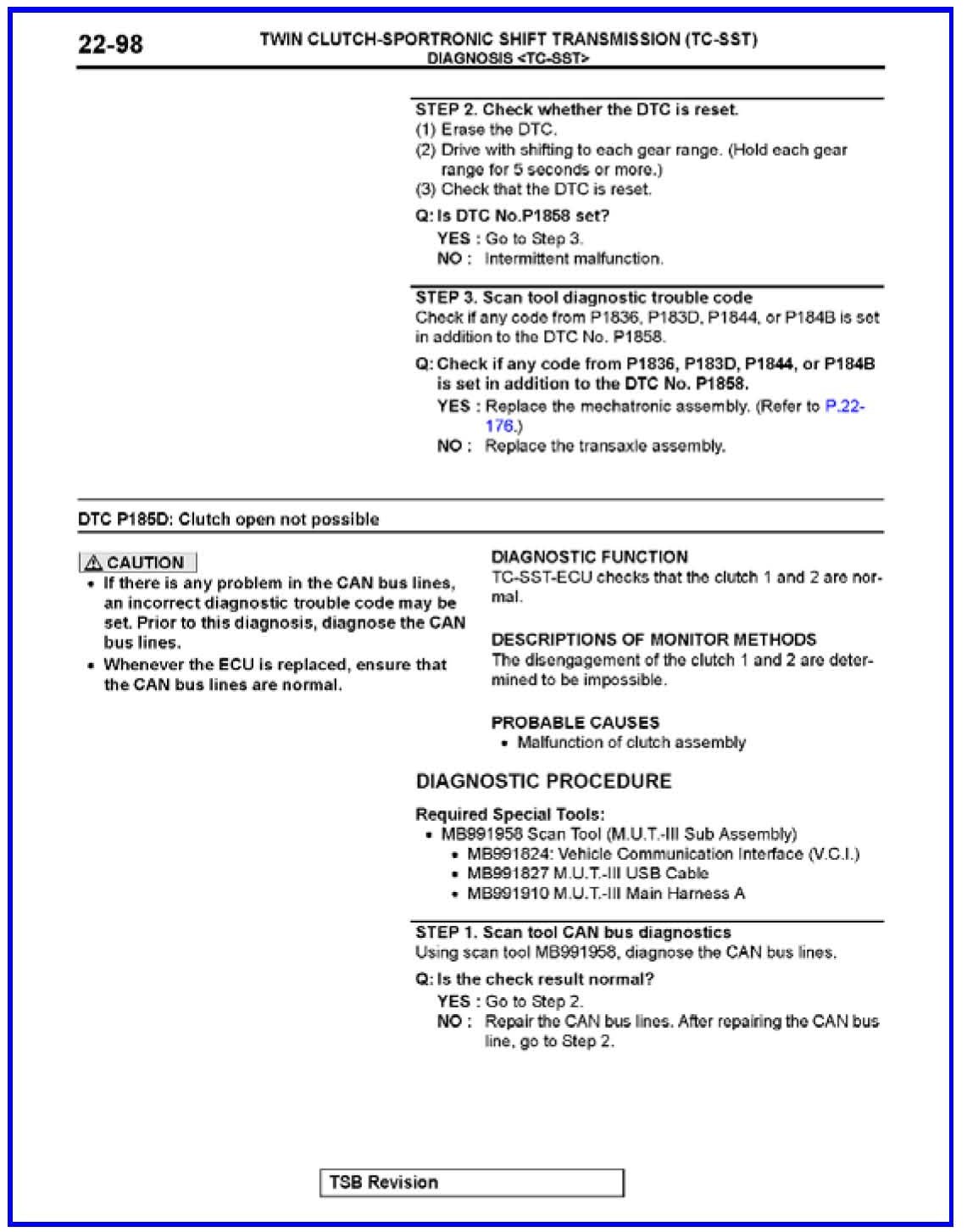

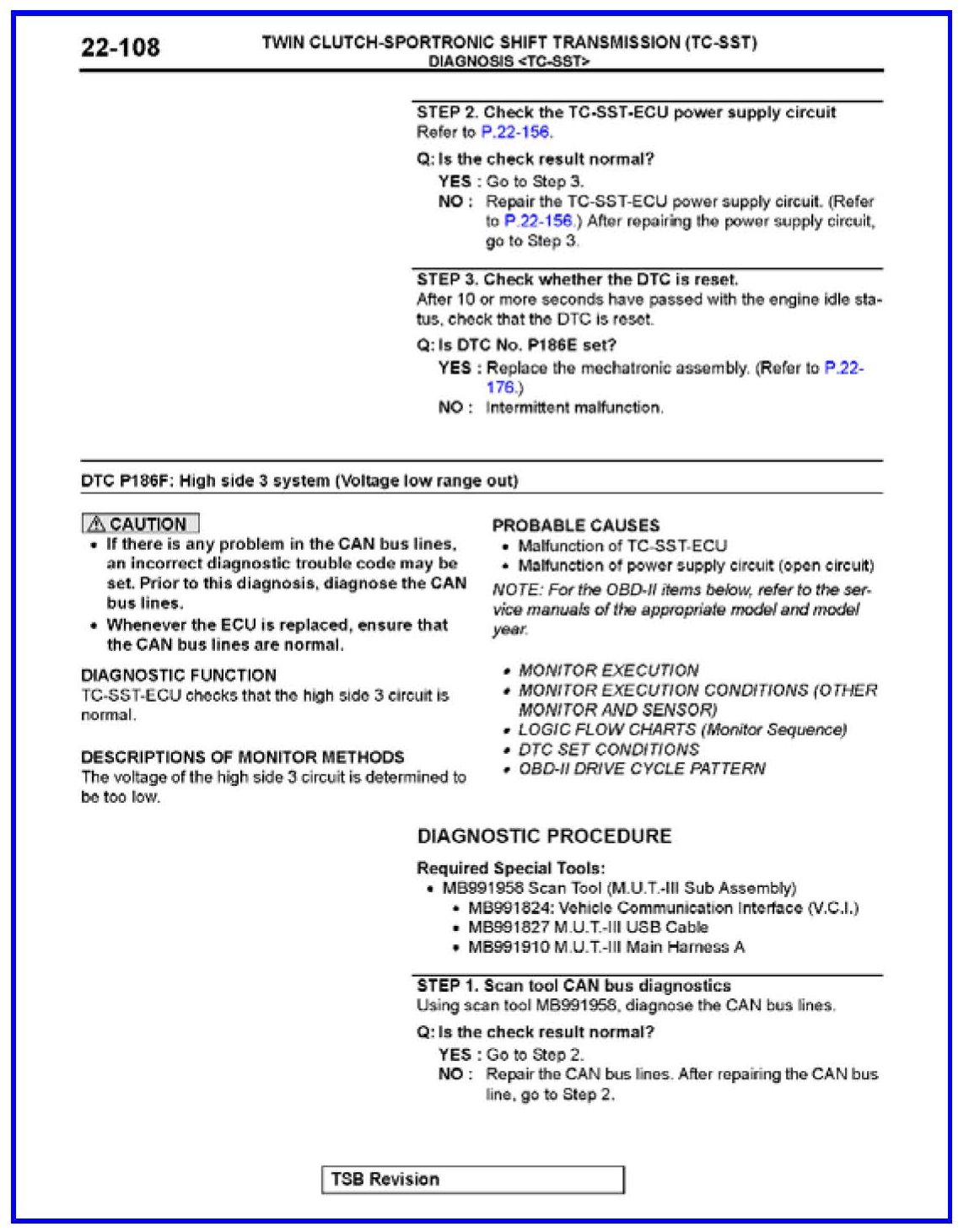

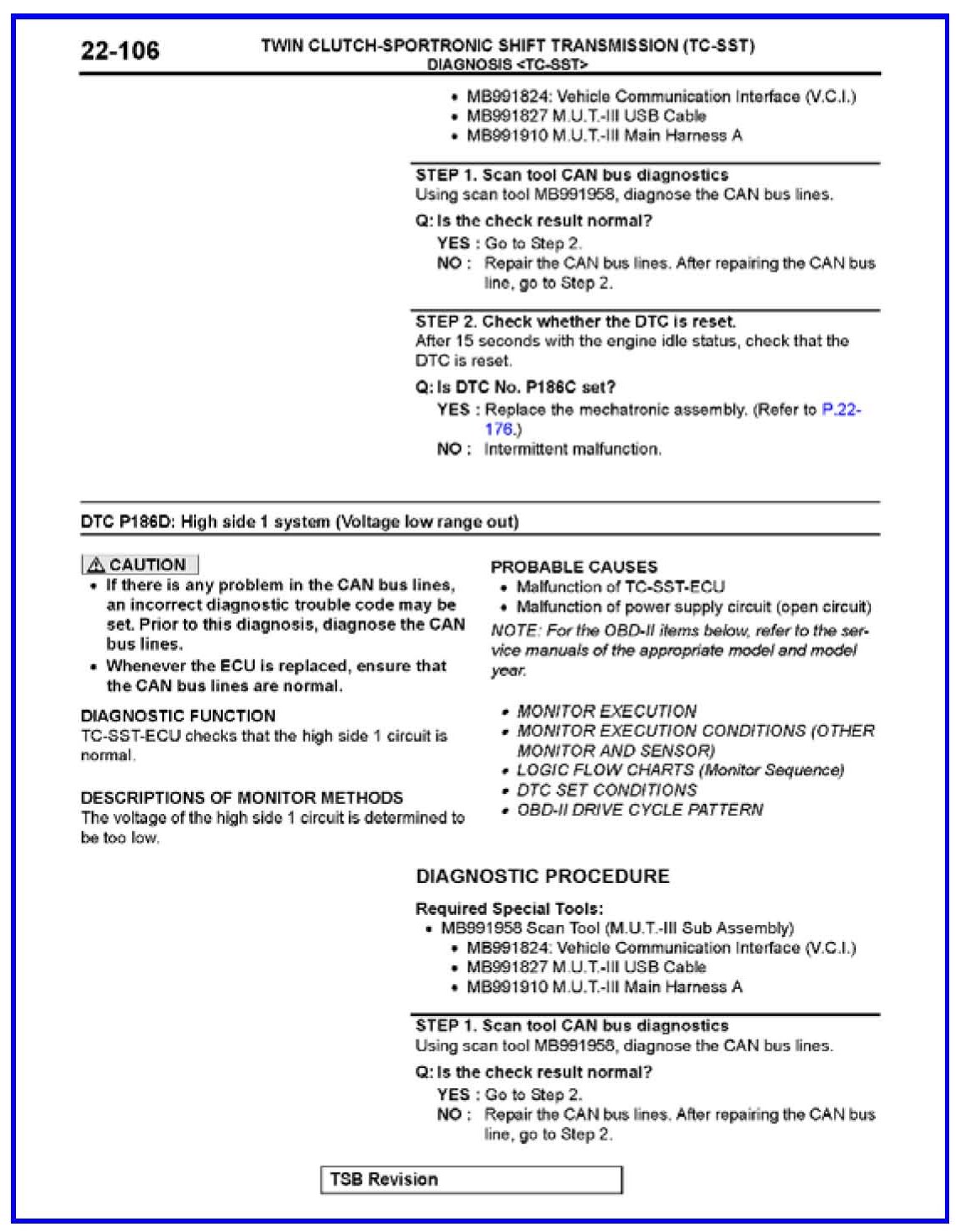

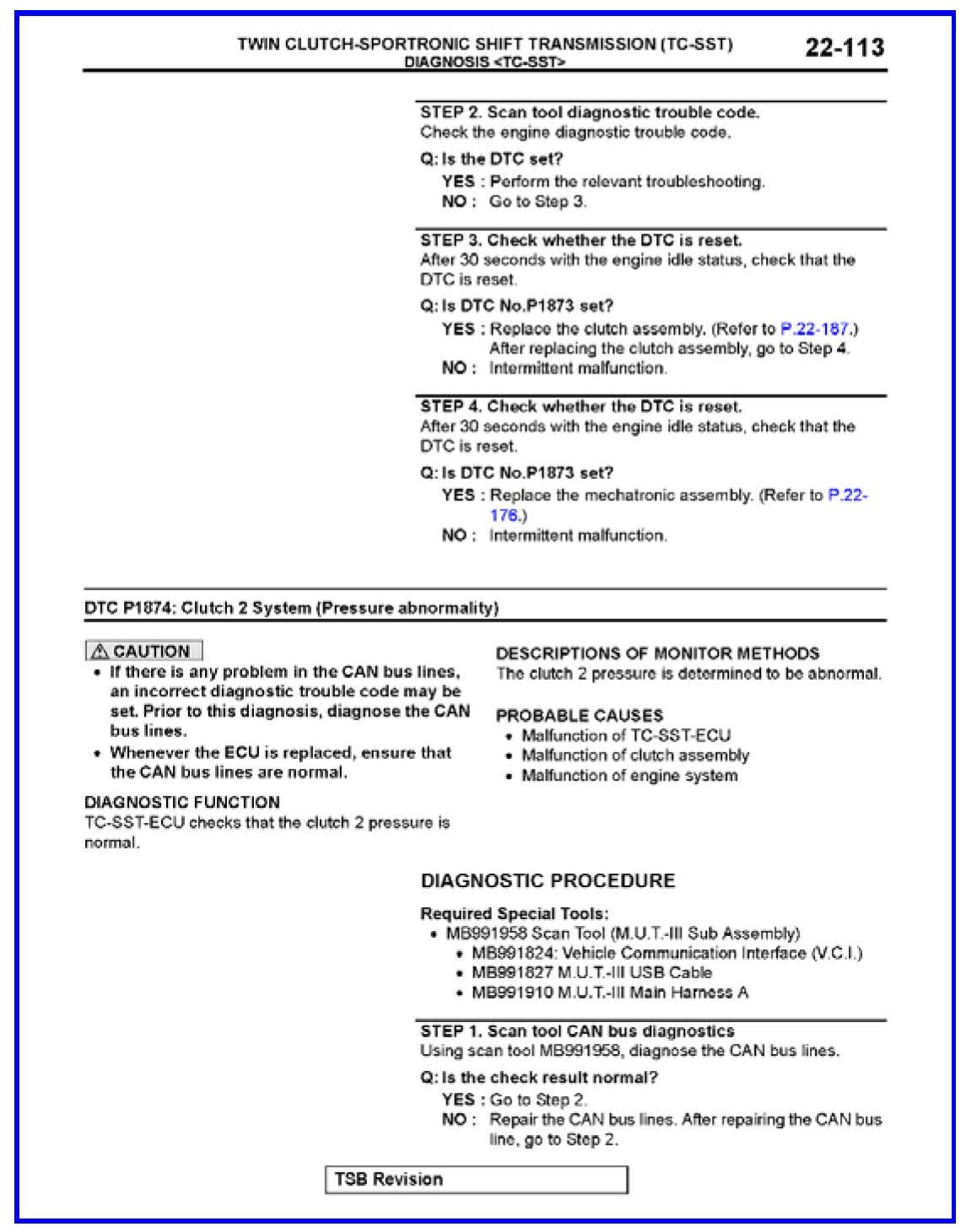

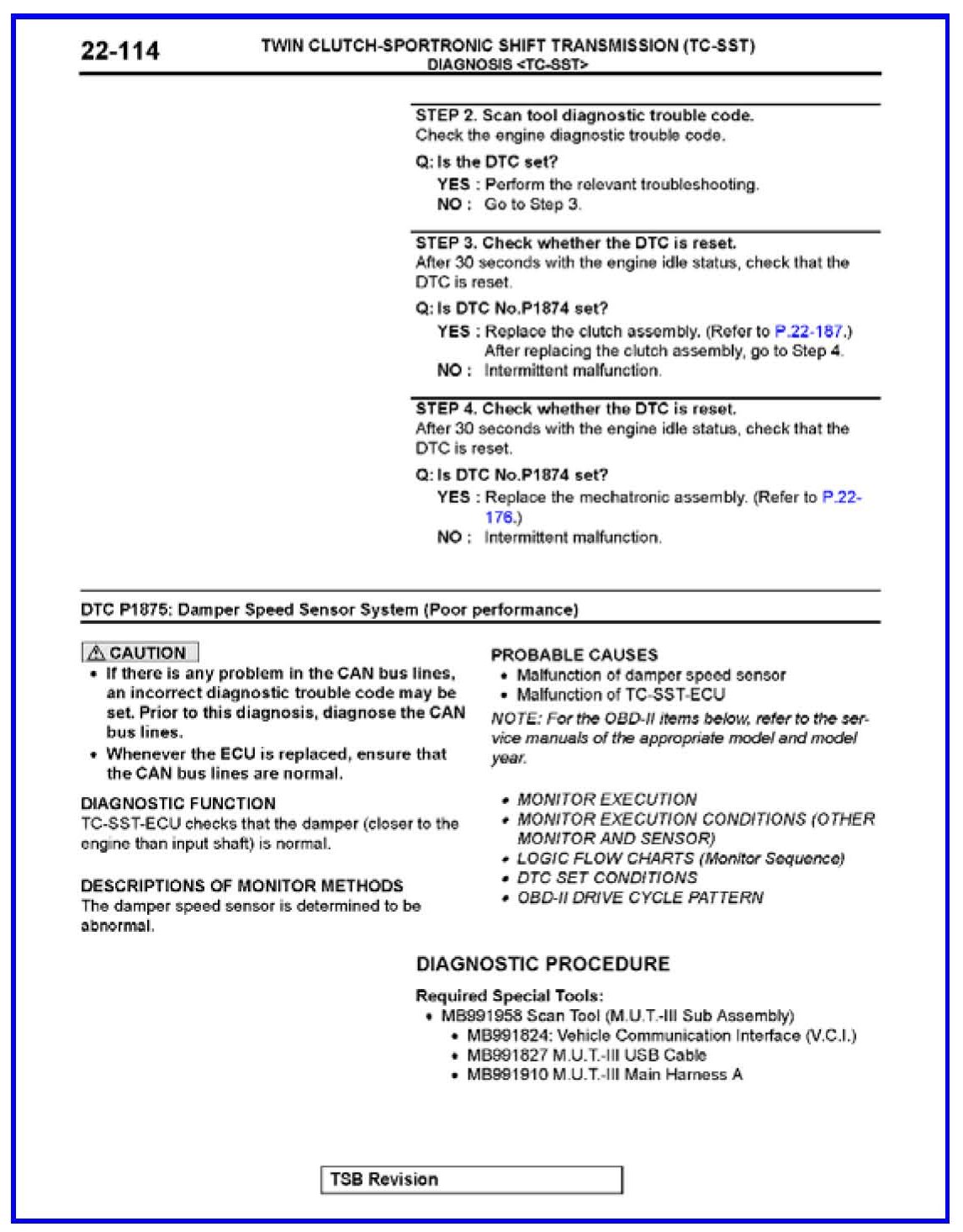

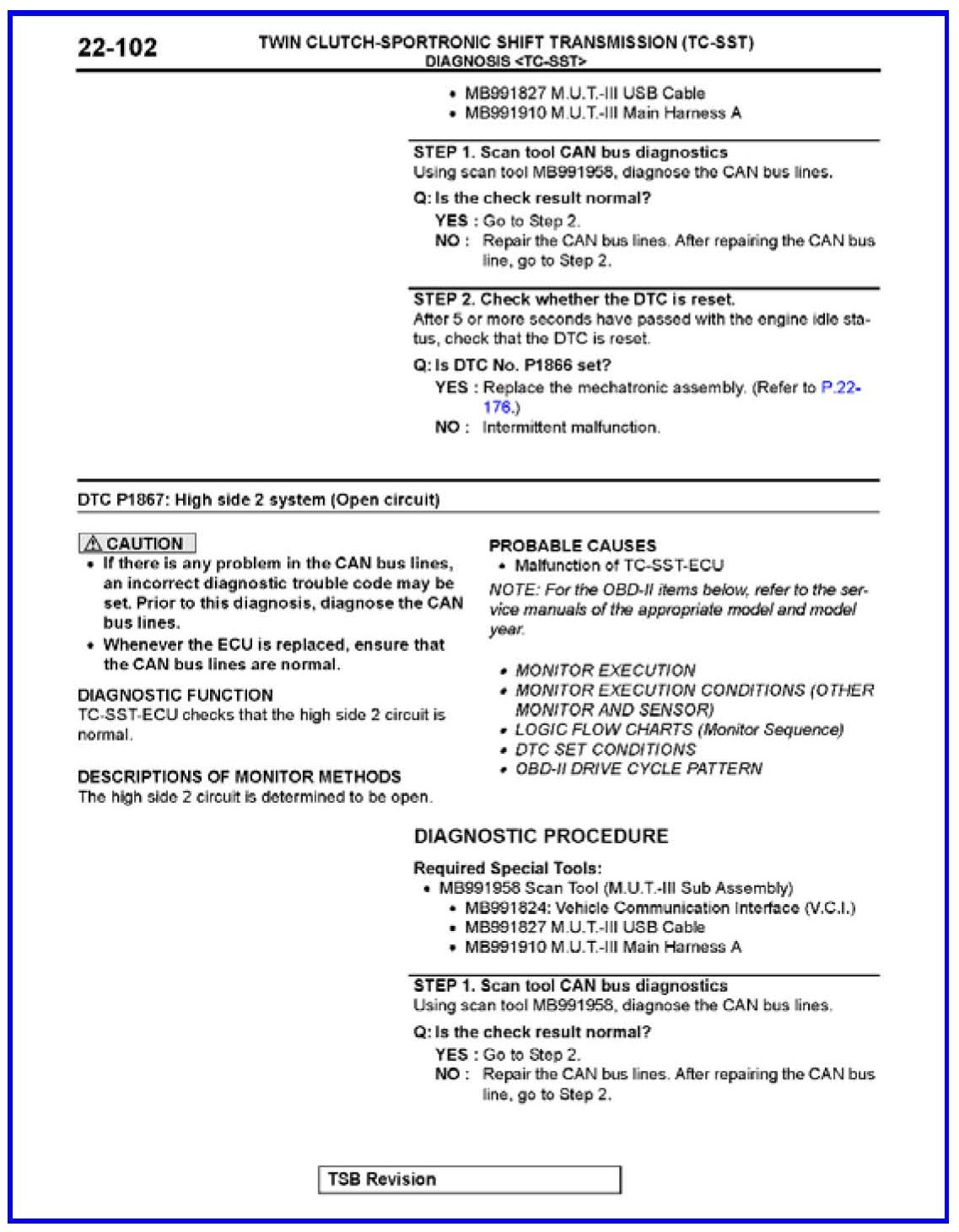

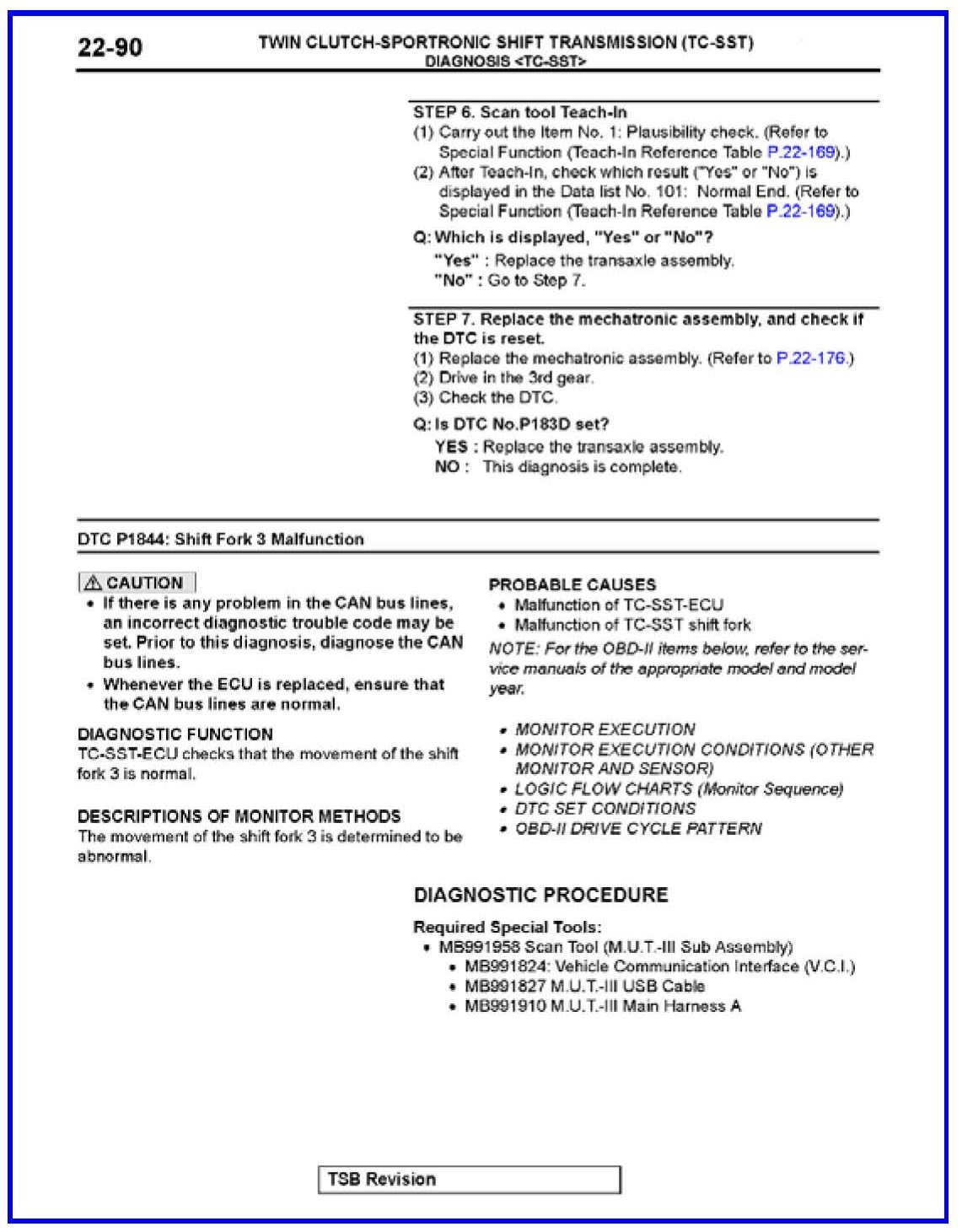

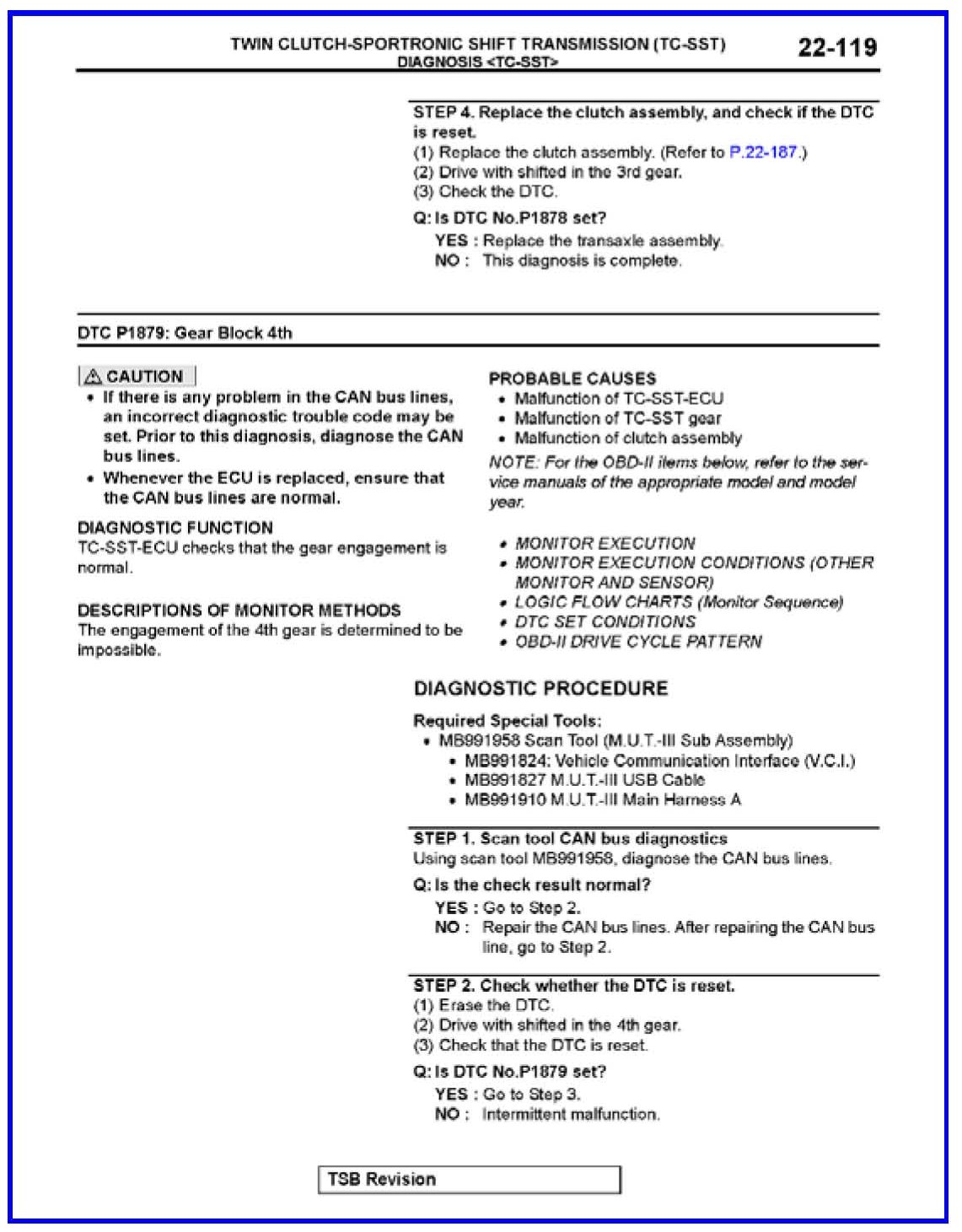

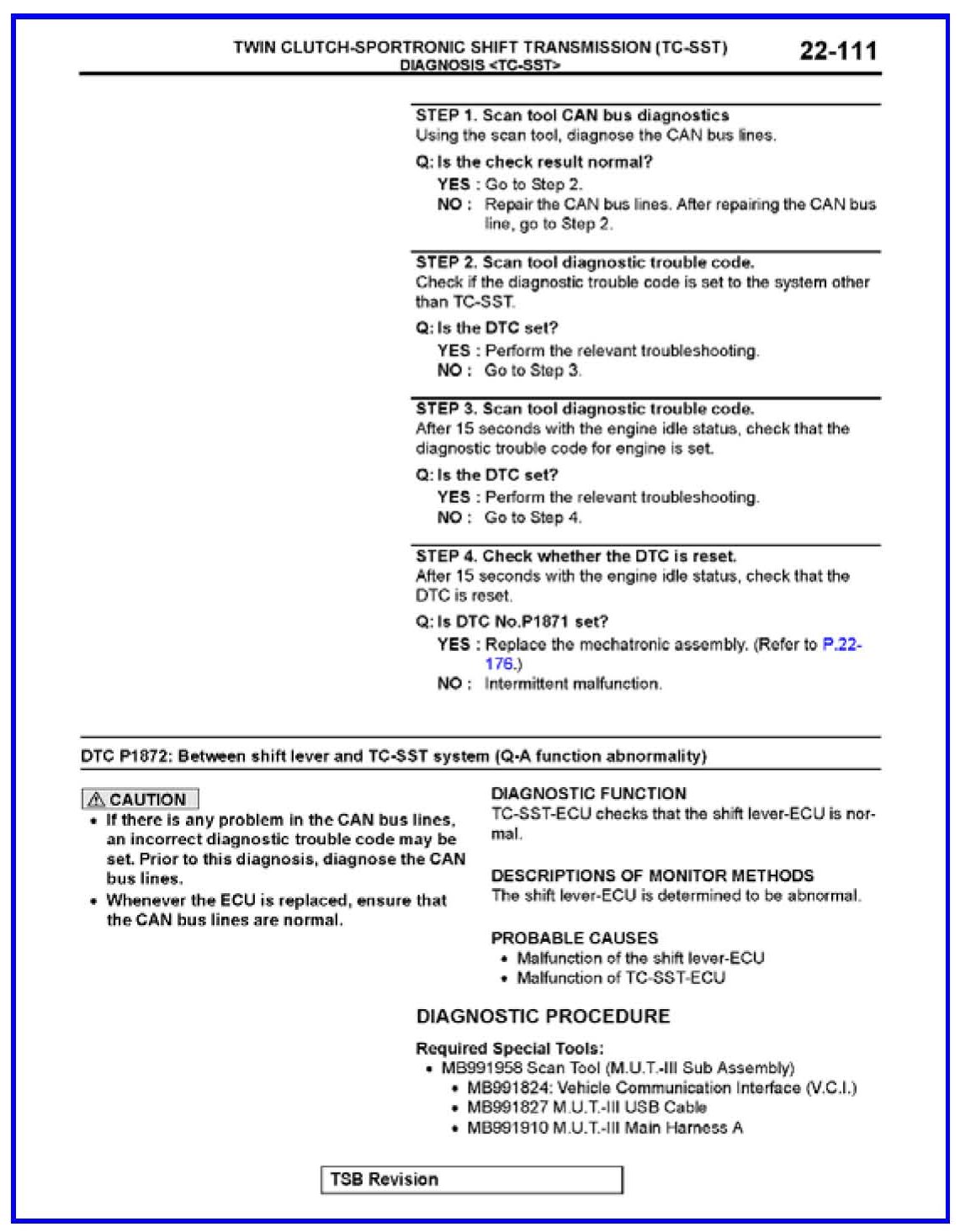

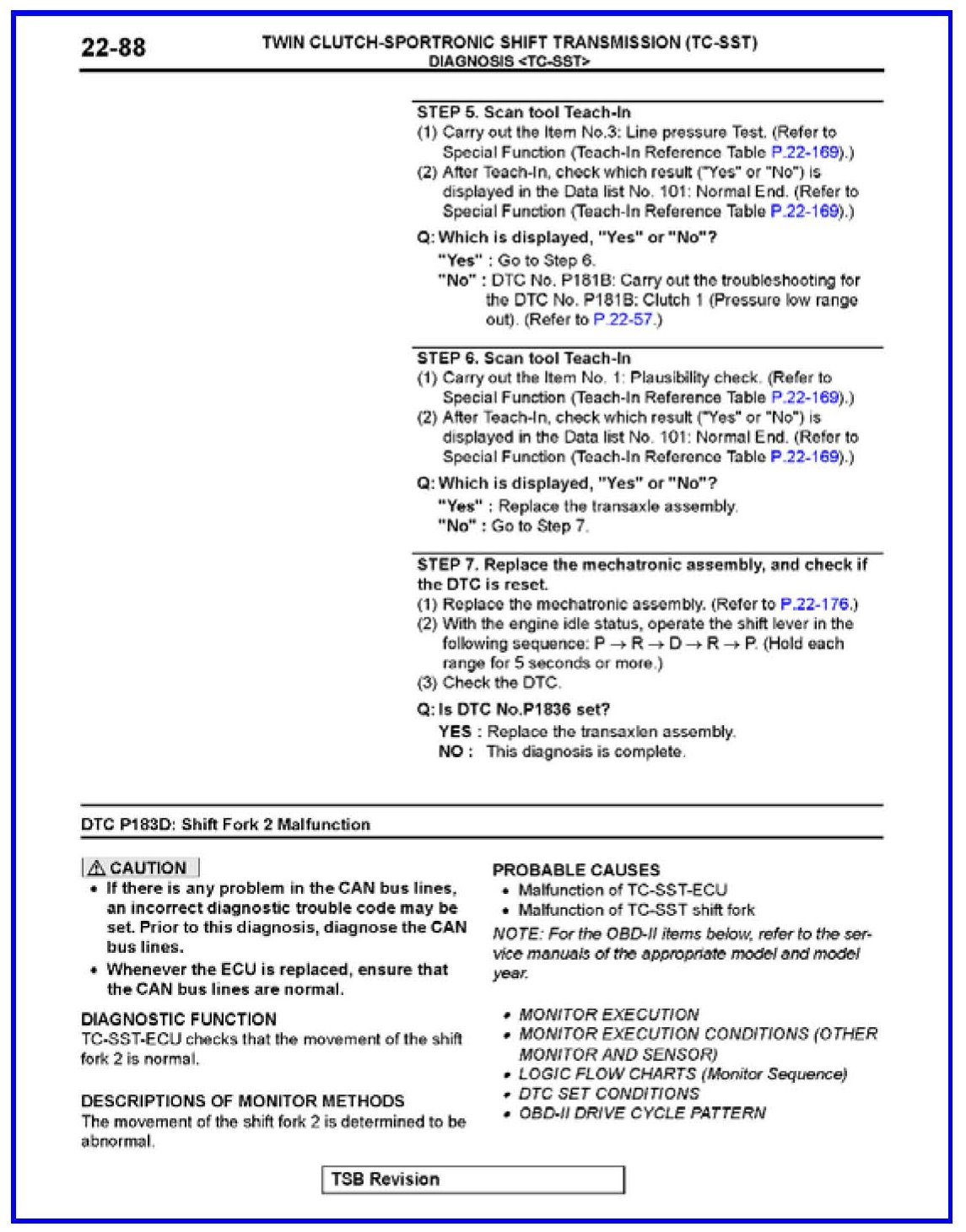

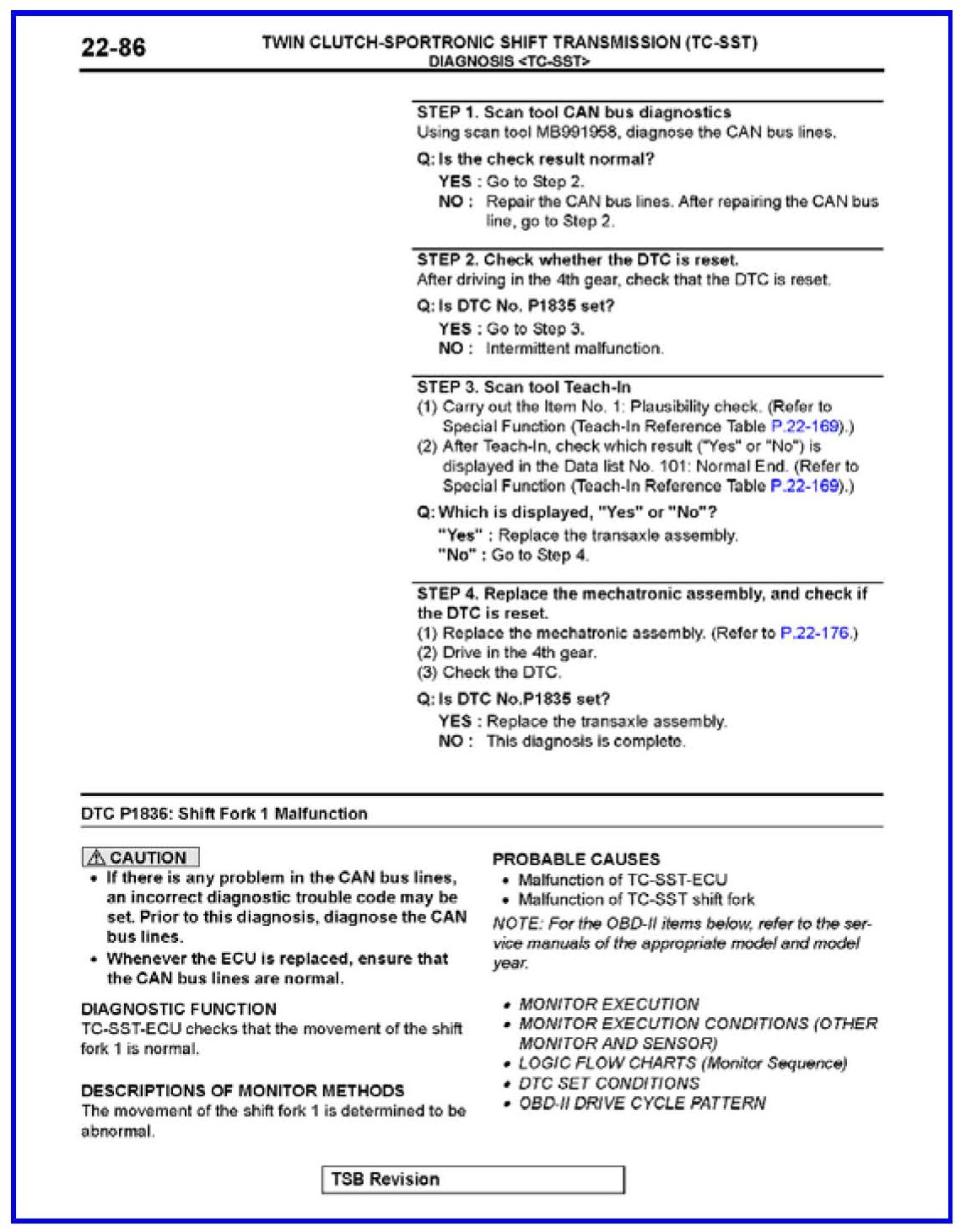

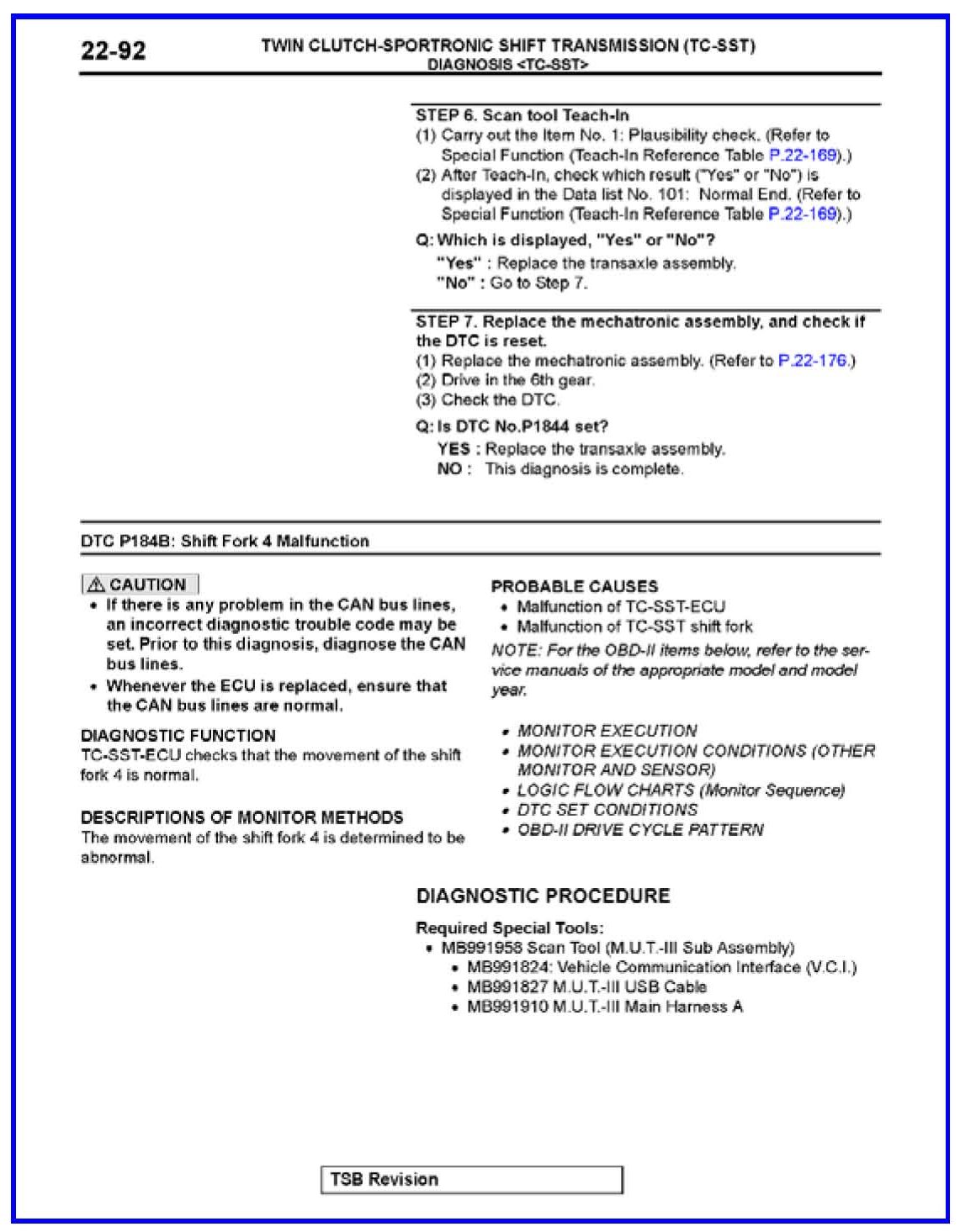

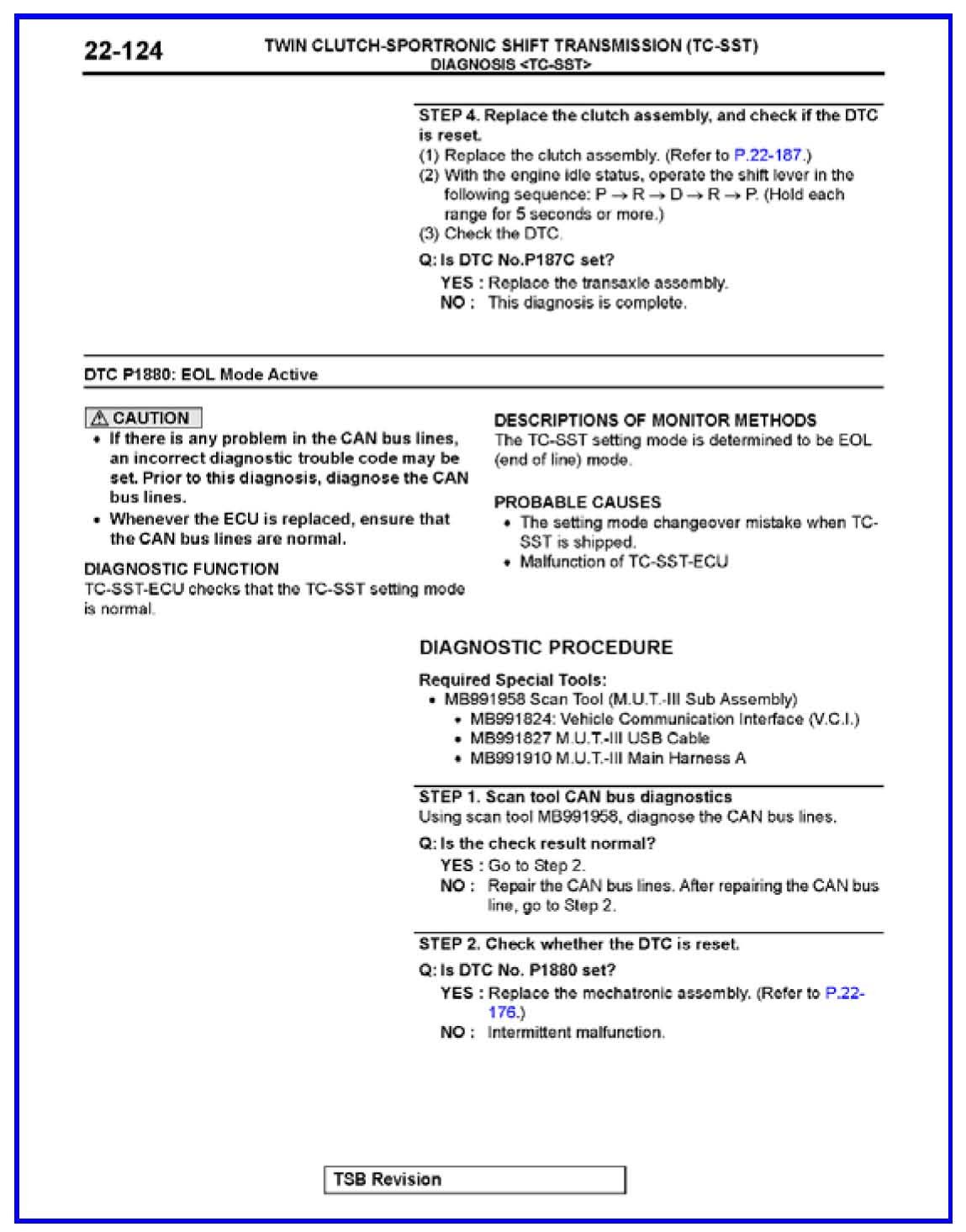

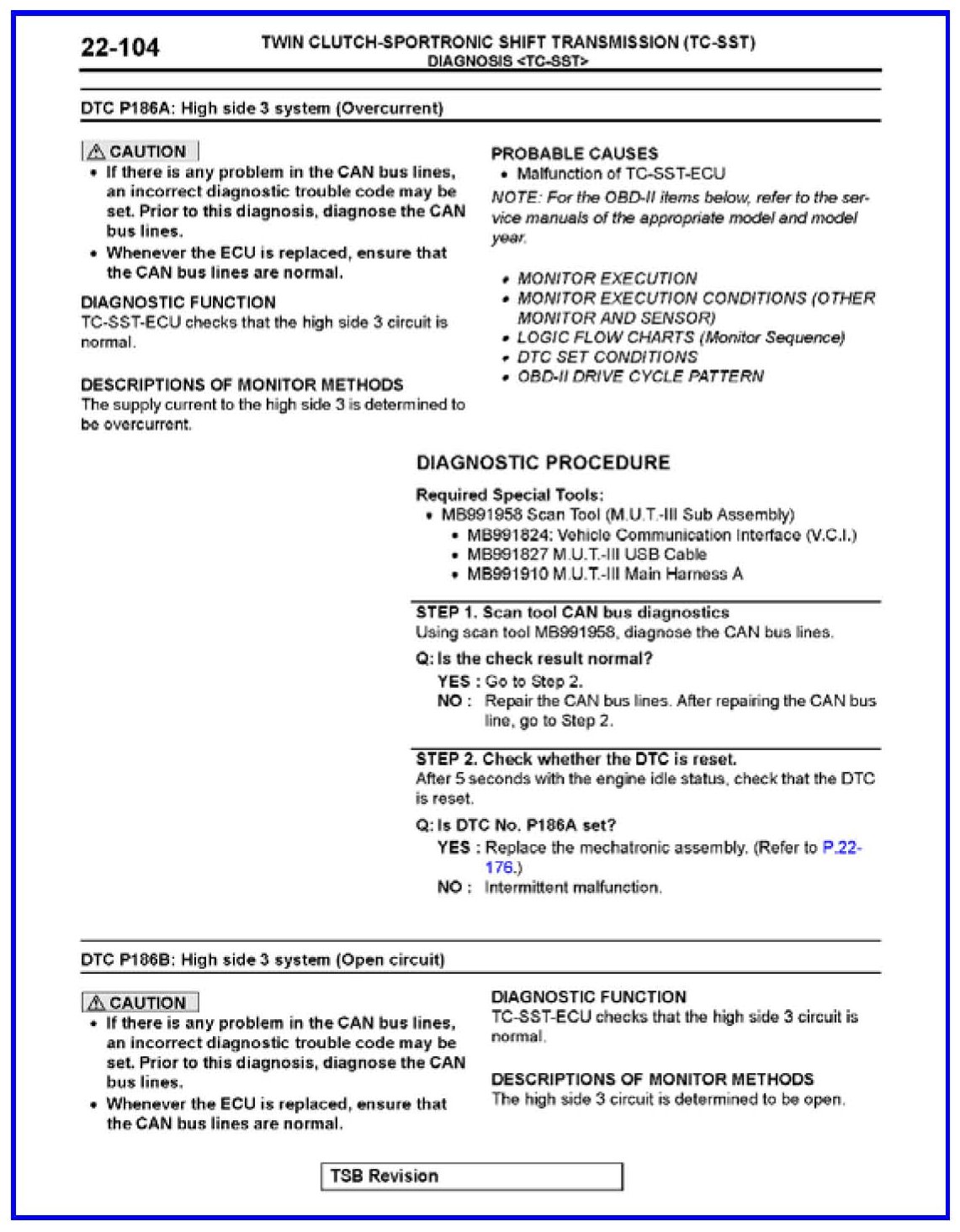

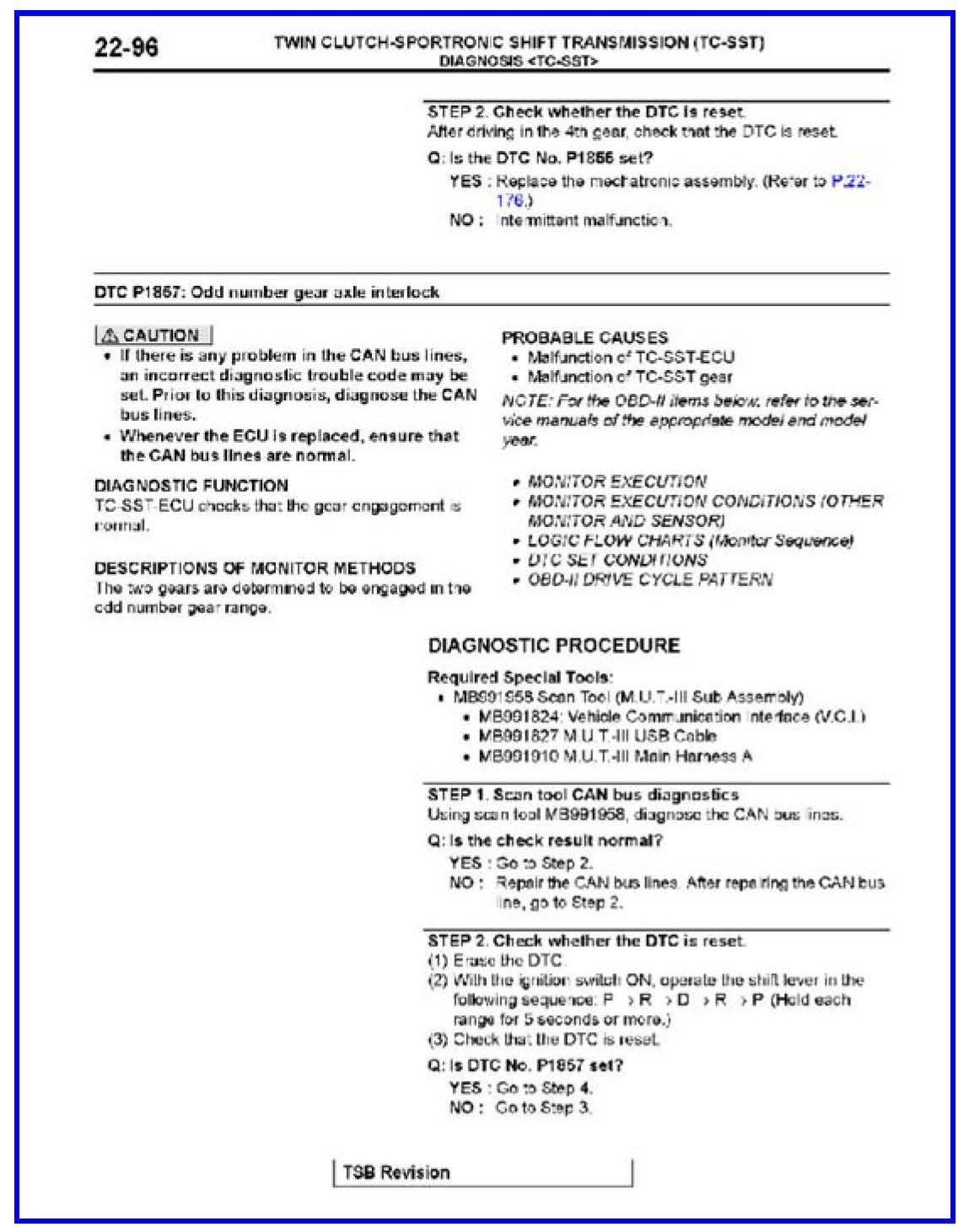

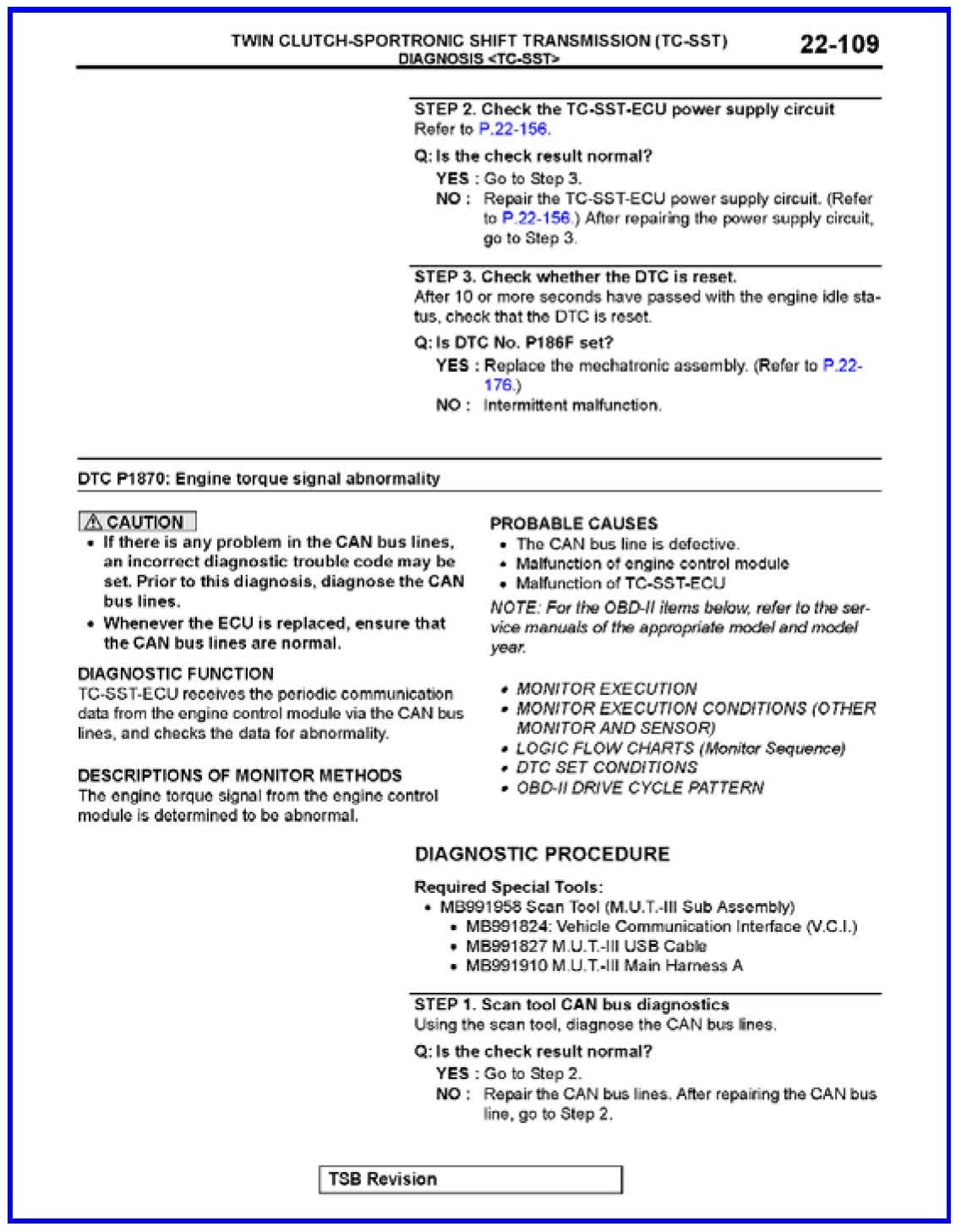

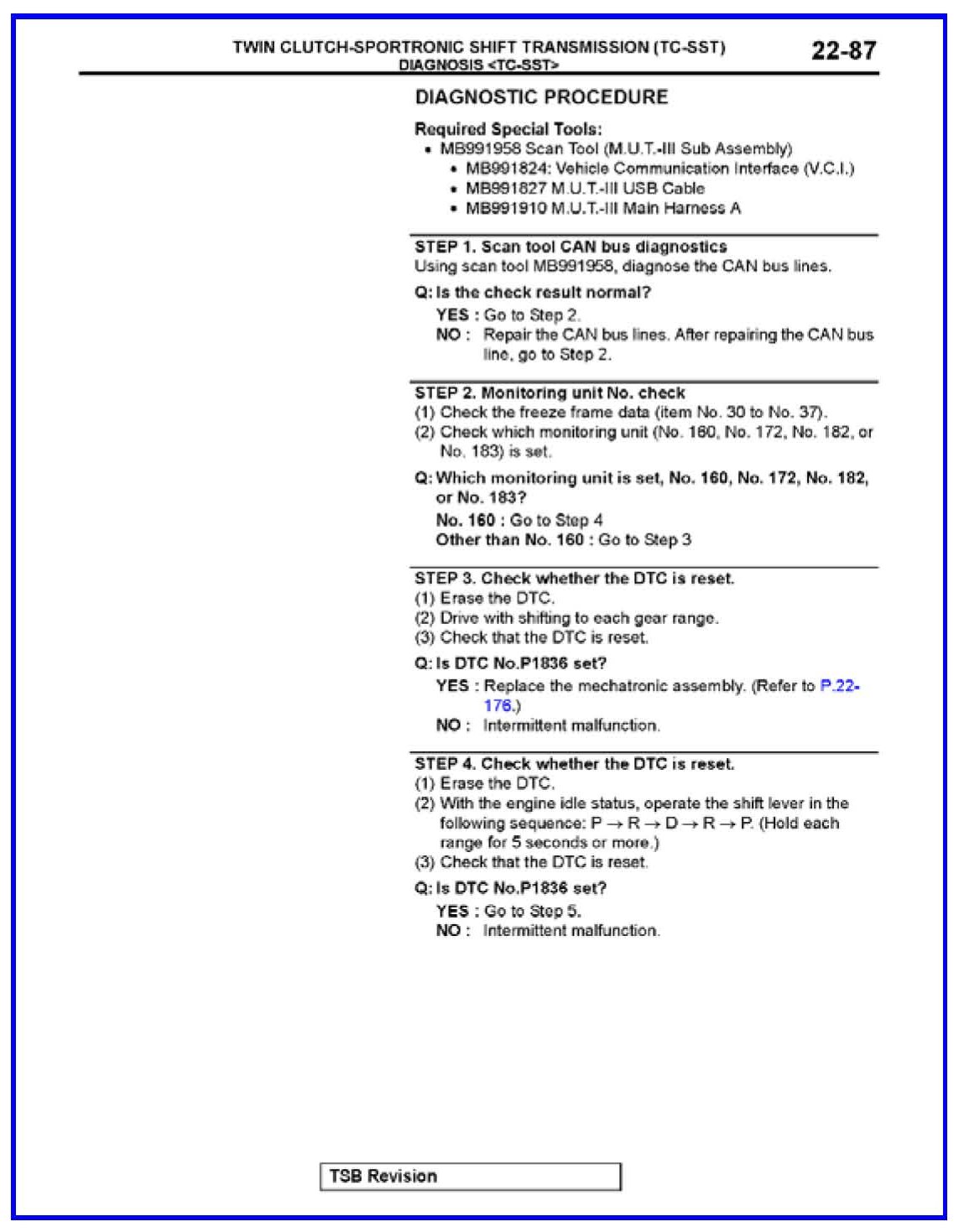

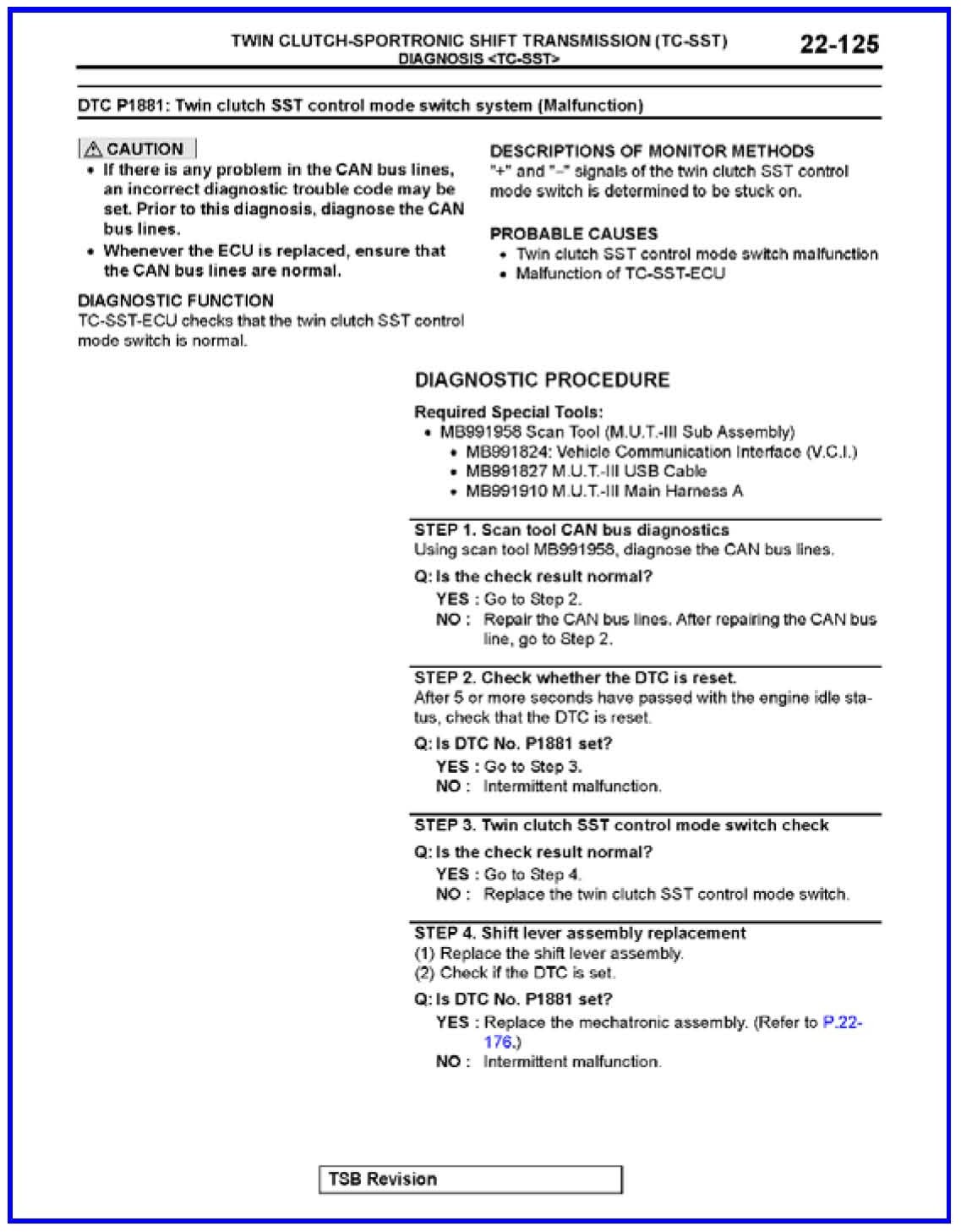

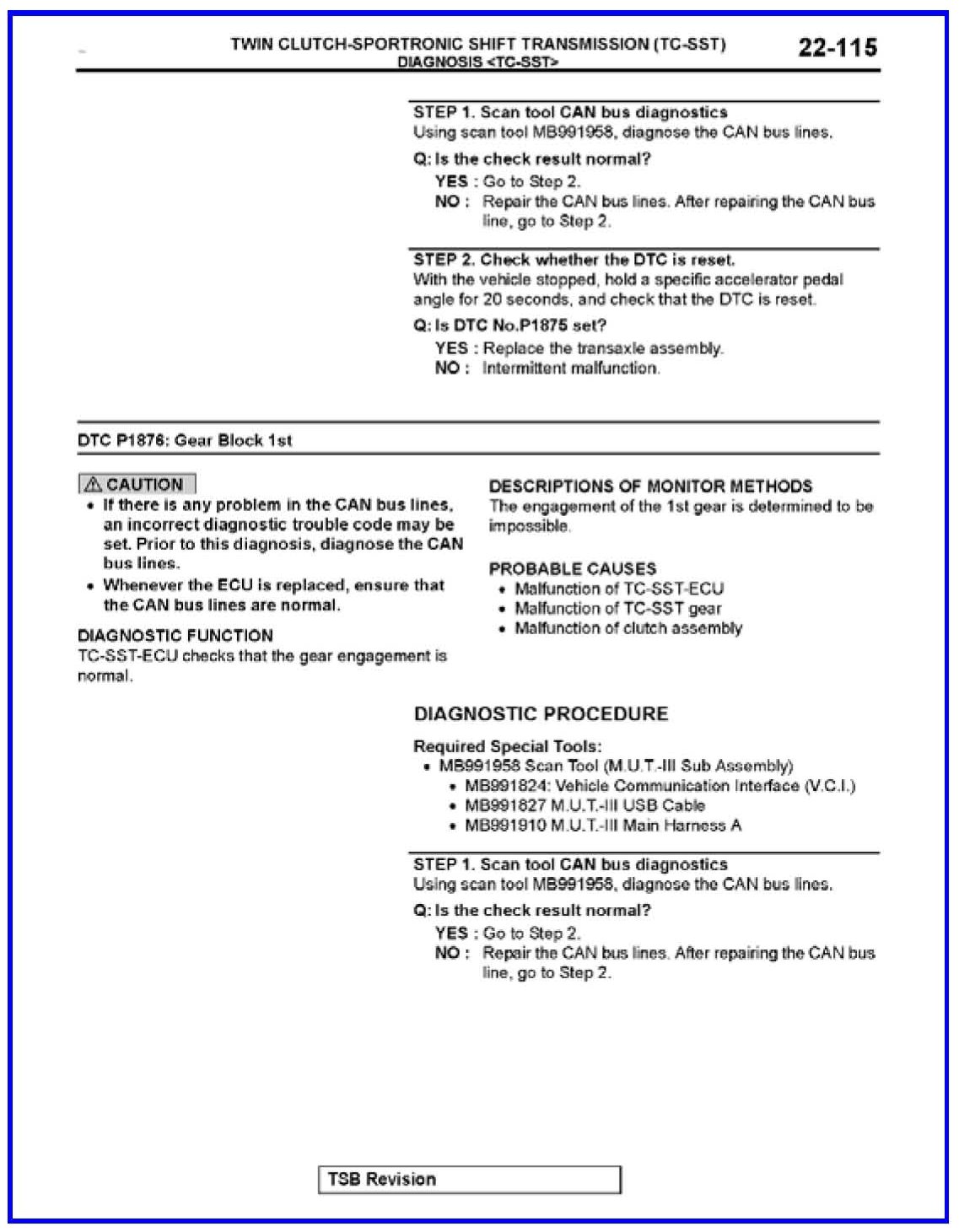

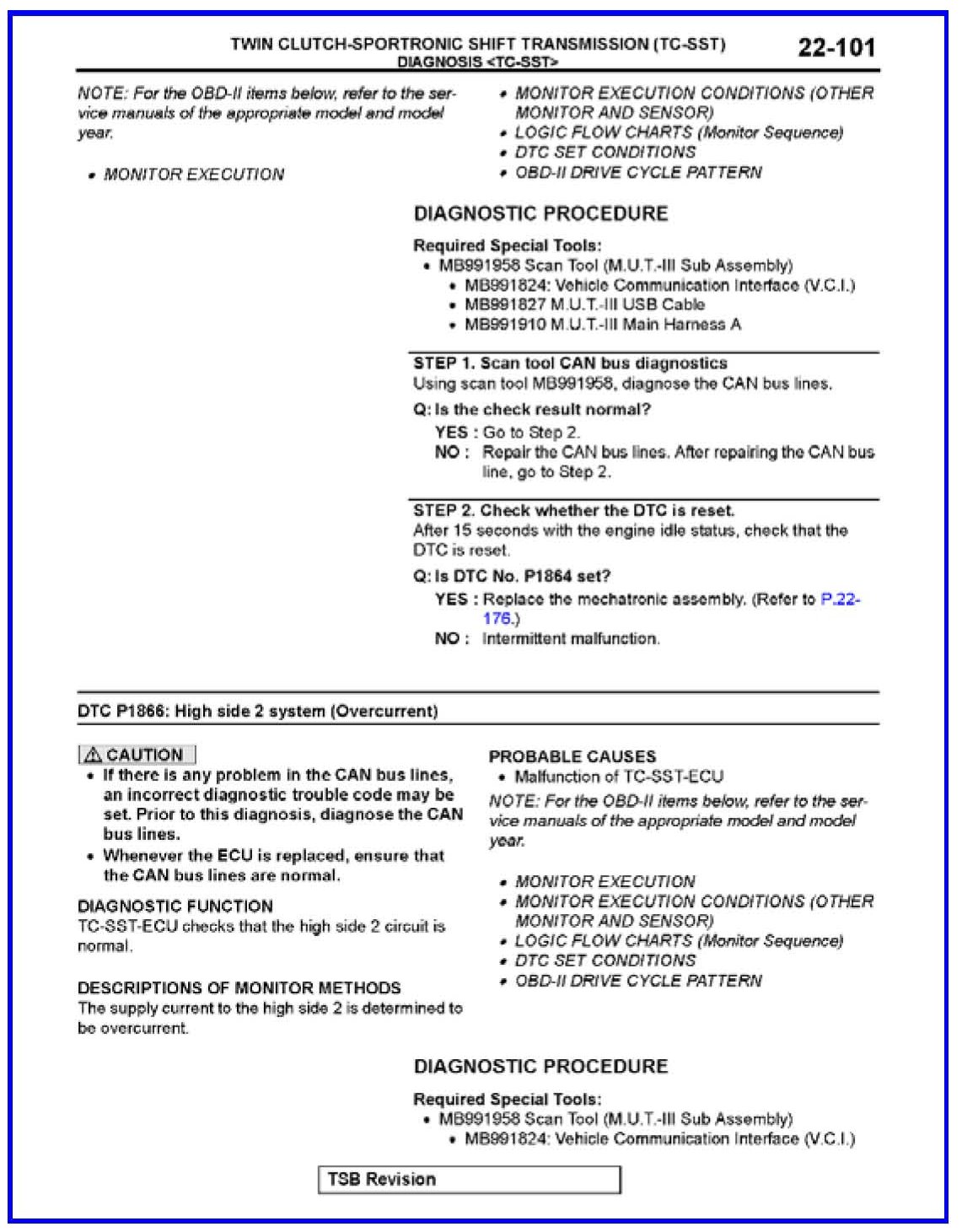

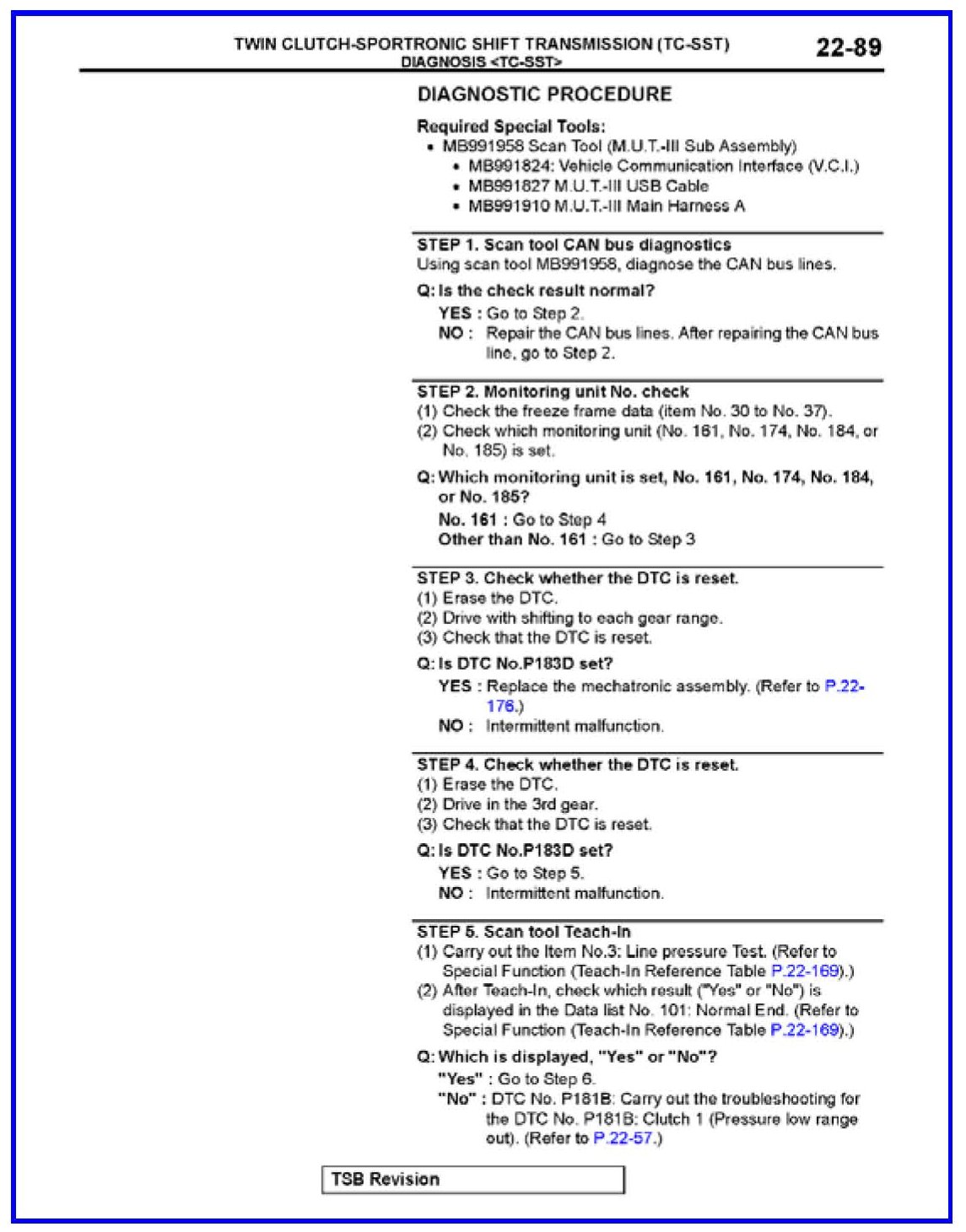

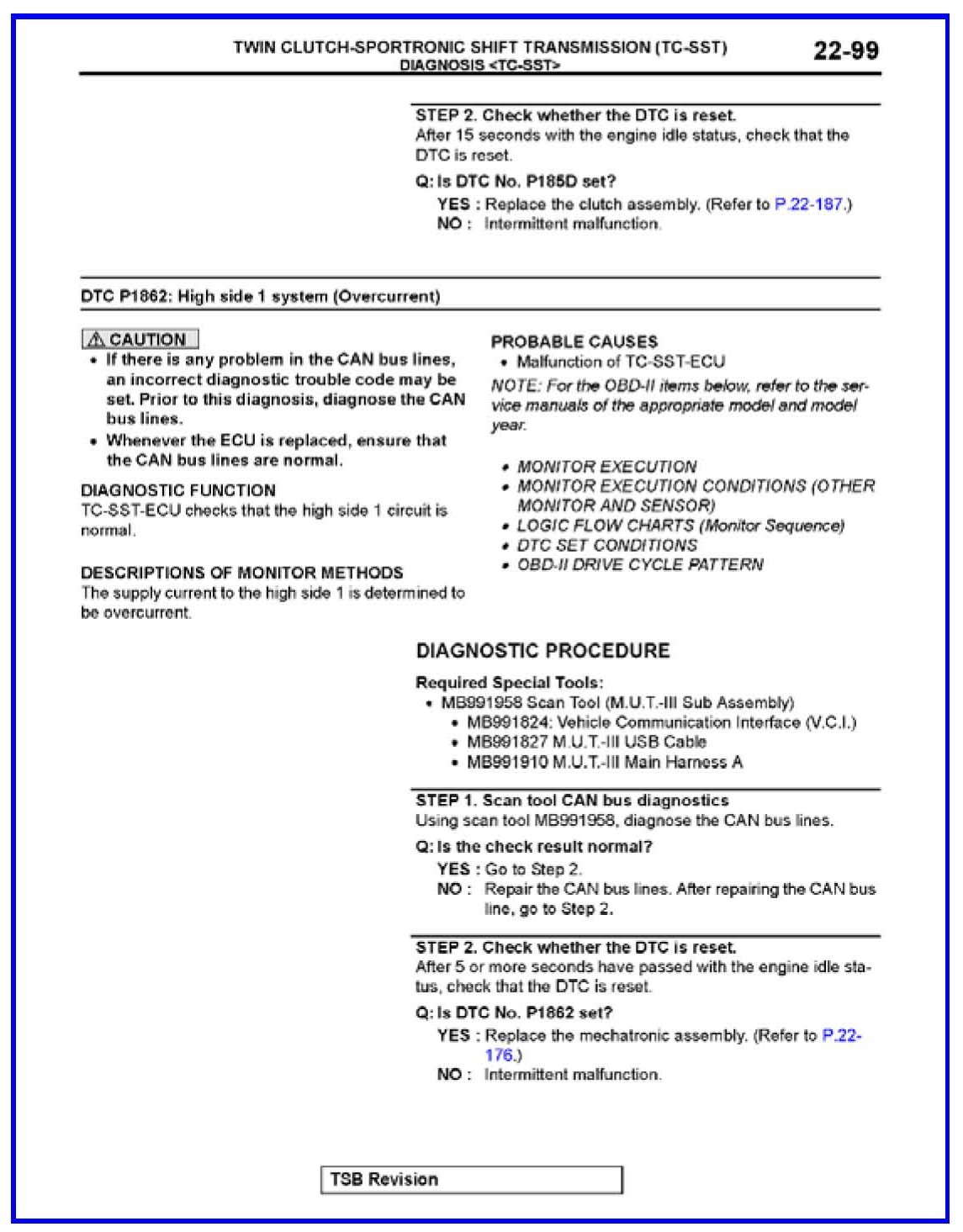

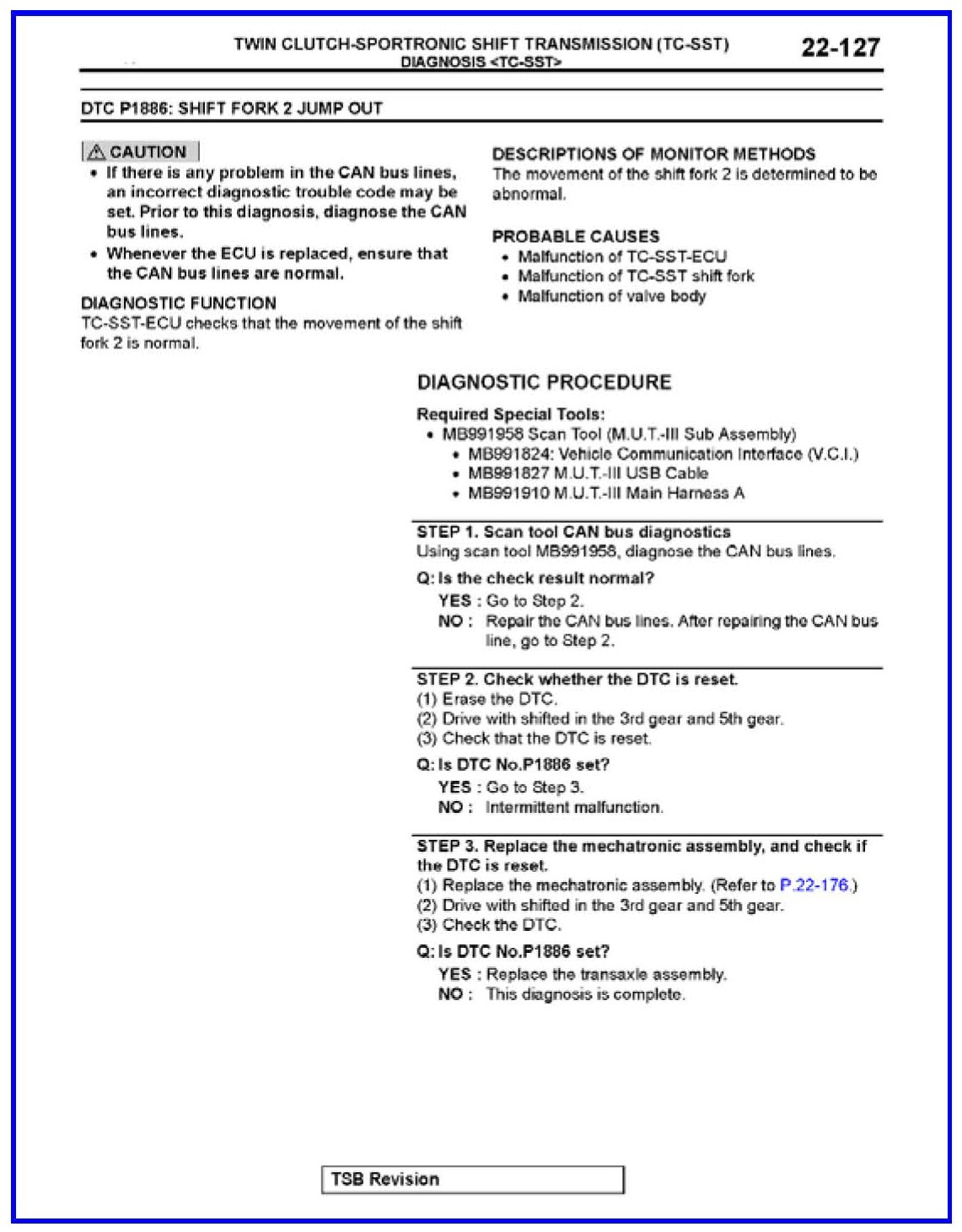

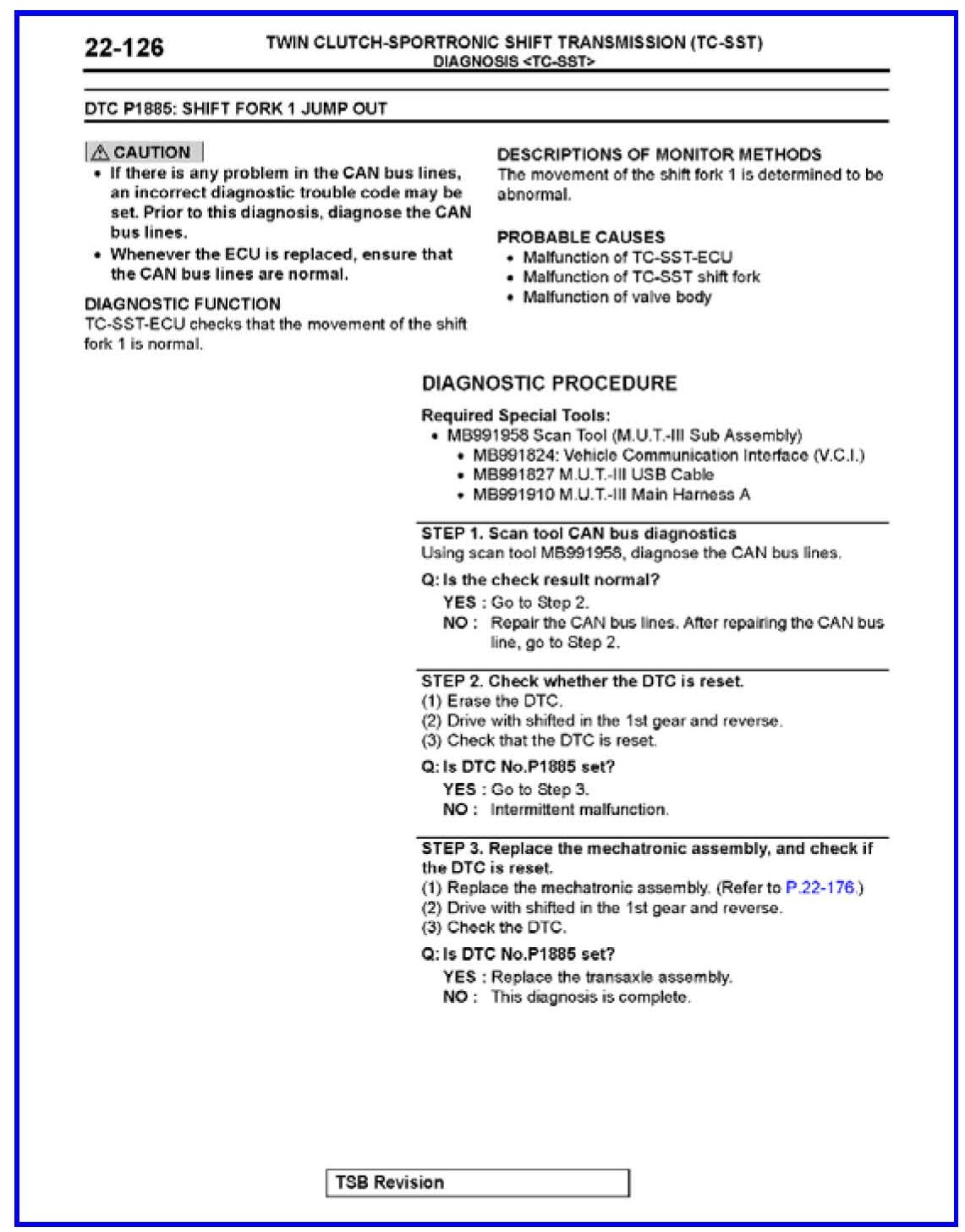

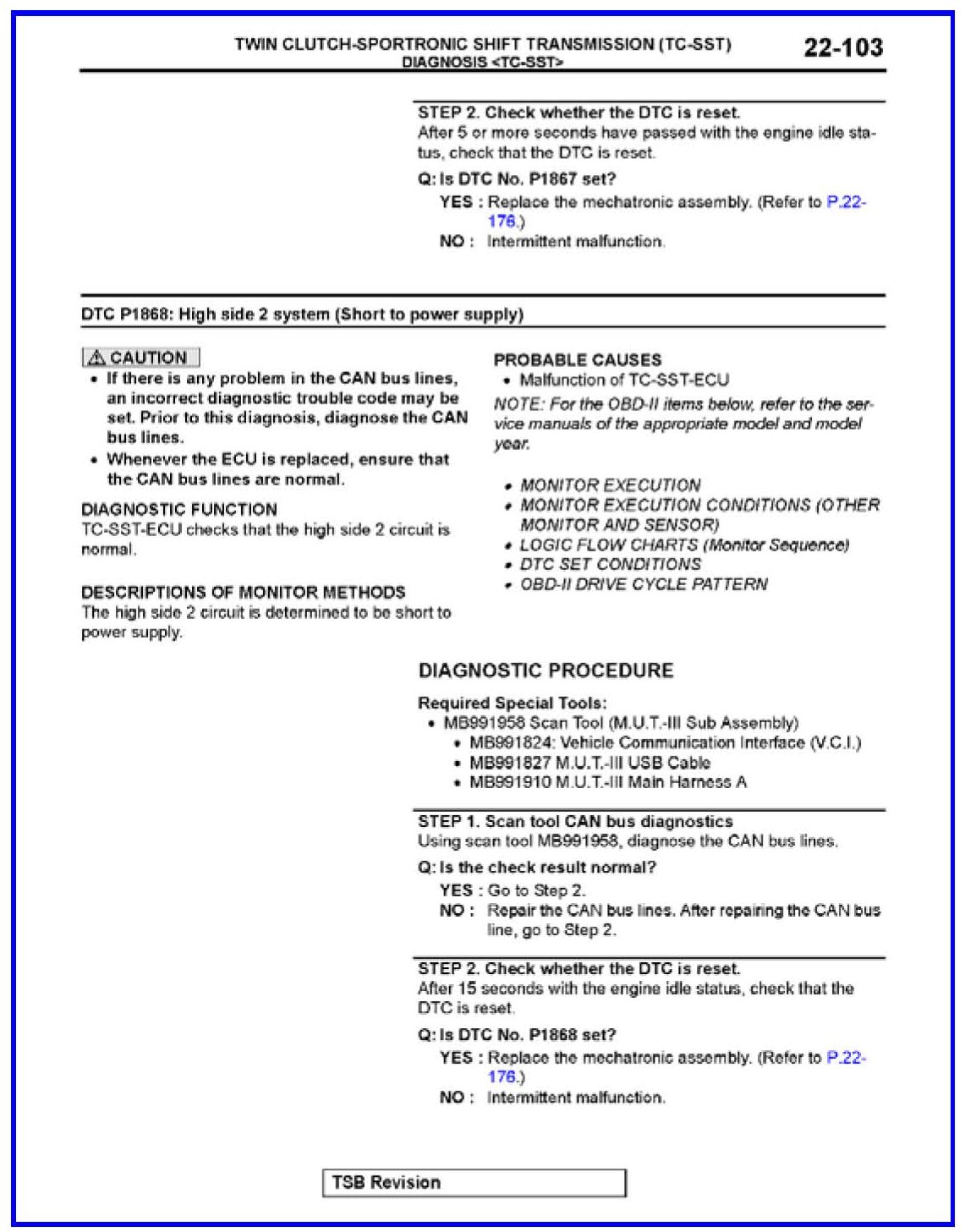

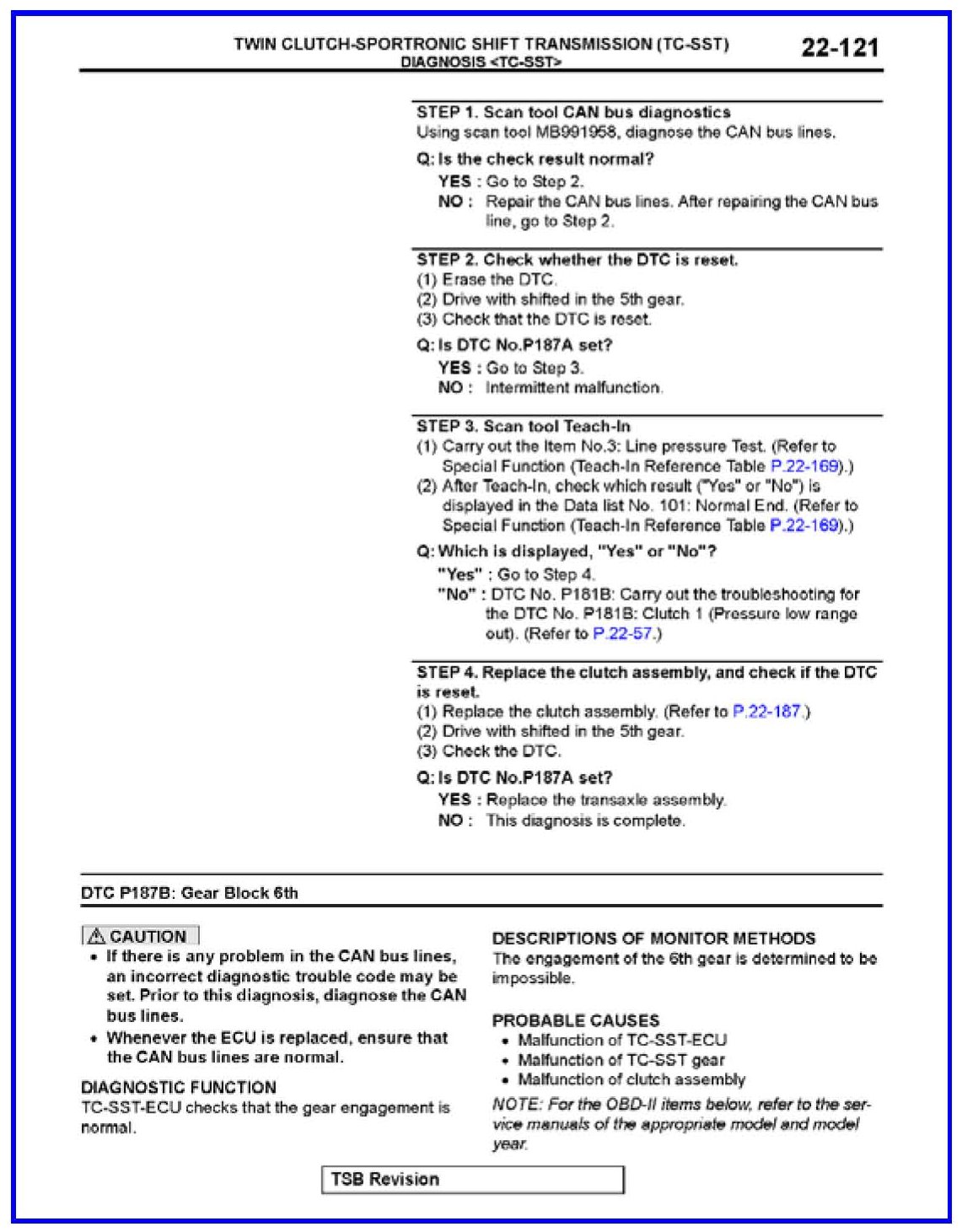

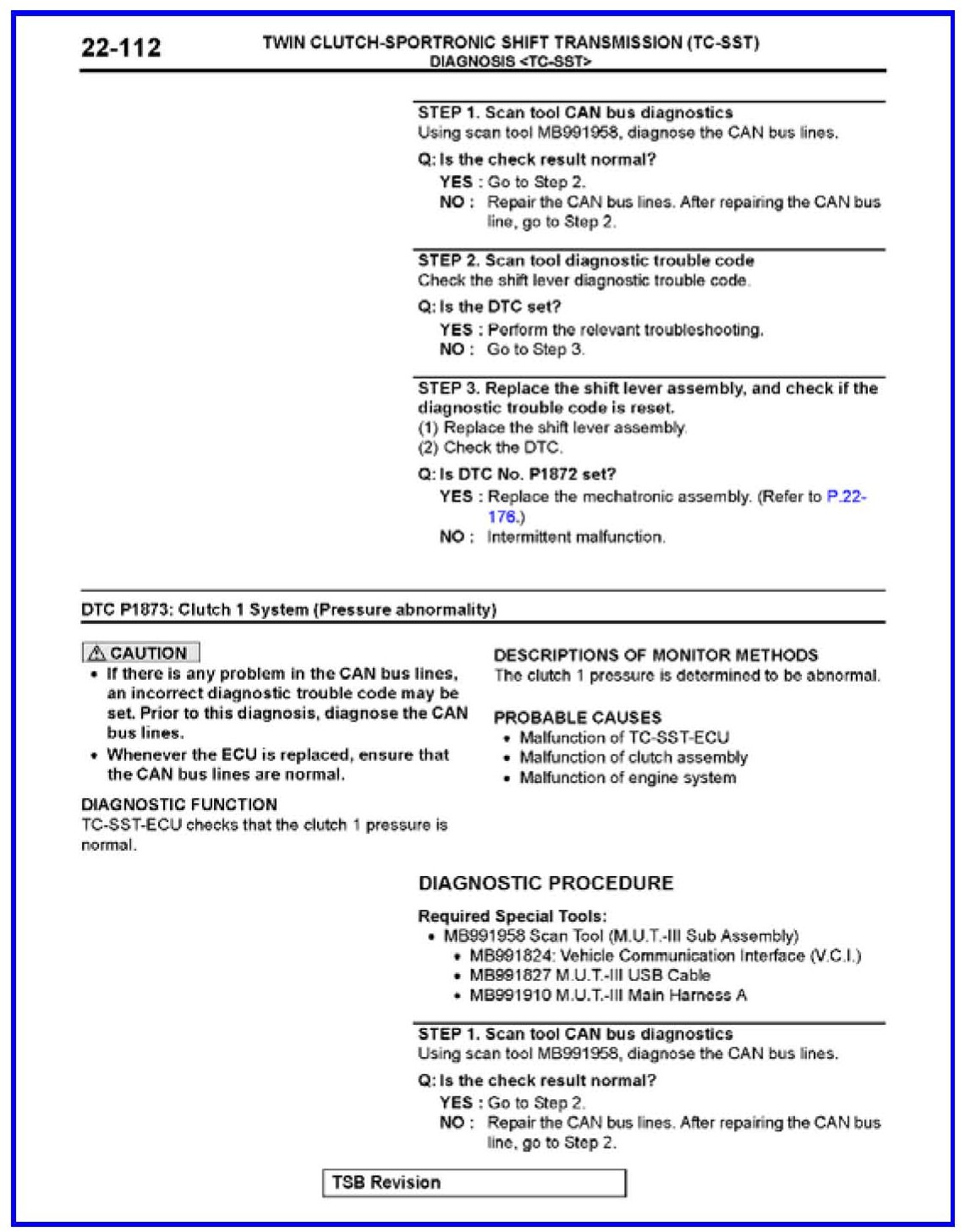

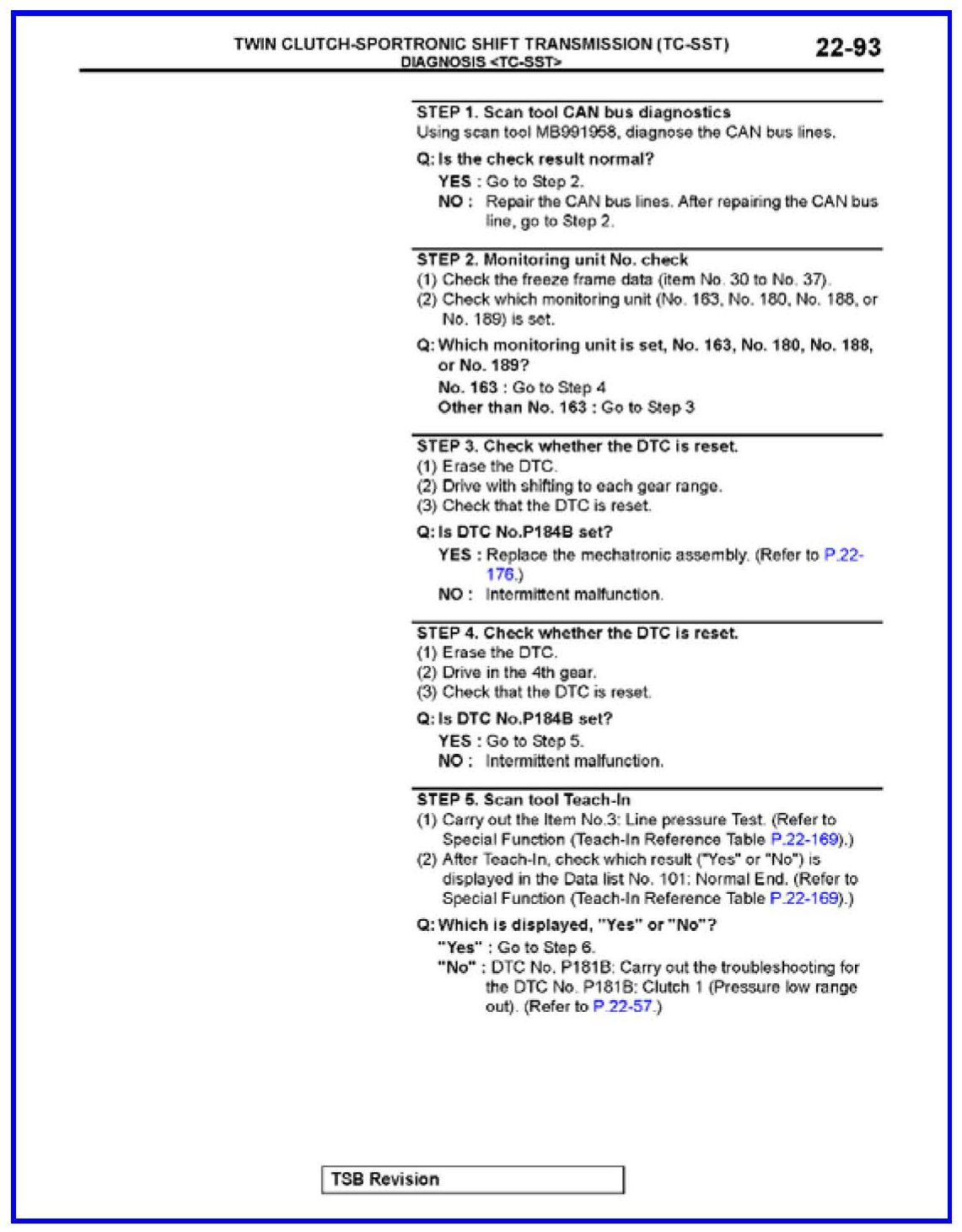

Section 22-86 Thru Section 22-127
































































































































Diagnosis Part 3 of 4
