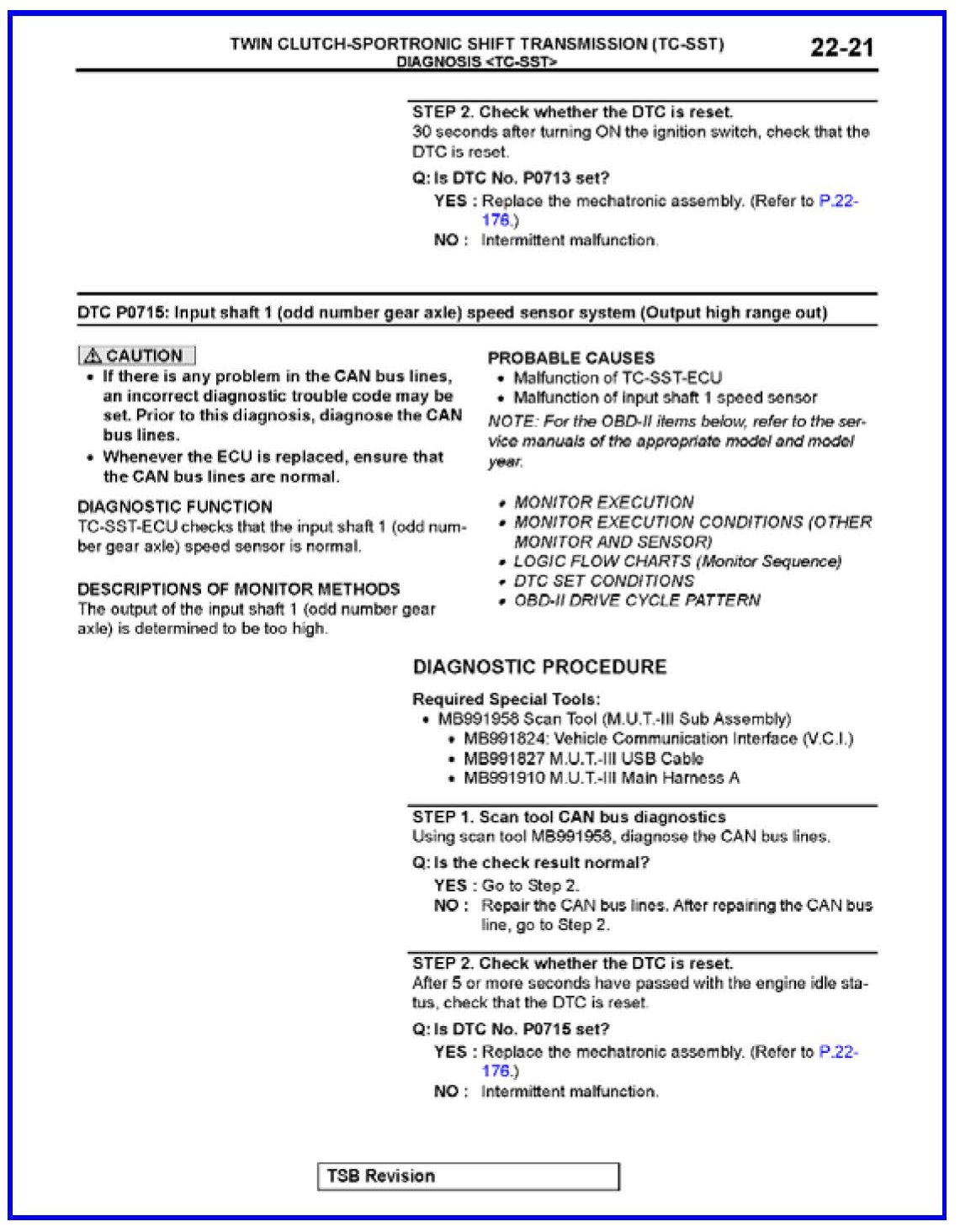

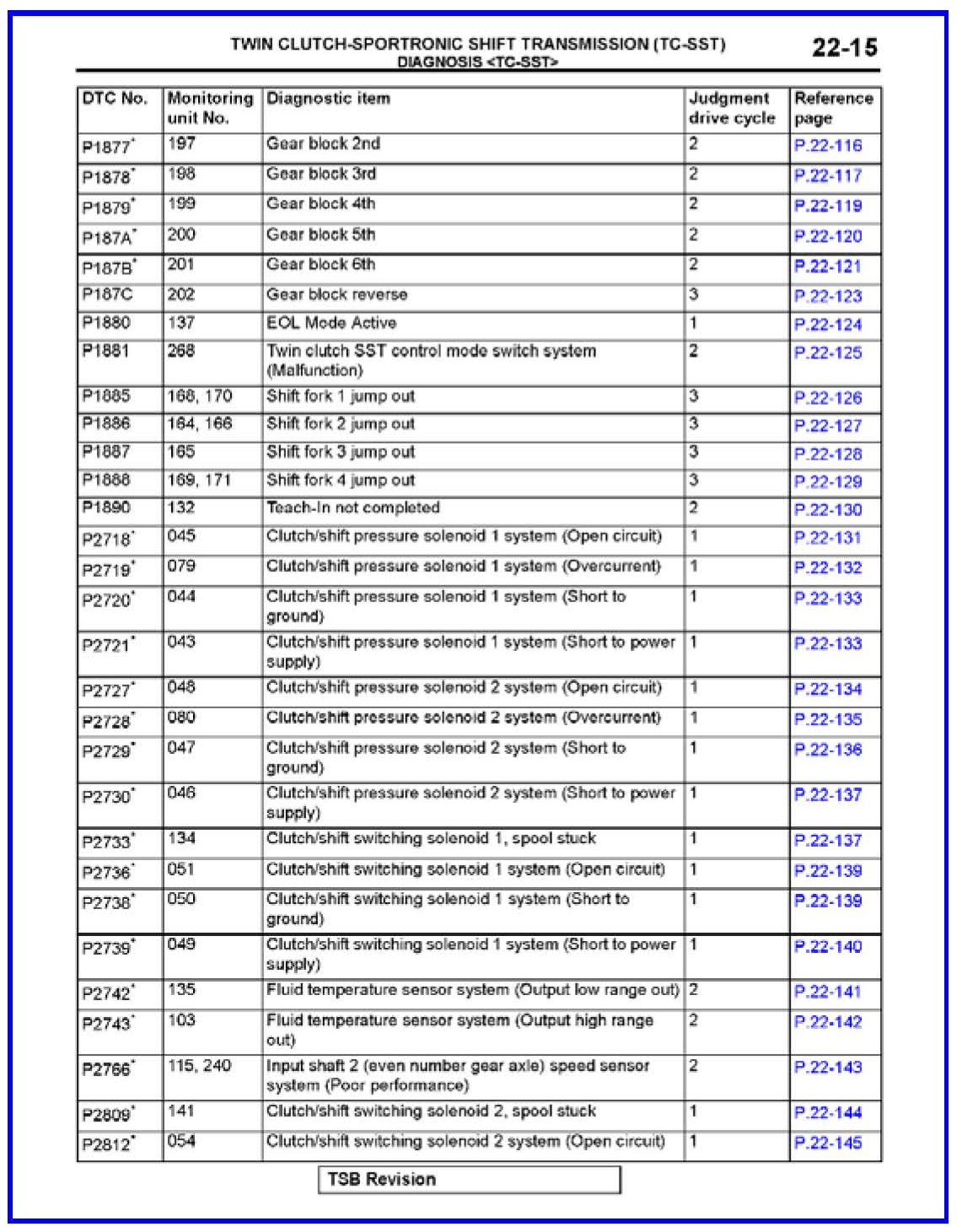

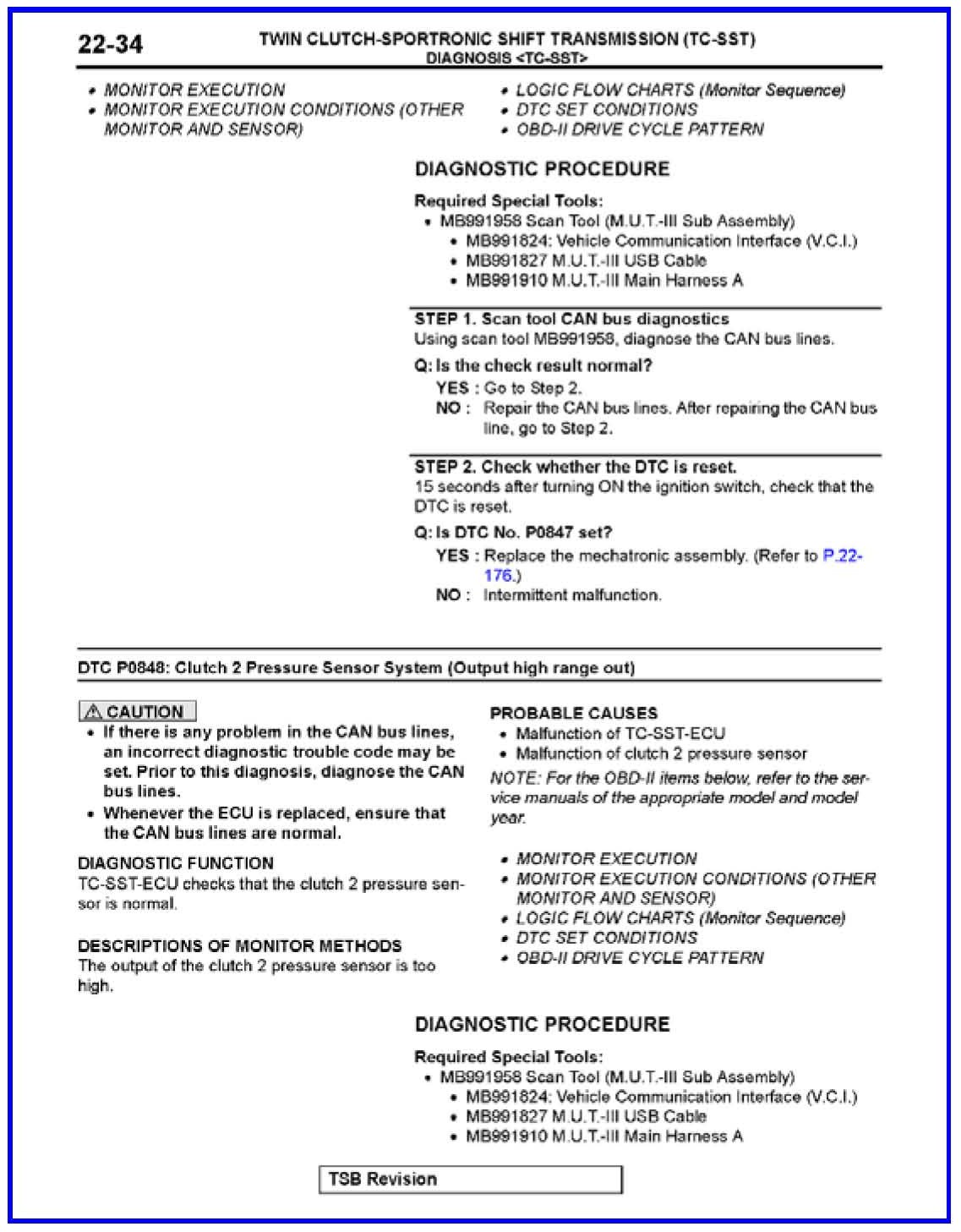

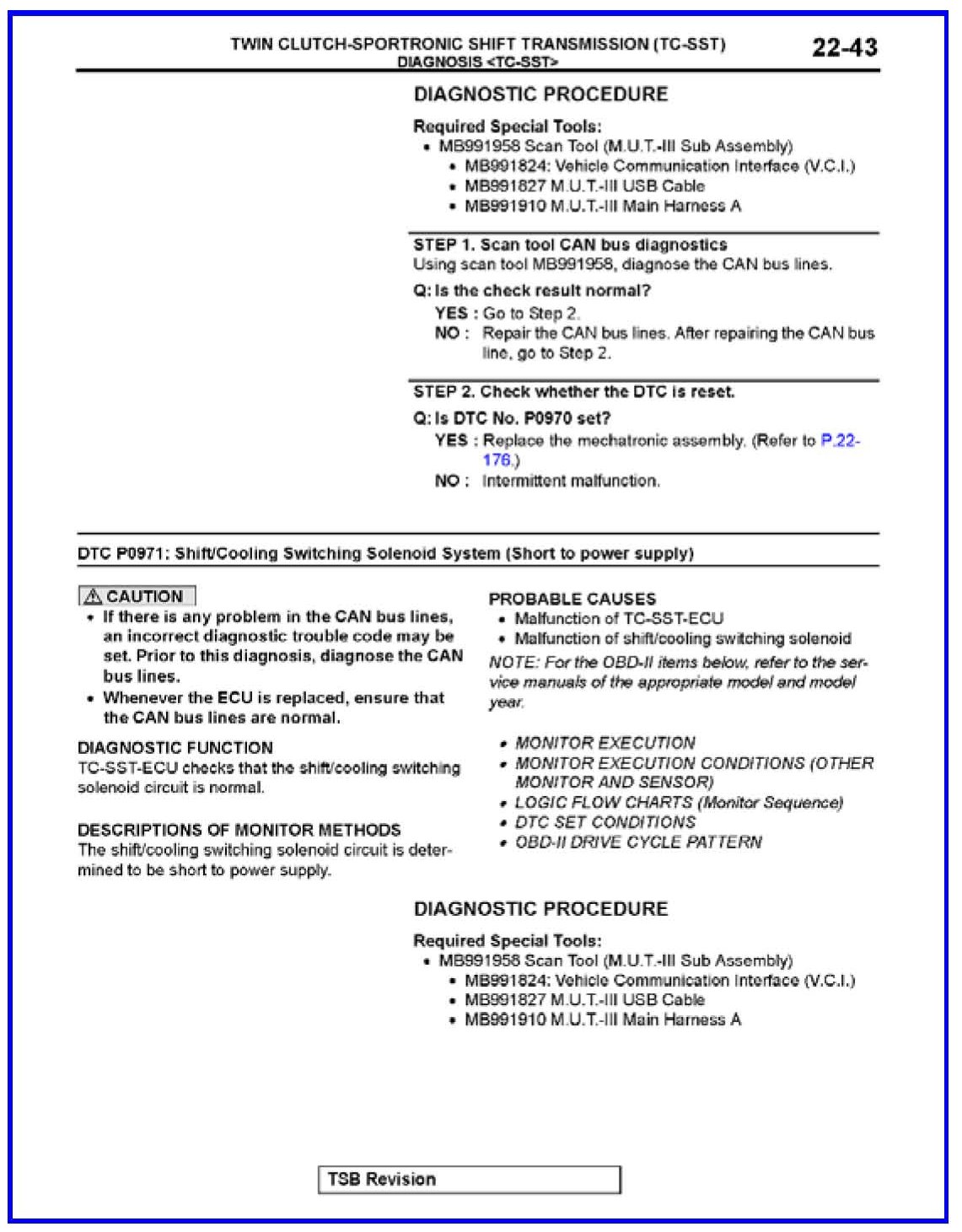

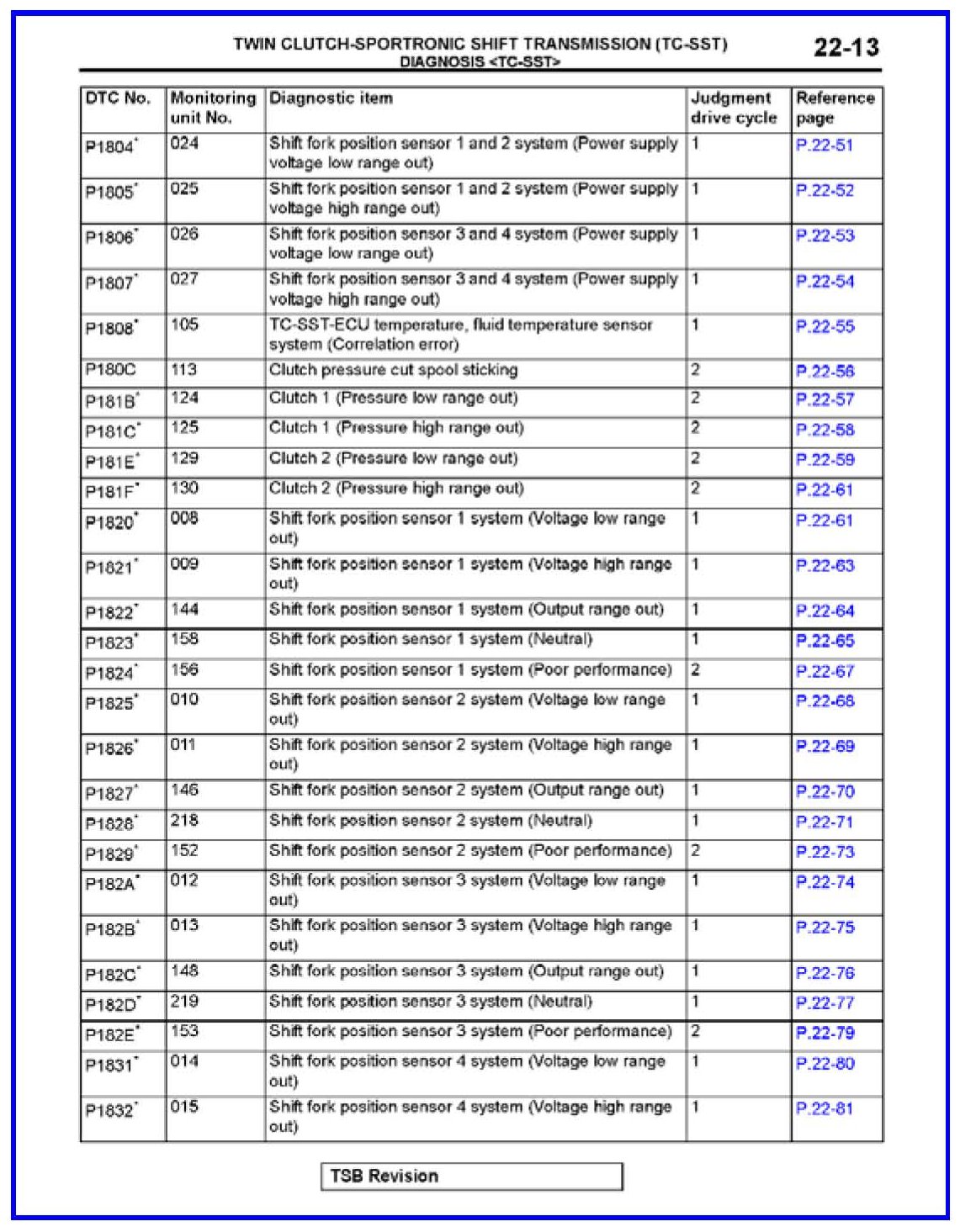

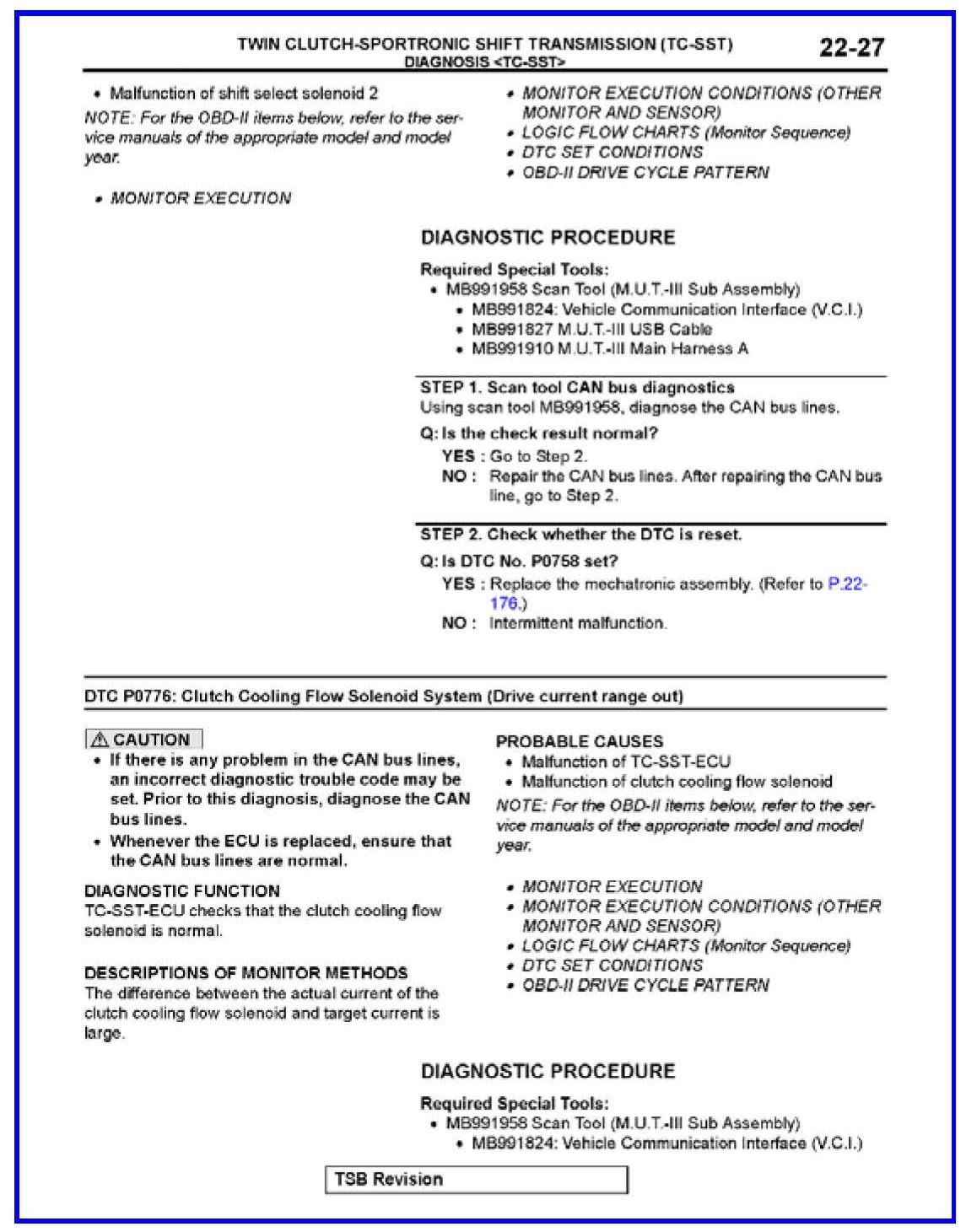

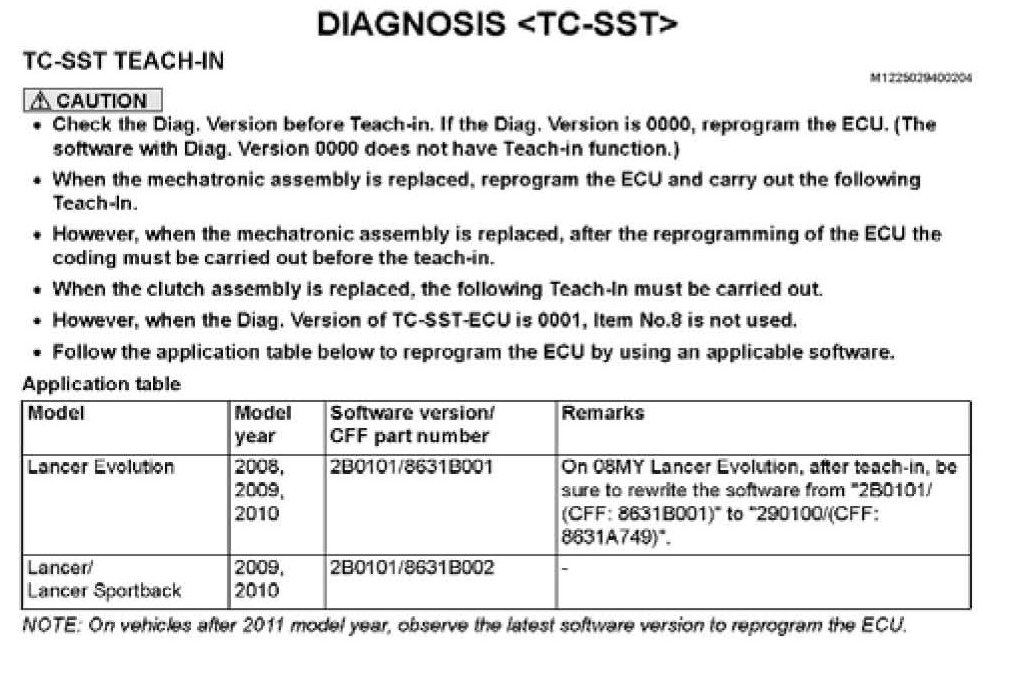

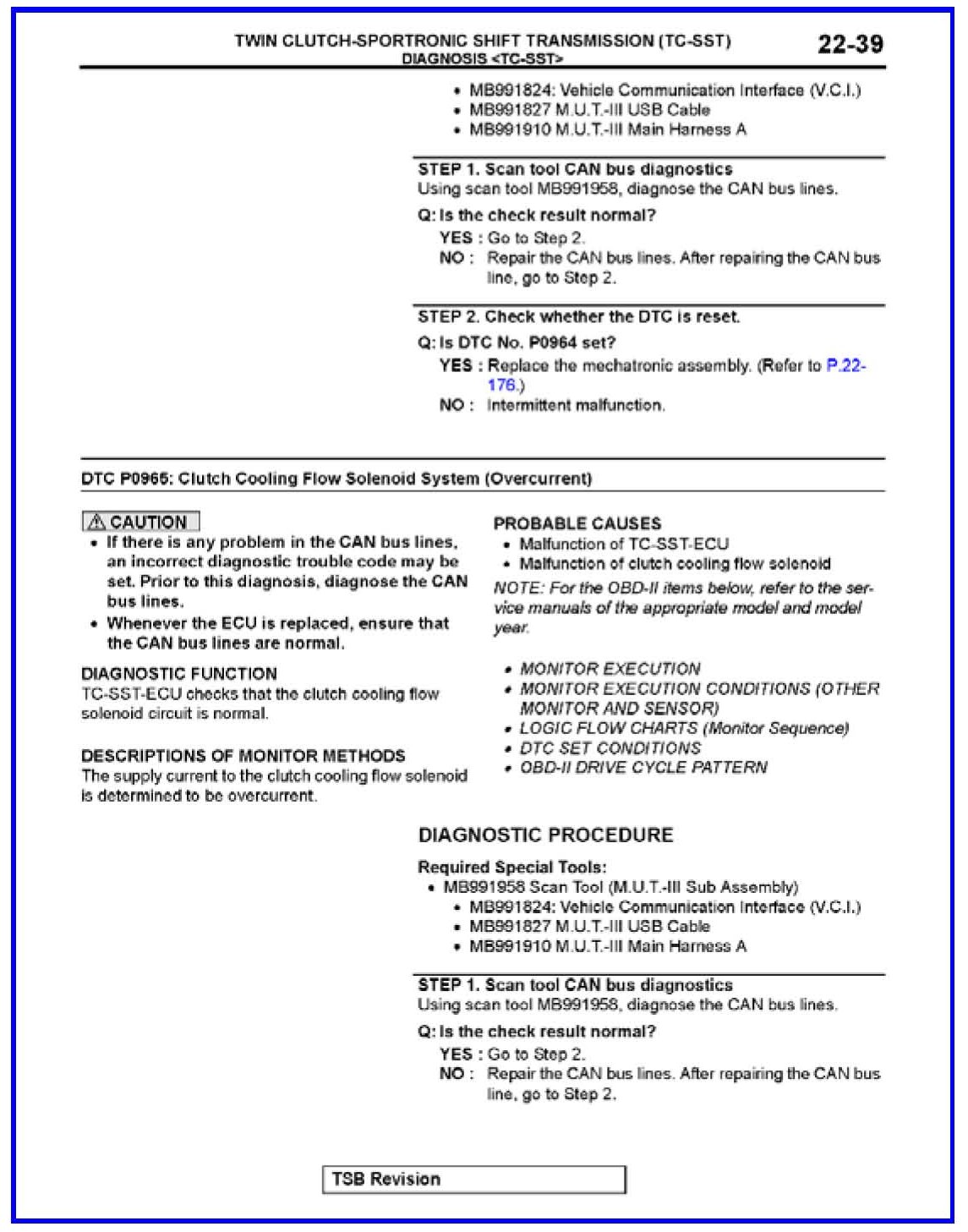

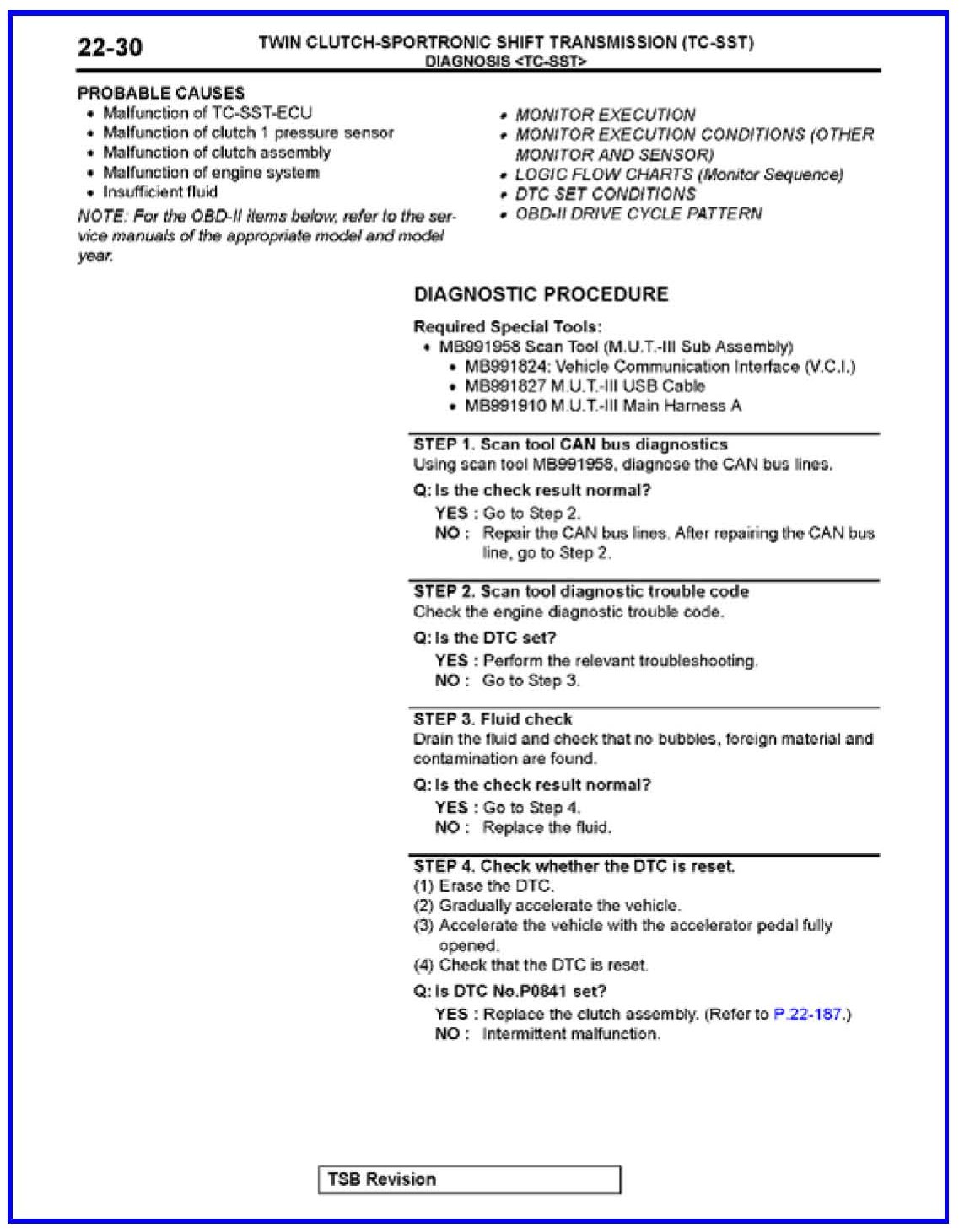

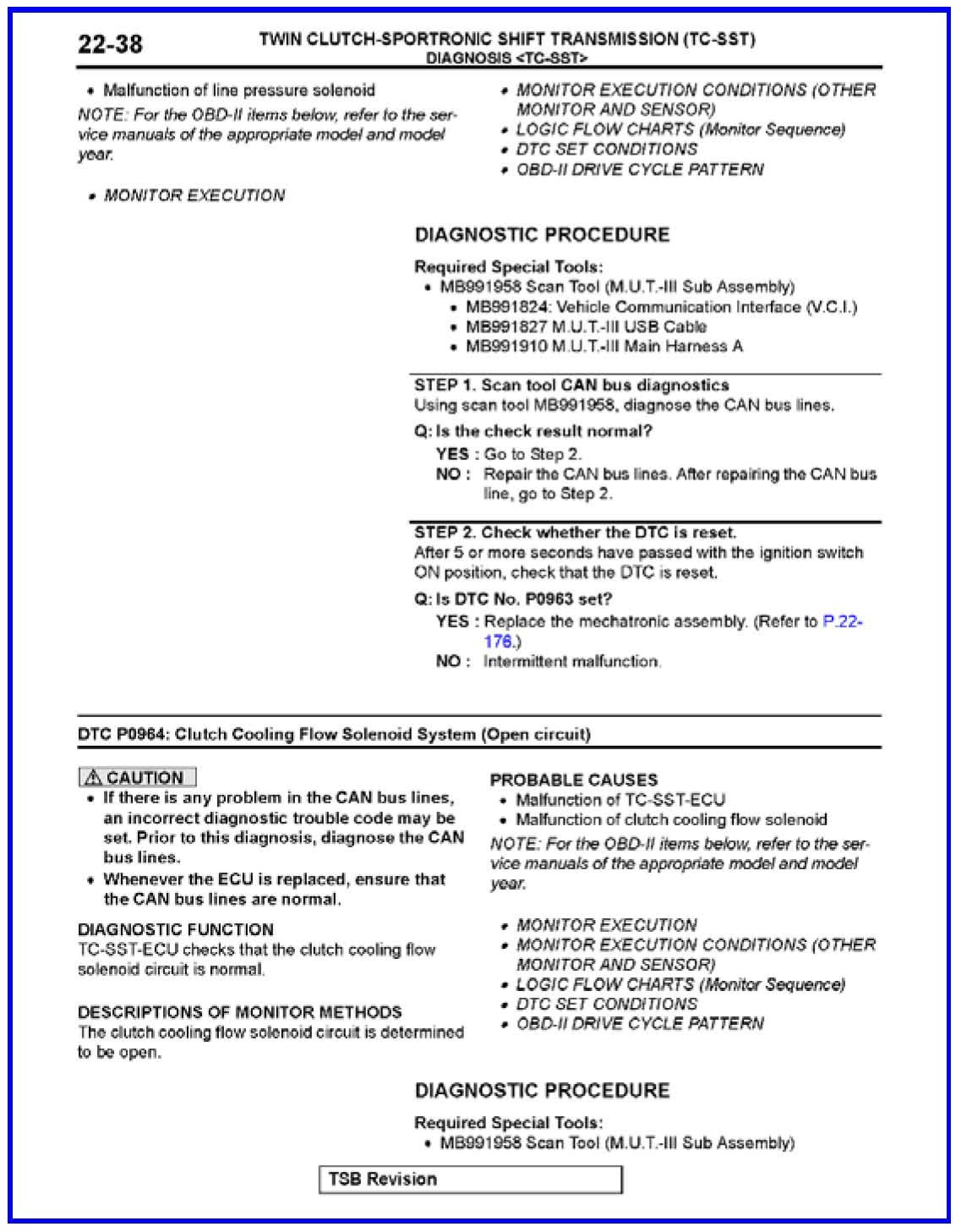

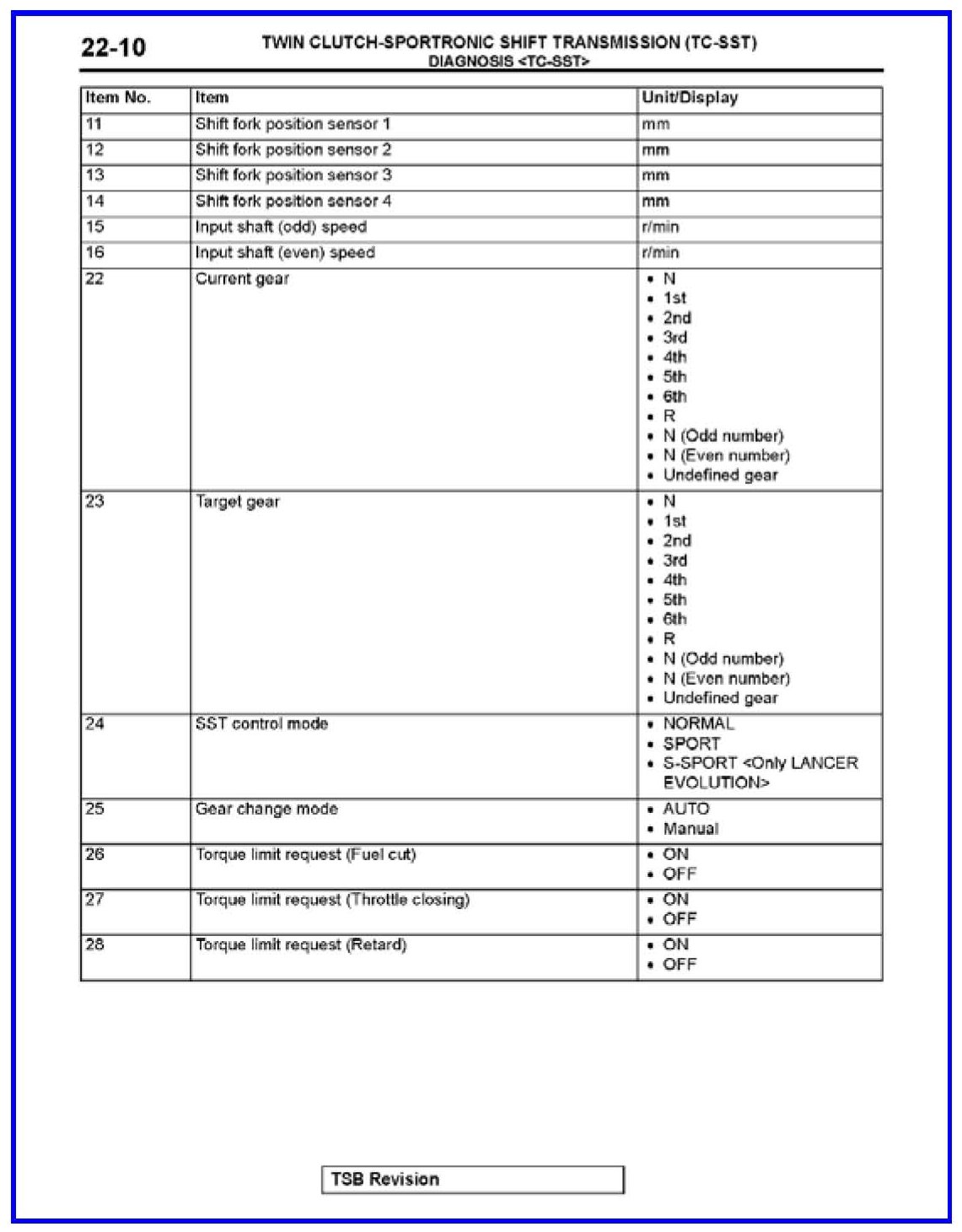

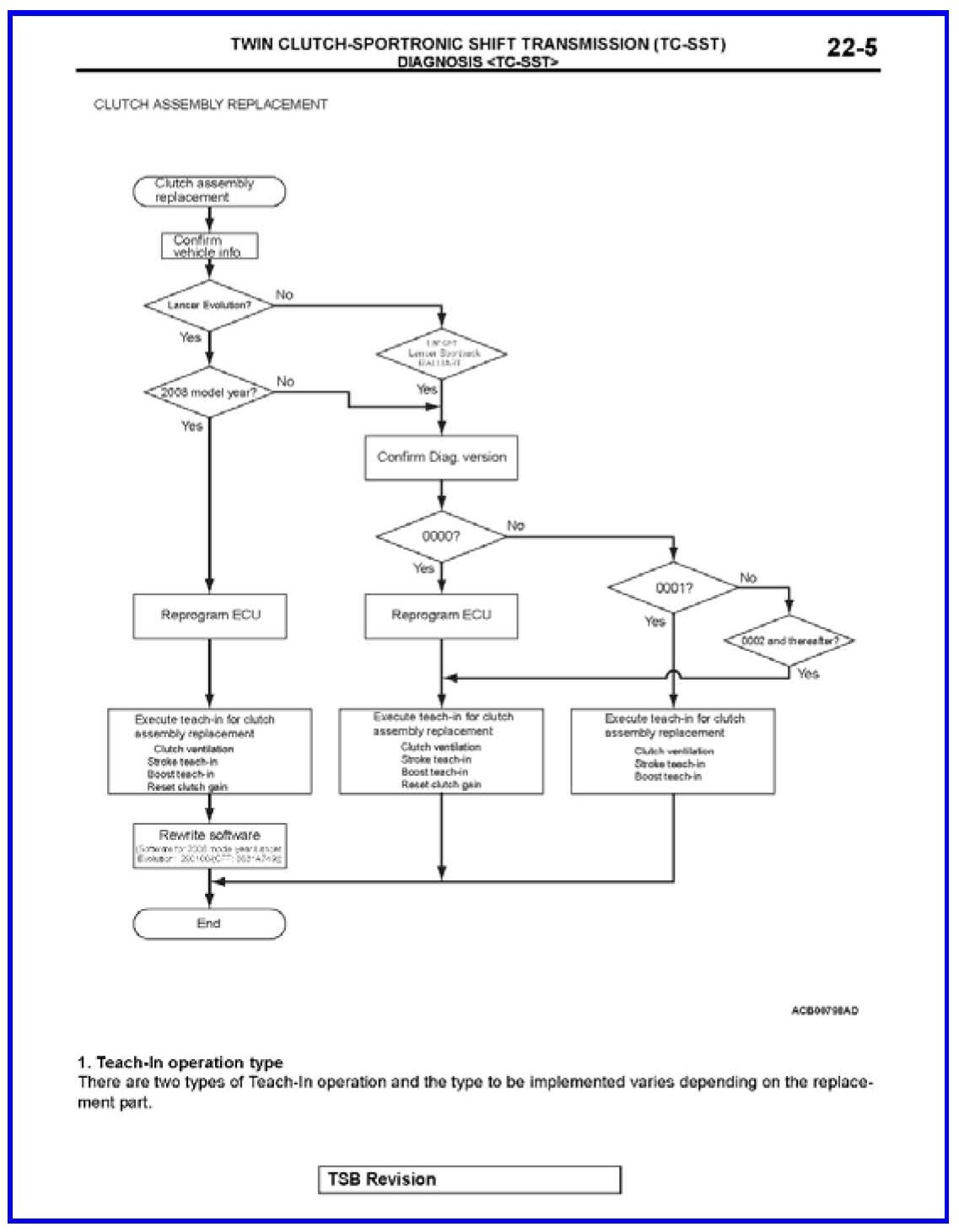

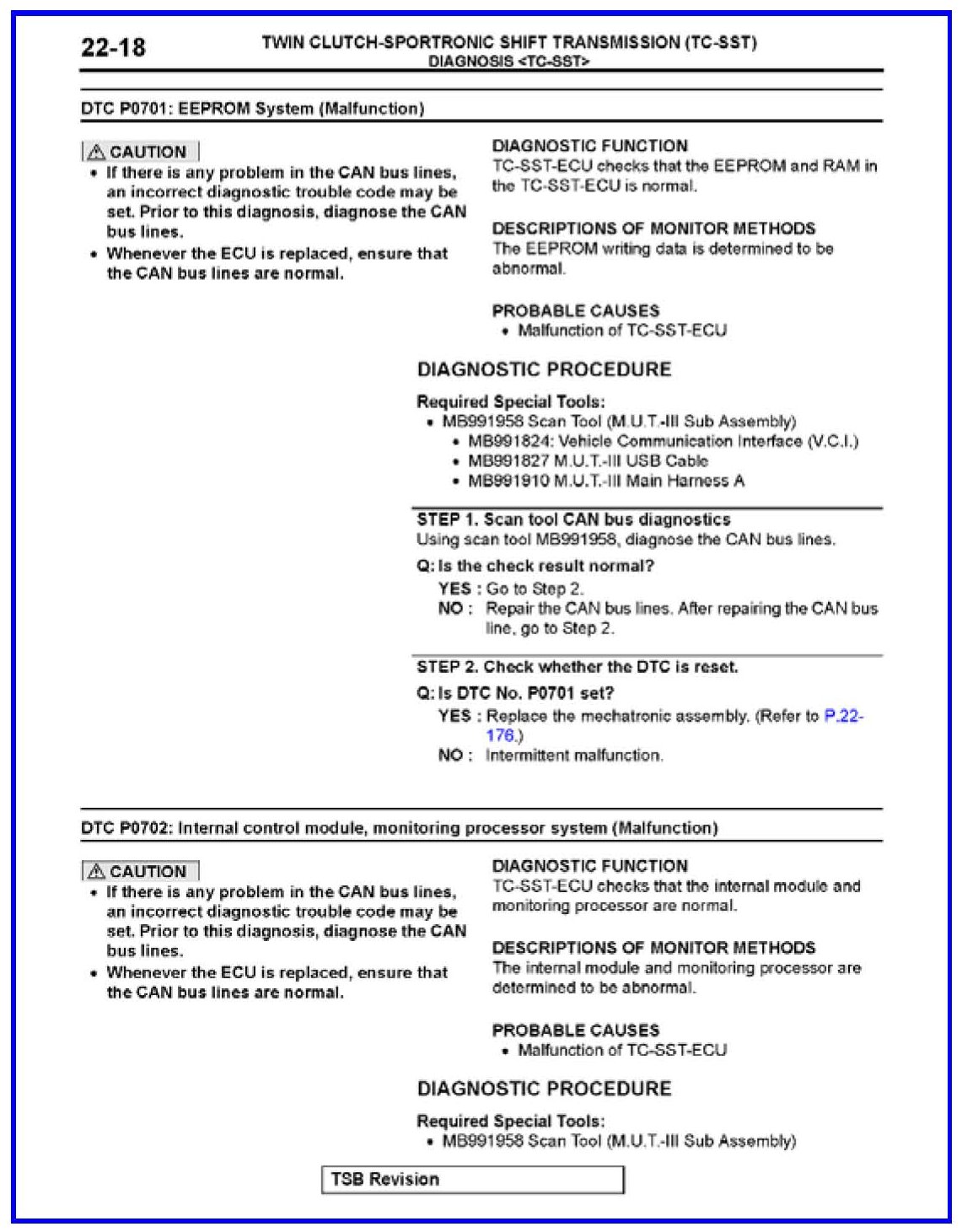

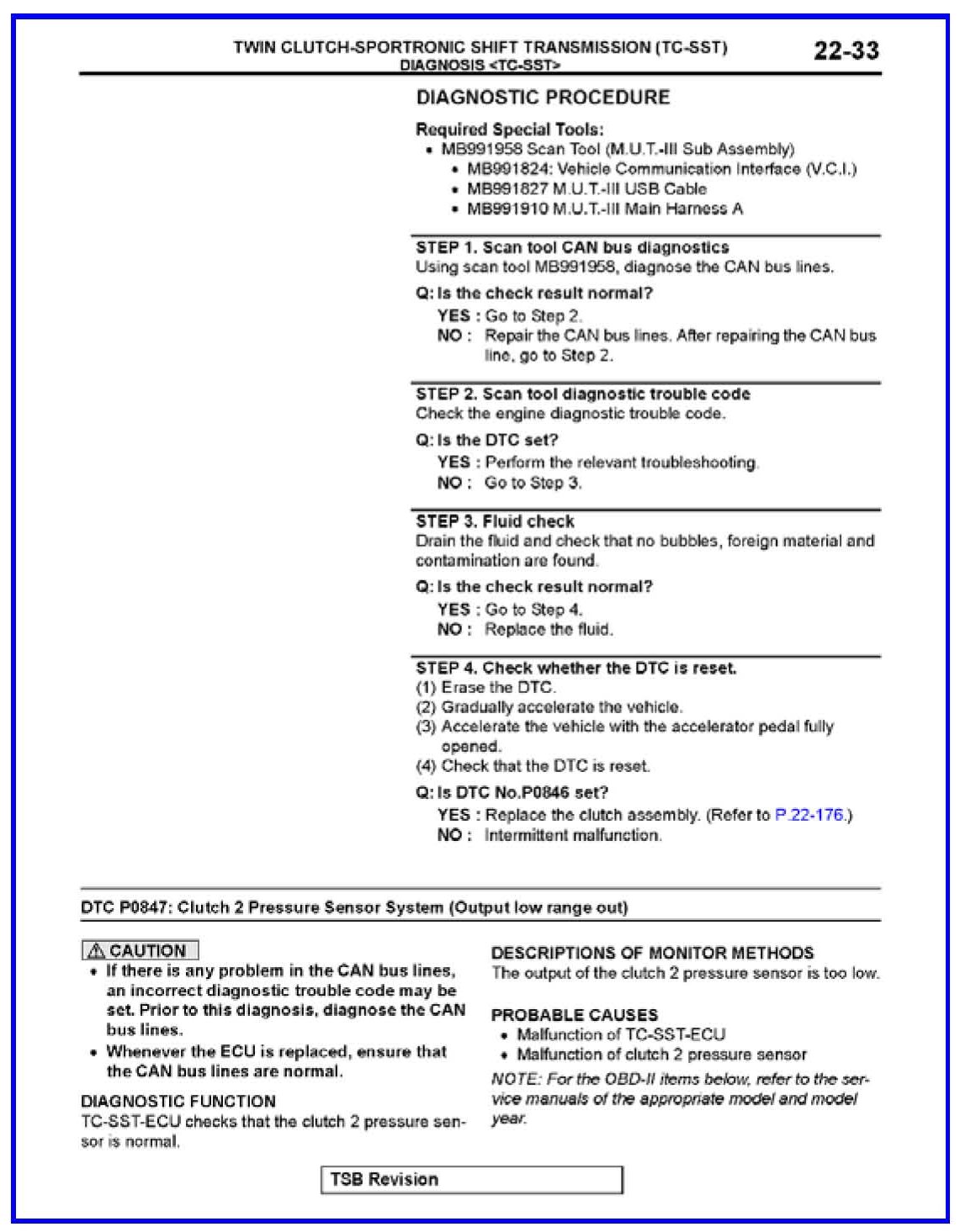

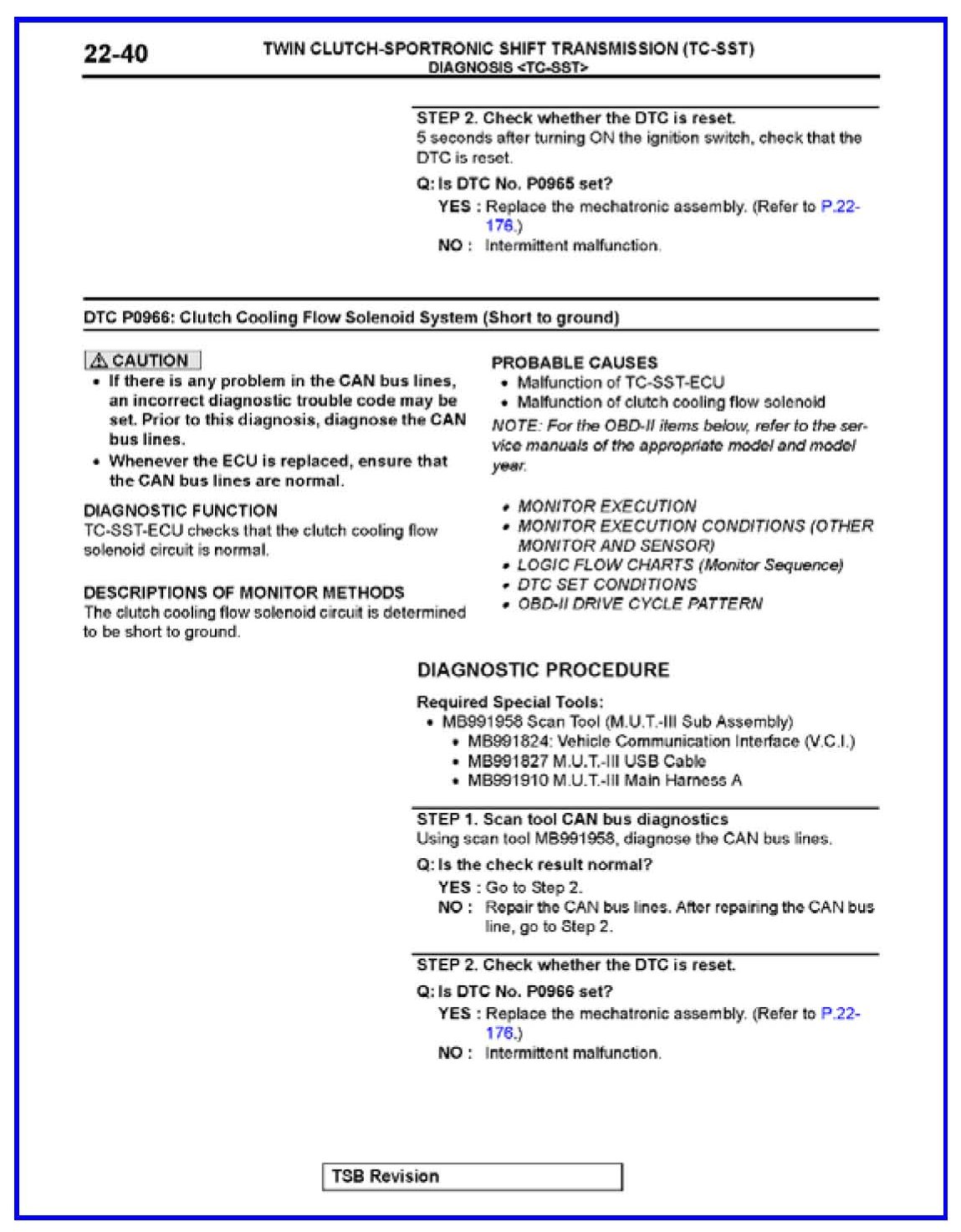

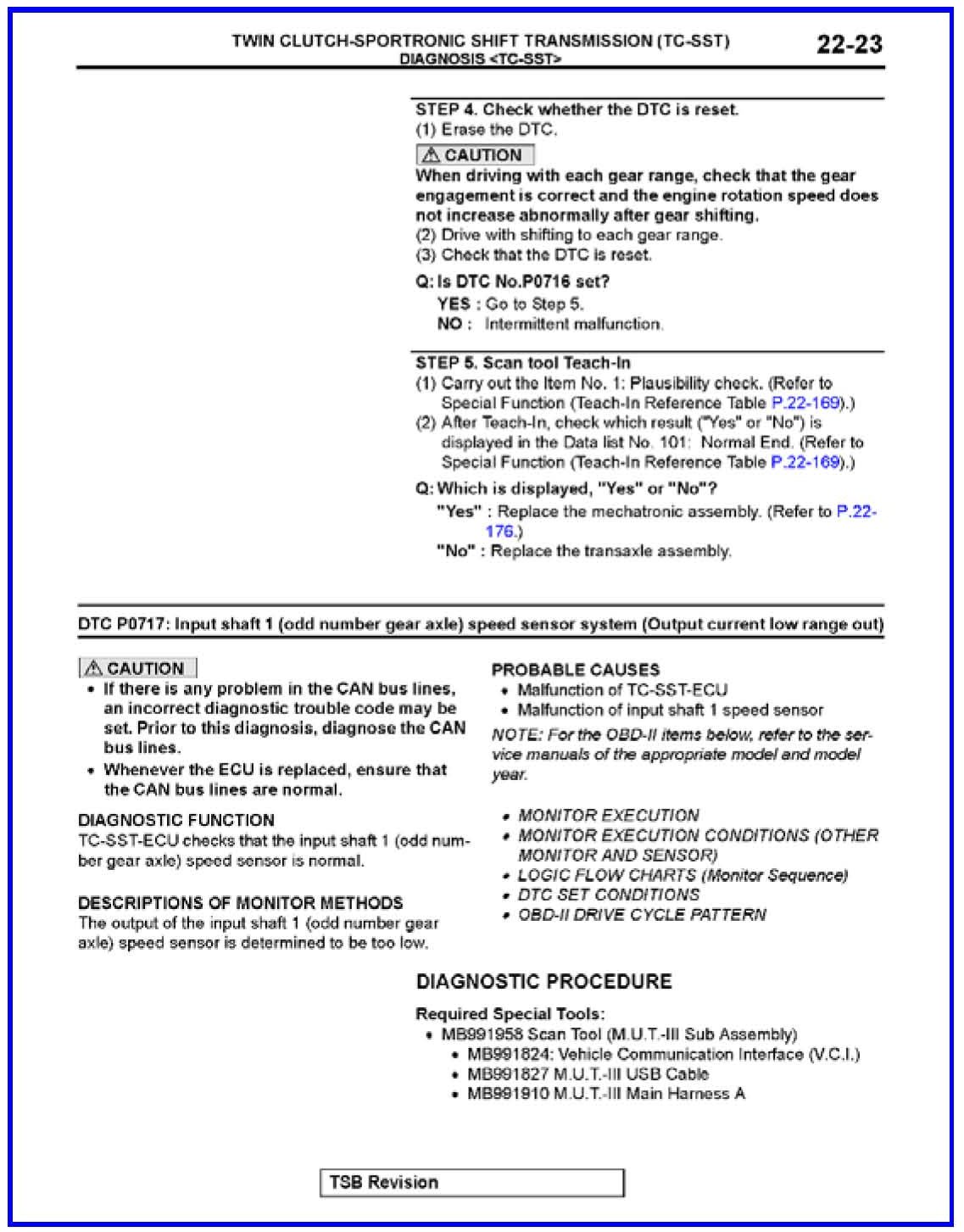

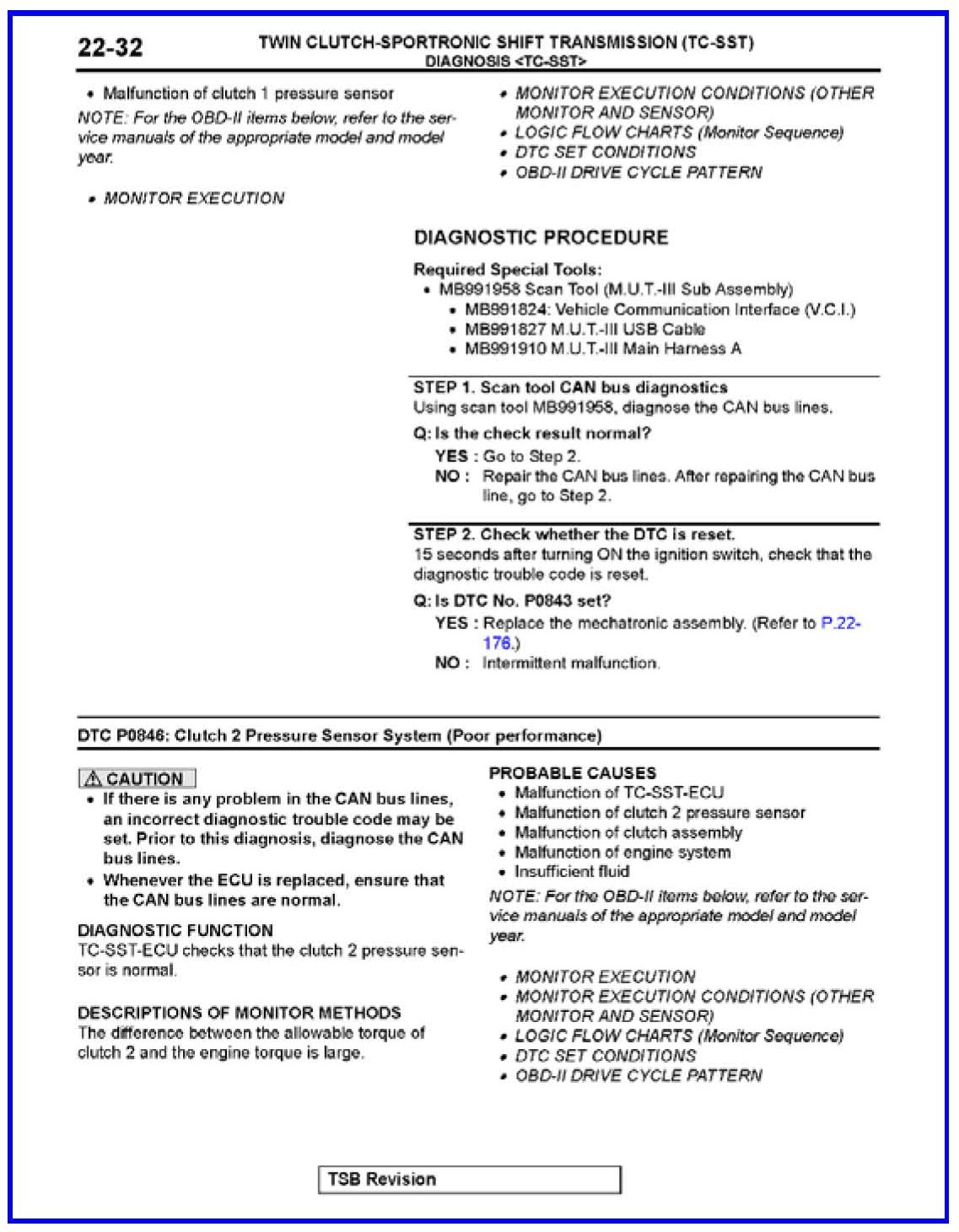

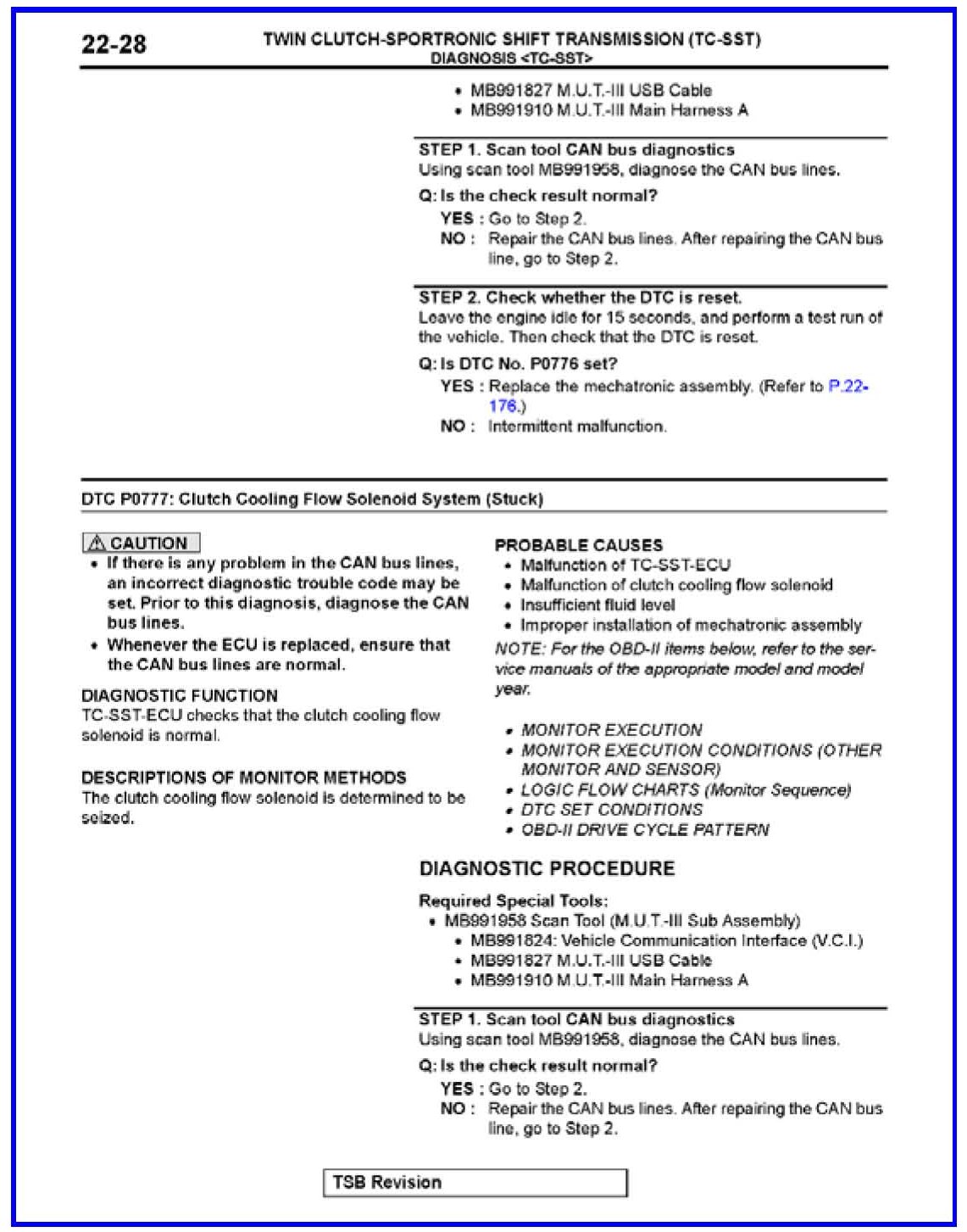

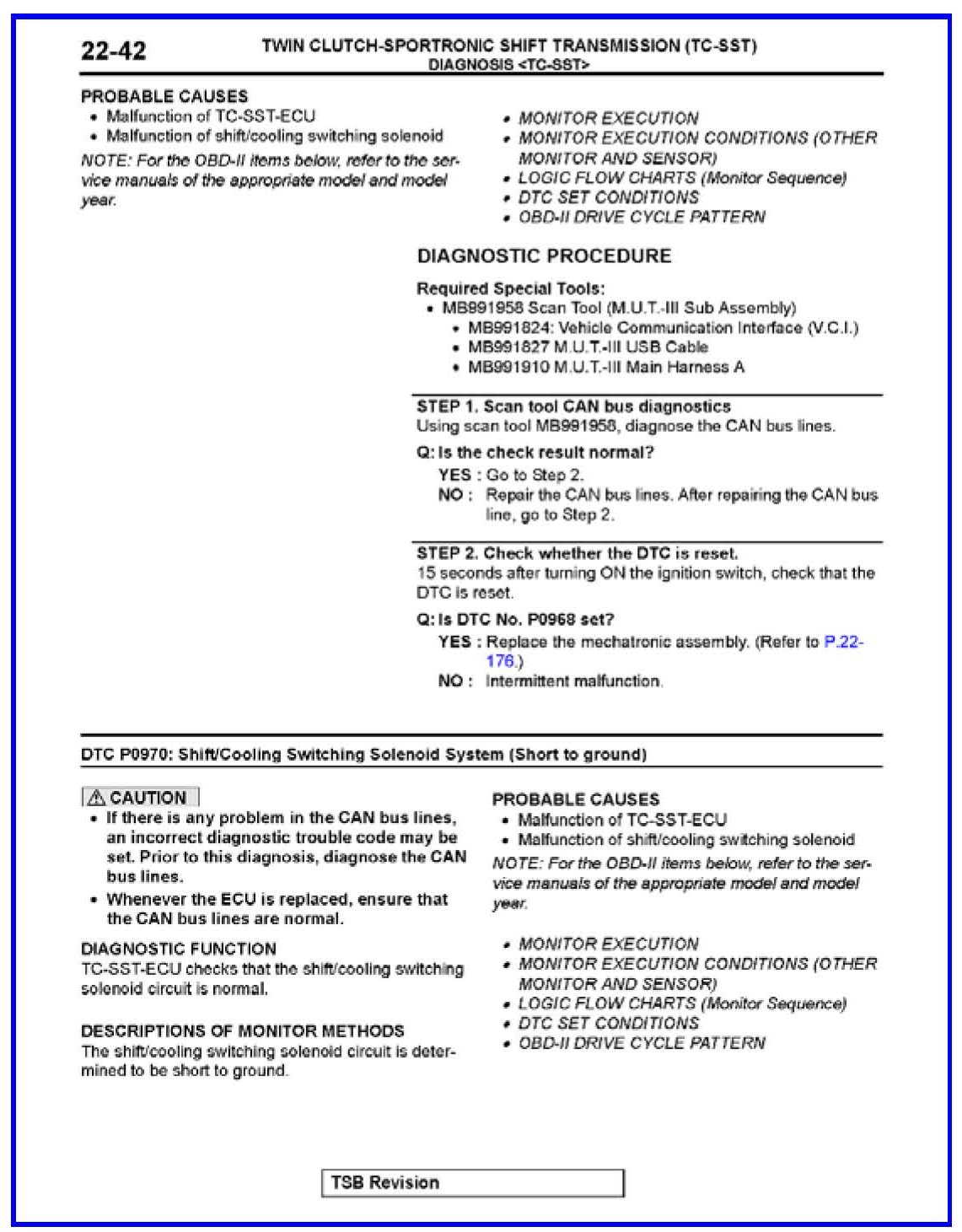

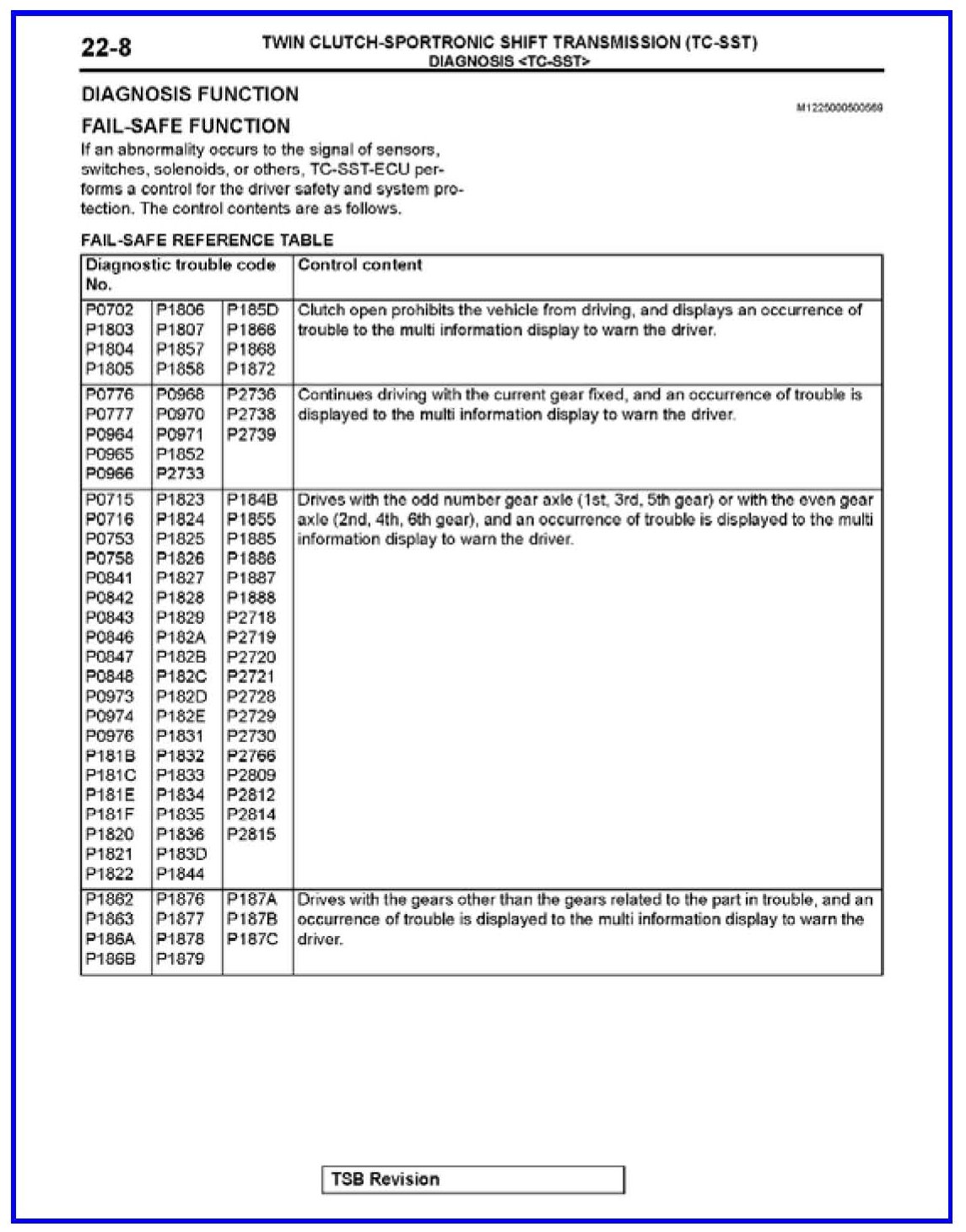

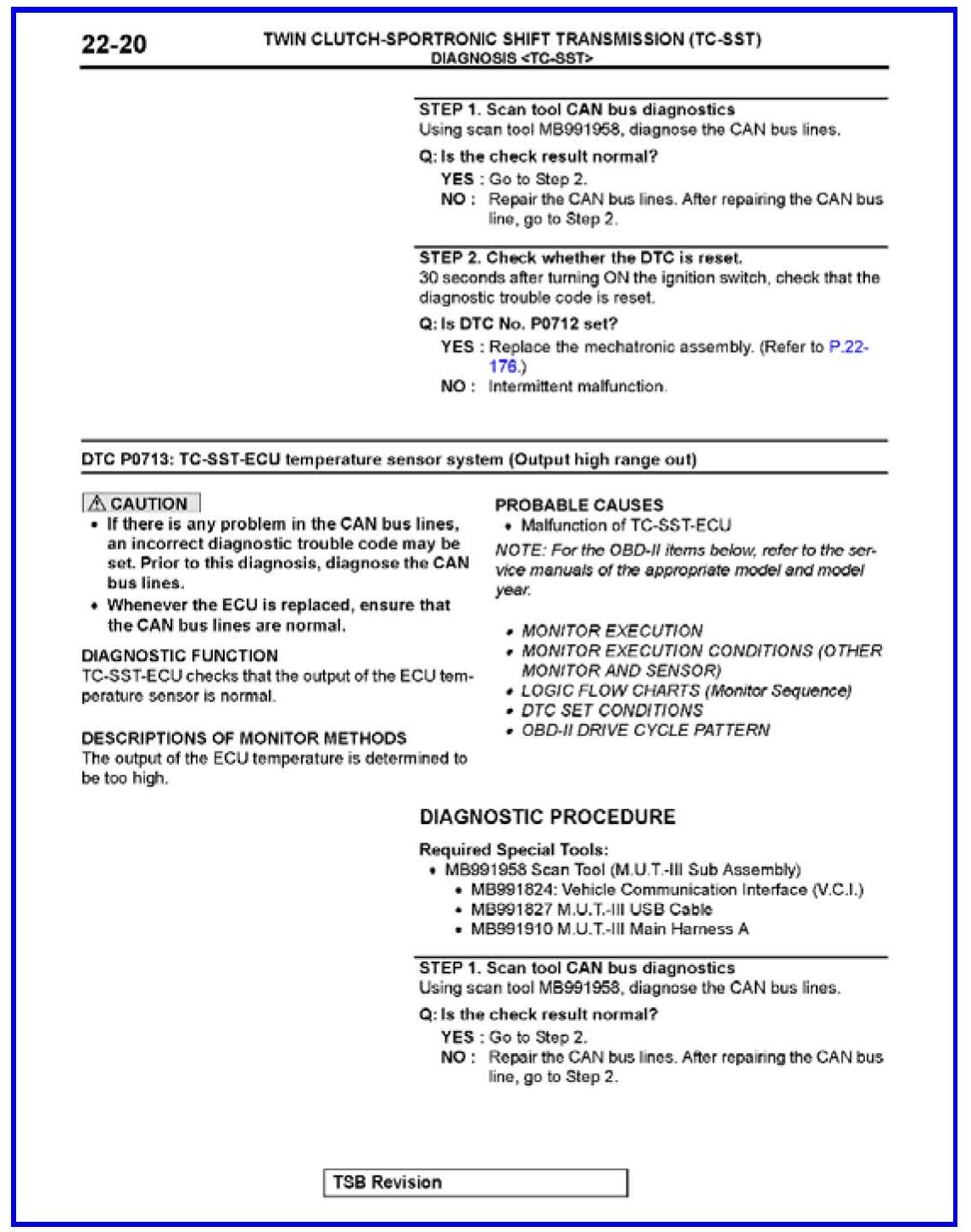

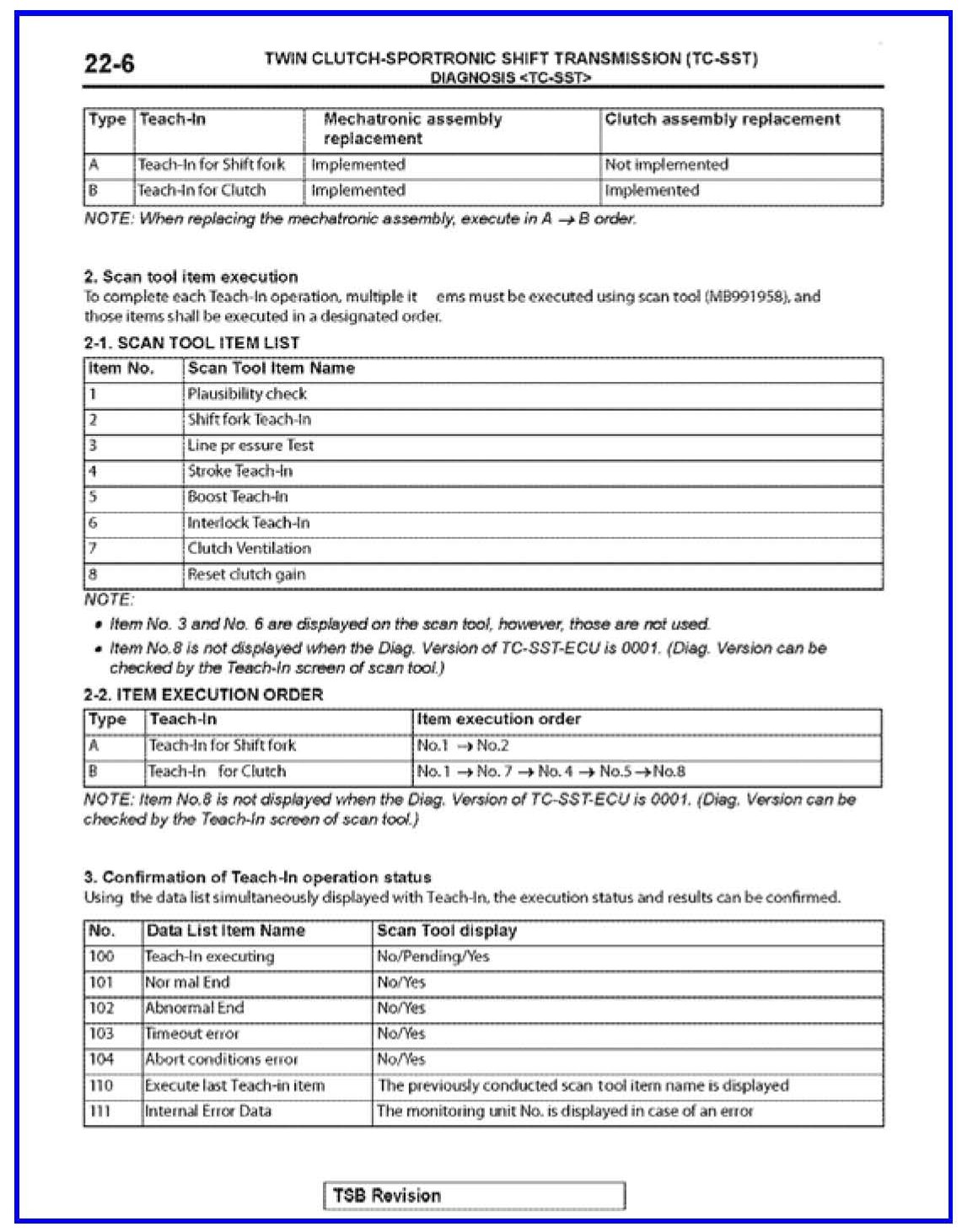

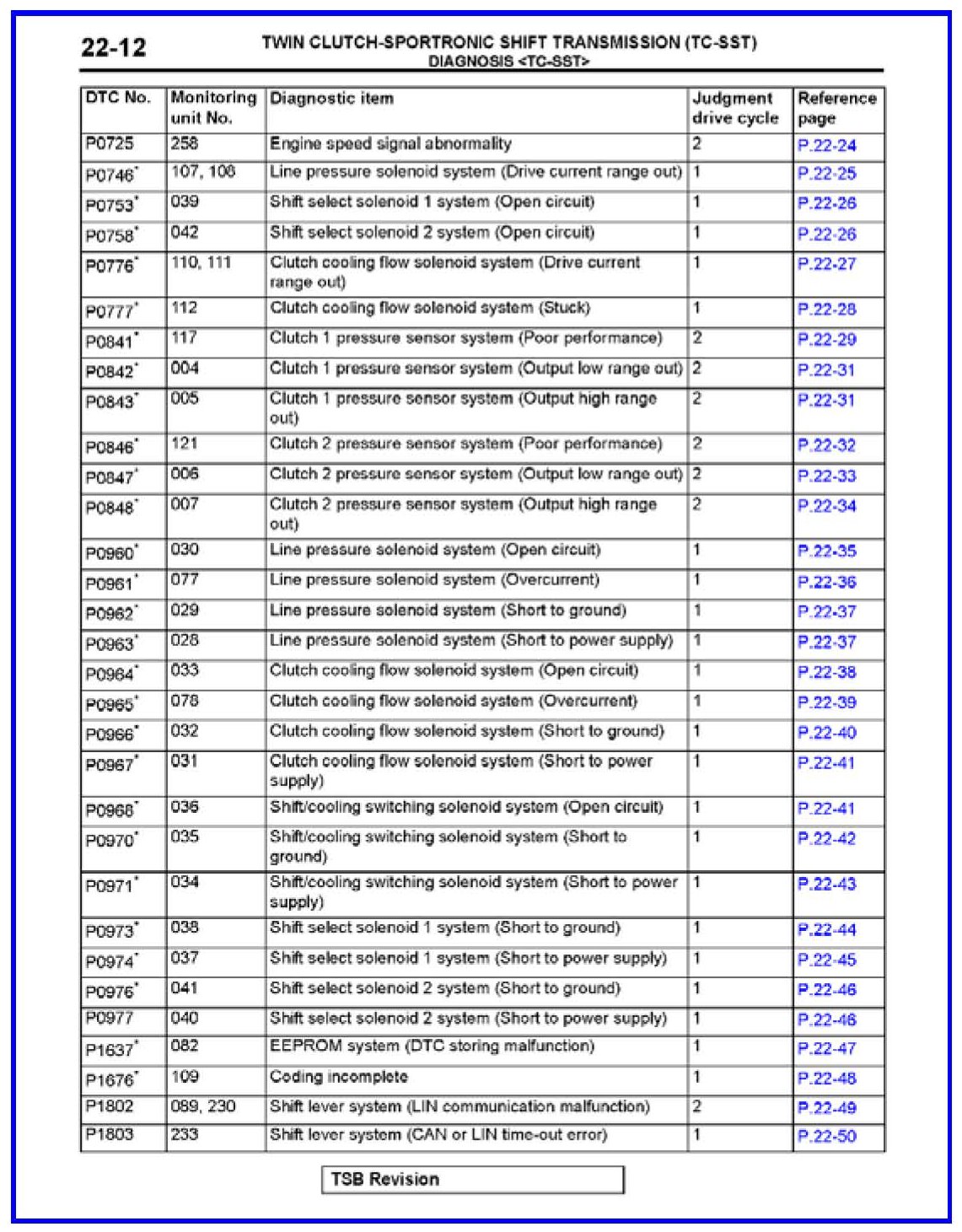

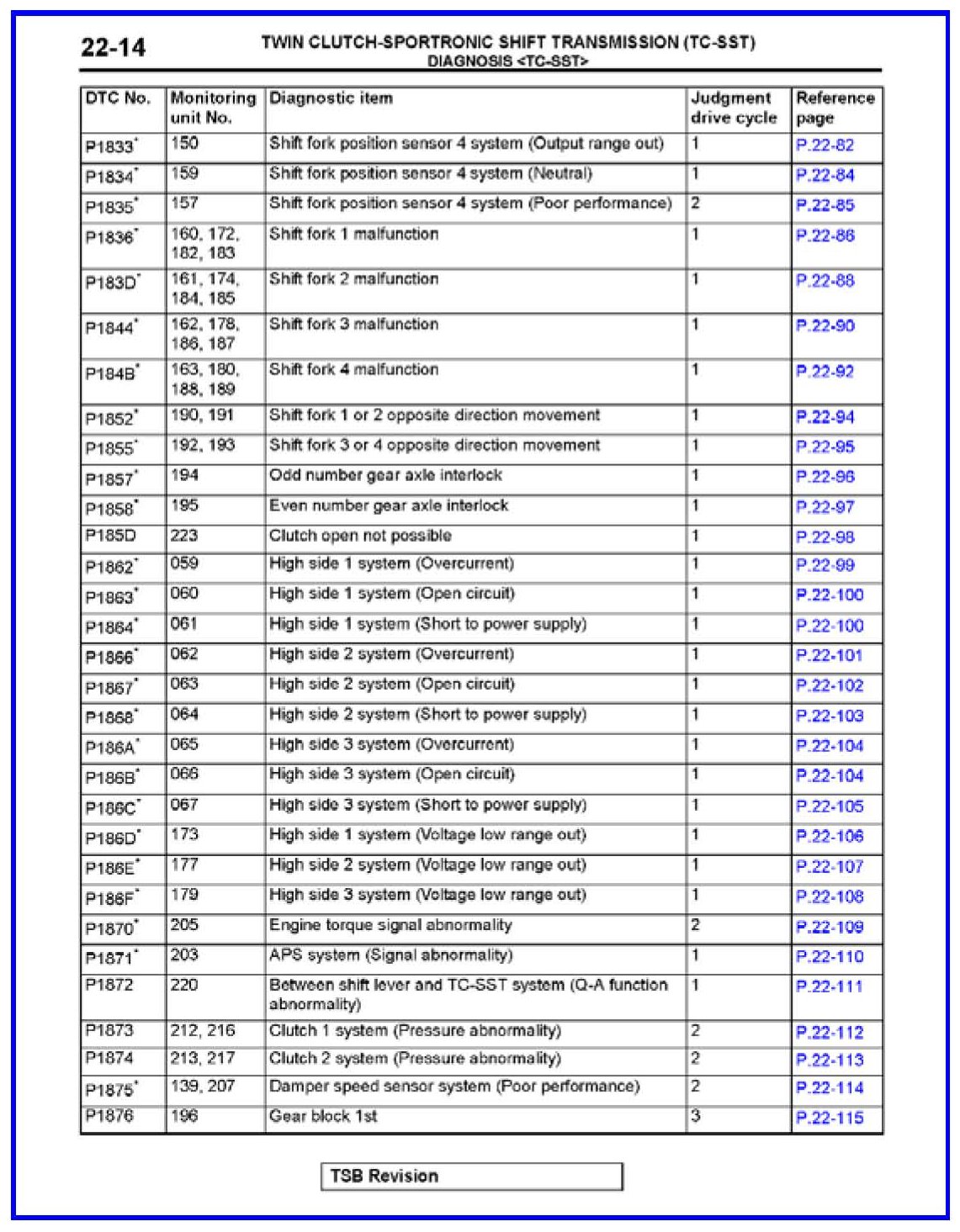

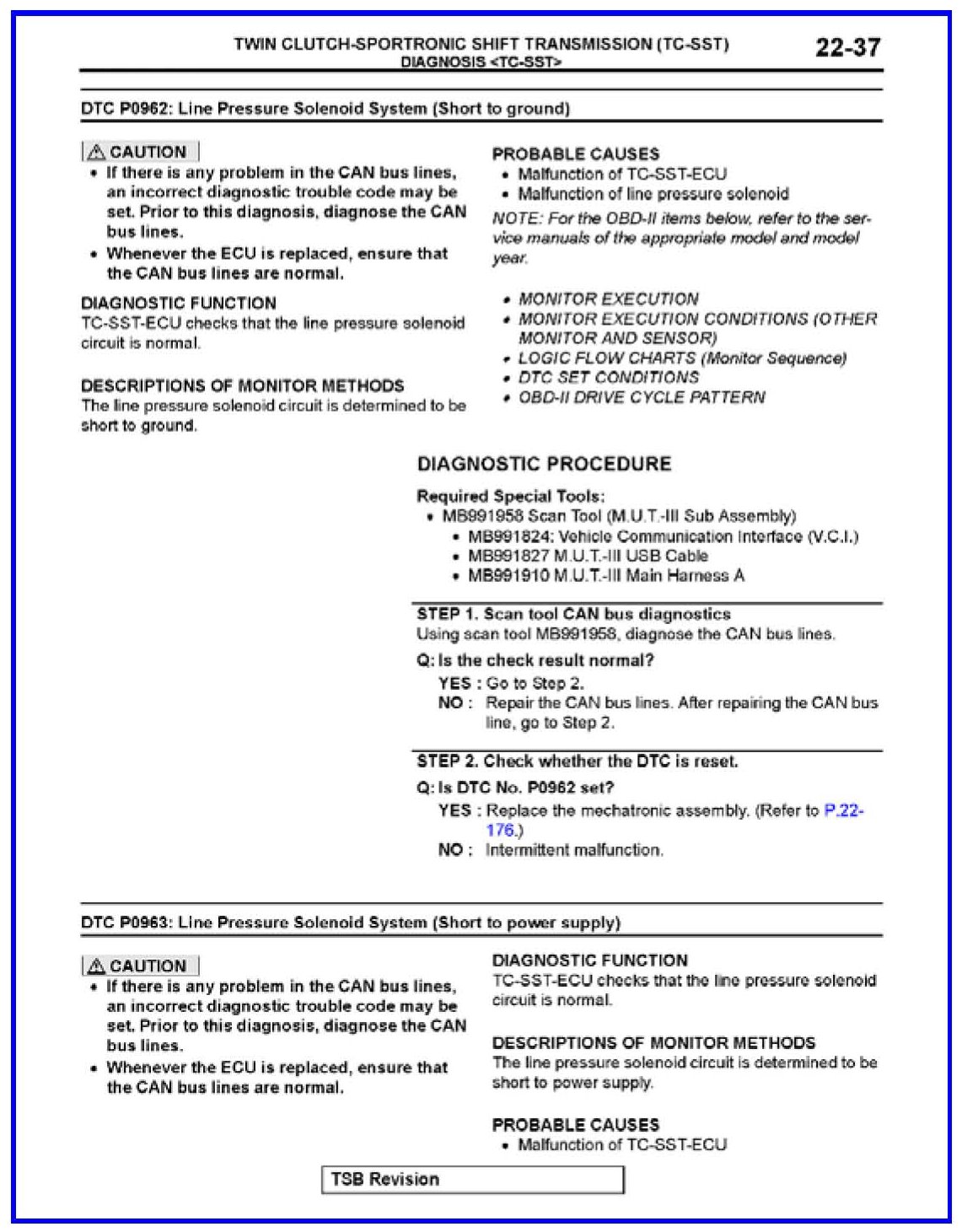

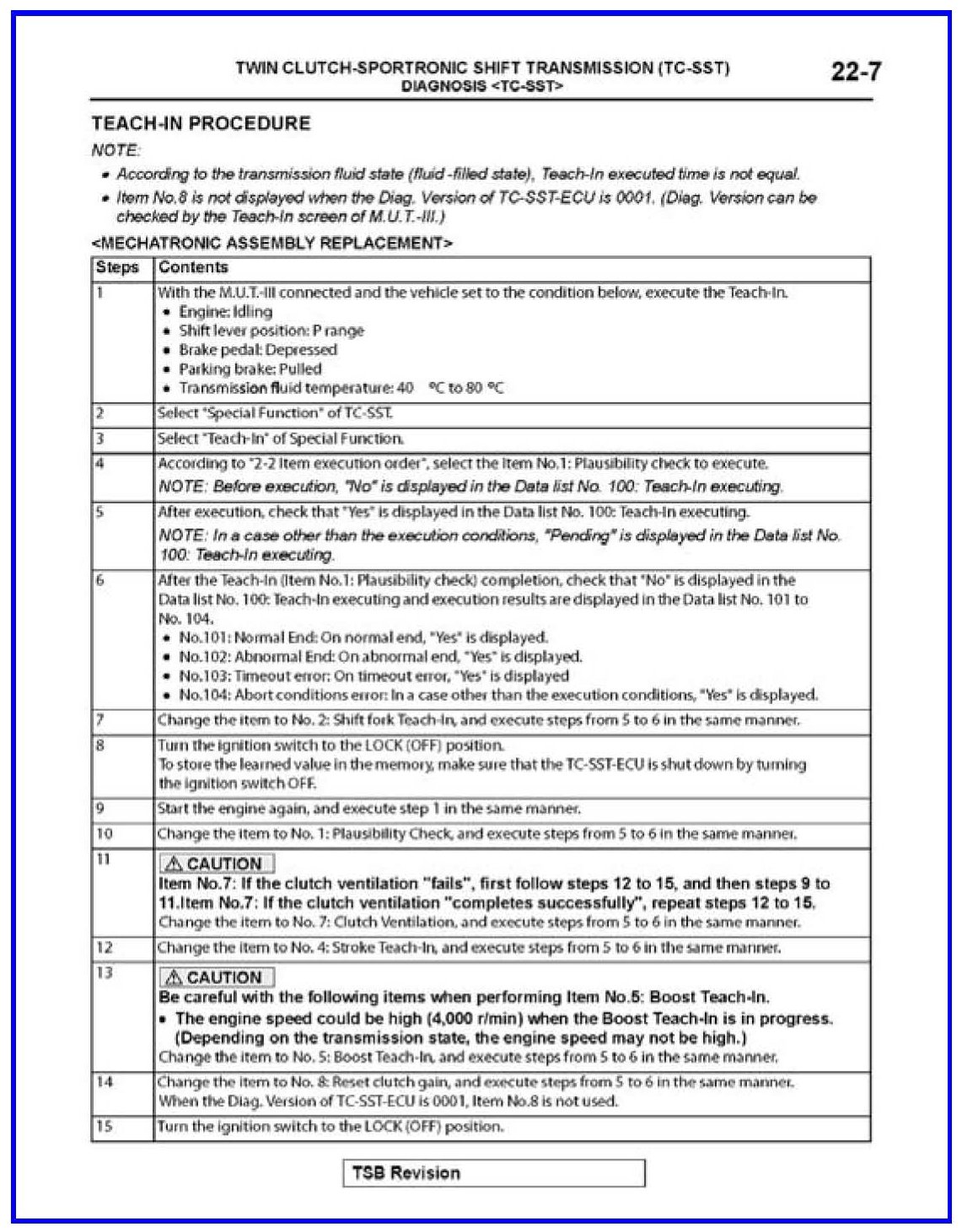

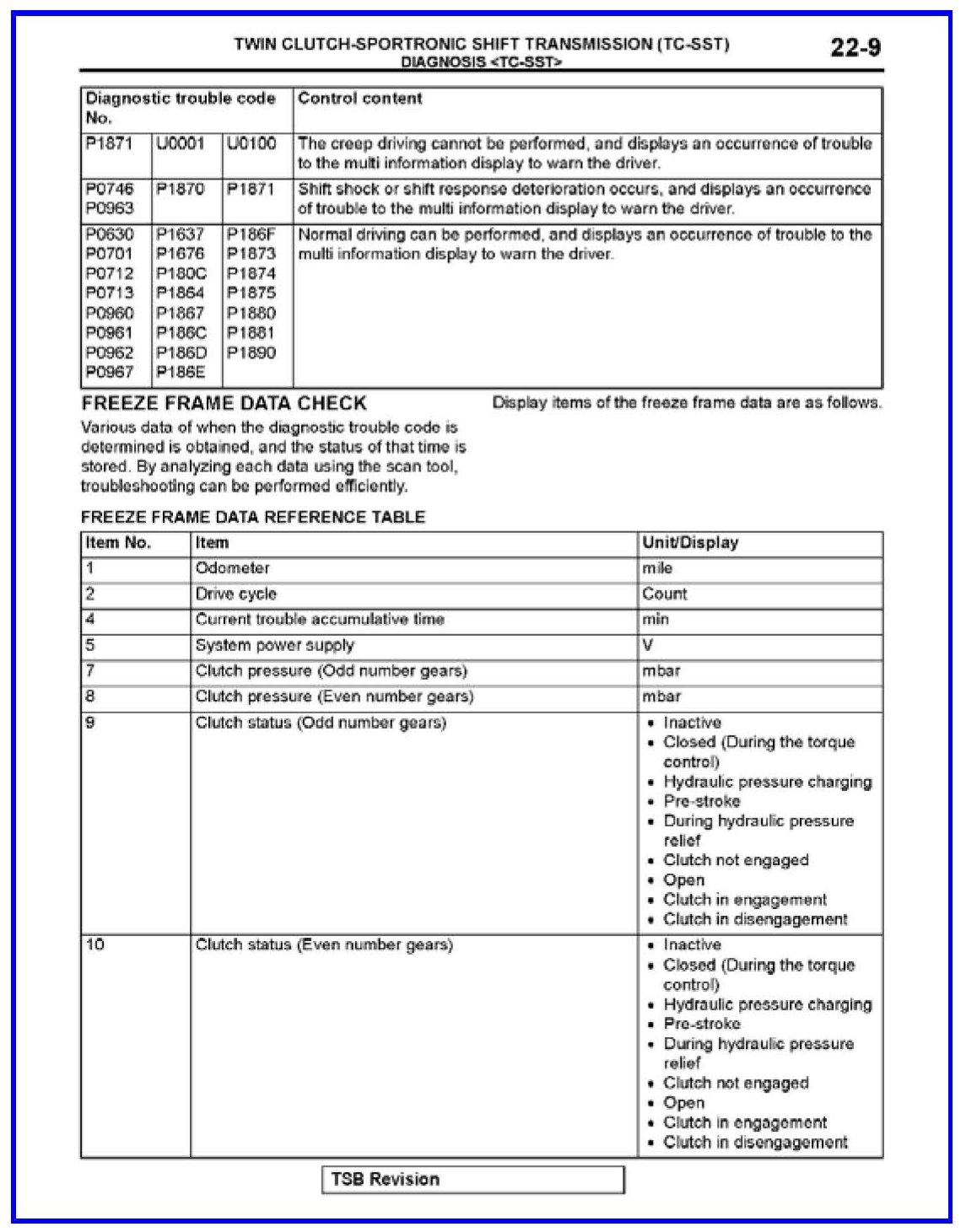

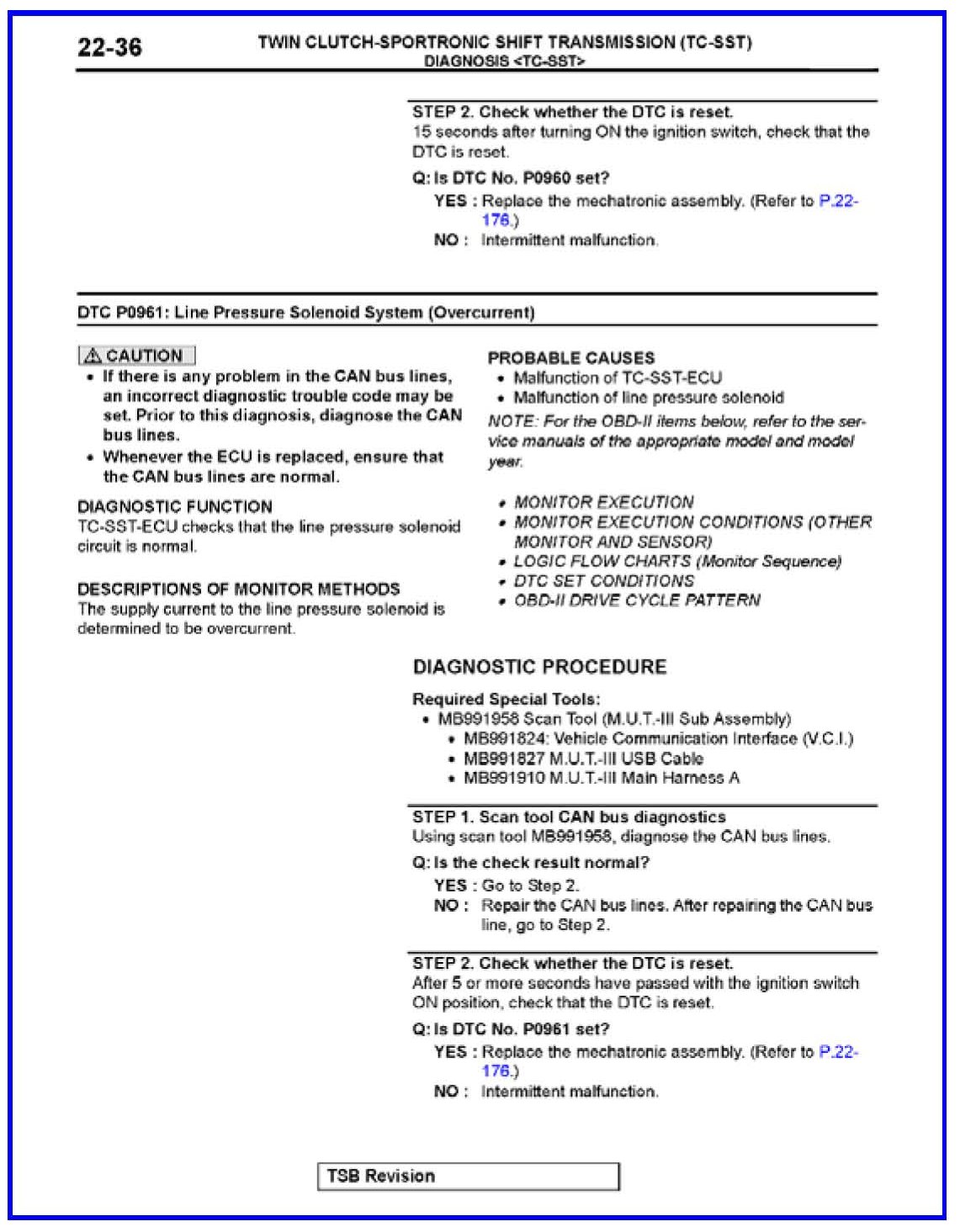

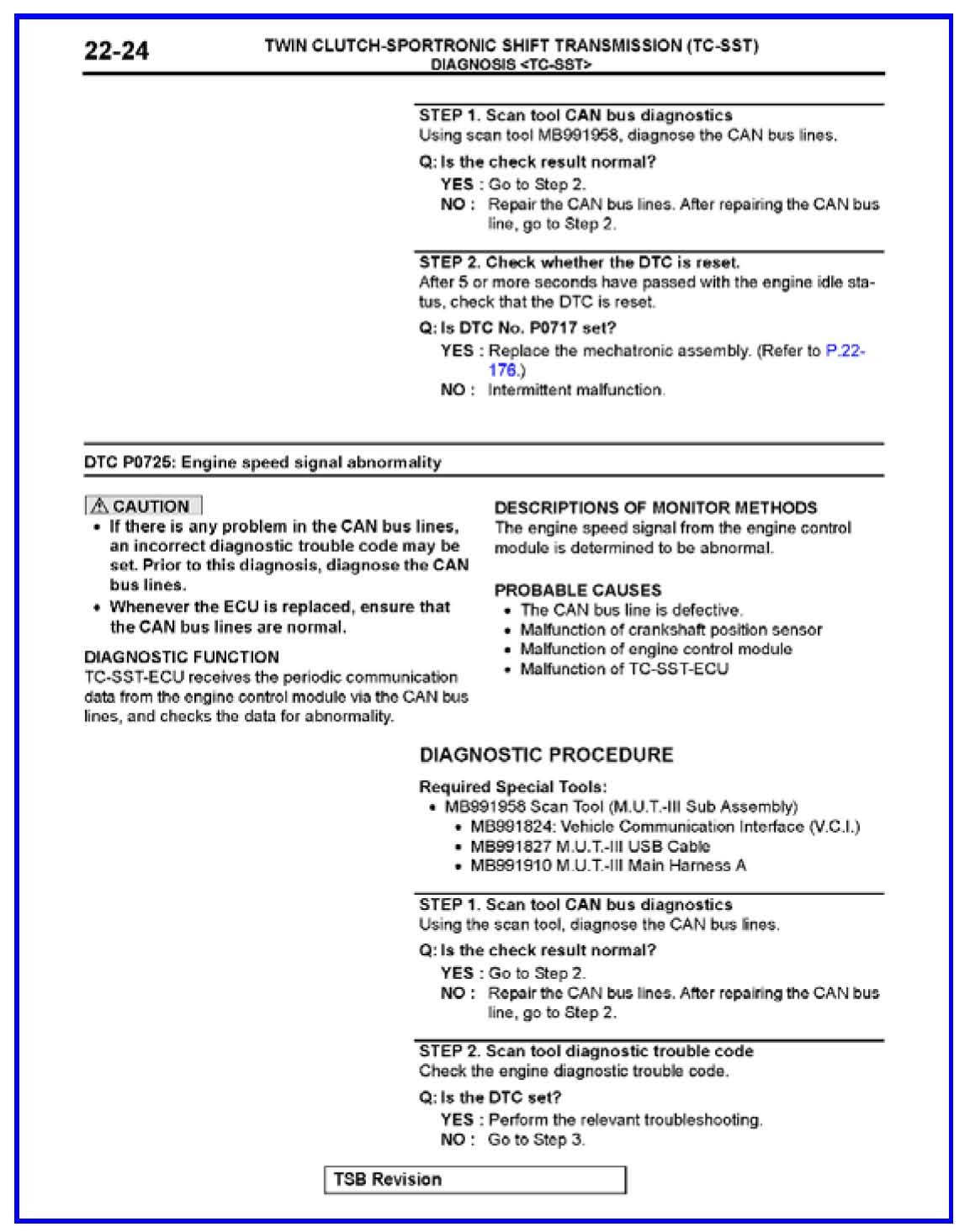

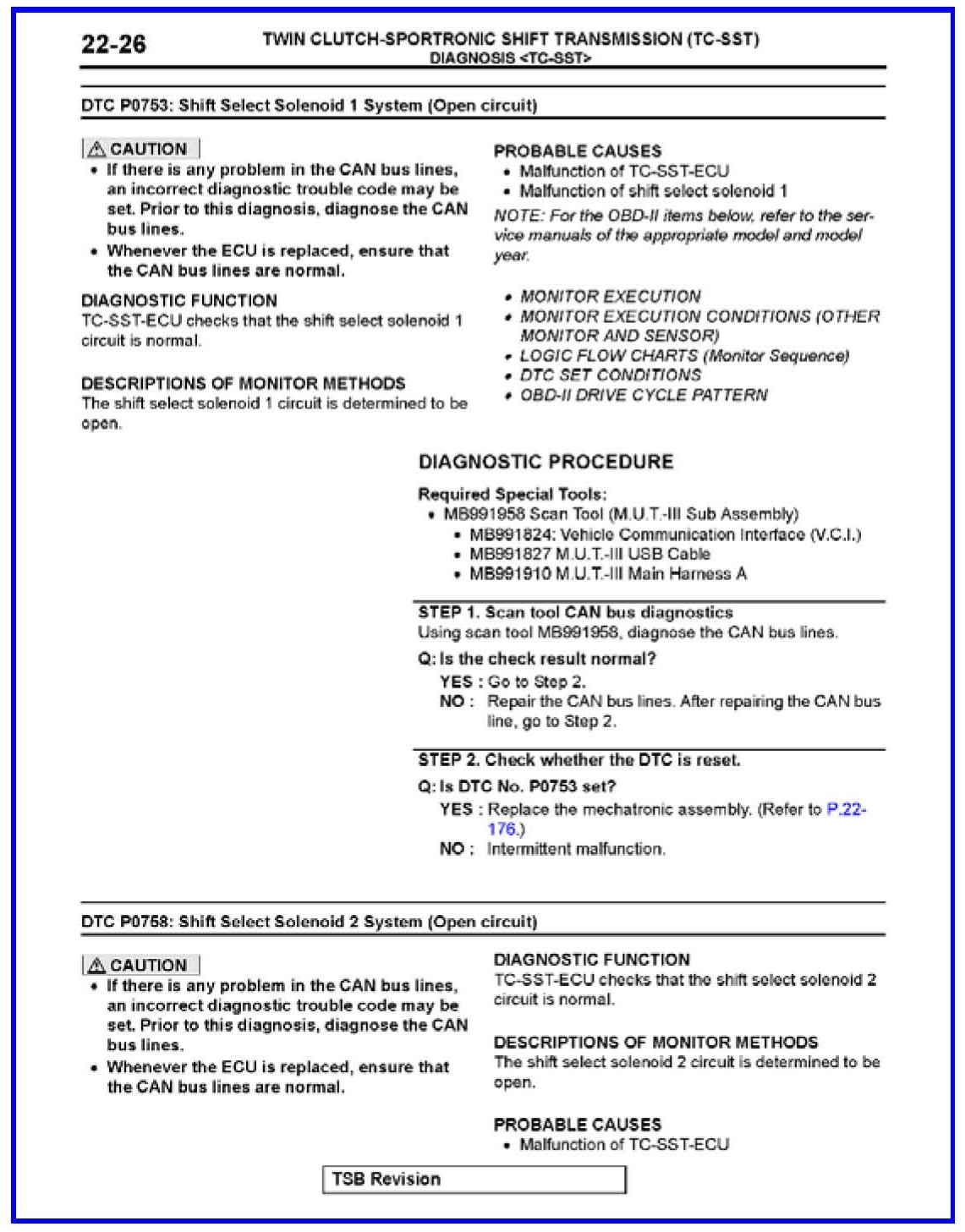

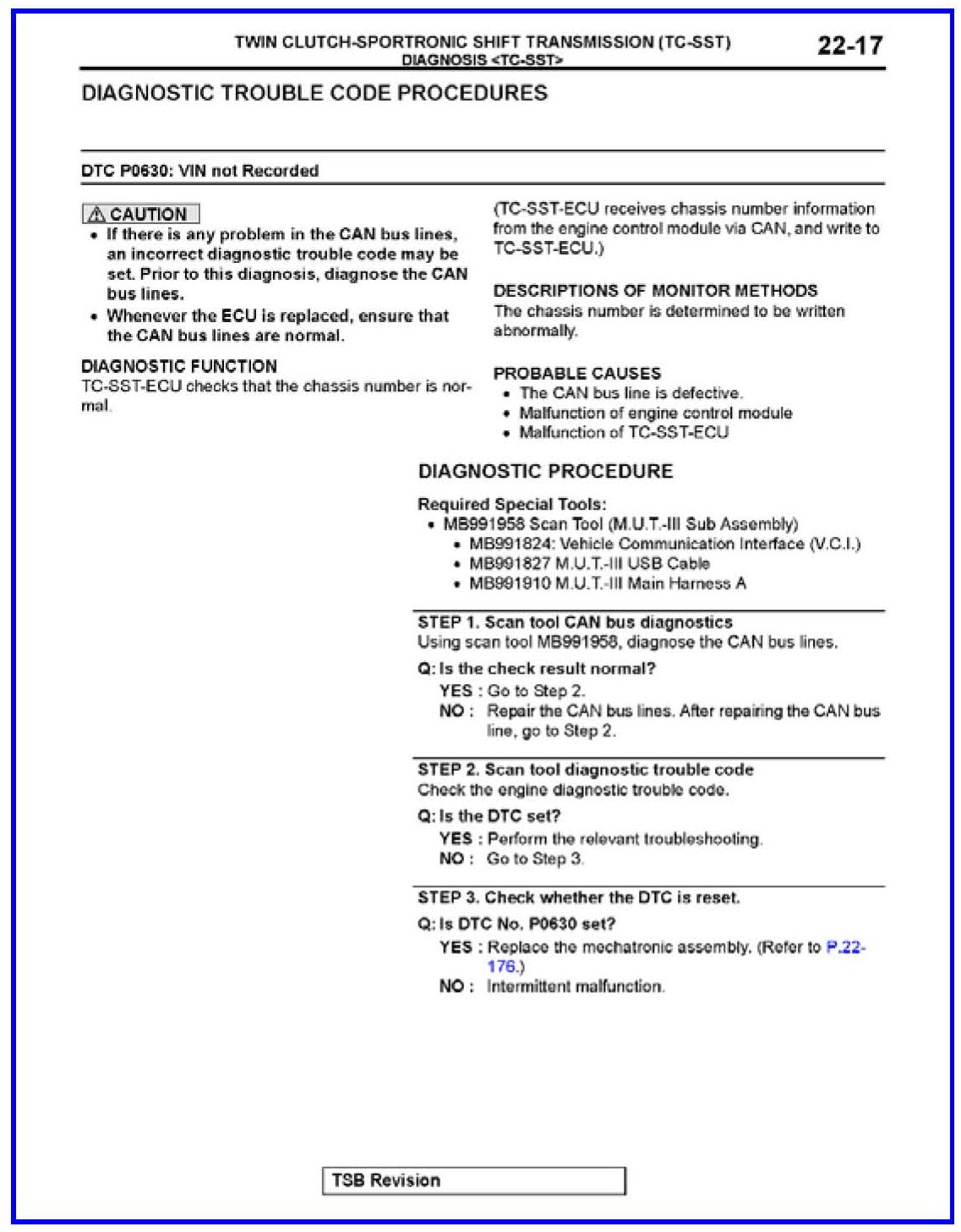

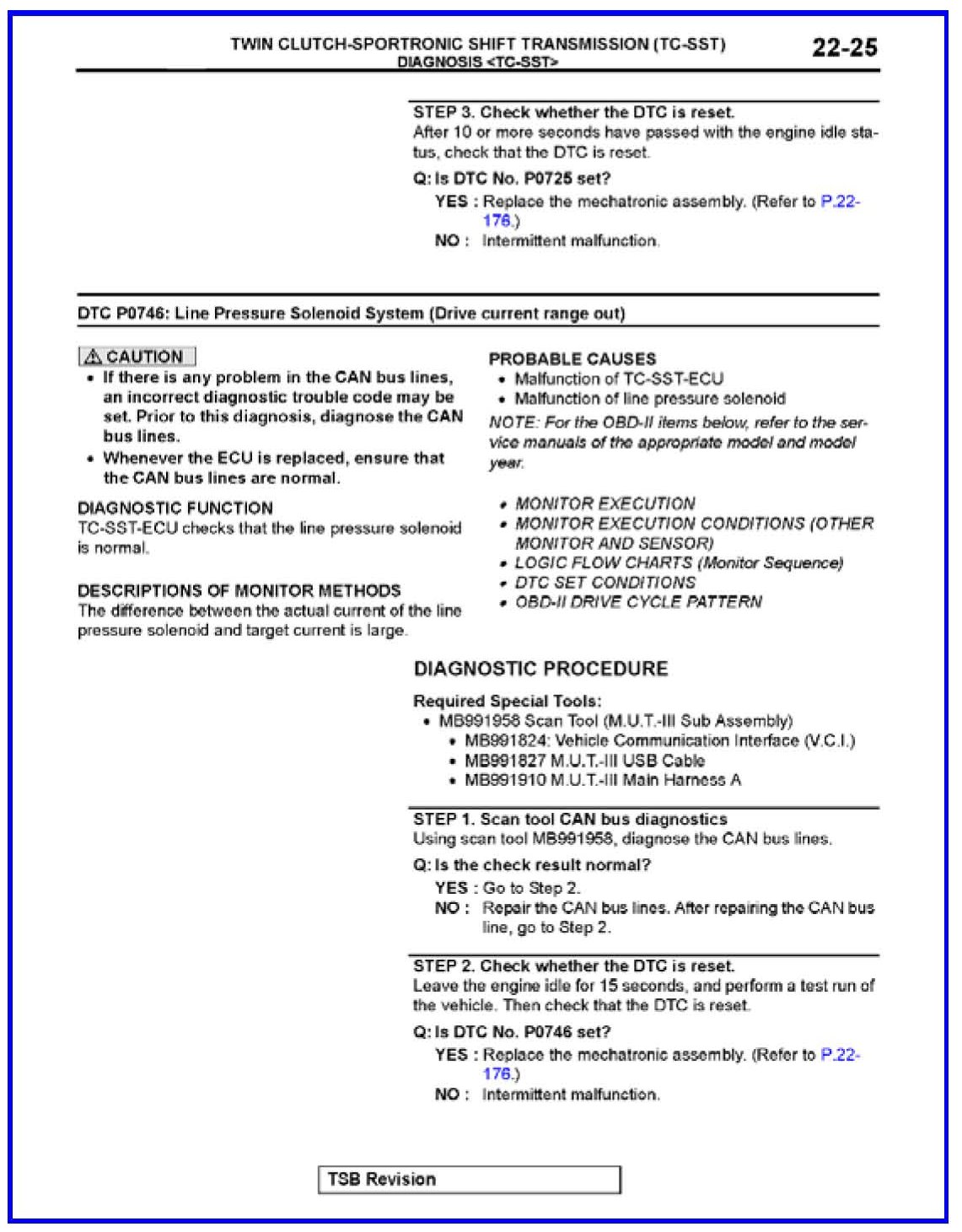

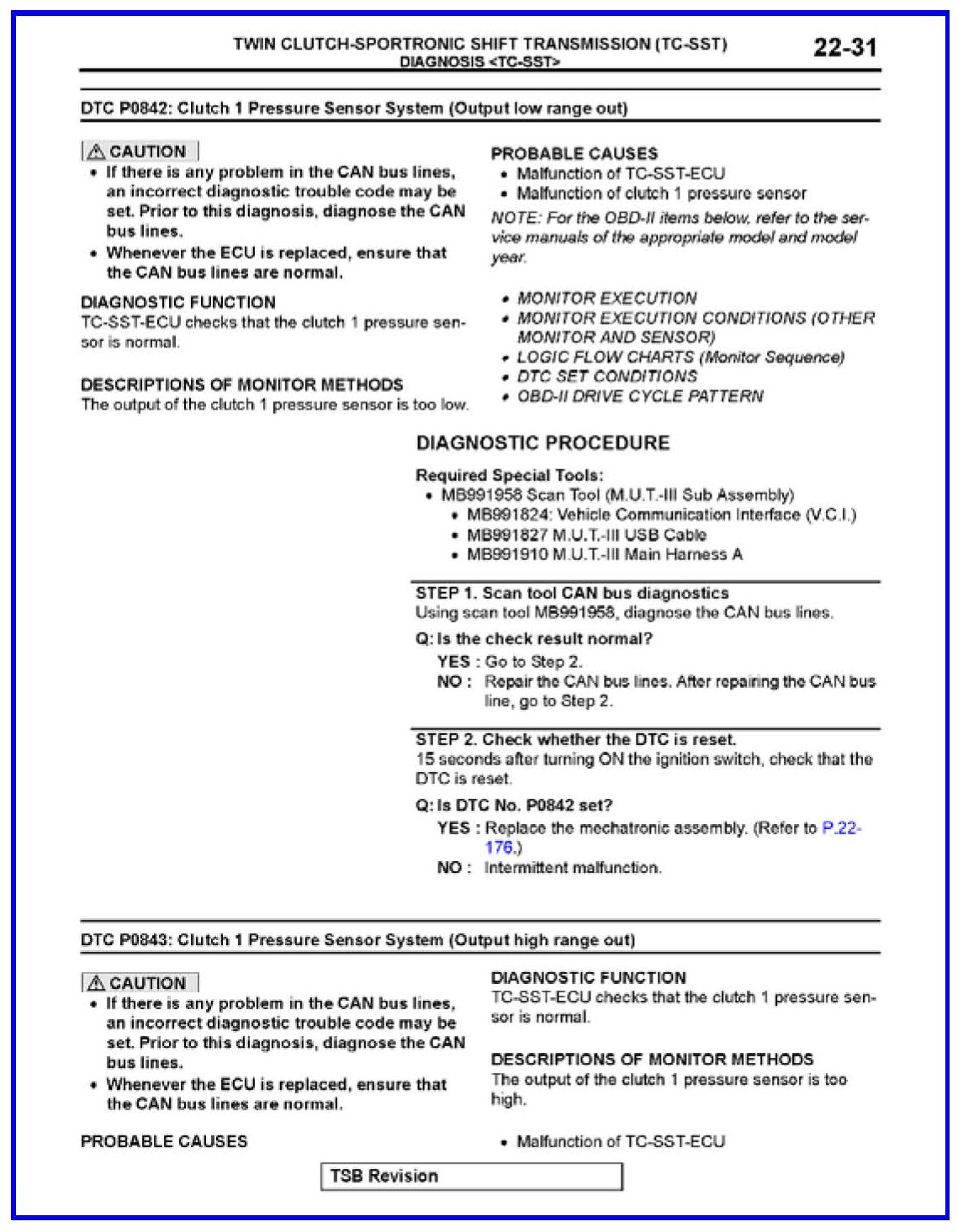

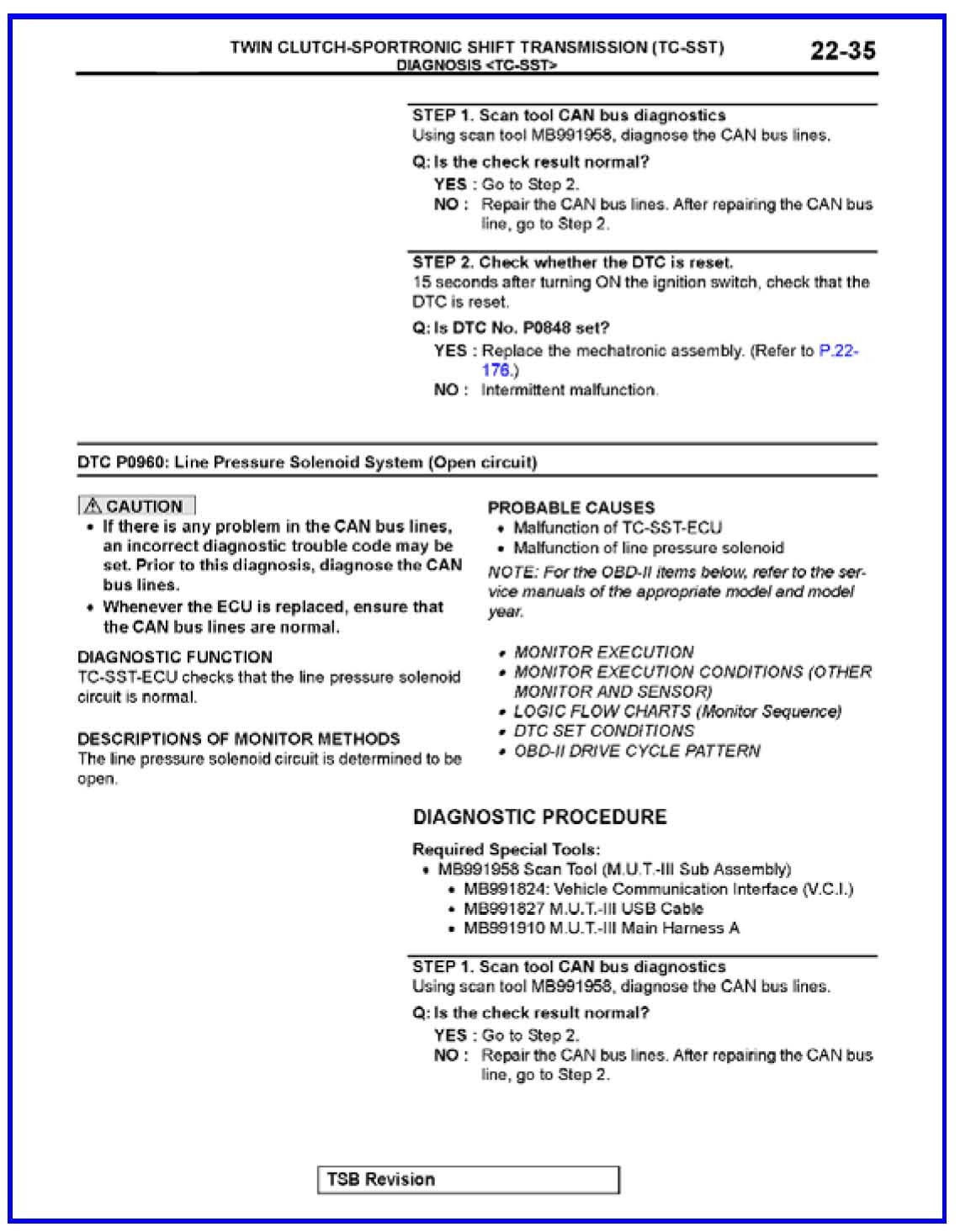

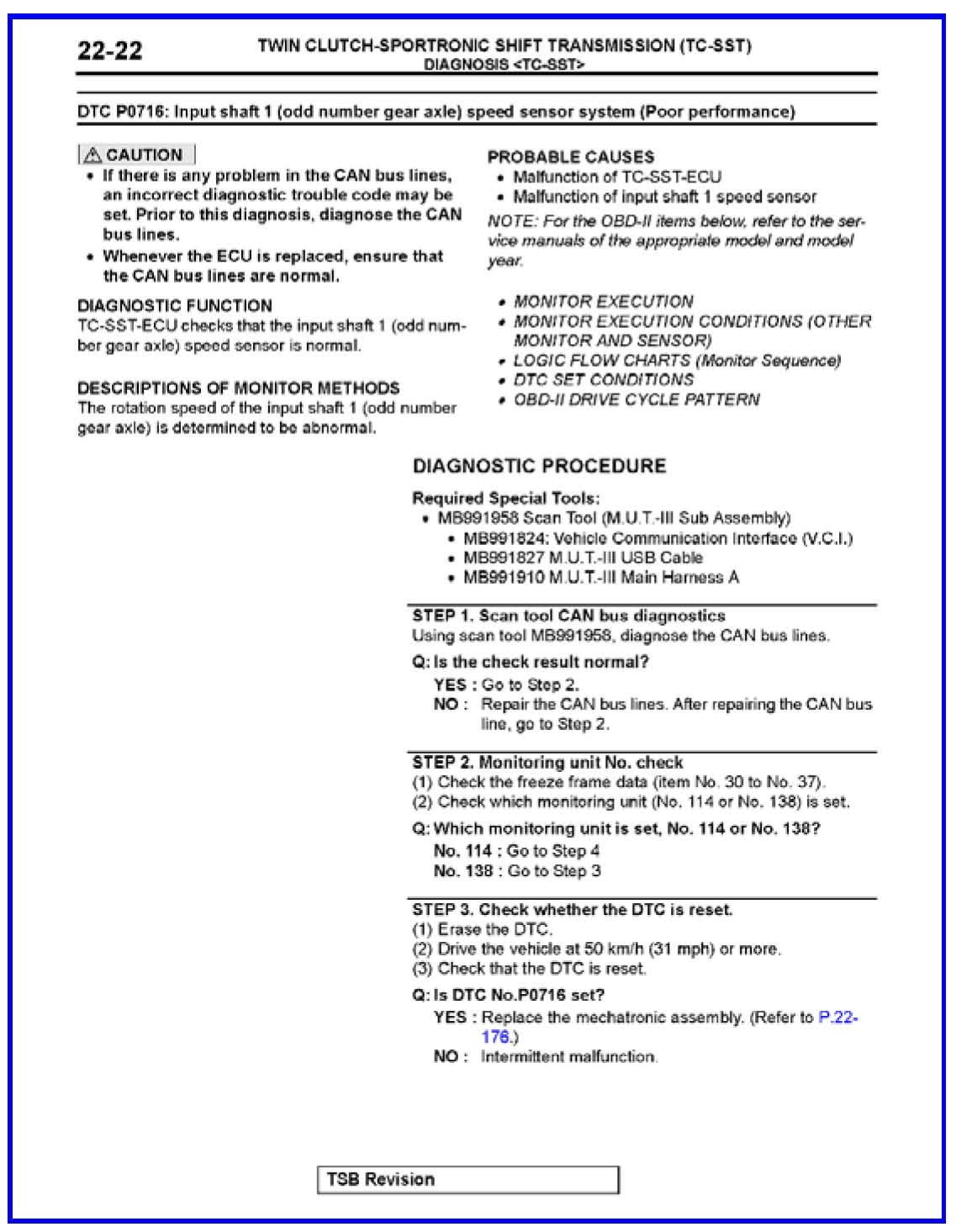

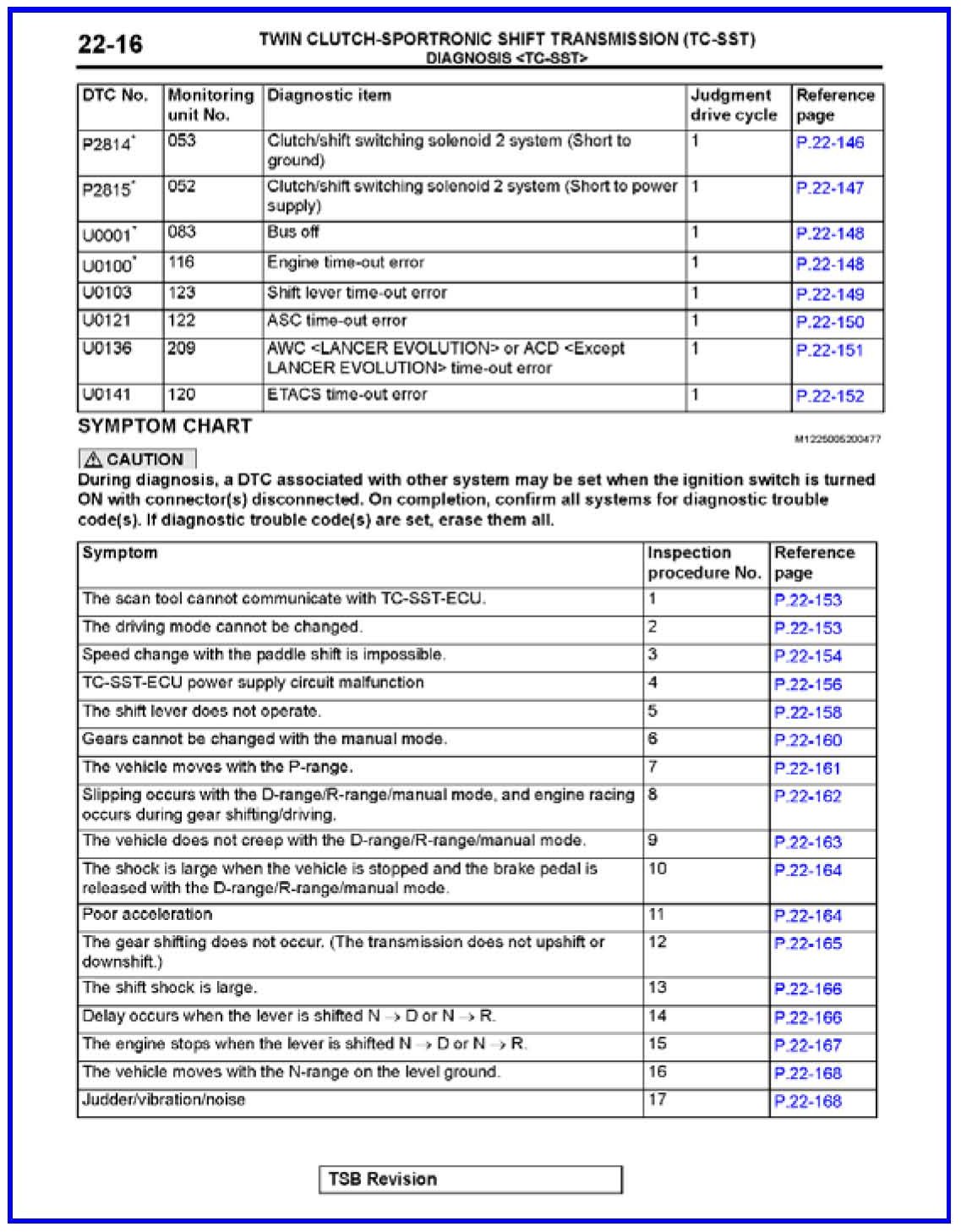

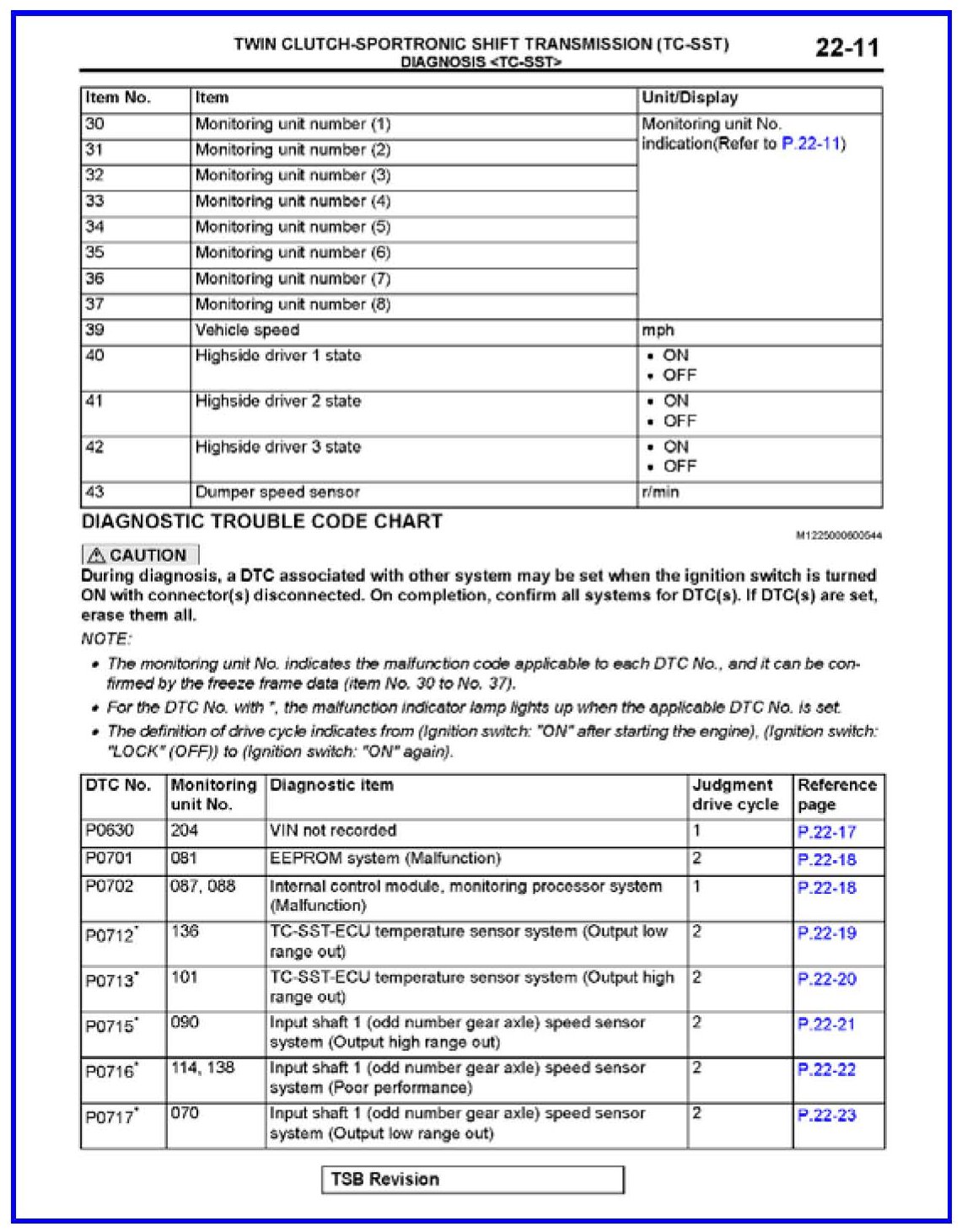

Section 22-3 Thru Section 22-60





























































































































Diagnosis Part 1 of 4
