ABS/TCS - Revised Steering Wheel Sensor Service Procedures

No: TSB-12-35-002
DATE: September, 2012
MODEL: See below

SUBJECT:
ABS/ASC STEERING WHEEL SENSOR - SERVICE
MANUAL REVISION

[TSB Revision: TSB-12-35-002]

PURPOSE

A modified Active Stability Control (ASC) steering wheel sensor is installed on affected vehicles produced since 3/1/2010 and supersedes the original sensor as the service part for earlier models. Do not rotate this new sensor before installation.

This TSB provides revised ABS/ASC steering wheel sensor procedures for the new sensor.

AFFECTED VEHICLES

ASC-equipped models:
2007-2012 Outlander
2008-2011 Lancer Evolution
2010-2012 Lancer and Lancer Sportback
2010-2012 Galant
2008-2012 Eclipse
2008-2012 Eclipse Spyder
2004-2011 Endeavor

AFFECTED SERVICE MANUALS

2007 Outlander Service Manual Group 35C - Steering Wheel Sensor Removal and Installation
2008 Outlander Service Manual Group 35C - Steering Wheel Sensor Removal and Installation
2009 Outlander Service Manual Group 35C - Steering Wheel Sensor Removal and Installation
2010 Outlander Service Manual Group 35C - Steering Wheel Sensor Removal and Installation
2011 Outlander Service Manual Group 35C - Steering Wheel Sensor Removal and Installation
2012 Outlander Service Manual Group 35C - Steering Wheel Sensor Removal and Installation

2008 Lancer Evolution Service Manual Group 35C - Steering Wheel Sensor Removal and Installation
2010 Lancer Evolution Service Manual Group 35C - Steering Wheel Sensor Removal and Installation
2011 Lancer Evolution Service Manual Group 35C - Steering Wheel Sensor Removal and Installation

2010 Lancer Service Manual Group 35C - Steering Wheel Sensor Removal and Installation
2011 Lancer/Lancer Sportback Service Manual Group 35C - Steering Wheel Sensor Removal and Installation
2012 Lancer/Lancer Sportback Service Manual Group 35C - Steering Wheel Sensor Removal and Installation

2010 Lancer Sportback Service Manual Group 35C - Steering Wheel Sensor Removal and Installation

2010 Galant Service Manual Group 35C - Steering Wheel Sensor Removal and Installation
2011 Galant Service Manual Group 35C - Steering Wheel Sensor Removal and Installation
2012 Galant Service Manual Group 35C - Steering Wheel Sensor Removal and Installation

2008 Eclipse/Eclipse Spyder Service Manual Group 35C -Steering Wheel Sensor Removal and Installation
2009 Eclipse/Eclipse Spyder Service Manual Group 35C -Steering Wheel Sensor Removal and Installation
2010 Eclipse/Eclipse Spyder Service Manual Group 35C -Steering Wheel Sensor Removal and Installation
2011 Eclipse/Eclipse Spyder Service Manual Group 35C -Steering Wheel Sensor Removal and Installation
2012 Eclipse/Eclipse Spyder Service Manual Group 35C -Steering Wheel Sensor Removal and Installation

2004 Endeavor Service Manual Group 35C - Steering Wheel Sensor Removal and Installation
2005 Endeavor Service Manual Group 35C - Steering Wheel Sensor Removal and Installation
2006 Endeavor Service Manual Group 35C - Steering Wheel Sensor Removal and Installation
2007 Endeavor Service Manual Group 35C - Steering Wheel Sensor Removal and Installation
2008 Endeavor Service Manual Group 35C - Steering Wheel Sensor Removal and Installation
2009 Endeavor Service Manual Group 35C - Steering Wheel Sensor Removal and Installation
2010 Endeavor Service Manual Group 35C - Steering Wheel Sensor Removal and Installation
2011 Endeavor Service Manual Group 35C - Steering Wheel Sensor Removal and Installation

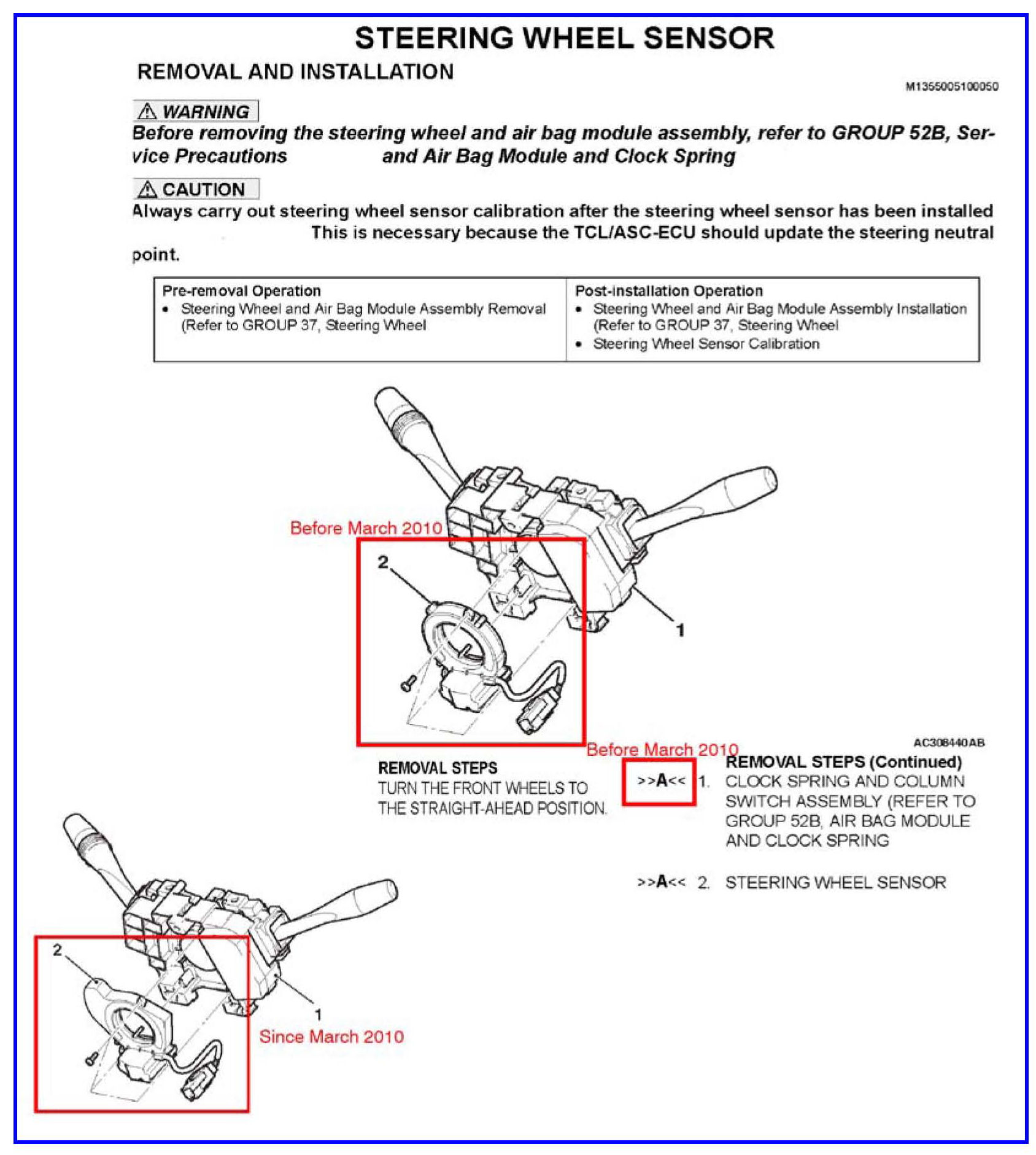

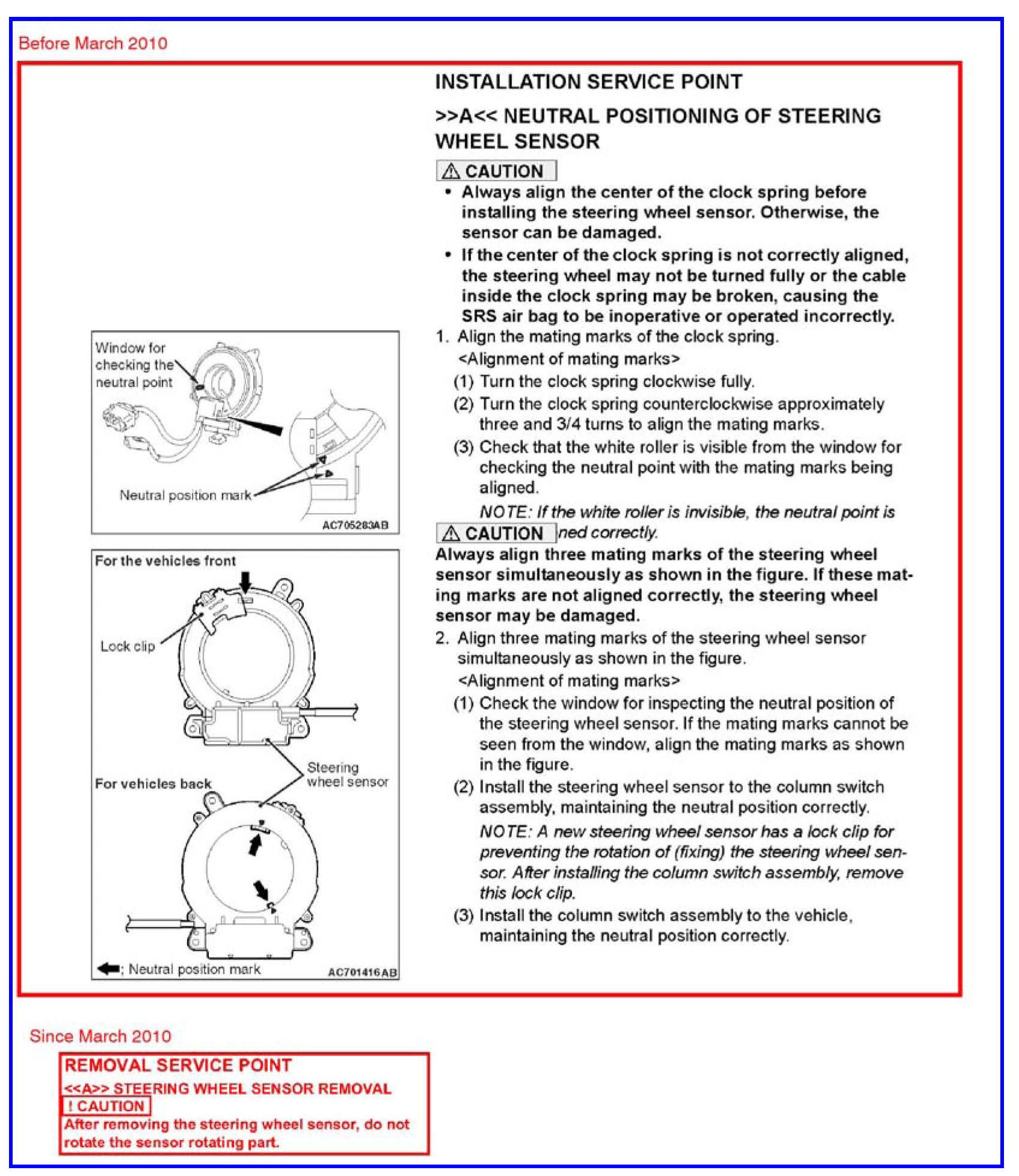

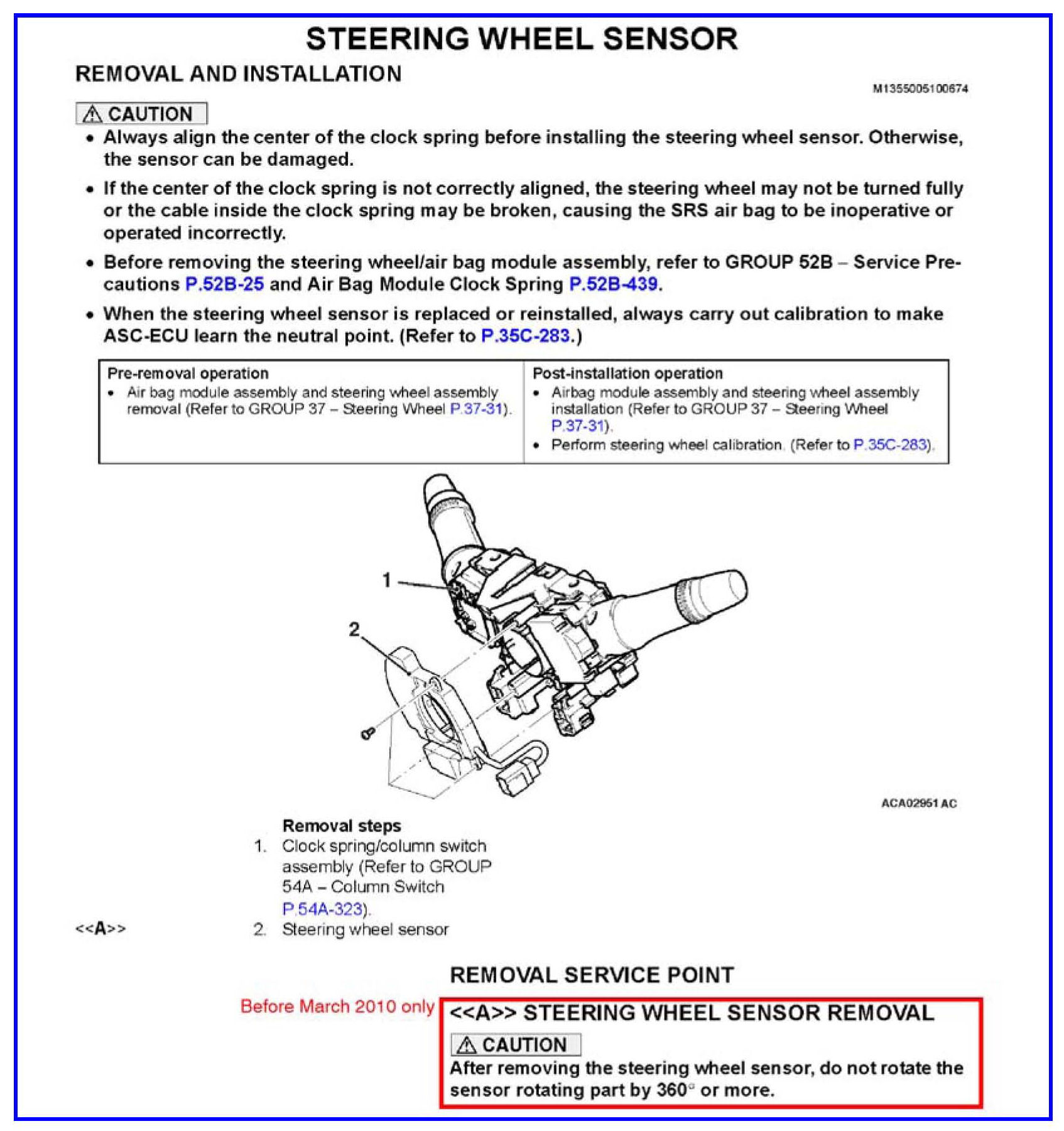

Make the following corrections to Group 35C - Steering Wheel Sensor Removal and Installation in the following service manuals:
2007, 2008, 2009, 2010 Outlander
2010 Lancer
2010 Lancer Sportback
2011, 2012 Lancer/Lancer Sportback

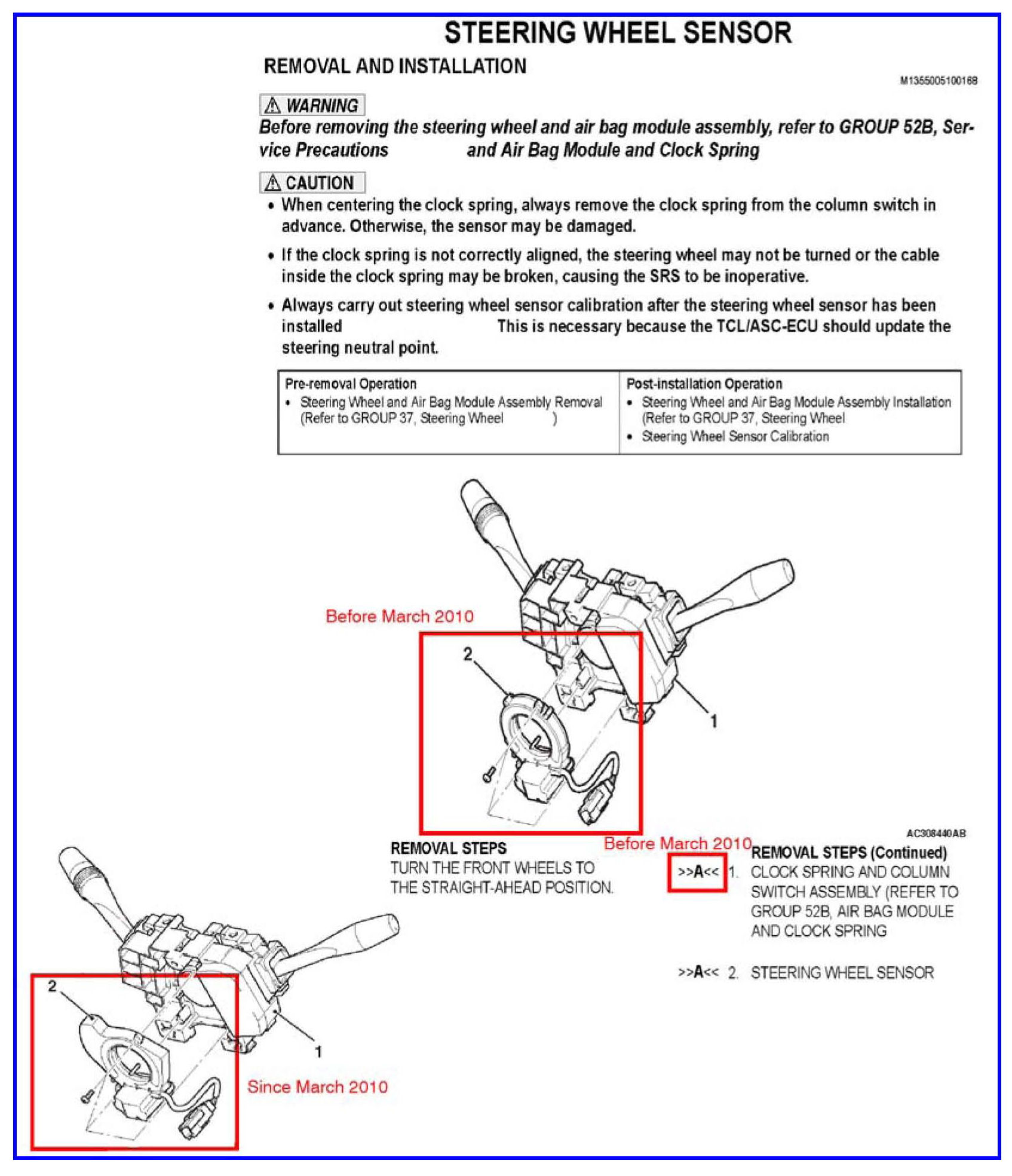

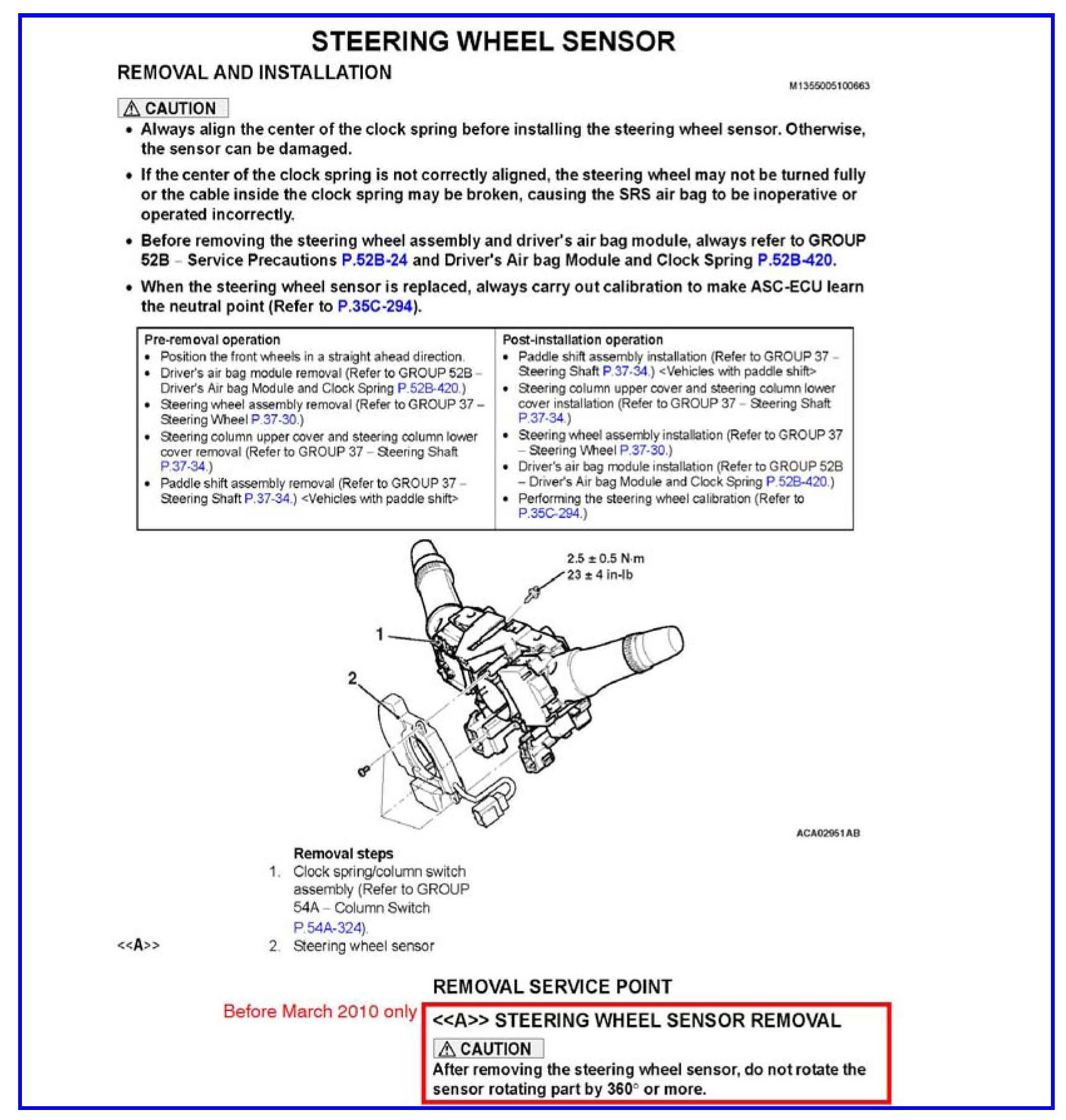

Make the following corrections to Group 35C - Steering Wheel Sensor Removal and Installation in the following service manuals:
2007, 2008, 2009, 2010 Outlander
2010 Lancer
2011, 2012 Lancer/Lancer Sportback

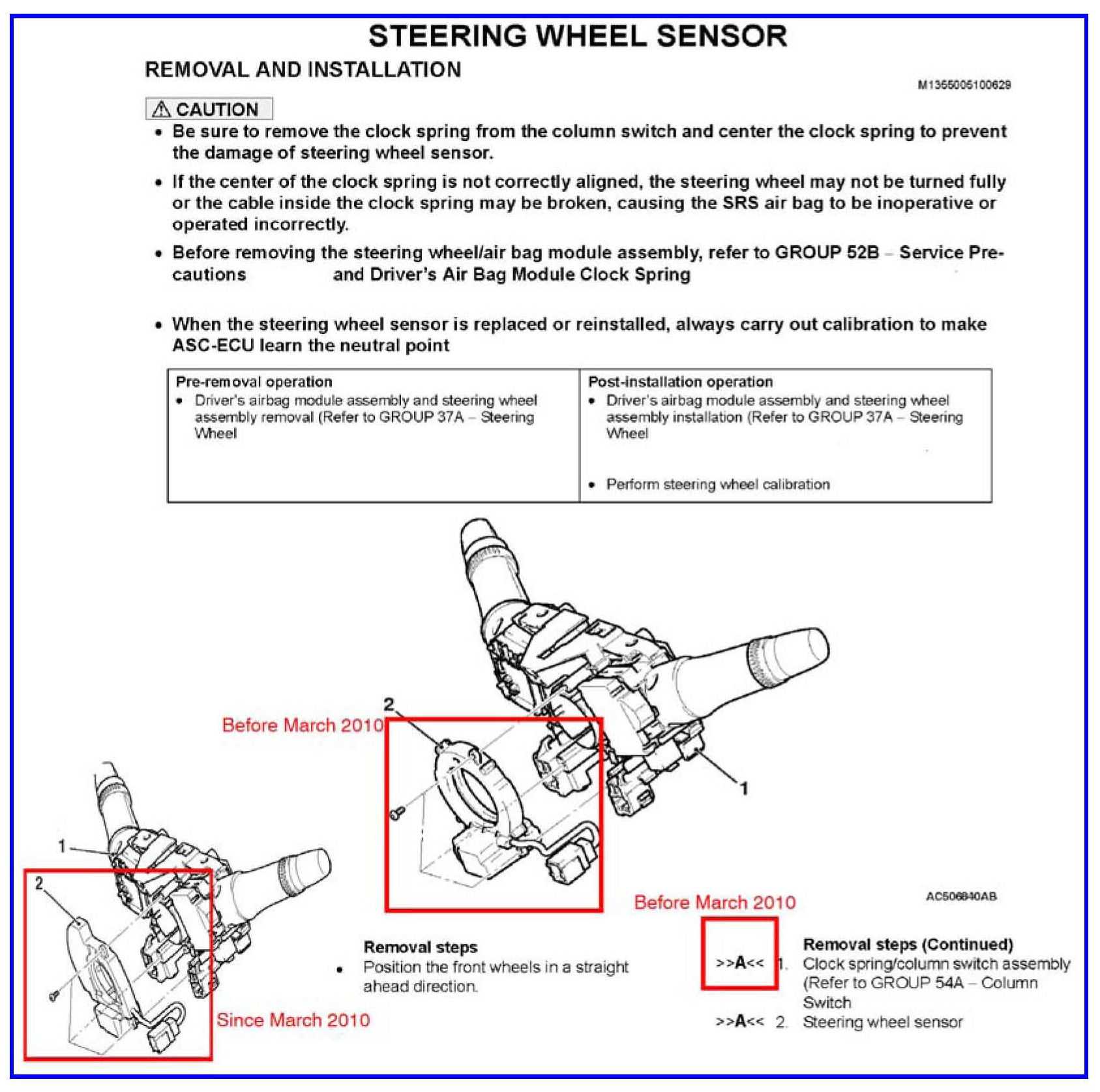

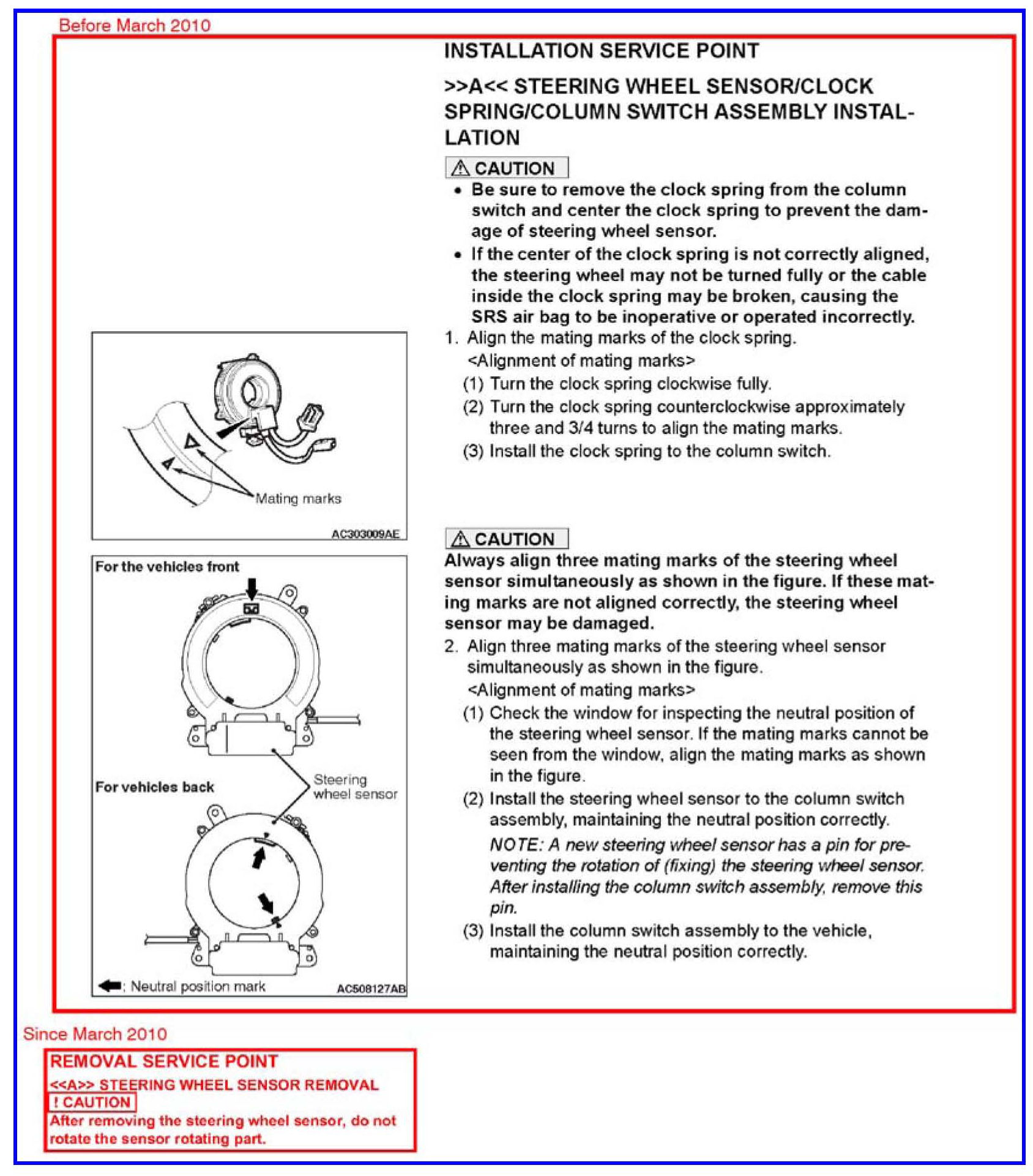

Make the following corrections to Group 35C - Steering Wheel Sensor Removal and Installation in the following service manual:
2008, 2010 Lancer Evolution

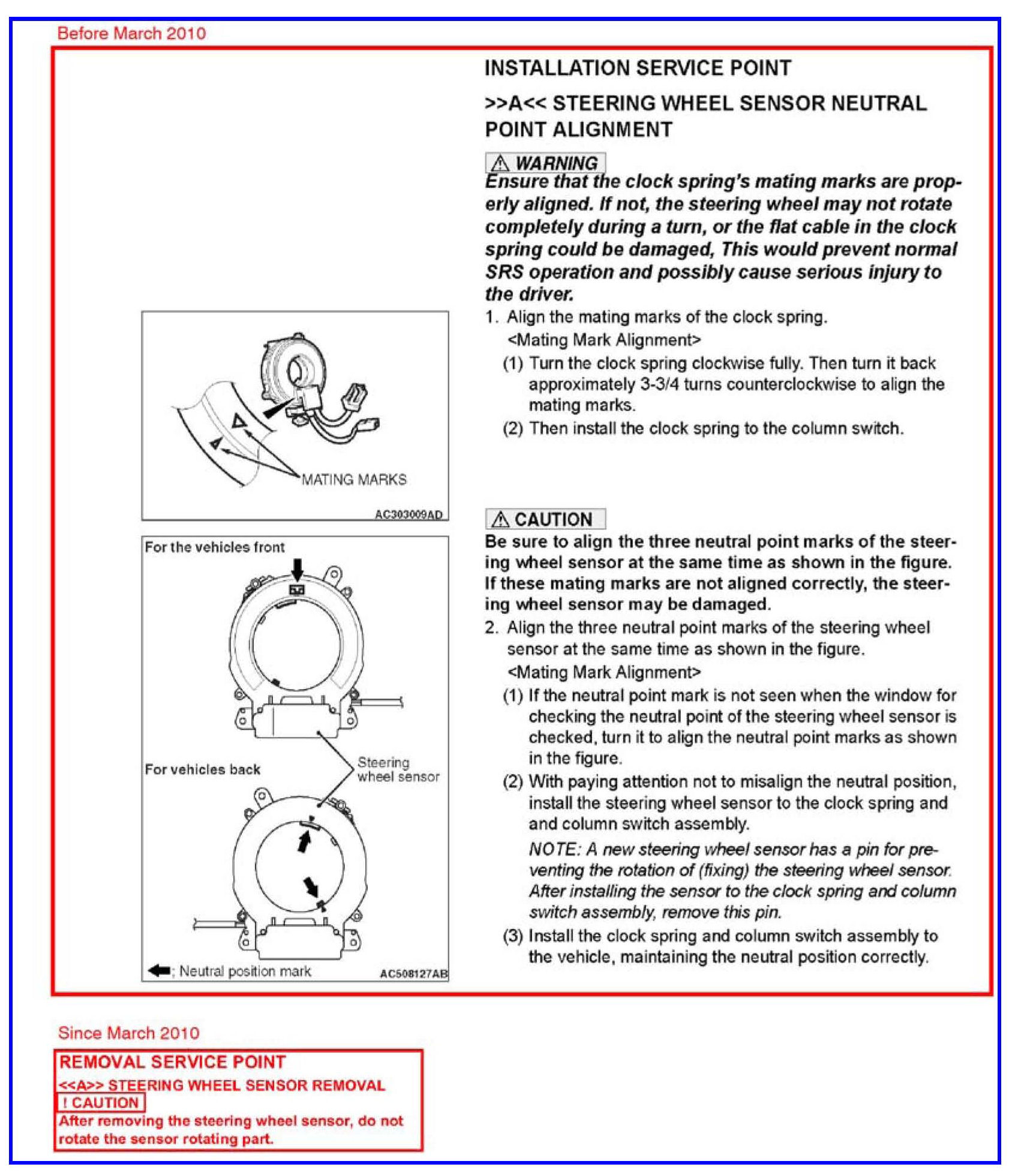

Make the following corrections to Group 35C - Steering Wheel Sensor Removal and Installation in the following service manual:
2011 Lancer Evolution

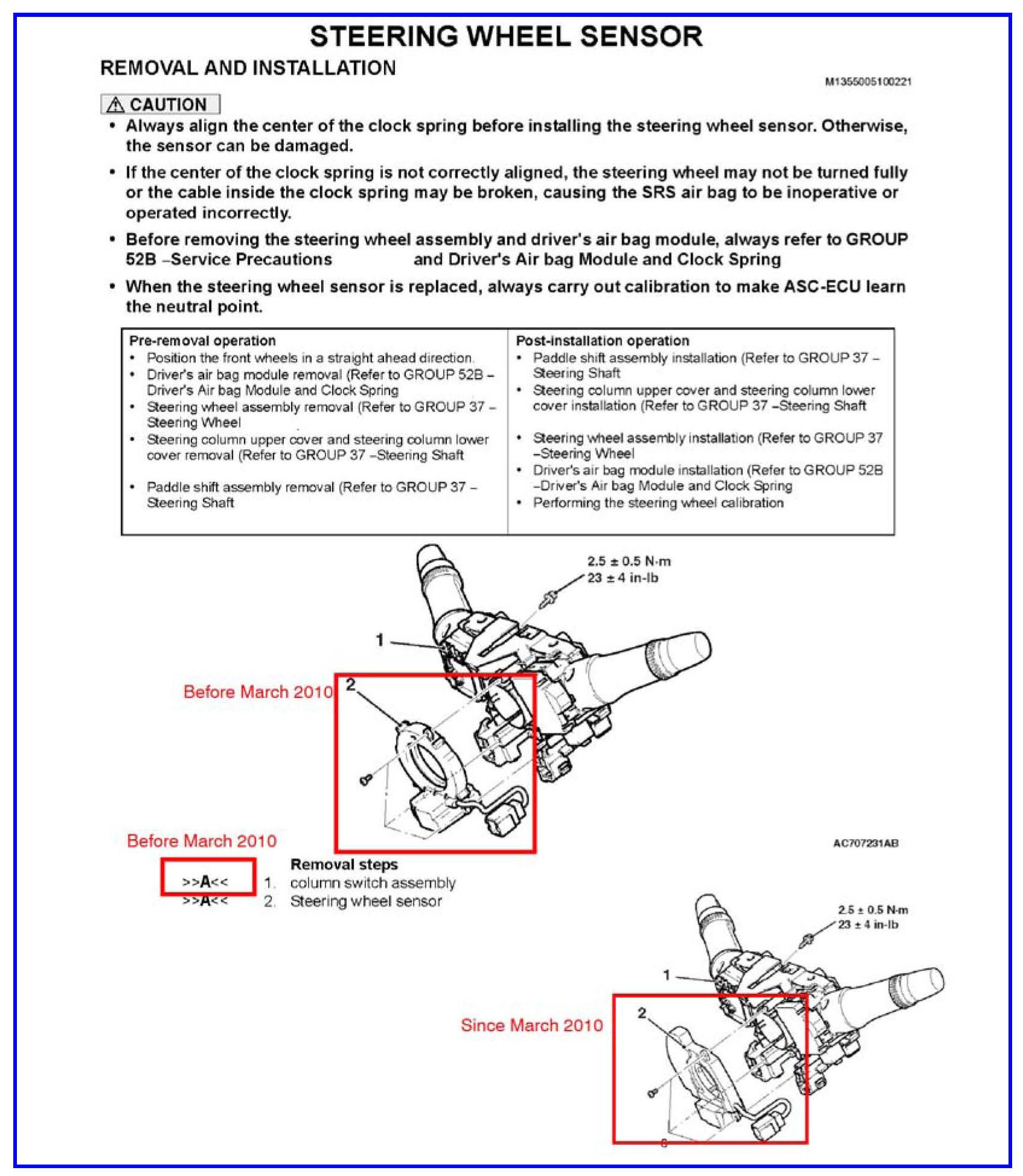

Make the following corrections to Group 35C - Steering Wheel Sensor Removal and Installation in the following service manual:
2011, 2012 Outlander Sport

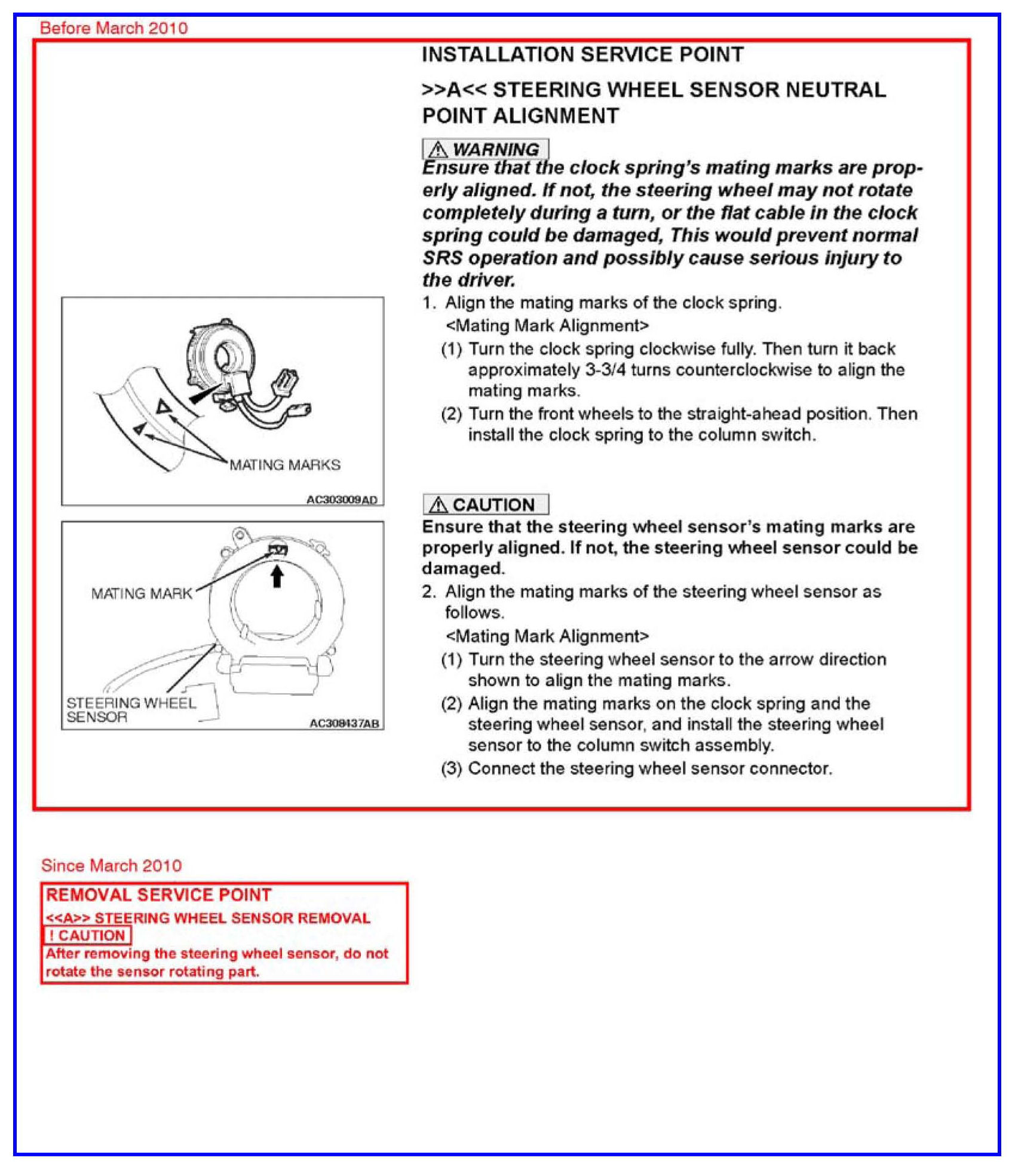

Make the following corrections to Group 35C - Steering Wheel Sensor Removal and Installation in the following service manuals:
2010, 2011, 2012 Galant
2008, 2009, 2010, 2011, 2012 Eclipse/Eclipse Spyder

Make the following corrections to Group 35C - Steering Wheel Sensor Removal and Installation in the following service manuals:
2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 Endeavor
