Rear Suspension

SHOCK ABSORBER ASSEMBLY

REMOVAL AND INSTALLATION

CAUTION
^ The part indicated by *1 should be temporarily tightened, and then fully tightened with the vehicle standing on the ground and the curb weight condition.
^ The part indicated by *2 is the nut and nut with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

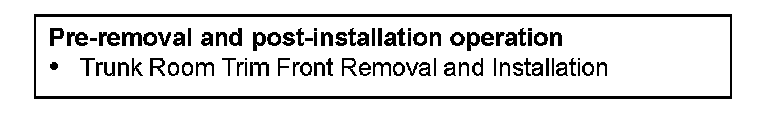

Pre-removal & Post-installation Operation:

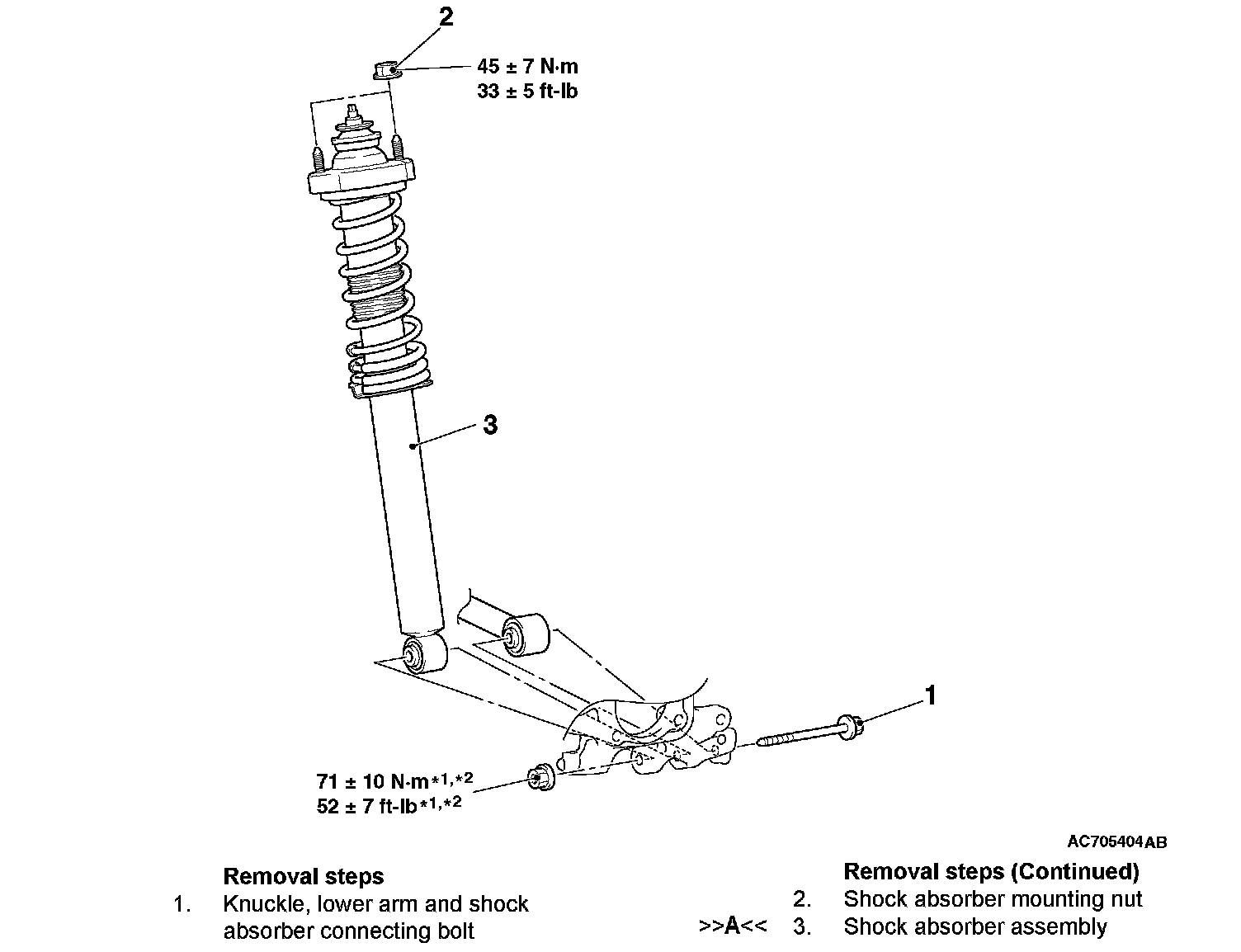

Removal Steps 1-3:

INSTALLATION SERVICE POINT

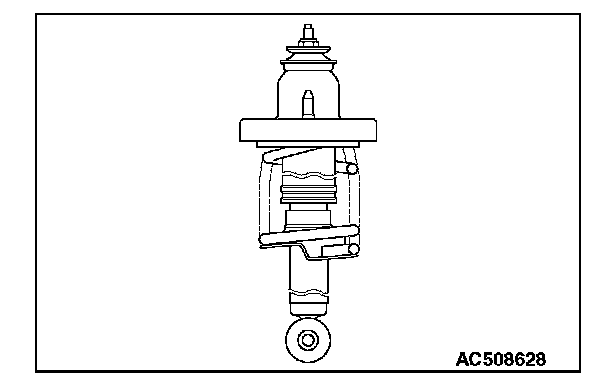

[A] SHOCK ABSORBER ASSEMBLY INSTALLATION





Install the shock absorber assembly so that the coil spring end faces the rear of the vehicle.
