Front Suspension

STRUT ASSEMBLY

REMOVAL AND INSTALLATION

CAUTION
The part indicated by * is the bolt/nut with friction coefficient stabilizer. During removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten it to the specified torque.

Post-installation Operation:

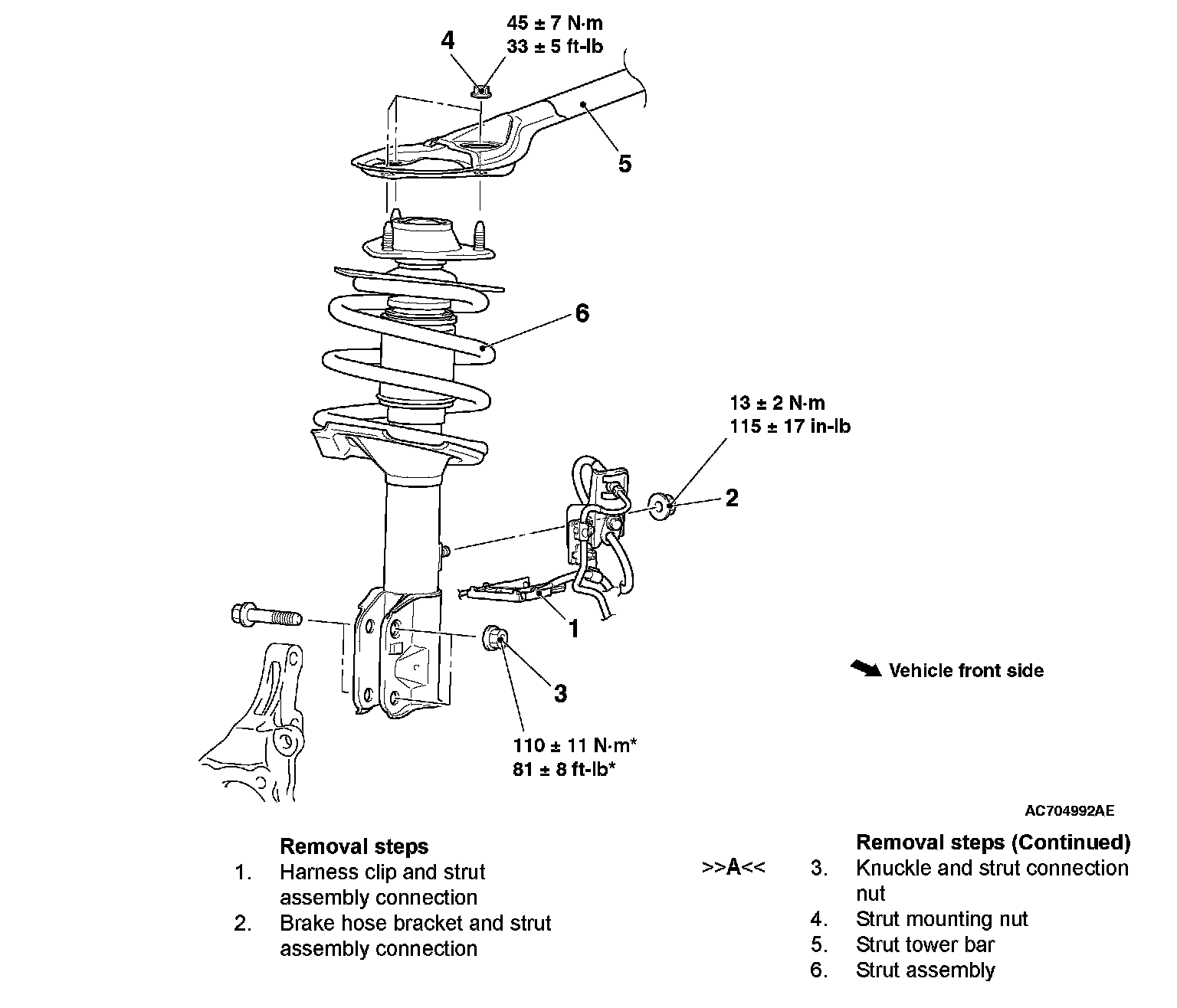

Removal Steps 1-6:

INSTALLATION SERVICE POINT

[A] KNUCKLE AND STRUT CONNECTION NUT INSTALLATION

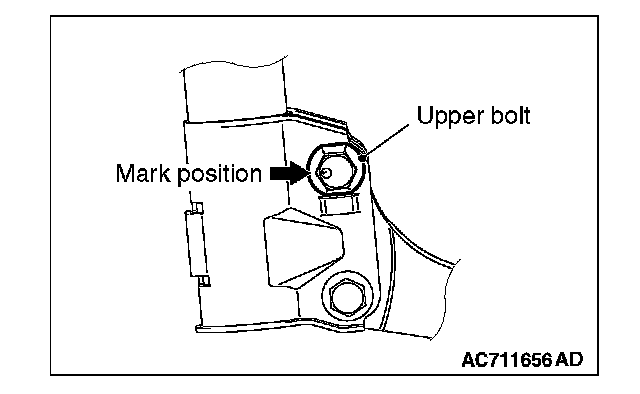

Locate the knuckle and strut connection upper bolt's mark position as shown in the figure and tighten it.

INSPECTION
^ Check for oil leaks from the strut assembly.
^ Check the strut assembly for damage or deformation.
