Front Suspension

STABILIZER BAR

REMOVAL AND INSTALLATION

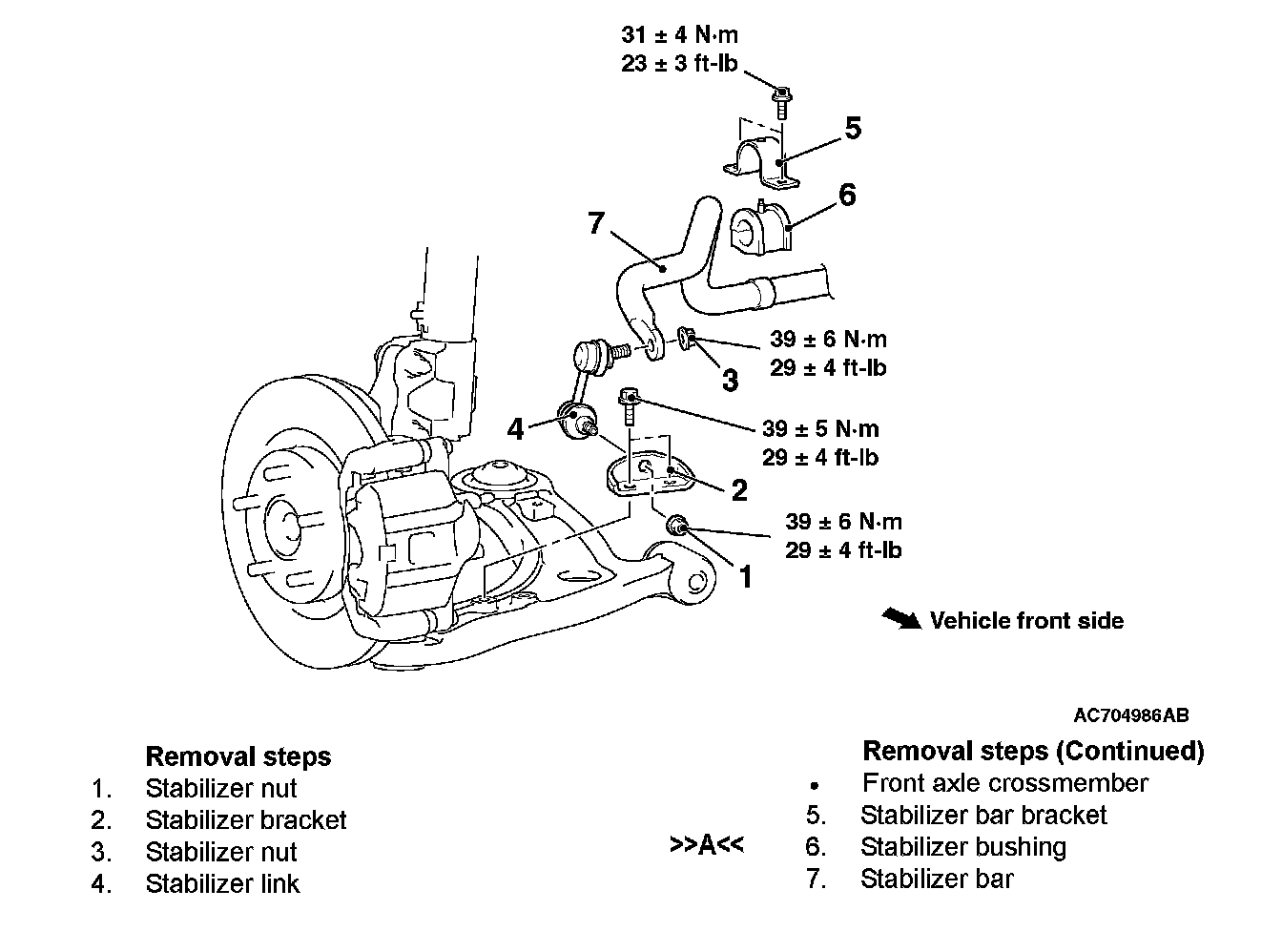

Removal Steps 1-7:





INSTALLATION SERVICE POINT

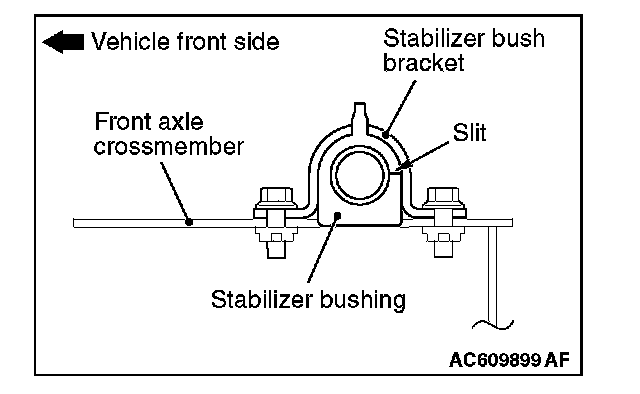

[A] STABILIZER BUSHING INSTALLATION





Install the stabilizer bushing as shown in the figure.
