Control Link Slide Bushing Rotation Starting Torque Check
CONTROL LINK SLIDE BUSHING ROTATION STARTING TORQUE CHECKRequired Special Tool:
^ MB990326: Preload socket

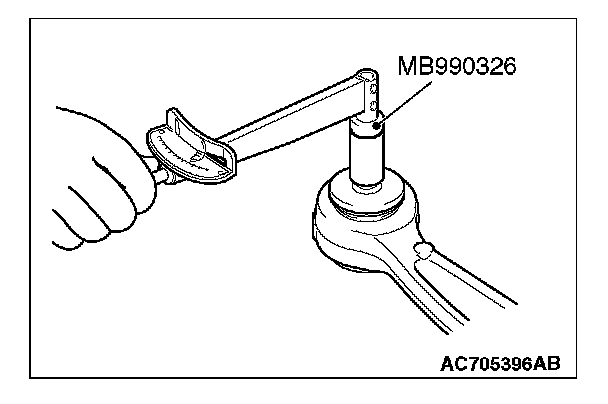

1. Insert the bolt to the control link slide bushing, and install the nuts with the washer from the opposite side. Rotate the inner cylinder (including washer) for several turns, and measure the rotation starting torque of the control link slide bushing using the special tool MB990326.
Standard value: 2.0 Nm (17.7 in-lb) or less
2. When the measured value exceeds the standard range, replace the control link assembly.
3. Even if the measured value is within the standard value, check that the control link slide bushing has no looseness or gritty feeling. If there is no looseness or gritty feeling, it is judged as usable.
