Return to Center Check

STEERING WHEEL RETURN TO CENTER CHECK
Conduct a road test:

1. Make both gradual and sudden turns and check the steering wheel return.

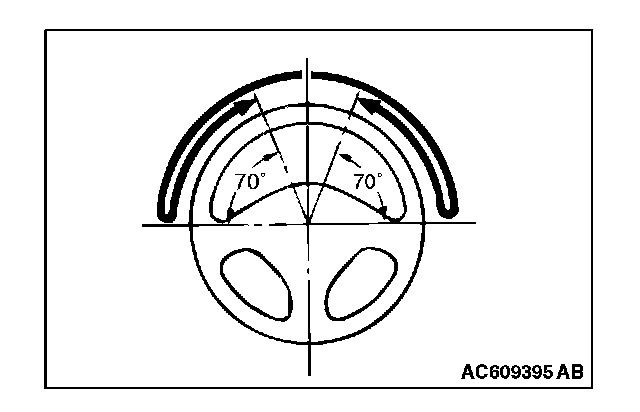

2. At a vehicle speed of approximately 22 mph (35 km/h), turn the steering wheel 90°, hold a few seconds, then release. If the steering wheel then returns 70° or more, the return can be judged satisfactory.

NOTE: There will be a momentary feeling or "heaviness" when the wheel is turned quickly, but this is not abnormal (Oil pump discharge amount is especially apt to be insufficient during idling).
