Overhaul

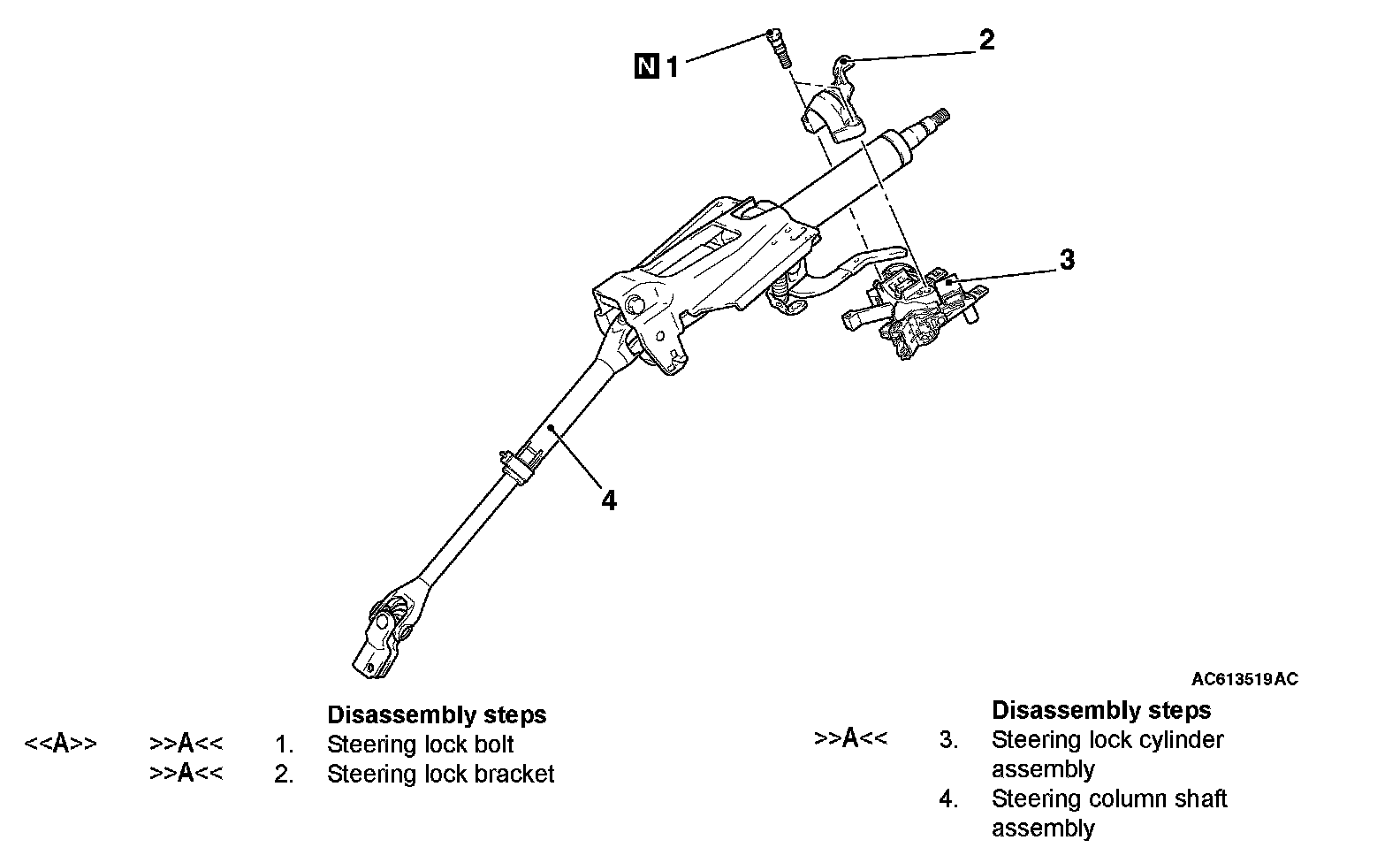

DISASSEMBLY AND ASSEMBLYDisassembly Steps 1-4:
DISASSEMBLY SERVICE POINT
[A] STEERING LOCK BOLT REMOVAL
1. Use a drill to make a hole just deeply enough for the tap to stand on the steering lock bolt.
2. Use a left-hand thread tap to remove the steering lock bolt.
ASSEMBLY SERVICE POINT
[A] STEERING LOCK CYLINDER ASSEMBLY/STEERING LOCK BRACKET/STEERING LOCK BOLT INSTALLATION
1. When installing the steering lock assembly to the steering column shaft assembly, temporarily assemble the steering lock assembly while aligning it with the boss on the column.
2. Make sure that the steering lock operates normally, and then tighten the steering lock bolt until its head is broken off.
