Removal and Replacement

STARTER MOTOR ASSEMBLY

REMOVAL AND INSTALLATION

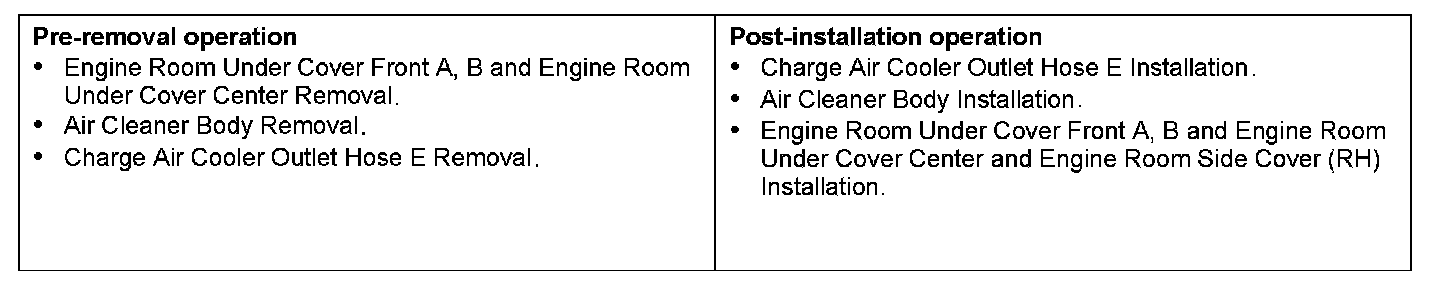

Pre-Removal And Post-Installation Operation:

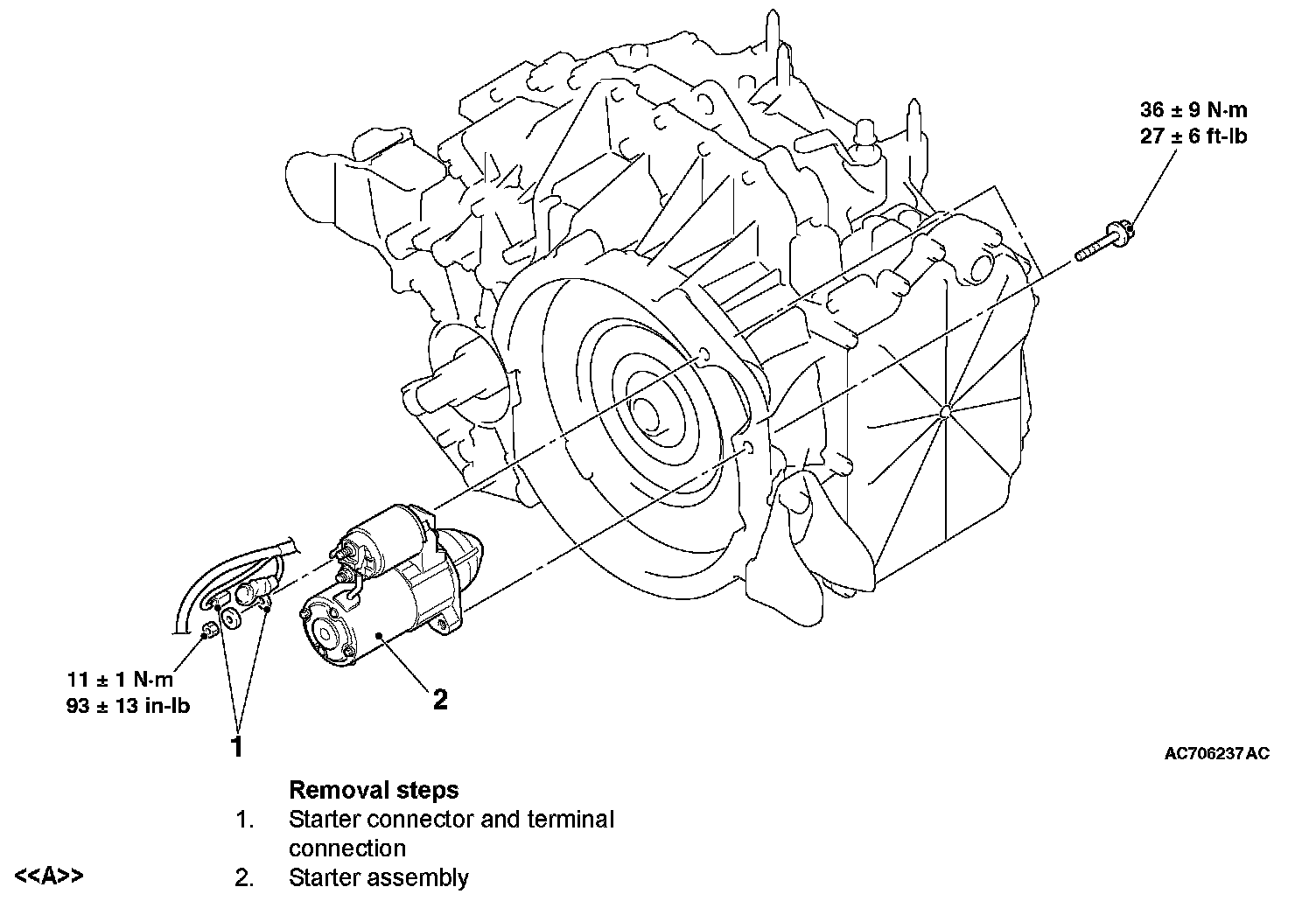

Removal Steps 1-2:

REMOVAL SERVICE POINT

[[A]] STARTER ASSEMBLY REMOVAL

Remove the starter assembly from the lower front of the engine.
