Clutch Switch: Adjustments
INSPECTIONCLUTCH SWITCH CHECK AND ADJUSTMENT
CAUTION
Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not perform work wearing gloves which have grease on them.
1. Connect a circuit tester (ohms range) to the clutch switch connector.

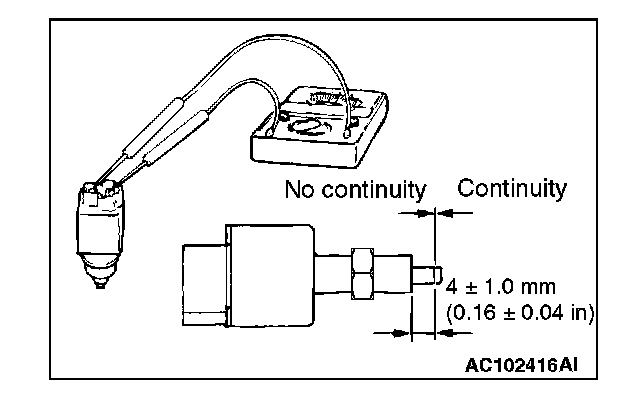

2. When continuity does not exist with the plunger pressed from the outer case end face by the dimension shown in the figure, and when continuity exists with the plunger released (2 ohms or less), the switch is in good condition.
INTERLOCK SWITCH OPERATING CHECK
CAUTION
Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not perform work wearing gloves which have grease on them.
1. Connect a circuit tester (ohms range) to the clutch interlock switch connector.
2. If continuity exists (2 ohms or less) when the shaft is pressed to the value shown in the figure or more, and continuity does not exist when the shaft is released, the clutch interlock switch is in good condition.
