Fuse: Application and ID

FUSIBLE LINK AND FUSE

ENGINE COMPARTMENT

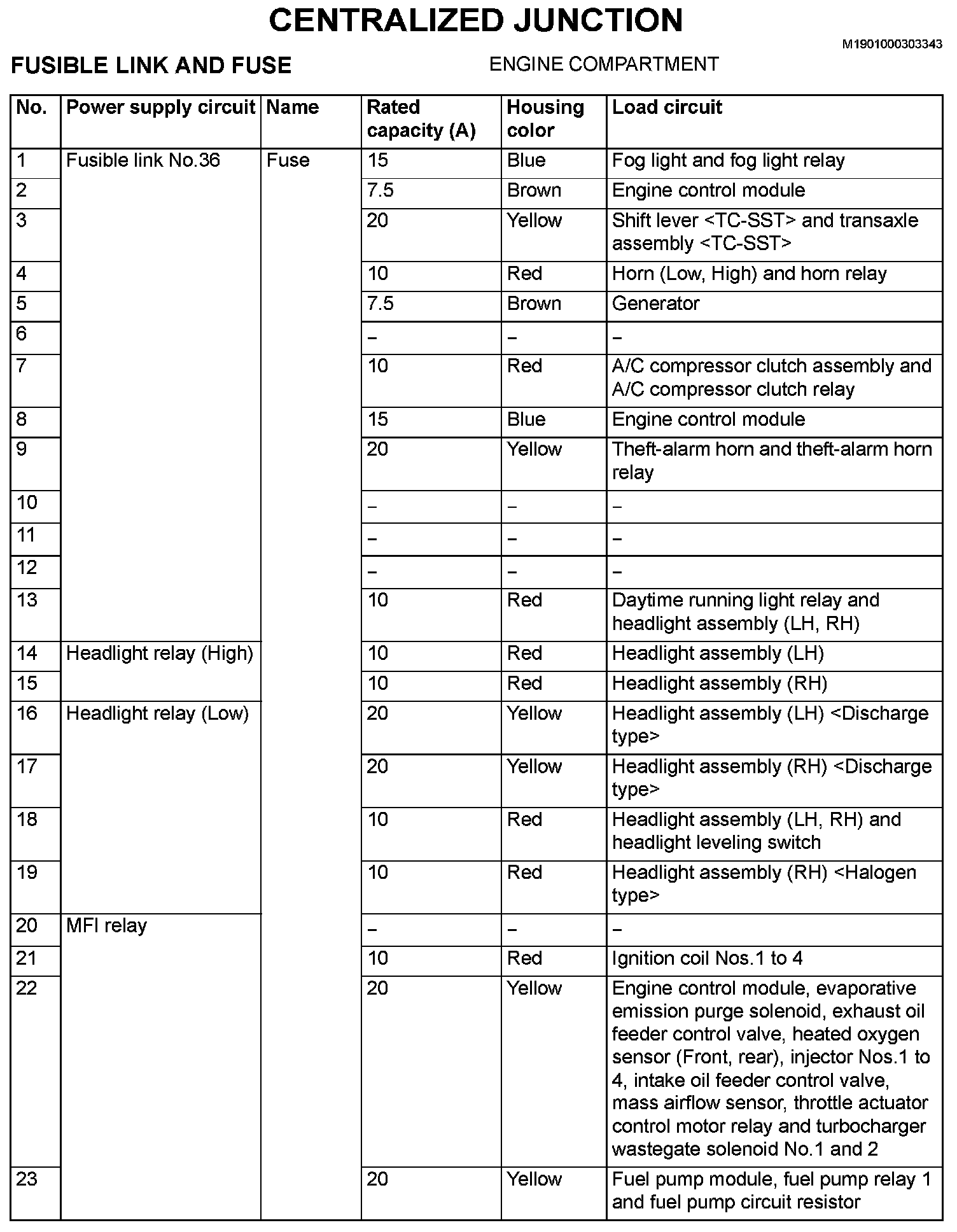

Application Table (Part 1):




Application Table (Part 2):

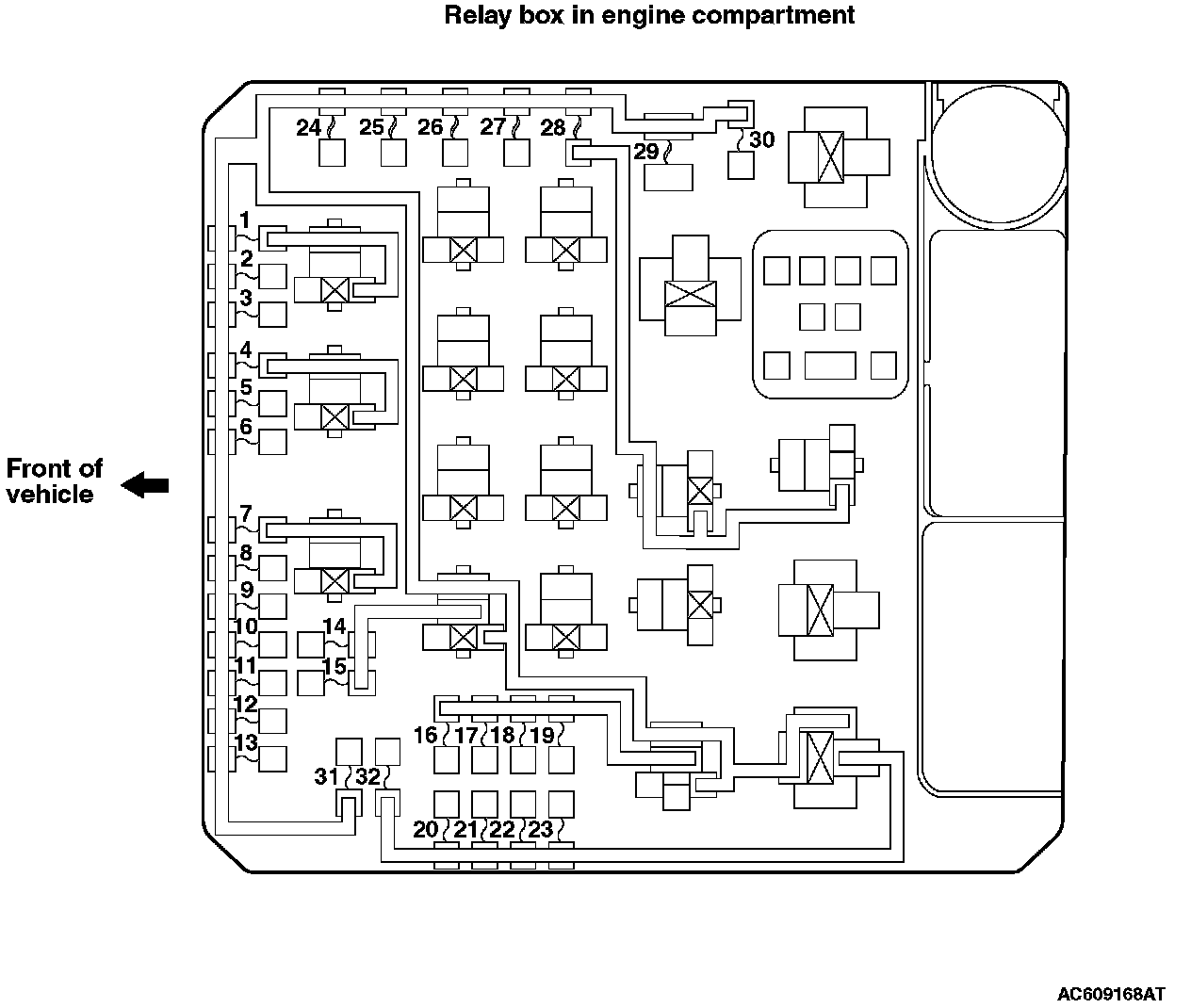

Location View:

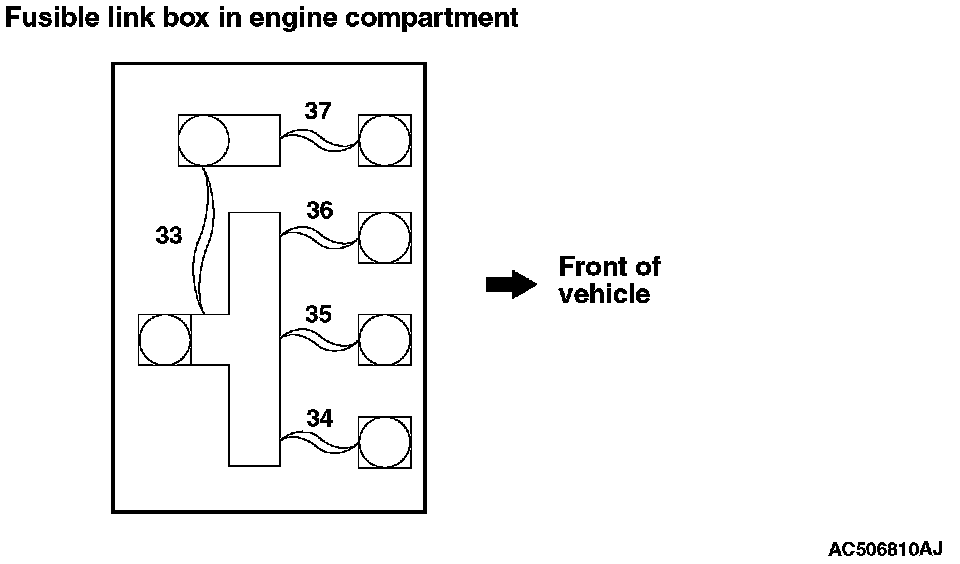

Location View:






PASSENGER COMPARTMENT


Application Table (Part 1):

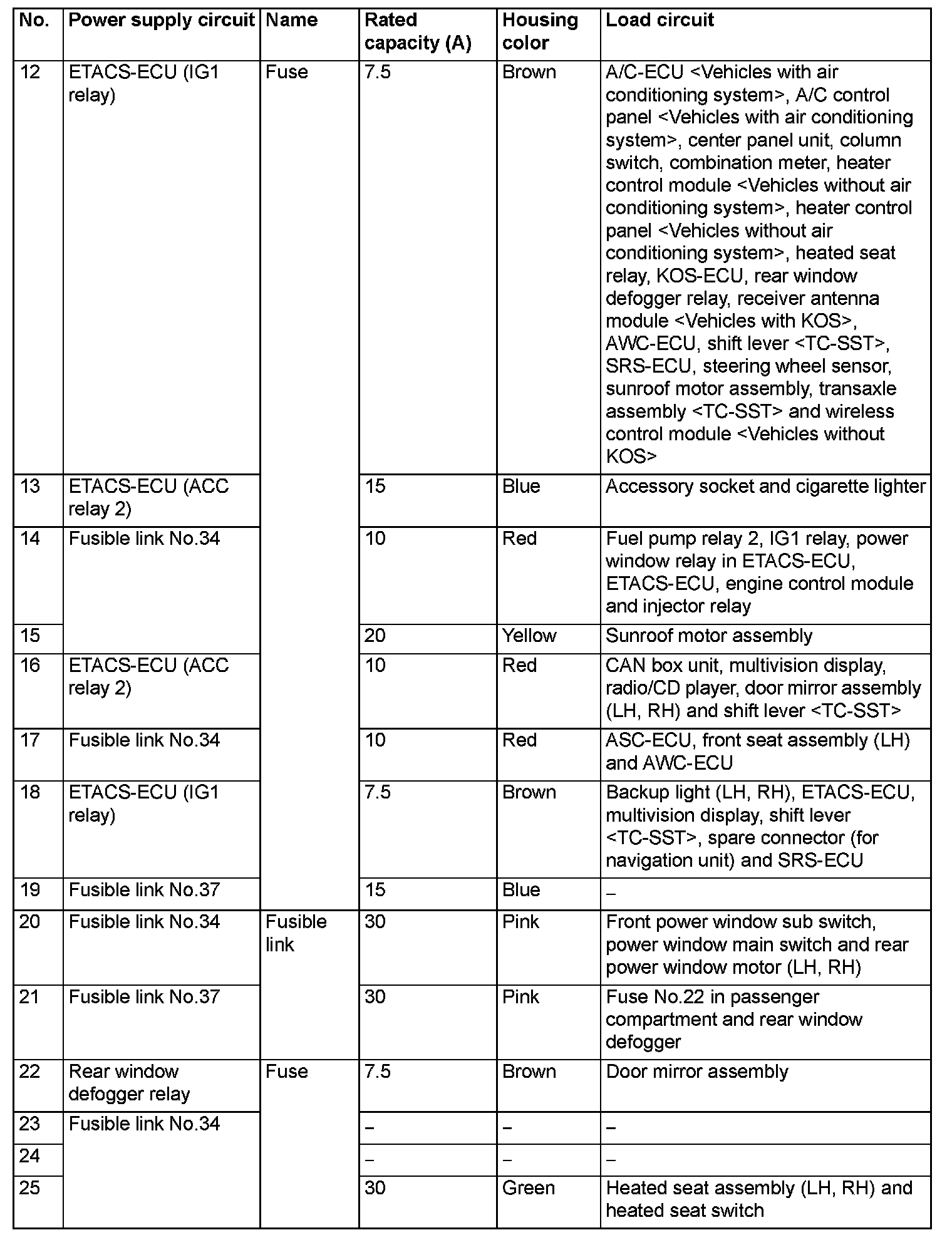

Application Table (Part 2):

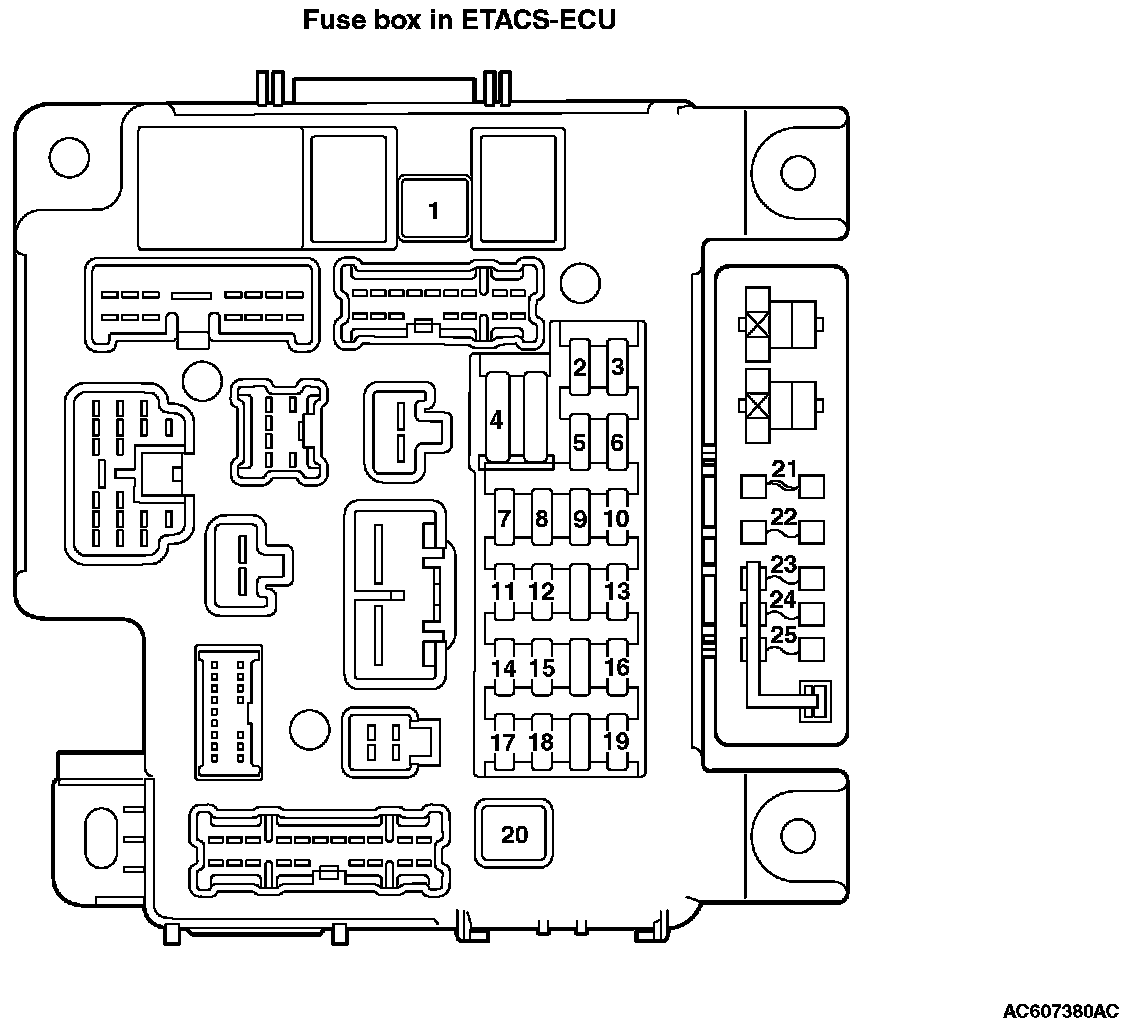

Location View:
