Removal and Replacement

GENERATOR ASSEMBLY

REMOVAL AND INSTALLATION

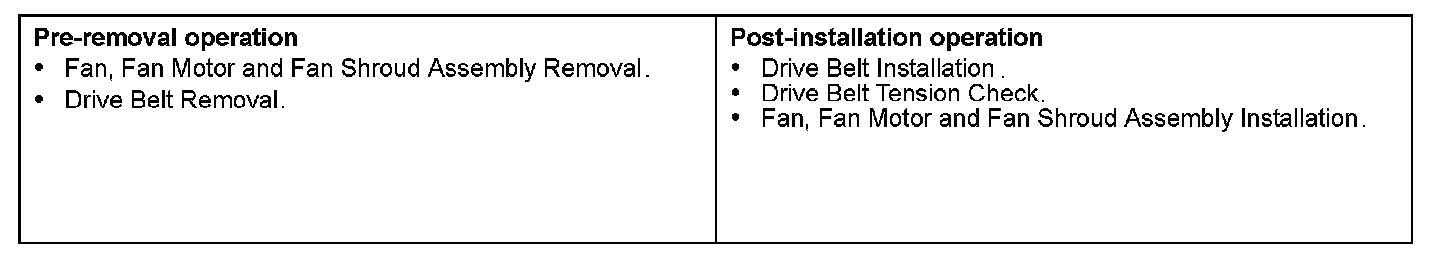

Pre-Removal And Post-Installation Operation:

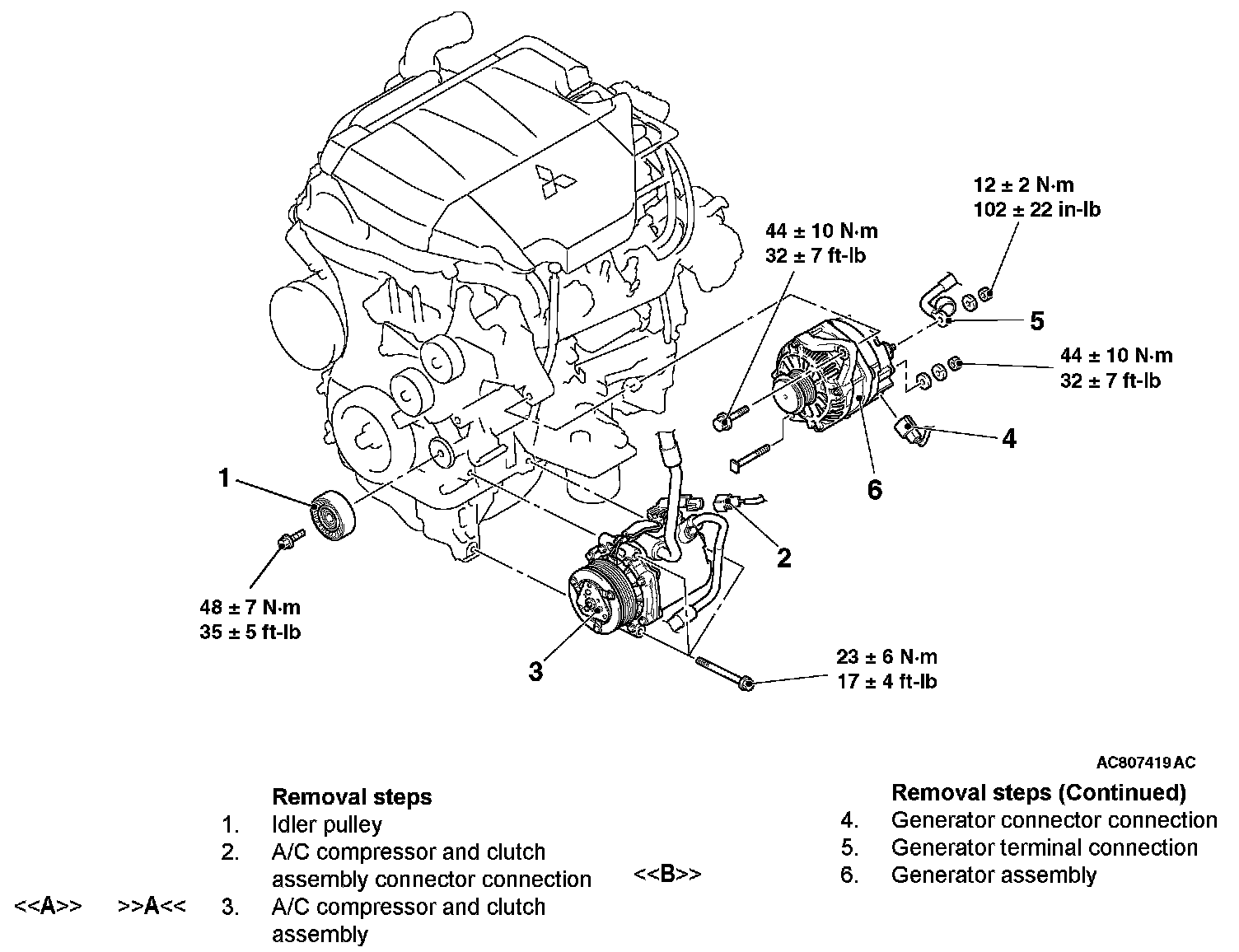

Removal Steps 1-6:

REMOVAL SERVICE POINTS

[[A]] A/C COMPRESSOR AND CLUTCH ASSEMBLY REMOVAL

1. With the hose installed, remove the A/C compressor and clutch assembly from the bracket.
2. Tie the removed A/C compressor and clutch assembly with a string at a position where it will not interfere with the removal and installation of the generator assembly.

[[B]] GENERATOR ASSEMBLY REMOVAL
Pull out the generator assembly upward.

INSTALLATION SERVICE POINT

]]A[[ A/C COMPRESSOR AND CLUTCH ASSEMBLY INSTALLATION

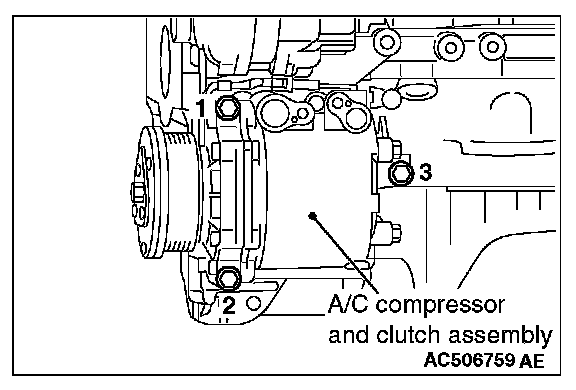

Tighten A/C compressor and clutch assembly mounting bolts to the specified torque in the order of number shown in the illustration.

Tightening torque: 23 ± 6 N.m (17 ± 4 ft-lb)
