Removal and Replacement

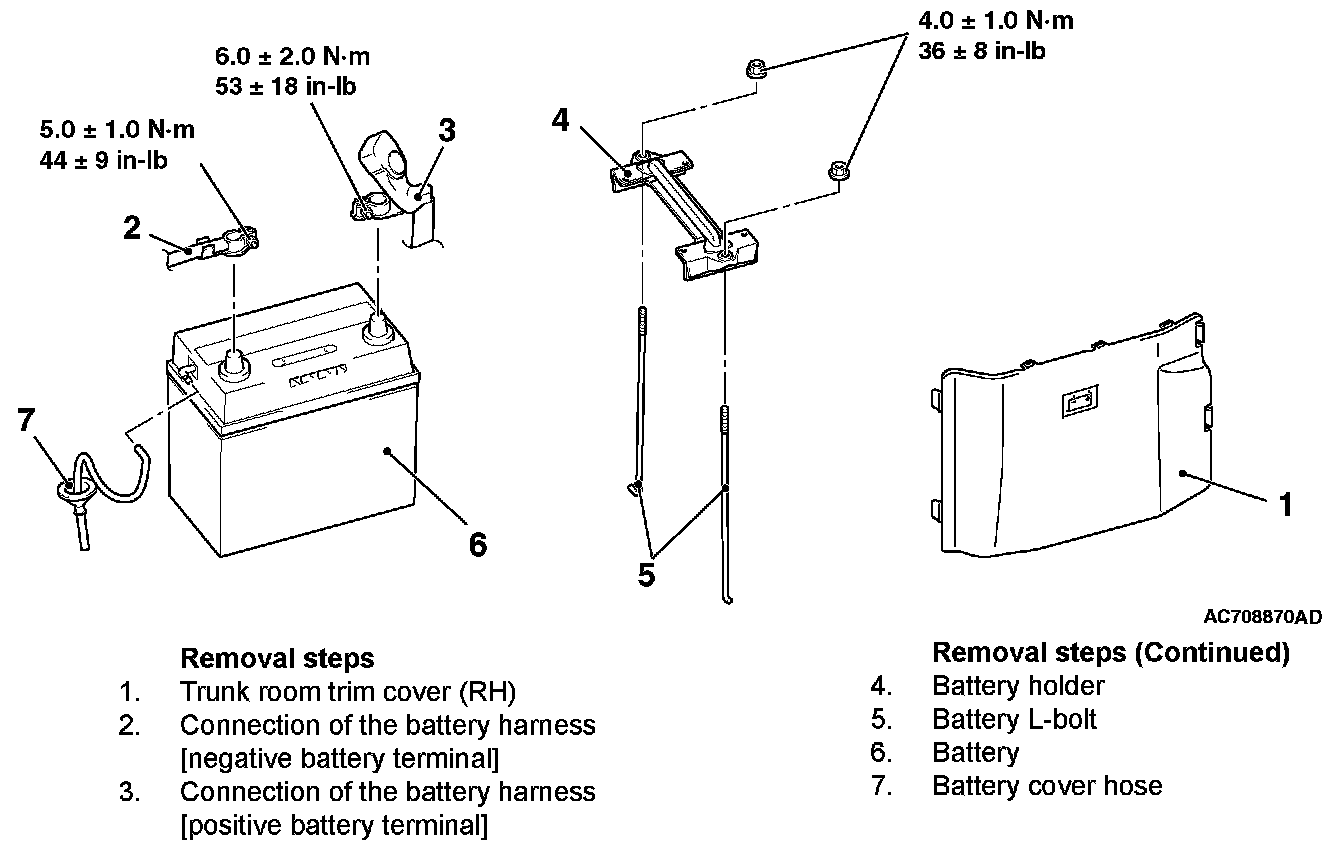

BATTERYREMOVAL AND INSTALLATION BATTERY
WARNING: When installing the battery, securely connect the exhaust battery cover hose.
Removal Steps 1-7:

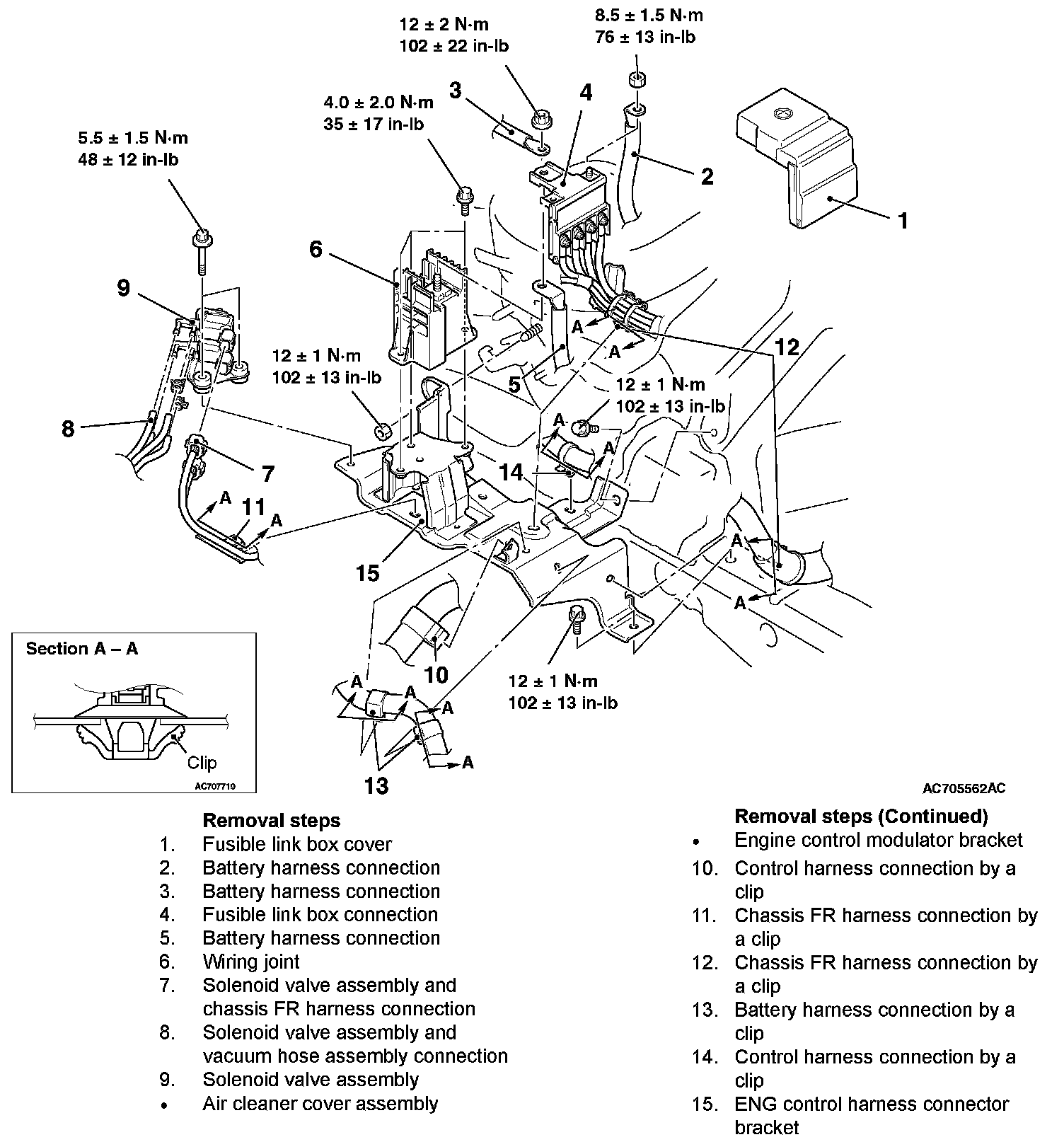

ENG CONTROL HARNESS CONNECTOR BRACKET
Removal Steps 1-15:
REMOVAL AND INSTALLATION BATTERY
WARNING: When installing the battery, securely connect the exhaust battery cover hose.
ENG CONTROL HARNESS CONNECTOR BRACKET
