Ignition Switch Continuity Check
IGNITION SWITCHINSPECTION

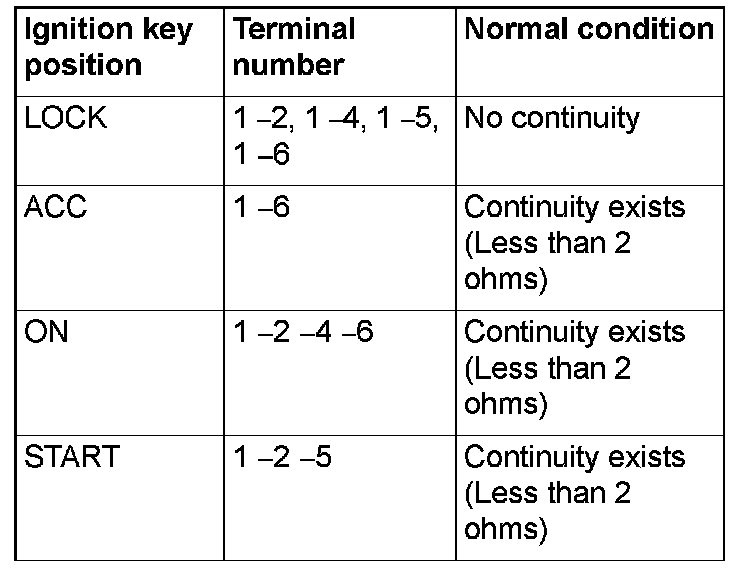

IGNITION SWITCH CONTINUITY CHECK

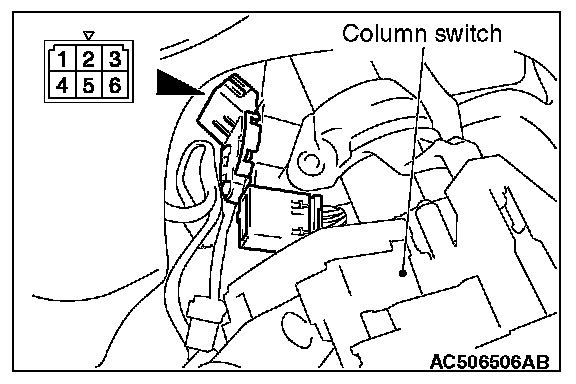

With the ignition switch mounted to the vehicle, disconnect and check the ignition switch connection connector.

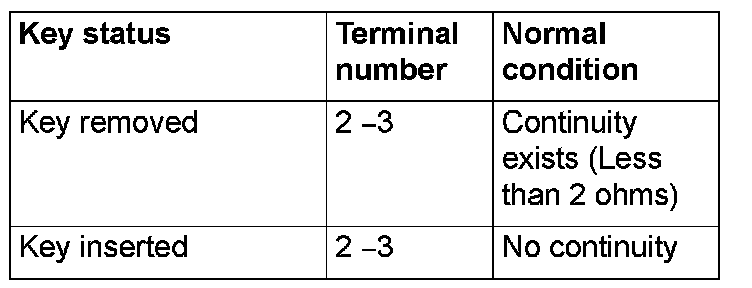

KEY REMINDER SWITCH INSPECTION

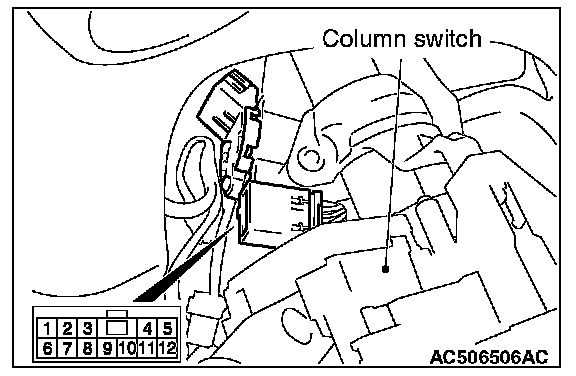

With the key reminder switch mounted to the vehicle, disconnect the key reminder switch connection connector, and then perform the continuity check.
