Removal and Replacement
G AND YAW RATE SENSORREMOVAL AND INSTALLATION
CAUTION:
^ Do not use an impact wrench.
^ Do not drop or shock the G and yaw rate sensor.
^ When the G and yaw rate sensor is replaced, always carry out calibration to make ASC-ECU learn the neutral point.
Pre-removal & Post-installation Operation:

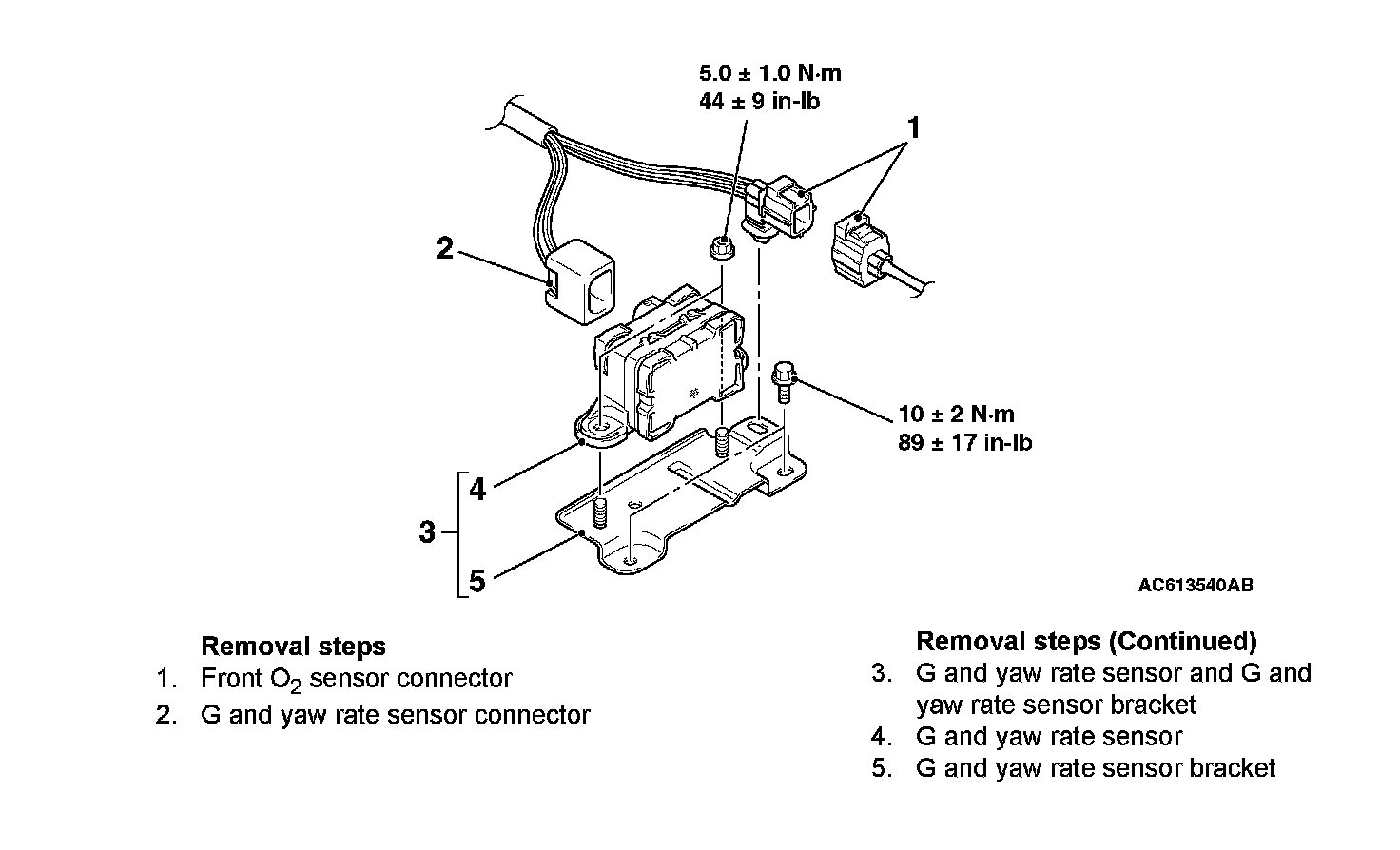

Removal Steps 1-5:
