Seat Belt Systems: Testing and Inspection

INSPECTION

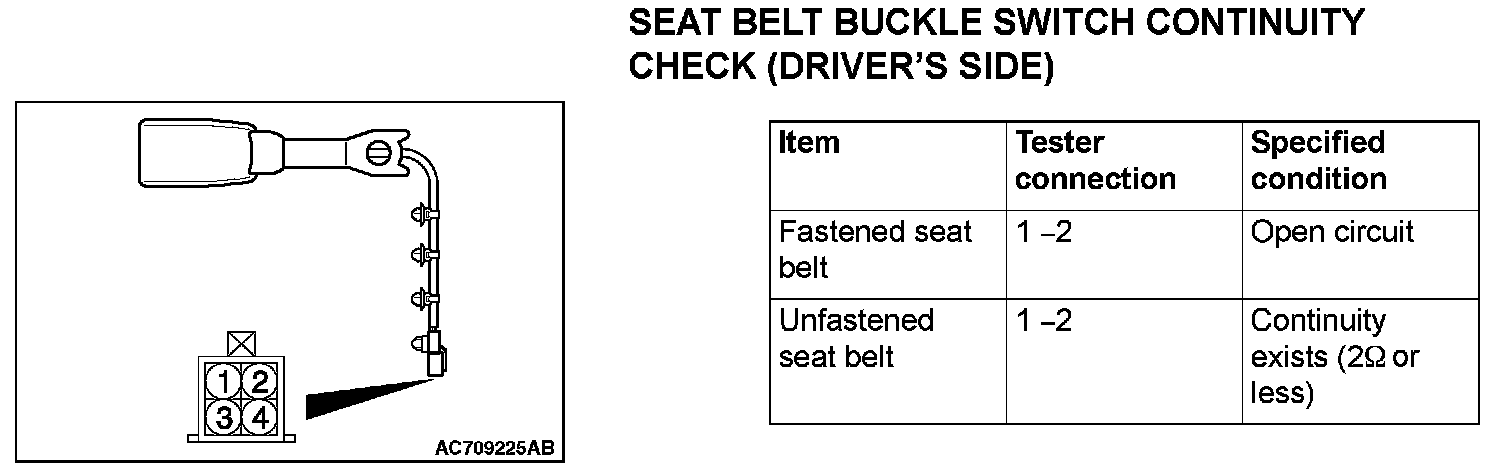

SEAT BELT BUCKLE SWITCH CONTINUITY CHECK (DRIVER'S SIDE)

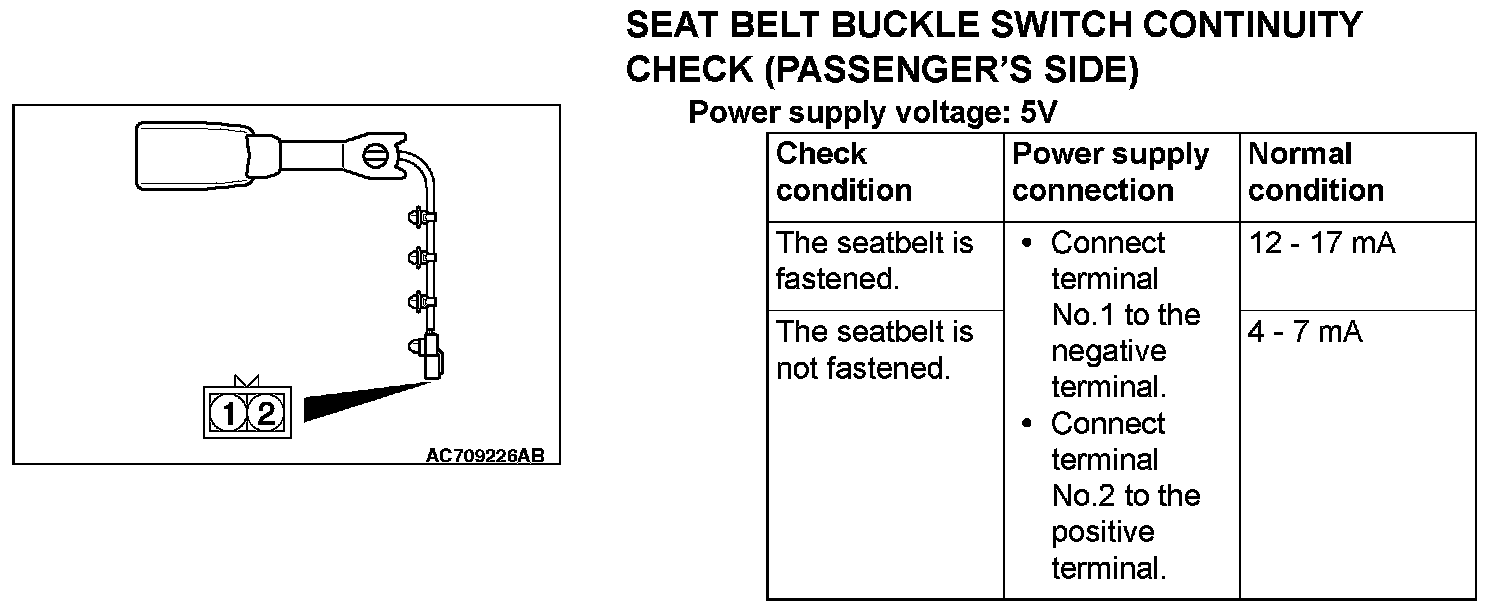

SEAT BELT BUCKLE SWITCH CONTINUITY CHECK (PASSENGER'S SIDE)
