Data List Reference Table

DATA LIST REFERENCE TABLE

DATA LIST OUTPUT

The following items can be read by the scan tool from the SRS-ECU input data.

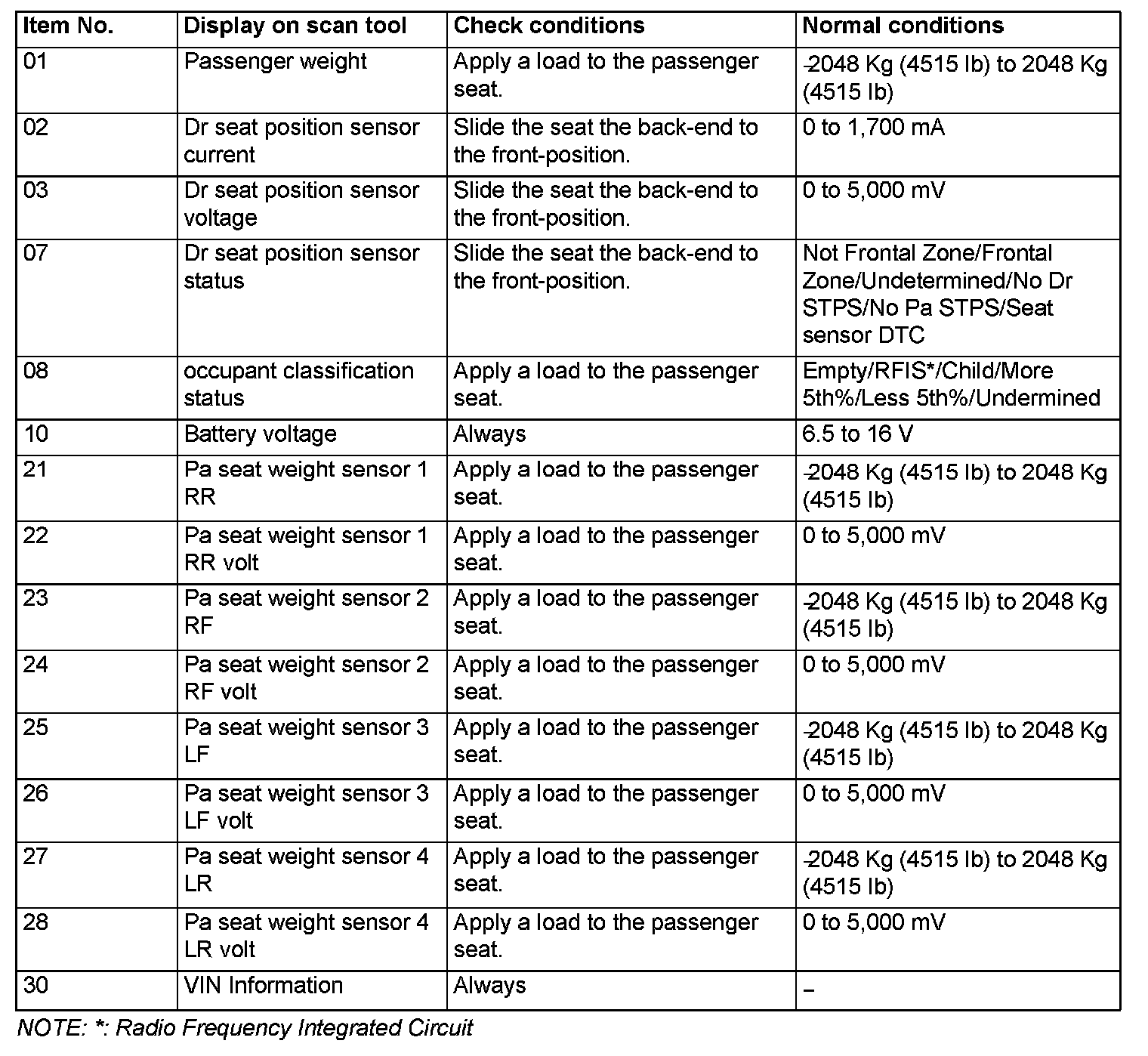

Data List Reference Table (Part 1):

The following items can be read by the scan tool from the occupant classification-ECU input data.

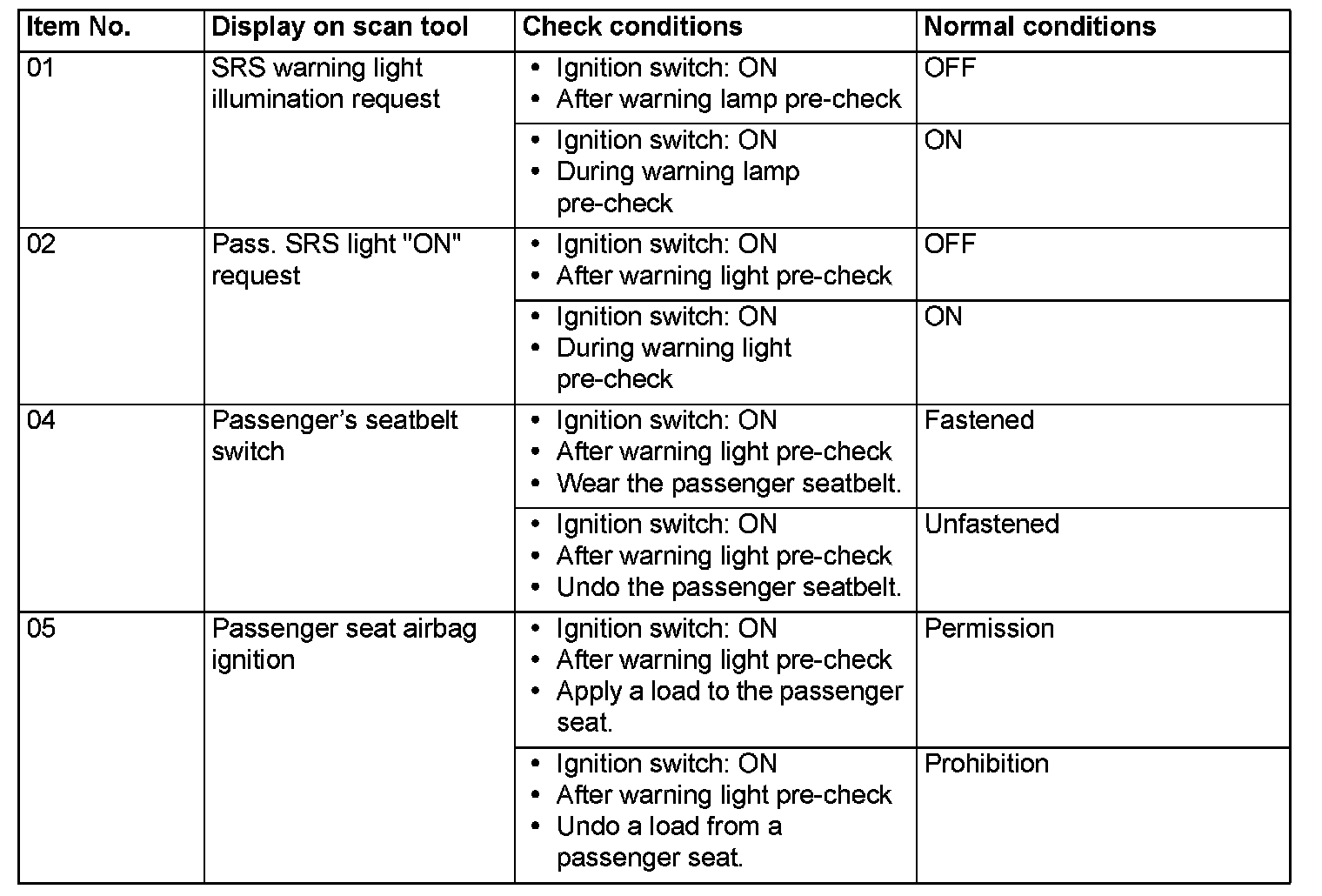

Data List Reference Table (Part 2):
