Computers/Controls - Revised DTC U1515 And U1570 Svc.
No: TSB-12-54-011DATE: June, 2012
MODEL: See below
SUBJECT:
DTCS U1515 & U1570 - NO BUS ACTIVITY (LIN)
ERROR - SERVICE MANUAL REVISION
[TSB Revision: TSB-12-54-011]
PURPOSE
This TSB revises the "Trouble Judgment" description for DTC U1515 in the affected service manuals.
AFFECTED VEHICLES
2008-2012 Lancer
2008-2012 Lancer Evolution
2009-2012 Lancer Sportback
2007-2012 Outlander
2011-2012 Outlander Sport/RVR
2012 iMiEV
AFFECTED SERVICE MANUALS
2008-2009 Lancer Service Manual:
Group 54B: Local Interconnect Network (LIN) > Diagnosis > Diagnostic Trouble Code Procedures > DTC U1515: No Bus Activity (LIN) Error
2010 Lancer Sportback Sportback Service Manual:
Group 54B: Local Interconnect Network (LIN) > Diagnosis > Diagnostic Trouble Code Procedures > DTC U1515: No Bus Activity (LIN) Error
2011-2012 Lancer/Lancer Sportback Service Manual
Group 54B: Local Interconnect Network (LIN) > Diagnosis > Diagnostic Trouble Code Procedures > DTC U1515: No Bus Activity (LIN) Error
2008-2012 Lancer Evolution Service Manual:
Group 54B: Local Interconnect Network (LIN) > Diagnosis > Diagnostic Trouble Code Procedures > DTC U1515: No Bus Activity (LIN) Error
2007 Outlander Service Manual:
Group 54C: Local Interconnect Network (LIN) > Diagnosis > Diagnostic Trouble Code Procedures > DTC U1515: No Bus Activity (LIN) Error
2008-2012 Outlander Service Manual:
Group 54B: Local Interconnect Network (LIN) > Diagnosis > Diagnostic Trouble Code Procedures > DTC U1515: No Bus Activity (LIN) Error
2011-2012 Outlander Sport/RVR Service Manual:
Group 54B: Local Interconnect Network (LIN) > Diagnosis > Diagnostic Trouble Code Procedures > DTC U1515: No Bus Activity (LIN) Error
2012 iMiEV Service Manual:
Group 54B: Local Interconnect Network (LIN) > Diagnosis > Diagnostic Trouble Code Procedures > DTC U1570: No Bus Activity (LIN) Error
For 2008 & later Lancer, Lancer Sportback, Lancer Evolution , Outlander Sport and 2008-2012 Outlander: Group 54B: Local Interconnect Network (LIN) > Diagnosis > Diagnostic Trouble Code Procedures > DTC U1515: No Bus Activity (LIN) Error
For 2007 Outlander : Group 54C: Local Interconnect Network (LIN) > Diagnosis > Diagnostic Trouble Code Procedures > DTC U1515: No Bus Activity (LIN) Error

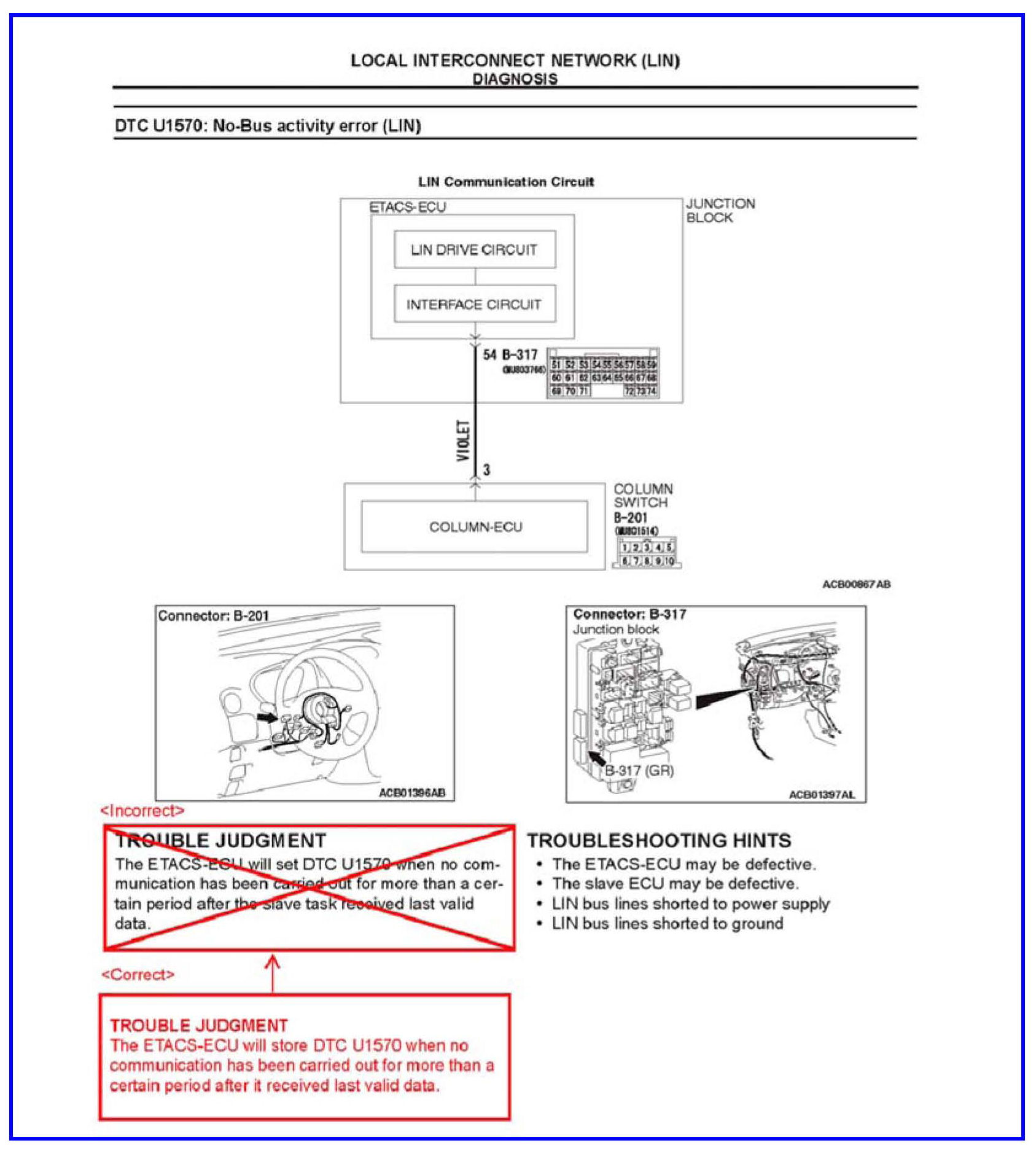

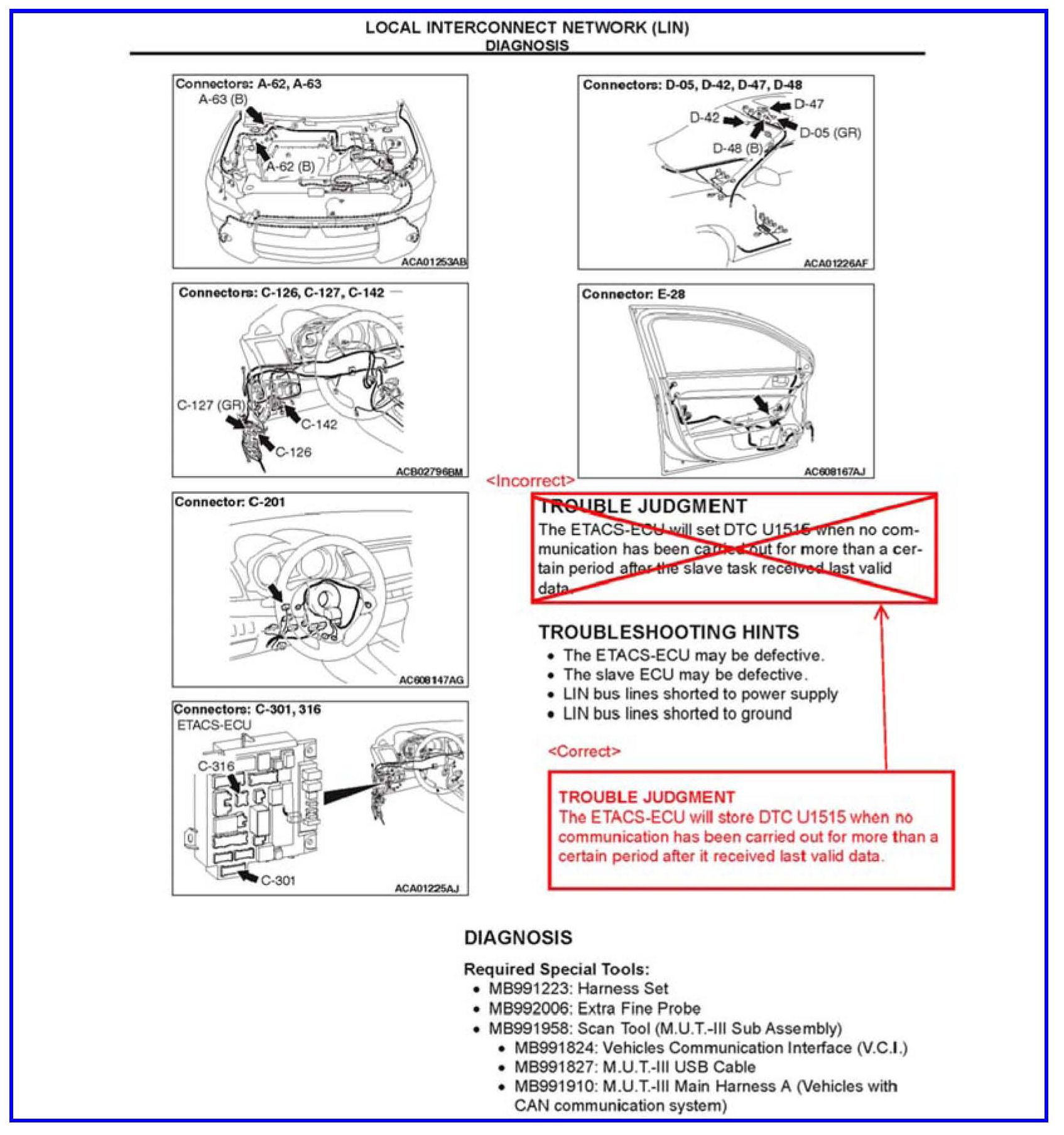

Replace the incorrect information in the service group shown above with the correct information as follows:
For 2012 iMiEV : Group 54C: Local Interconnect Network (LIN) > Diagnosis > Diagnostic Trouble Code Procedures > DTC U1570: No Bus Activity (LIN) Error, replace the incorrect information with the correct information as follows:
