Transmission Mode Switch: Testing and Inspection

INSPECTION

TWIN CLUTCH SST CONTROL MODE SWITCH CHECK

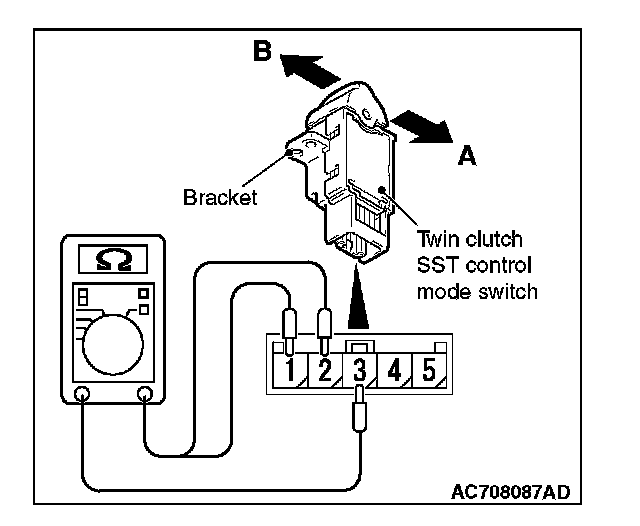

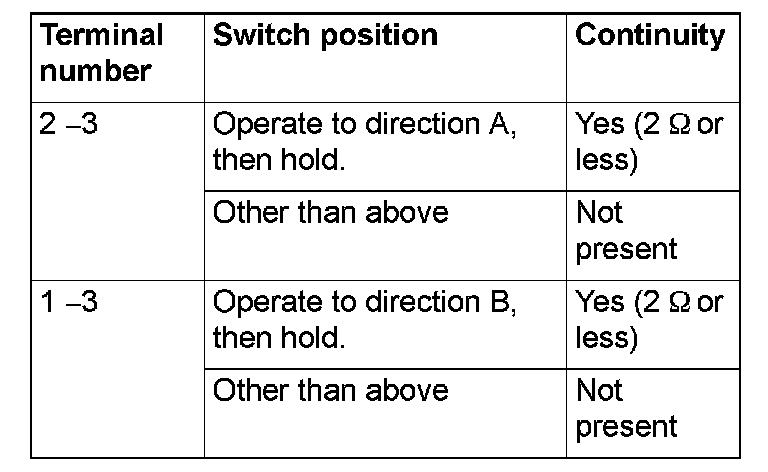

1. Check the continuity between the connector terminals of twin clutch SST control mode switch.





2. When other than above, replace the twin clutch SST control mode switch.
