Crankshaft Position Sensor: Service and Repair
CRANKSHAFT POSITION SENSOR
REMOVAL AND INSTALLATION

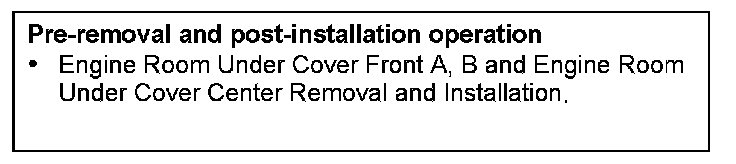

Pre-Removal And Post-Installation Operation:

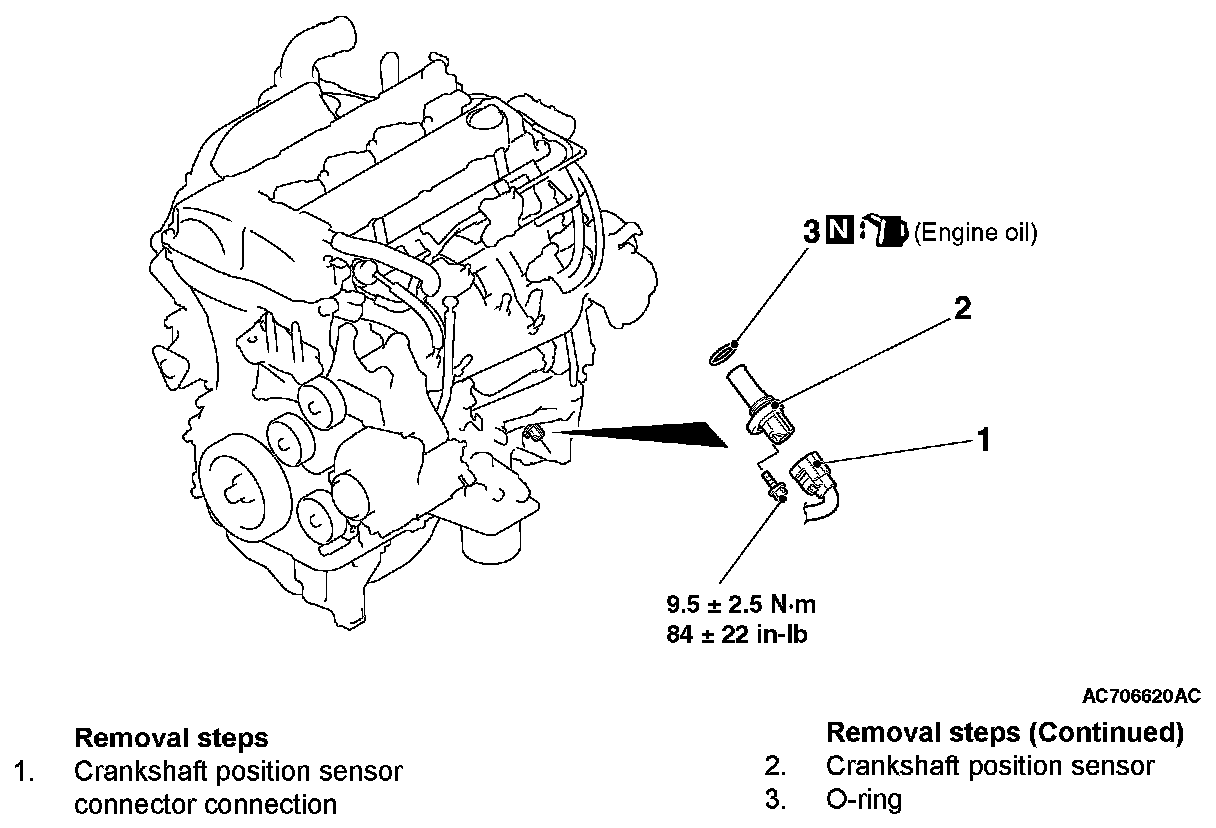

Removal Steps 1-3:
