Powertrain Management: Locations

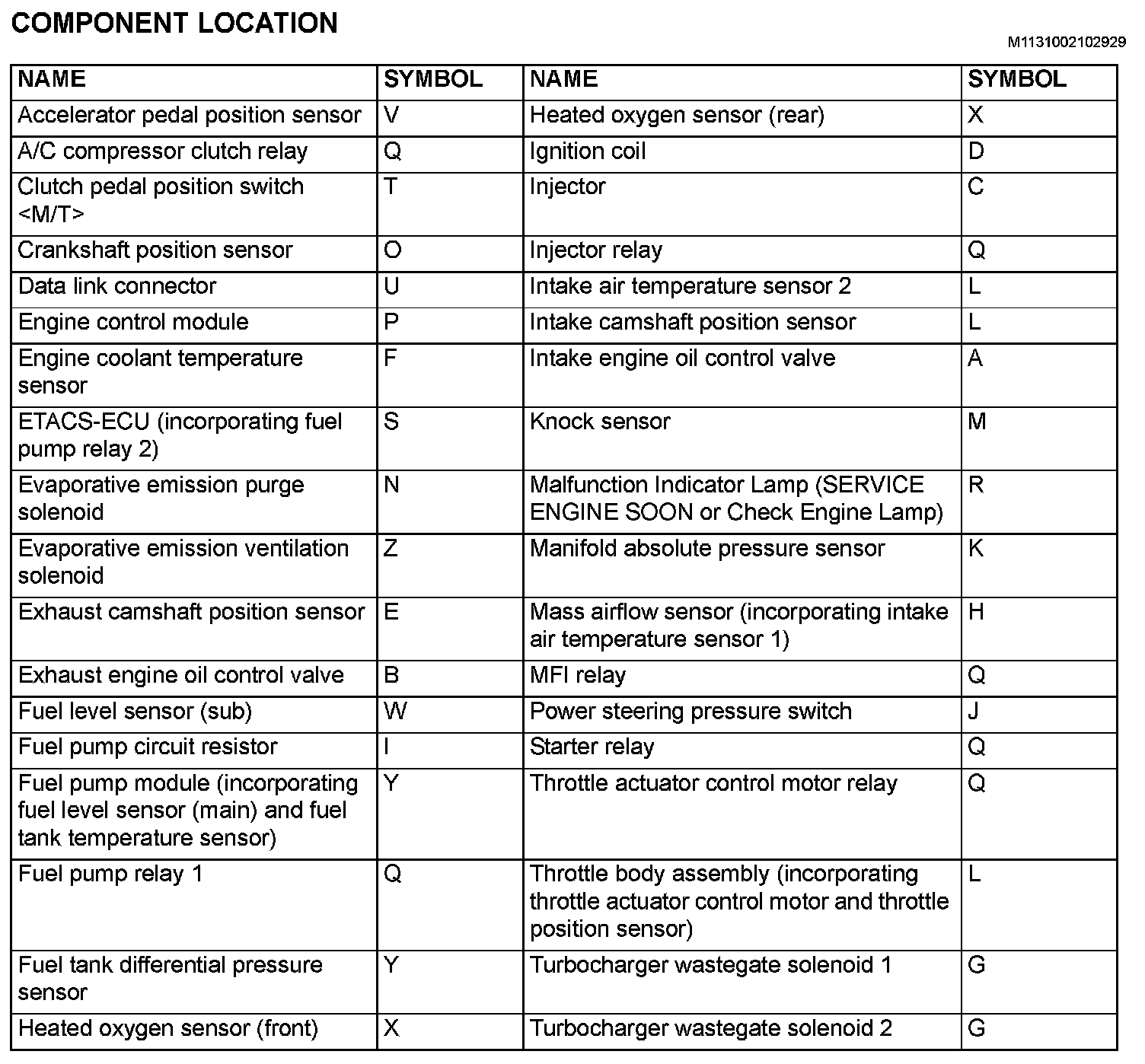

COMPONENT LOCATION

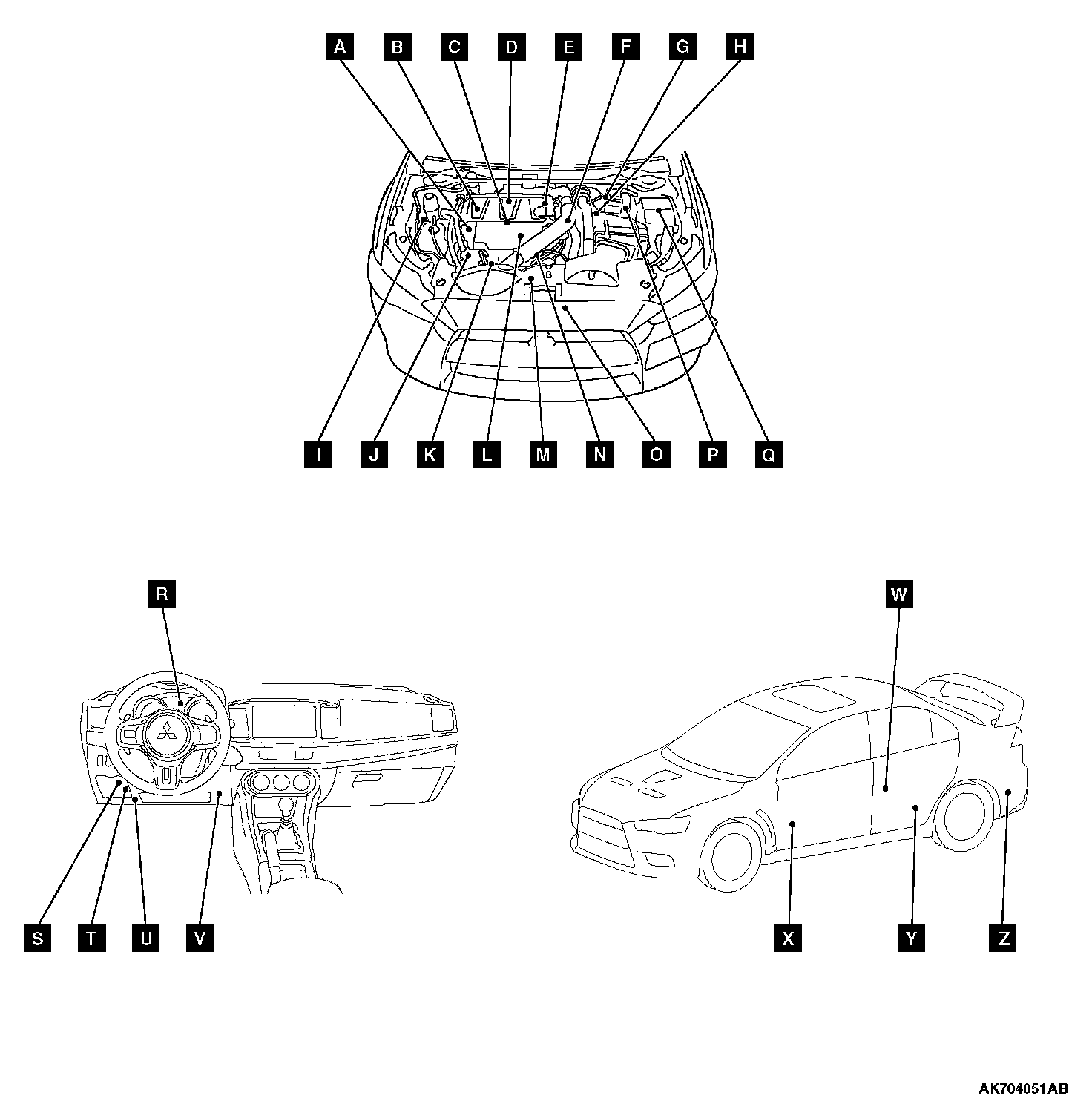

Overall View:

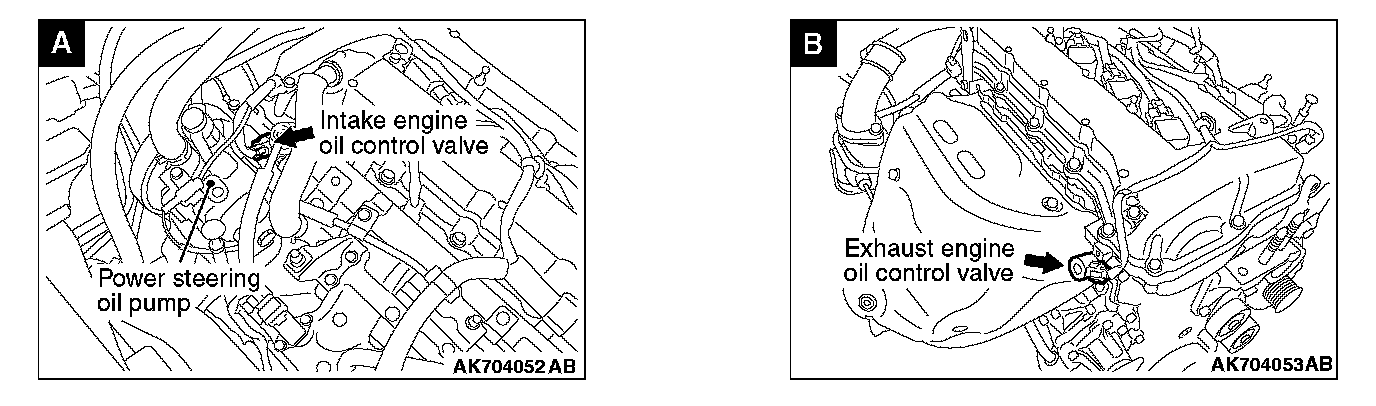

View A-B:

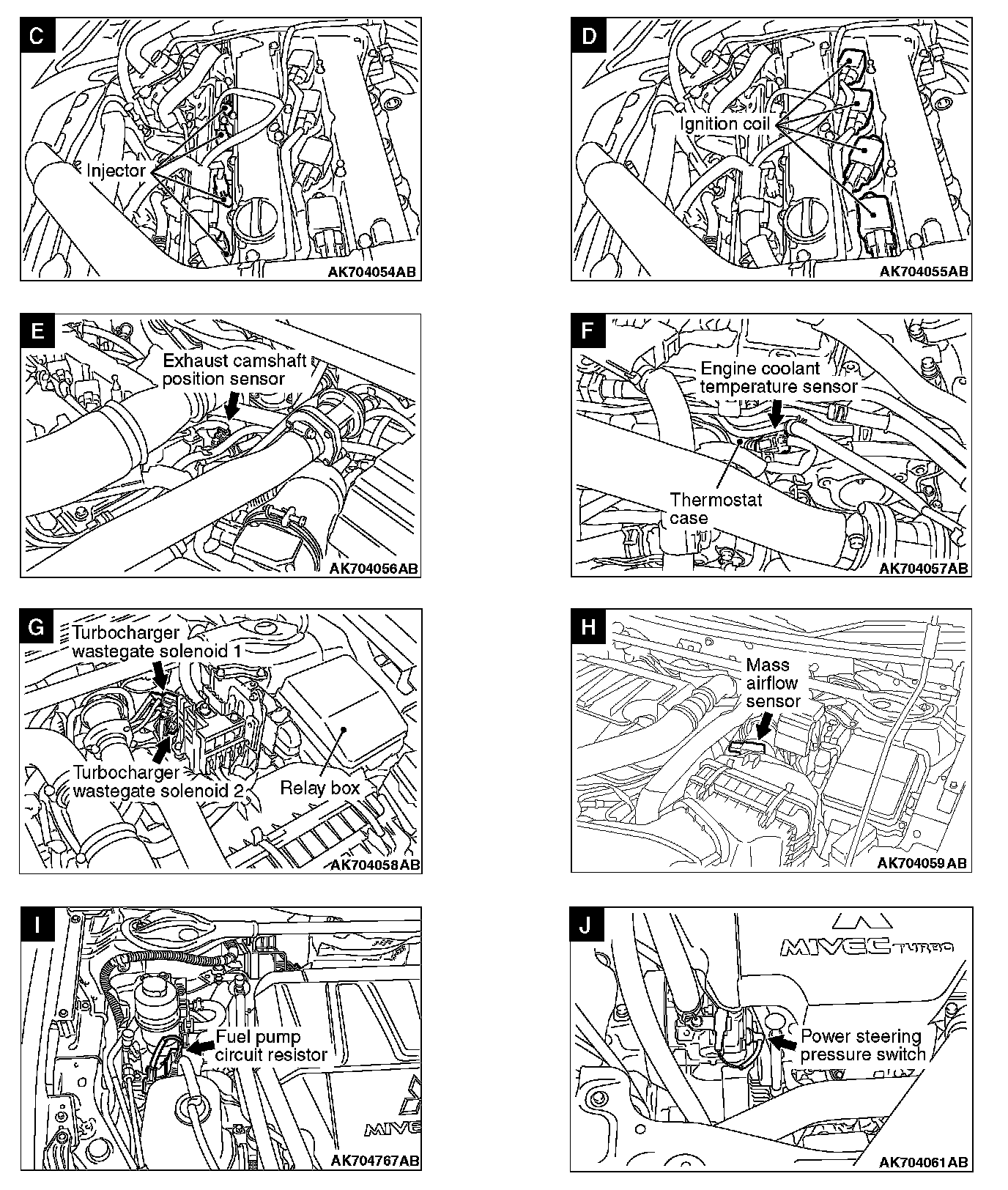

View C-J:

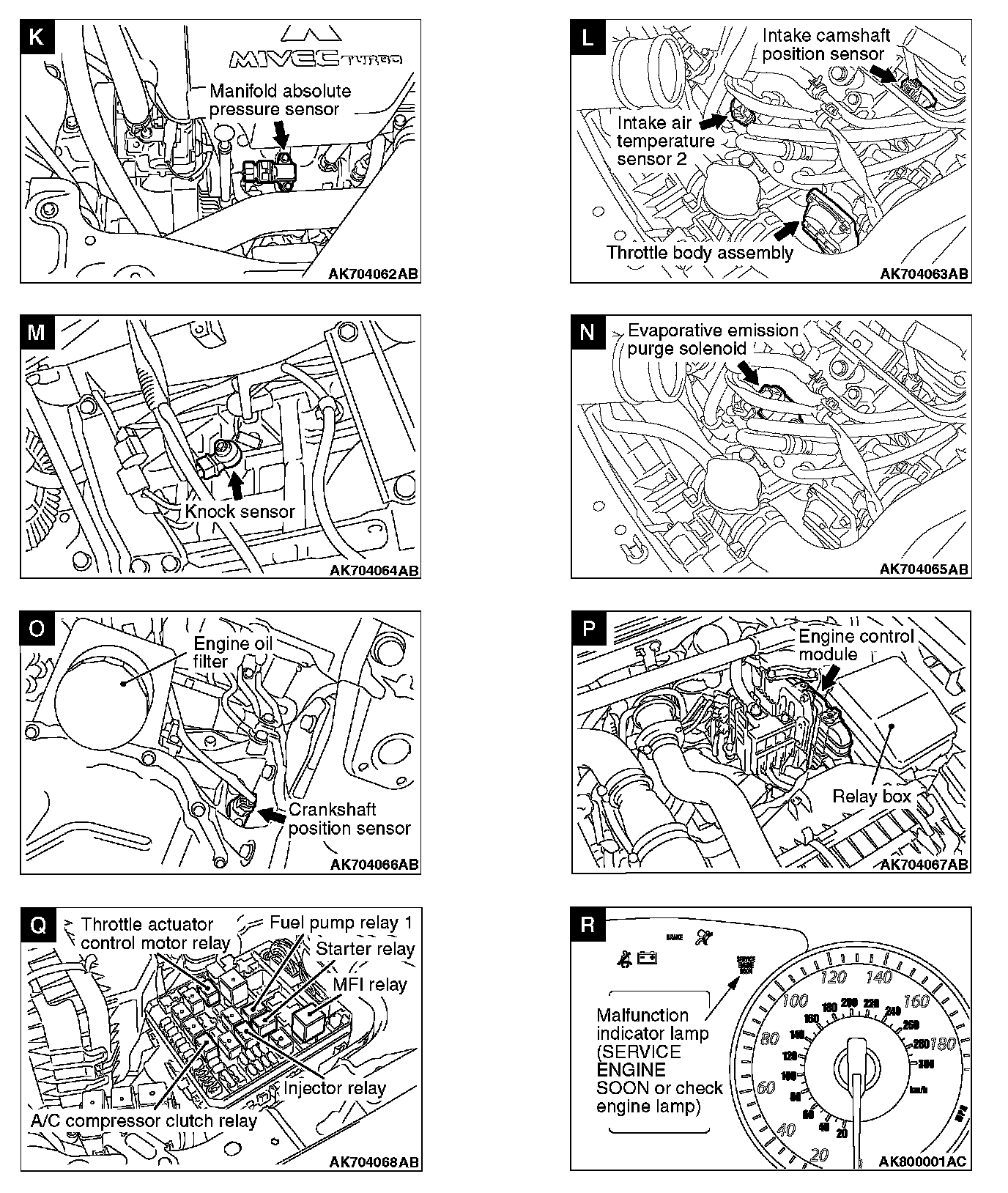

View K-R:

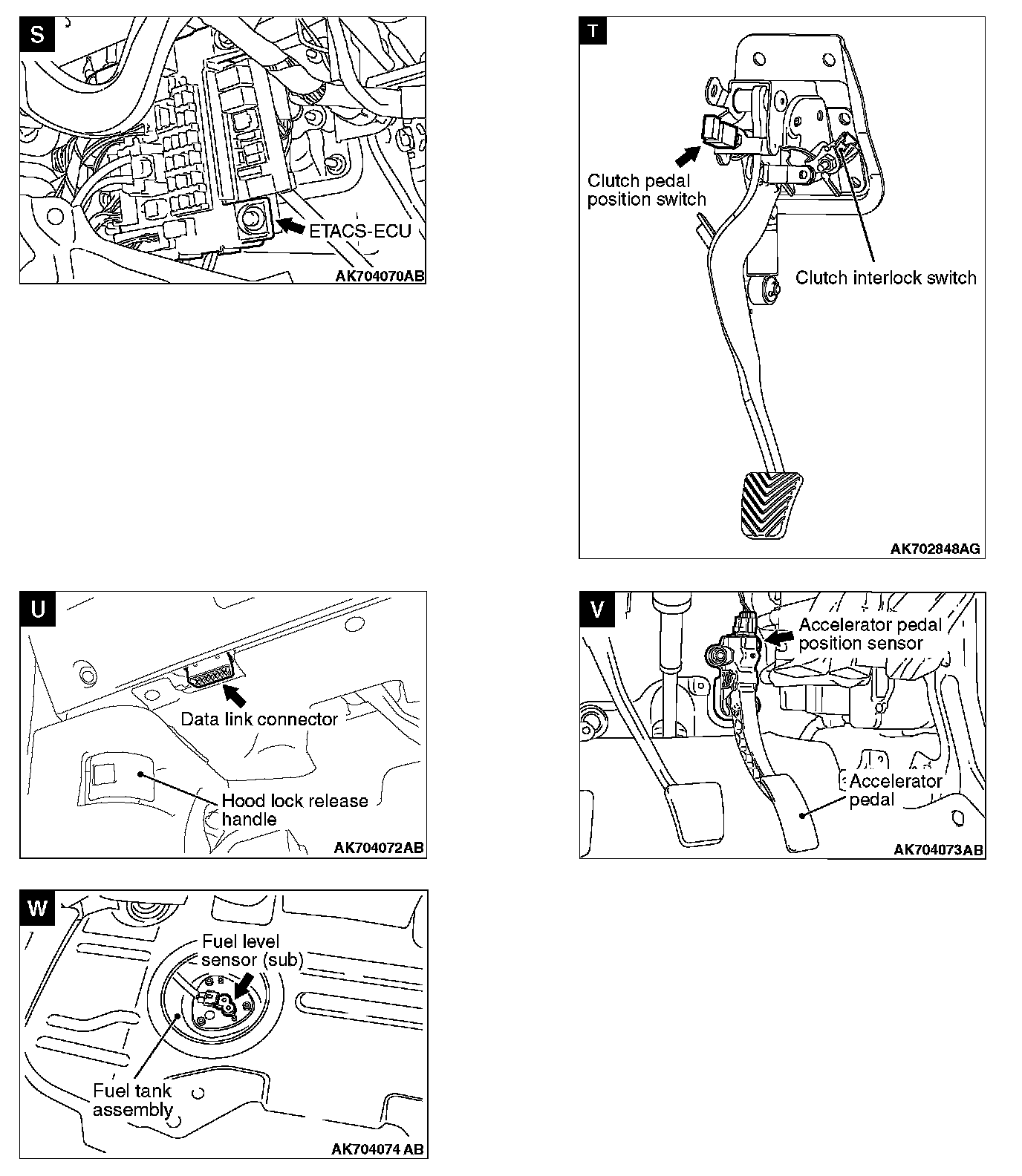

View S-V:

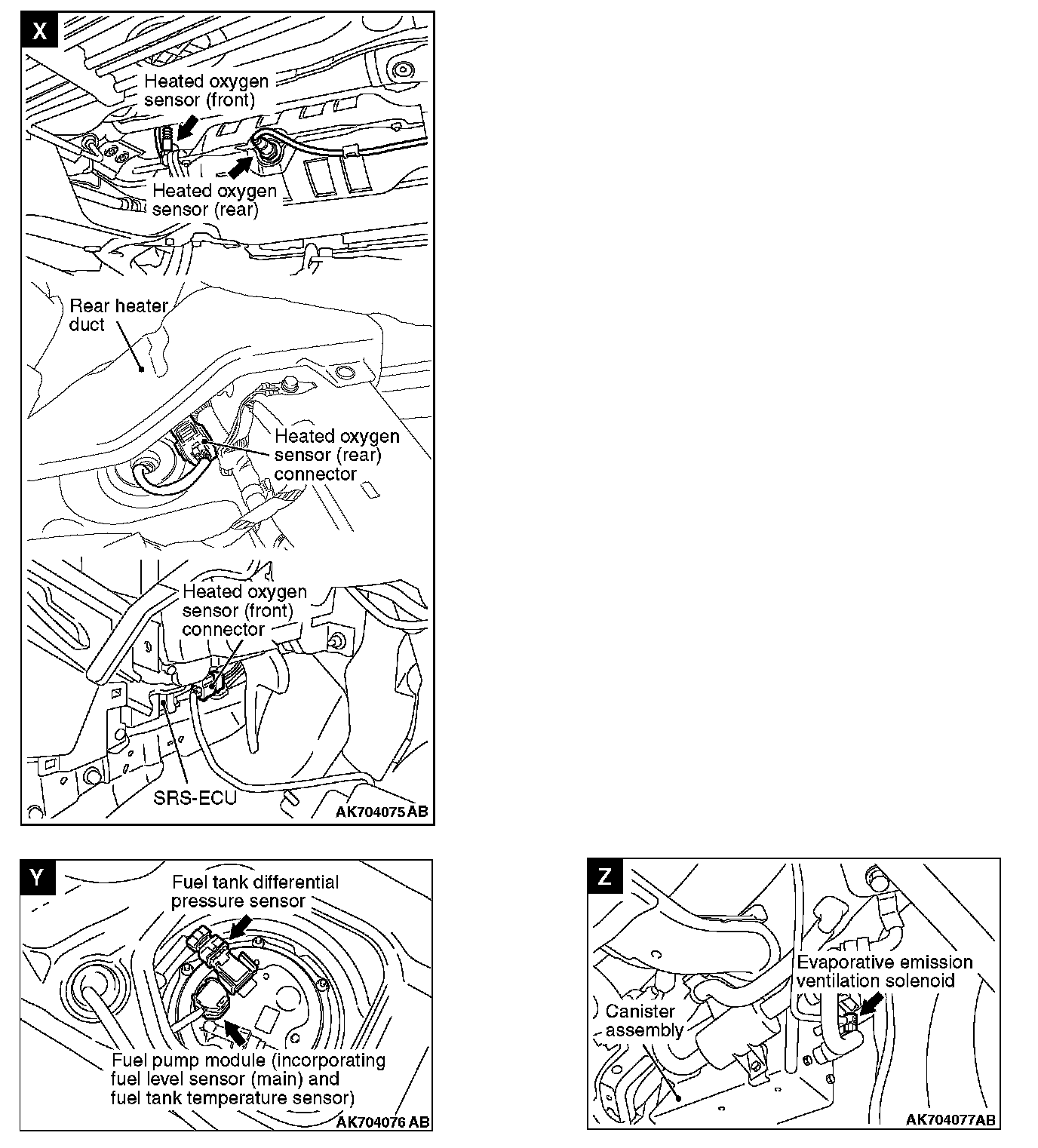

View X-Z:
