Spark Plug Test
SPARK PLUG TEST

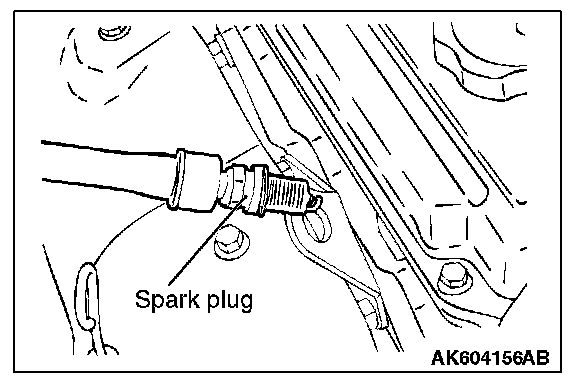

1. Remove the spark plug and connect to the ignition coil.
2. Ground the spark plug outer electrode (body), and crank the engine.

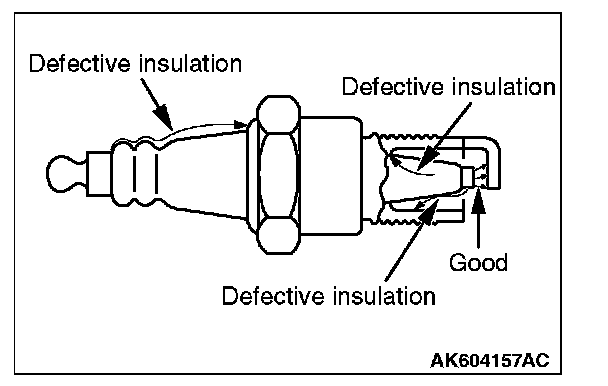

Check that there is an electrical discharge between the electrodes at this time.
1. Remove the spark plug and connect to the ignition coil.
2. Ground the spark plug outer electrode (body), and crank the engine.
Check that there is an electrical discharge between the electrodes at this time.
