Air Bypass Valve: Testing and Inspection

TURBOCHARGER BYPASS VALVE CHECK







1. Remove the turbocharger bypass valve.

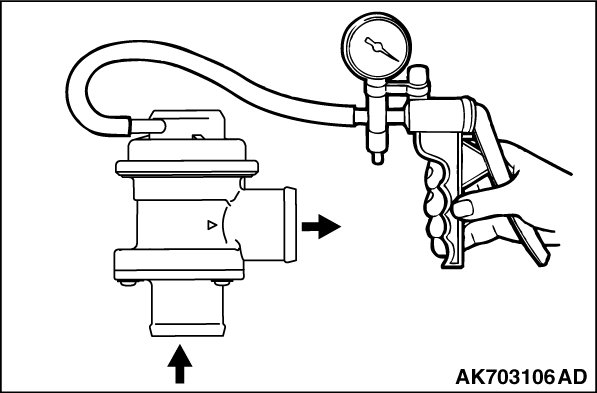

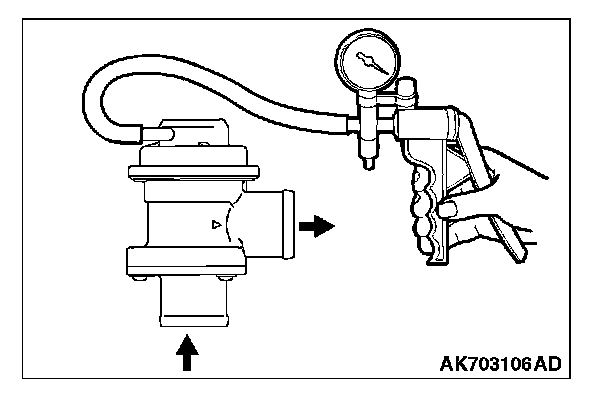

2. Connect the hand vacuum pump to the nipple of the turbocharger bypass valve.
3. Apply a negative pressure of approximately 50 kPa (14.8 in.Hg) and check that air tightness is maintained.

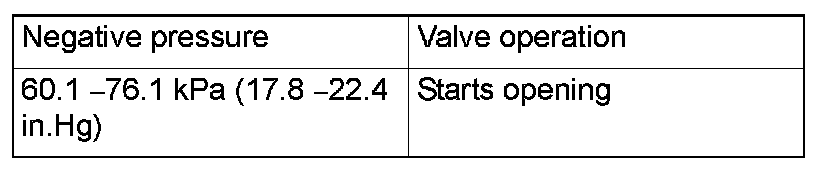

4. Also check operation of the valve.
