Removal and Replacement

THROTTLE BODY ASSEMBLY

REMOVAL AND INSTALLATION

CAUTION:
- When the throttle body assembly is replaced, initialize the learned value using scan tool.
- Never loosen the screw fixing the throttle body assembly resin cover. If the screw is loosened, the sensor incorporated in the resin cover is misaligned and the throttle body assembly does not work normally.

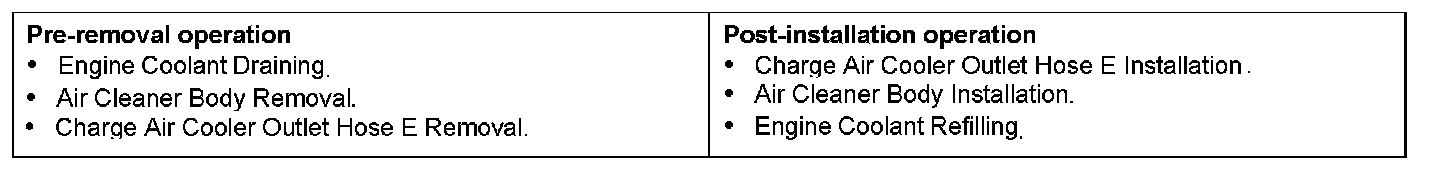

Pre-removal And Post-installation Operation:

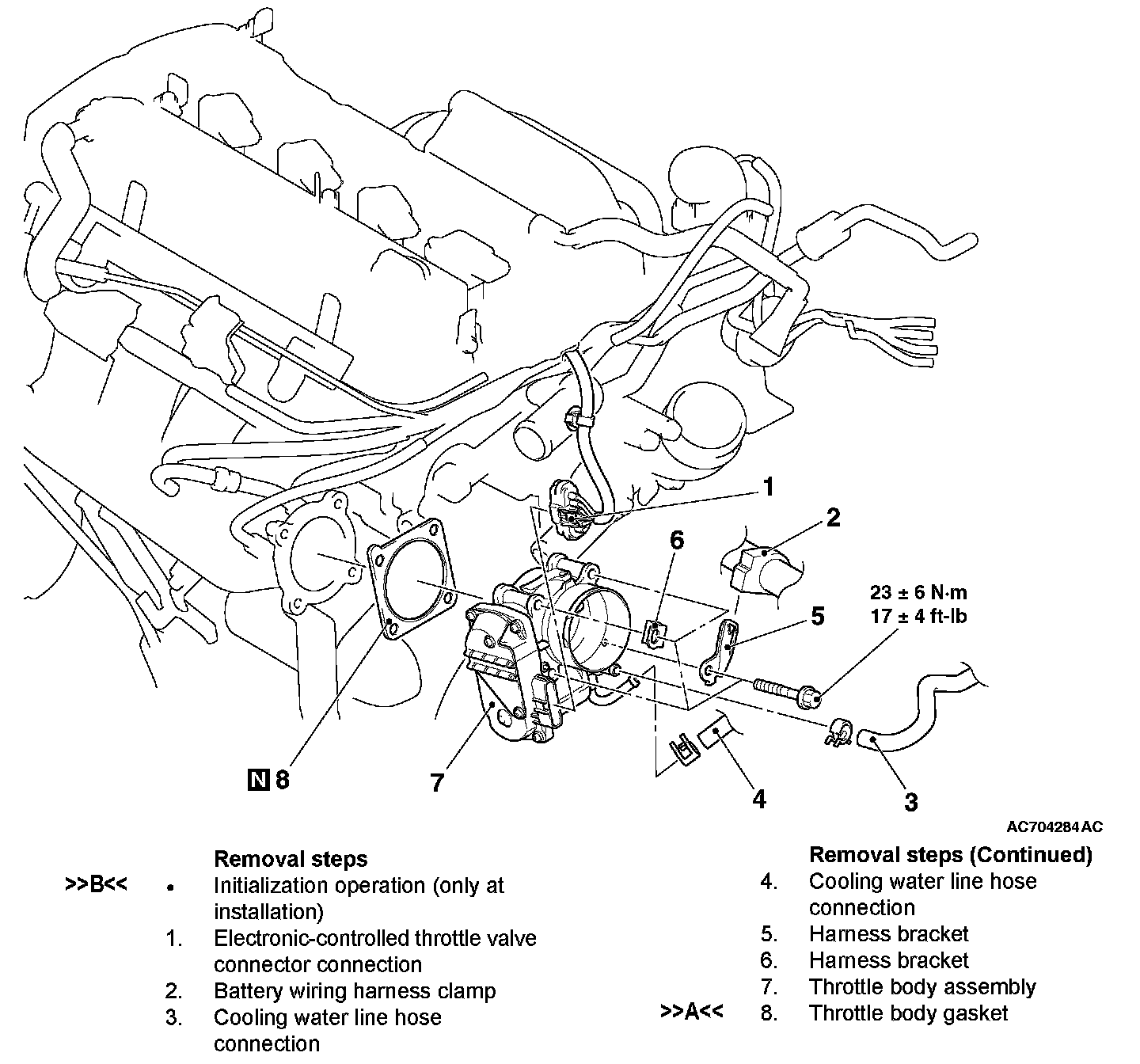

Removal Steps 1-8:

INSTALLATION SERVICE POINTS

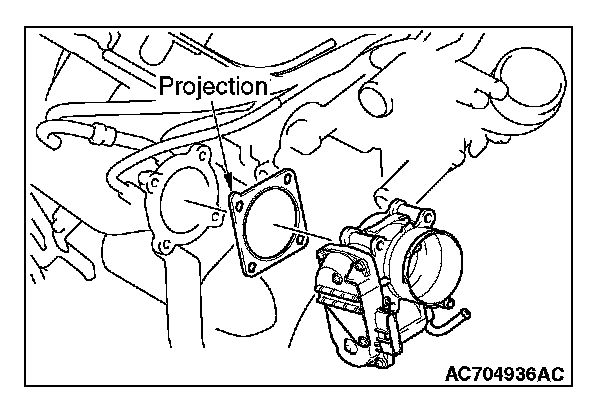

]]A[[ THROTTLE BODY GASKET INSTALLATION







Install the throttle body gasket as its projection is in the direction shown.

]]B[[ INITIALIZATION OPERATION
Turn the ignition switch to the "ON" and then to "LOCK" (OFF) position and hold it for at least 10 seconds.
