Inspection Procedure 26

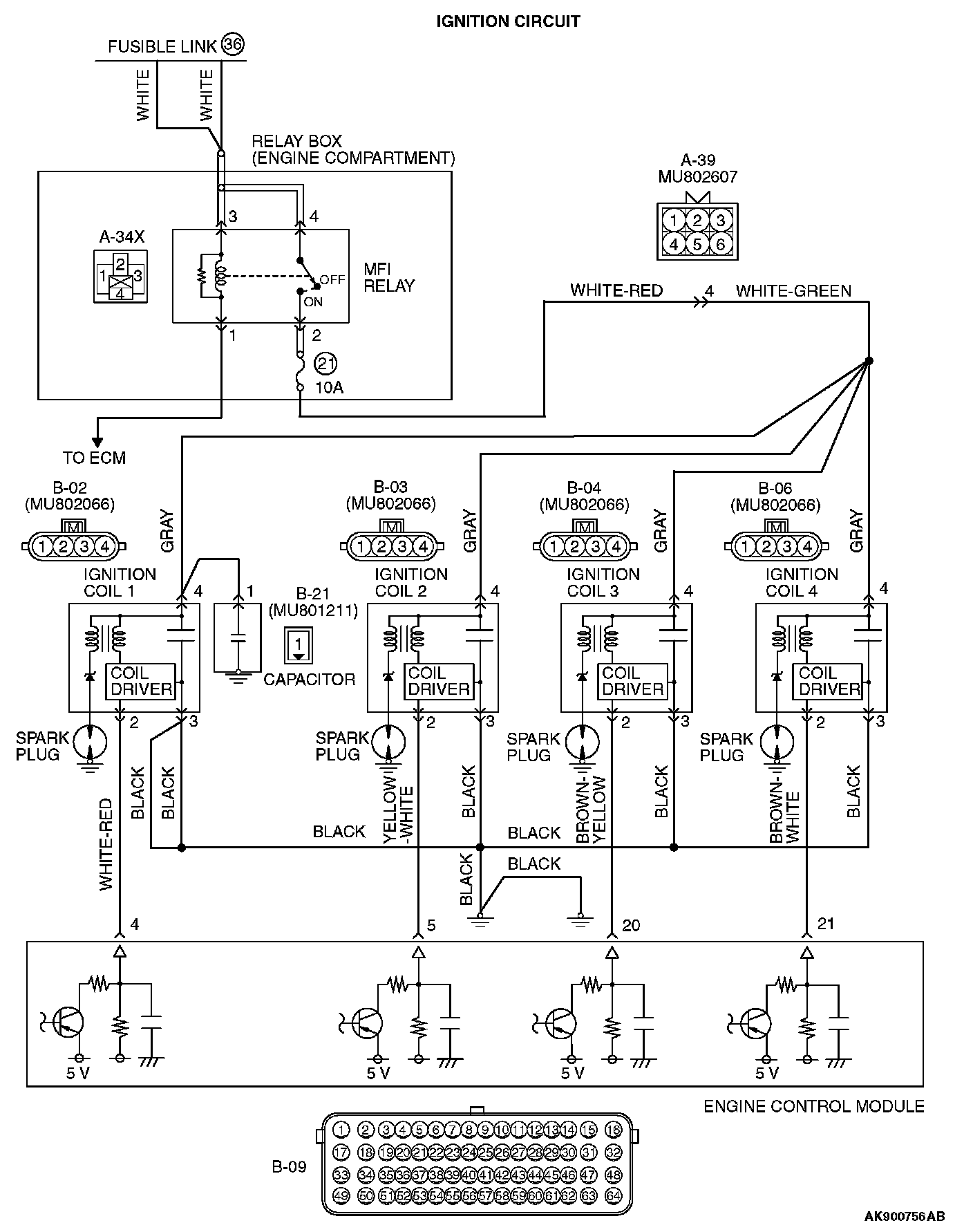

Inspection procedure 26: Ignition circuit systemIgnition Circuit (Part 1):
Ignition Circuit (Part 2):
CIRCUIT OPERATION
- The battery positive voltage is applied from the MFI relay (terminal No. 2) to the ignition coil (terminal No. 4) and is grounded to the vehicle body via the ignition coil (terminal No. 5).
- A power voltage of 5 V is applied to the ignition coil (terminal No. 2) from the ECM (terminal No.4, No. 5, No. 20 and No. 21).
COMMENT
- When the ECM turn the power transistor in the unit to OFF, the battery positive voltage is applied to the power transistor in the ignition coil, resulting that the power transistor is ON. And, when the ECM turns the power transistor in the unit to ON, the power transistor in the ignition coil will be turned OFF.
- When the power transistor in the ignition coil is turned to ON with any signal from the ECM, the primary voltage will be applied through the ignition coil.When the power transistor in the ignition coil is turned OFF, the primary current is blocked and high voltage is generated in the secondary coil.
TROUBLESHOOTING HINTS (The most likely causes for this case:)
- Malfunction of the ignition coil.
- Open or shorted ignition circuit, harness damage, or connector damage.
- Malfunction of the ECM.
DIAGNOSIS
STEP 1. Check the ignition coil.
Q: Are there any abnormalities?
YES : Replace the ignition coil. Then confirm that the malfunction symptom is eliminated.
NO : Go to Step 2.

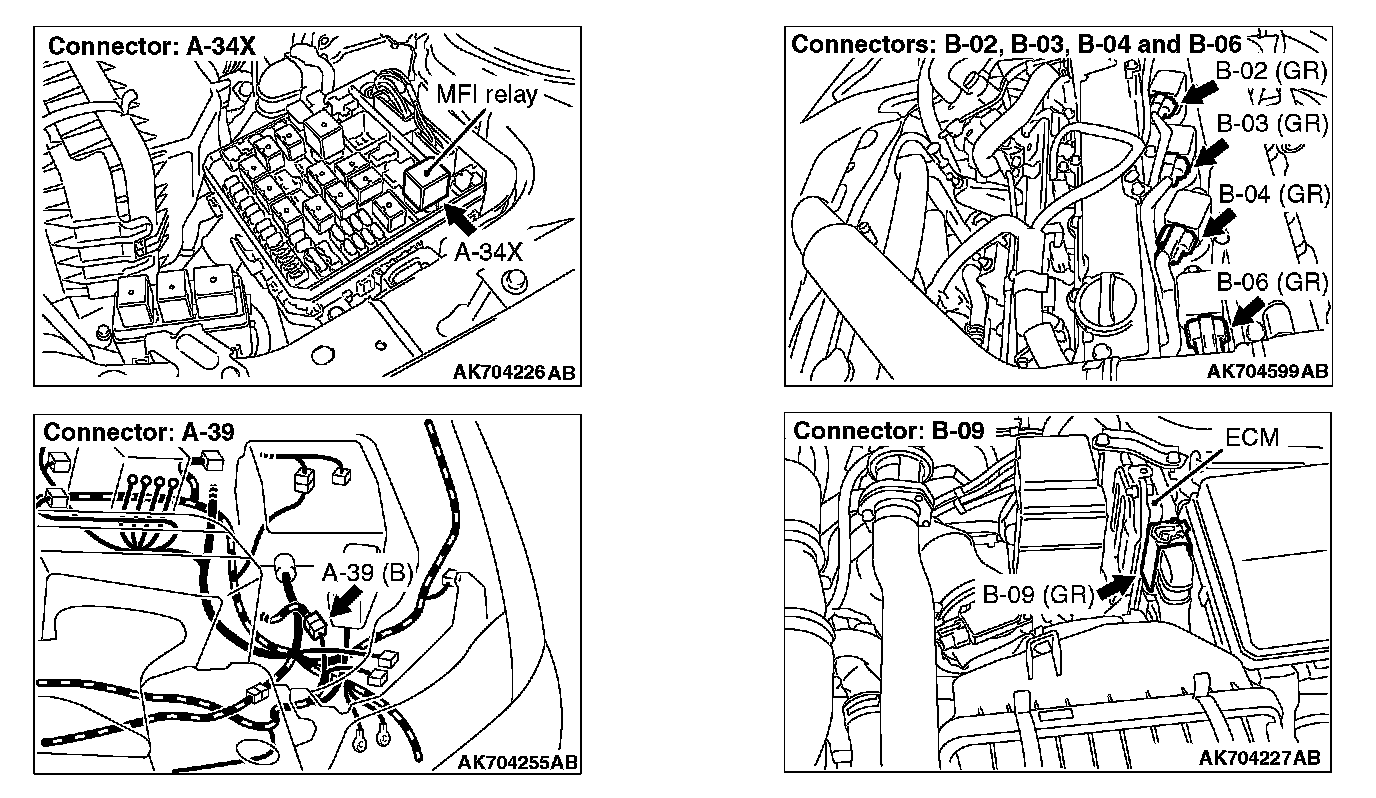

STEP 2. Check harness connector B-02, B-03, B-04 and B-06 at ignition coil for damage.
Q: Is the harness connector in good condition?
YES : Go to Step 3.
NO : Repair or replace it. Then confirm that the malfunction symptom is eliminated.
STEP 3. Measure the power supply voltage at ignition coil connectors B-02, B-03, B-04 and B-06.
1. Disconnect the connector B-02, B-03, B-04 and B-06 and measure at the harness side.
2. Turn the ignition switch to the "ON" position.

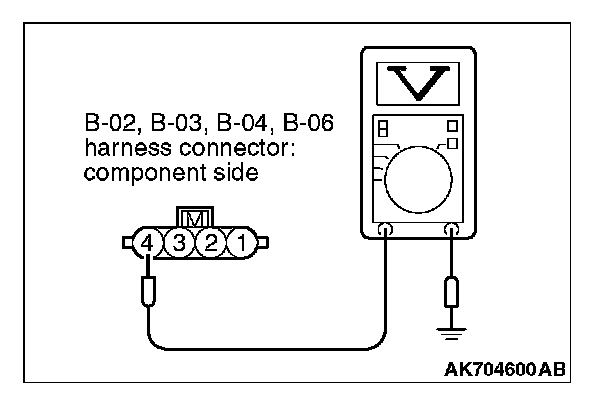

3. Measure the voltage between terminal No. 4 and ground.
- Voltage should be battery positive voltage.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts) present?
YES : Go to Step 4.
NO : Check harness connector A-39 at intermediate connector for damage, and repair or replace as required. If intermediate connector is in good condition, repair harness wire between MFI relay connector A-34X (terminal No. 2) and ignition coil connectors B-02, B-03, B-04 and B-06 (terminal No. 4) because of open circuit or short circuit to ground. Then confirm that the malfunction symptom is eliminated.
STEP 4. Check the circuit at ignition coil harness side connector B-02, B-03, B-04 and B-06.
1. Disconnect the connectors B-02, B-03, B-04 and B-06 and measure at the harness side.
2. Engine: 3,000 r/min

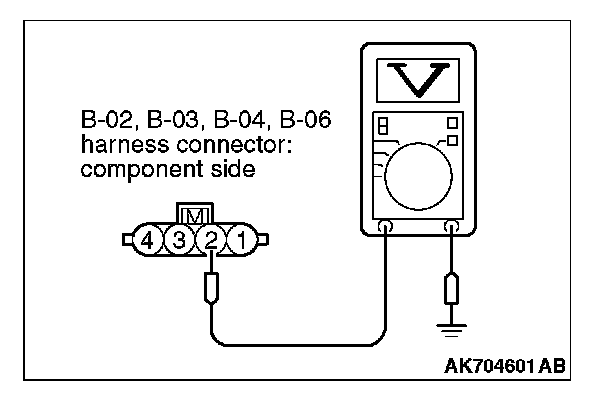

3. Measure the voltage between terminal No. 2 and ground.
- Voltage should be 0.3 and 3.0 volts.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 0.3 and 3.0 volts?
YES : Go to Step 7.
NO : Go to Step 5.
STEP 5. Check harness connector B-09 at ECM for damage.
Q: Is the harness connector in good condition?
YES : Go to Step 6.
NO : Repair or replace it. Then confirm that the malfunction symptom is eliminated.
STEP 6. Check for open circuit and short circuit to ground between ignition coil connector and ECM connector.
a. Check the harness wire between ignition coil connector B-02 (terminal No. 2) and ECM connector B-09 (terminal No. 4) at ignition coil 1.
b. Check the harness wire between ignition coil connector B-03 (terminal No. 2) and ECM connector B-09 (terminal No. 5) at ignition coil 2.
c. Check the harness wire between ignition coil connector B-04 (terminal No. 2) and ECM connector B-09 (terminal No. 20) at ignition coil 3.
d. Check the harness wire between ignition coil connector B-06 (terminal No. 2) and ECM connector B-09 (terminal No. 21) at ignition coil 4.
Q: Is the harness wire in good condition?
YES : Replace the ECM. When the ECM is replaced, register the ID code. Then confirm that the malfunction symptom is eliminated.
NO : Repair it. Then confirm that the malfunction symptom is eliminated.
STEP 7. Check for continuity at ignition coil harness side connector B-02, B-03, B-04 and B-06.
1. Disconnect the connectors B-02, B-03, B-04 and B-06 and measure at the harness side.

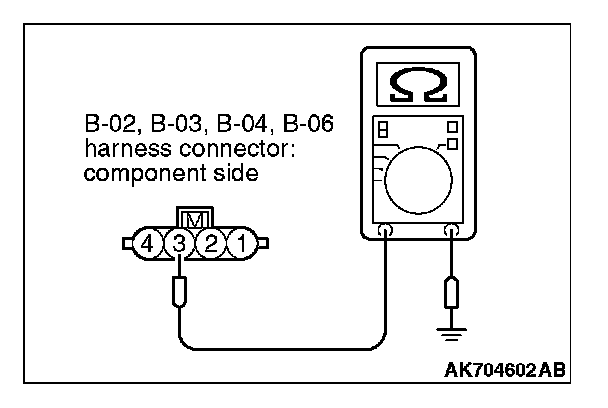

2. Check for the continuity between terminal No. 3 and ground.
- Should be less than 2 ohms.
Q: Does continuity exist?
YES : Go to Step 8.
NO : Repair harness wire between ignition coil connectors B-02, B-03, B-04 and B-06 (terminal No. 3) and ground because of open circuit or harness damage. Then confirm that the malfunction symptom is eliminated.
STEP 8. Check for harness damage between MFI relay connector A-34X (terminal No. 2) and ignition coil connector B-02, B-03, B-04 and B-06 (terminal No. 4)
NOTE: Check harness after checking intermediate connector A-39. If intermediate connector is damaged, repair or replace it. Then check that the malfunction is eliminated.
Q: Is the harness wire in good condition?
YES : Go to Step 9.
NO : Repair it. Then confirm that the malfunction symptom is eliminated.
STEP 9. Check for harness damage between ignition coil connector and ECM connector.
a. Check the harness wire between ignition coil connector B-02 (terminal No. 2) and ECM connector B-09 (terminal No. 151) at ignition coil 1.
b. Check the harness wire between ignition coil connector B-03 (terminal No. 2) and ECM connector B-09 (terminal No. 143) at ignition coil 2.
c. Check the harness wire between ignition coil connector B-04 (terminal No. 2) and ECM connector B-09 (terminal No. 150) at ignition coil 3.
d. Check the harness wire between ignition coil connector B-06 (terminal No. 2) and ECM connector B-09 (terminal No. 148) at ignition coil 4.
Q: Is the harness wire in good condition?
YES : Replace the ECM. When the ECM is replaced, register the ID code. Then confirm that the malfunction symptom is eliminated.
NO : Repair it. Then confirm that the malfunction symptom is eliminated.
