Fuel Pump Circuit Resistor Check

FUEL PUMP CIRCUIT RESISTOR CHECK







1. Disconnect the fuel pump circuit resistor connector.

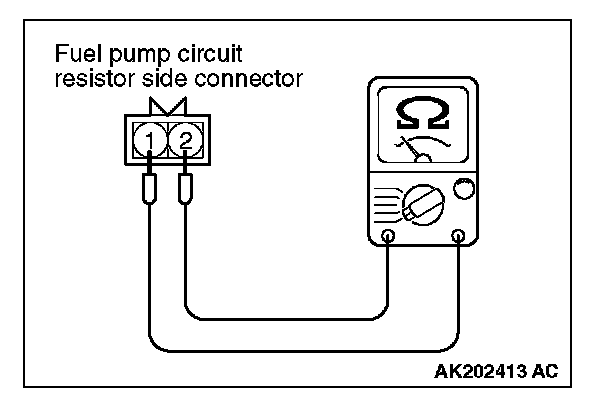

2. Measure the resistance between terminals.

Standard value: 0.45 - 0.65 ohms [at 20° C (68° F)]

3. If the resistance is out of specification, replace the fuel pump circuit resistor.
