Diagnostic Item 5

DIAGNOSTIC ITEM 5: Diagnose Shorts In The Power Supply To CAN-C Bus Line.

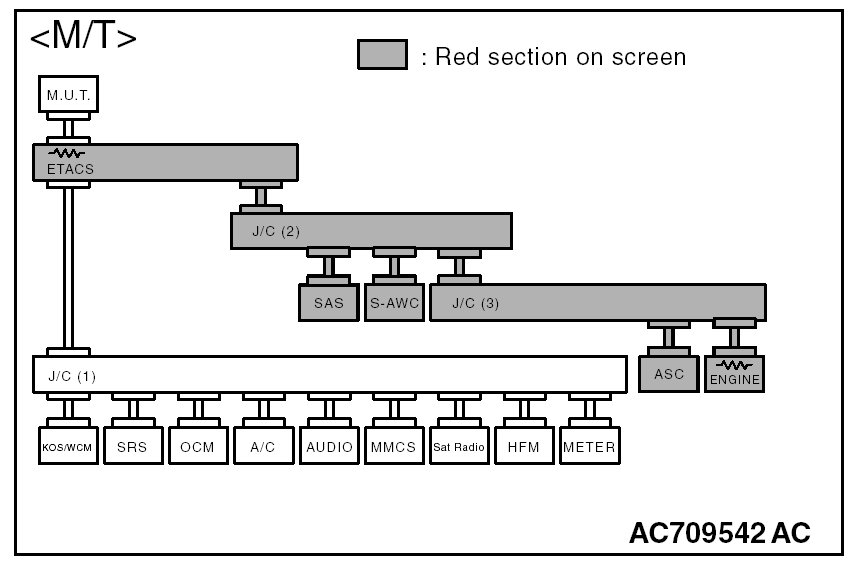

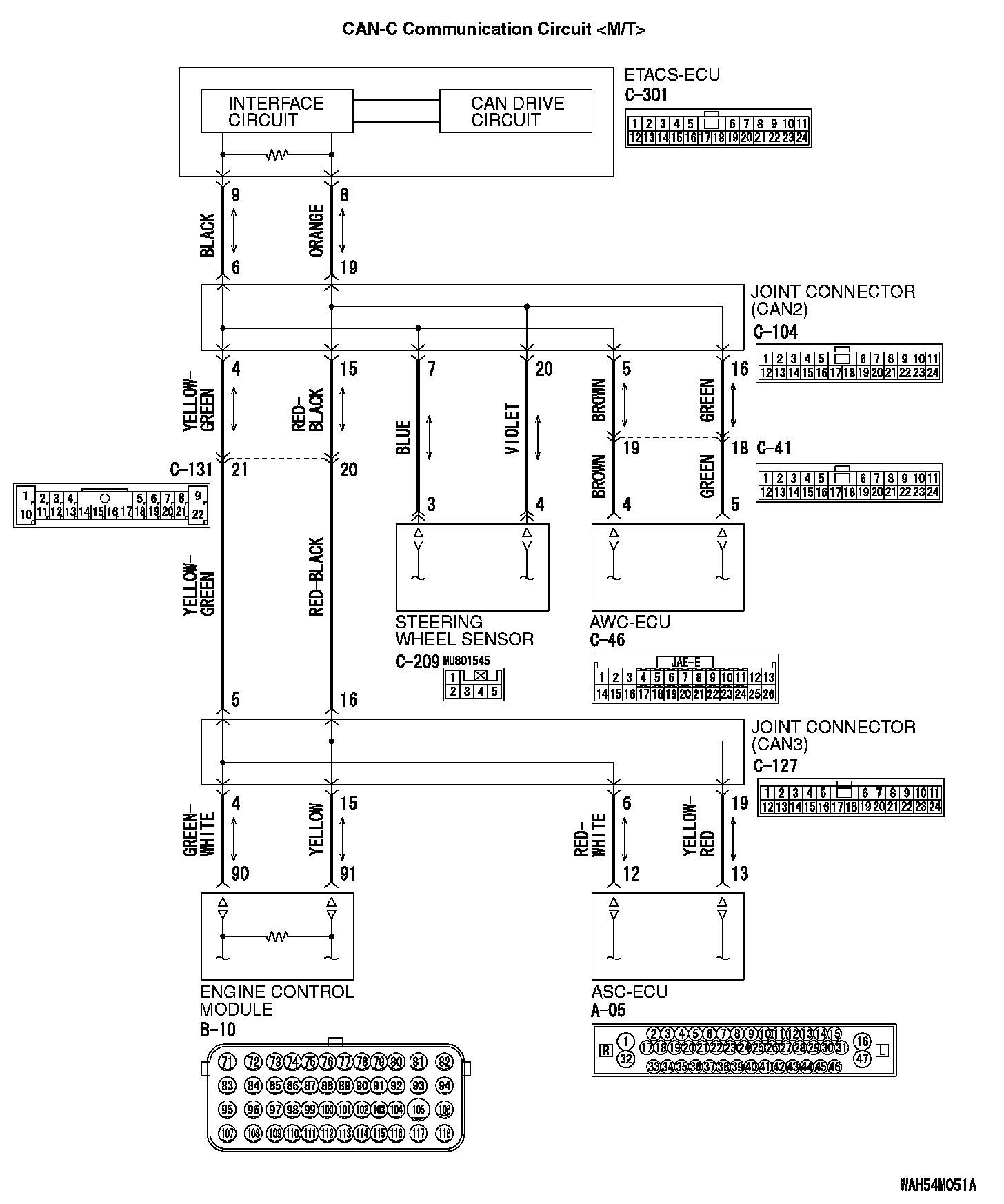

CAN-C Communication Circuit [M/T]:

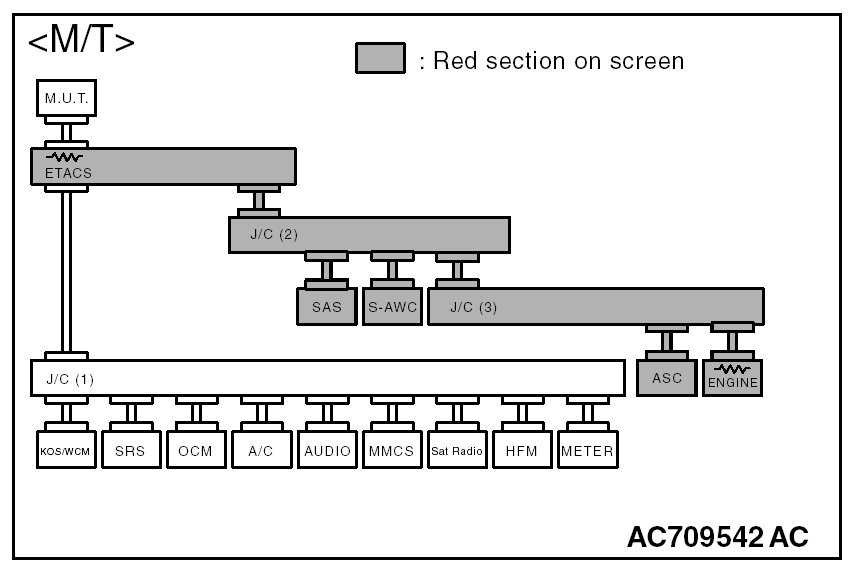

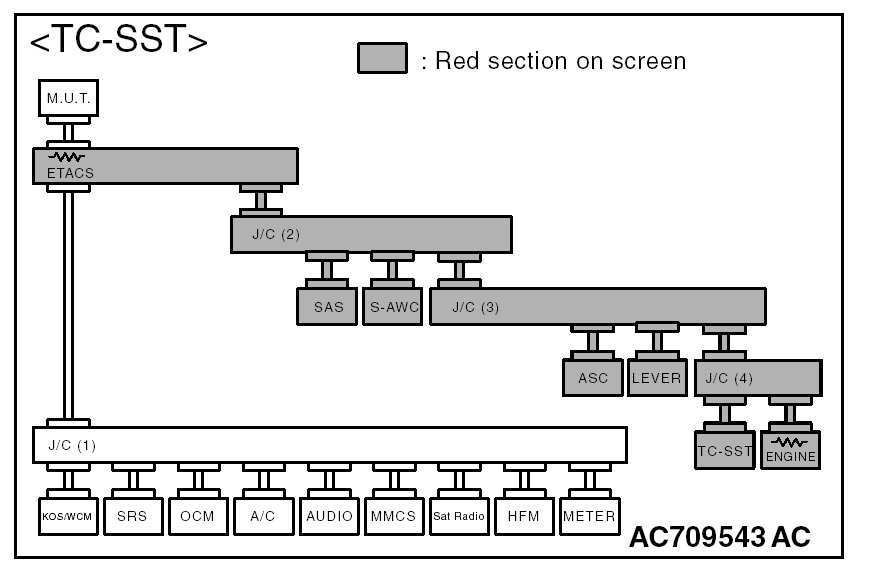

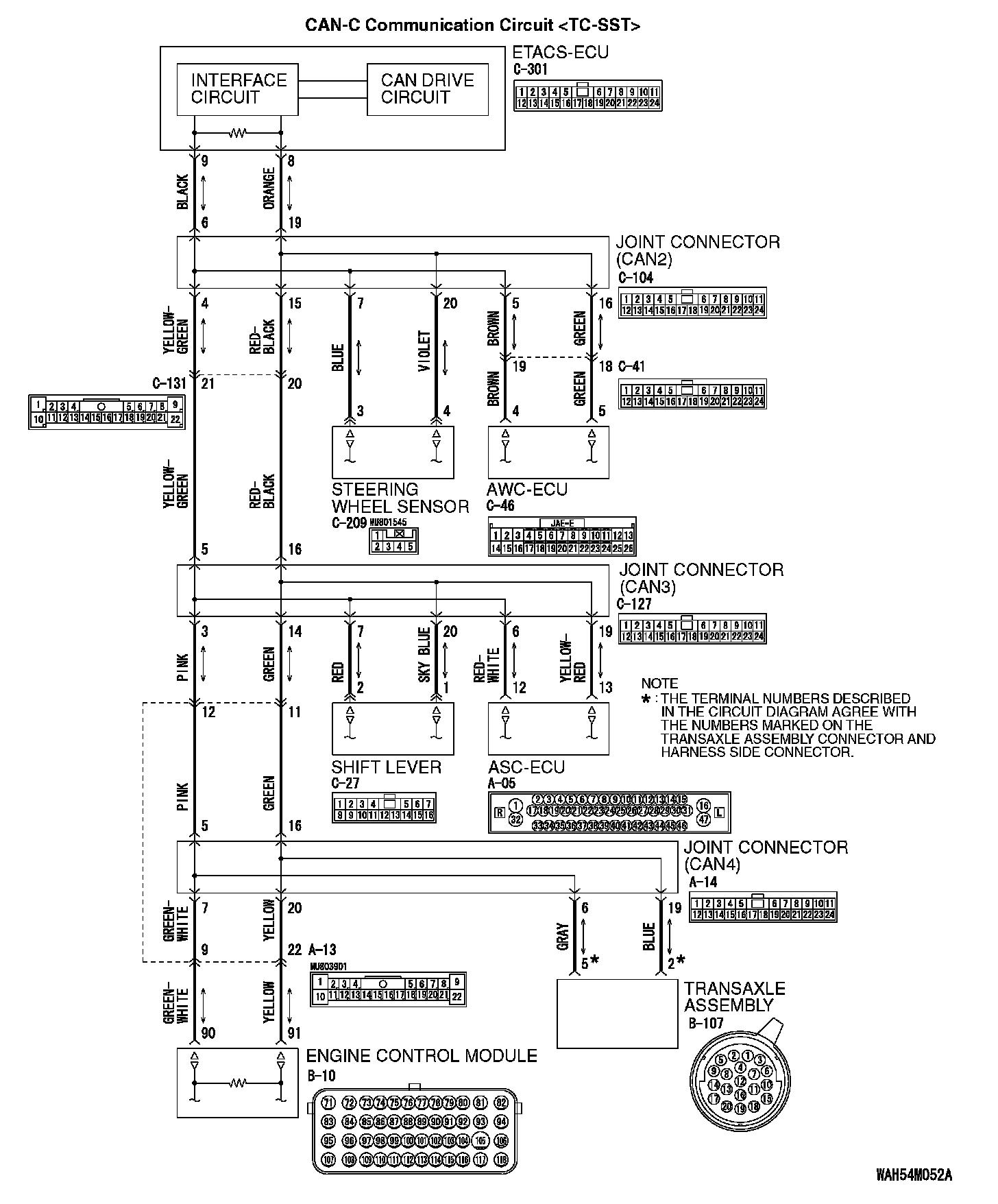

CAN-C Communication Circuit [TC-SST] (Part 1):

CAN-C Communication Circuit [TC-SST] (Part 2):

FUNCTION
If a short to power supply is present in the CAN-C lines, this diagnosis result will be set.

TROUBLE JUDGMENT CONDITIONS
The wiring harness wire or connectors may have loose, corroded, or damage terminals, or terminals pushed back in the connector, or an ECU may be defective.

TROUBLESHOOTING HINTS
- Malfunction of the connector (short to power supply in connector)
- Malfunction of the wiring harness (short to power supply in the CAN-C main or sub bus lines)
- Malfunction of the ECU (ETACS-ECU, or ECUs on CAN-C lines failed)

DIAGNOSIS

Required Special Tools:
- MB991223: Harness Set
- MB992006: Extra Fine Probe
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A
- MB992110: Power plant ECU check harness
- MB991997: ASC Check Harness

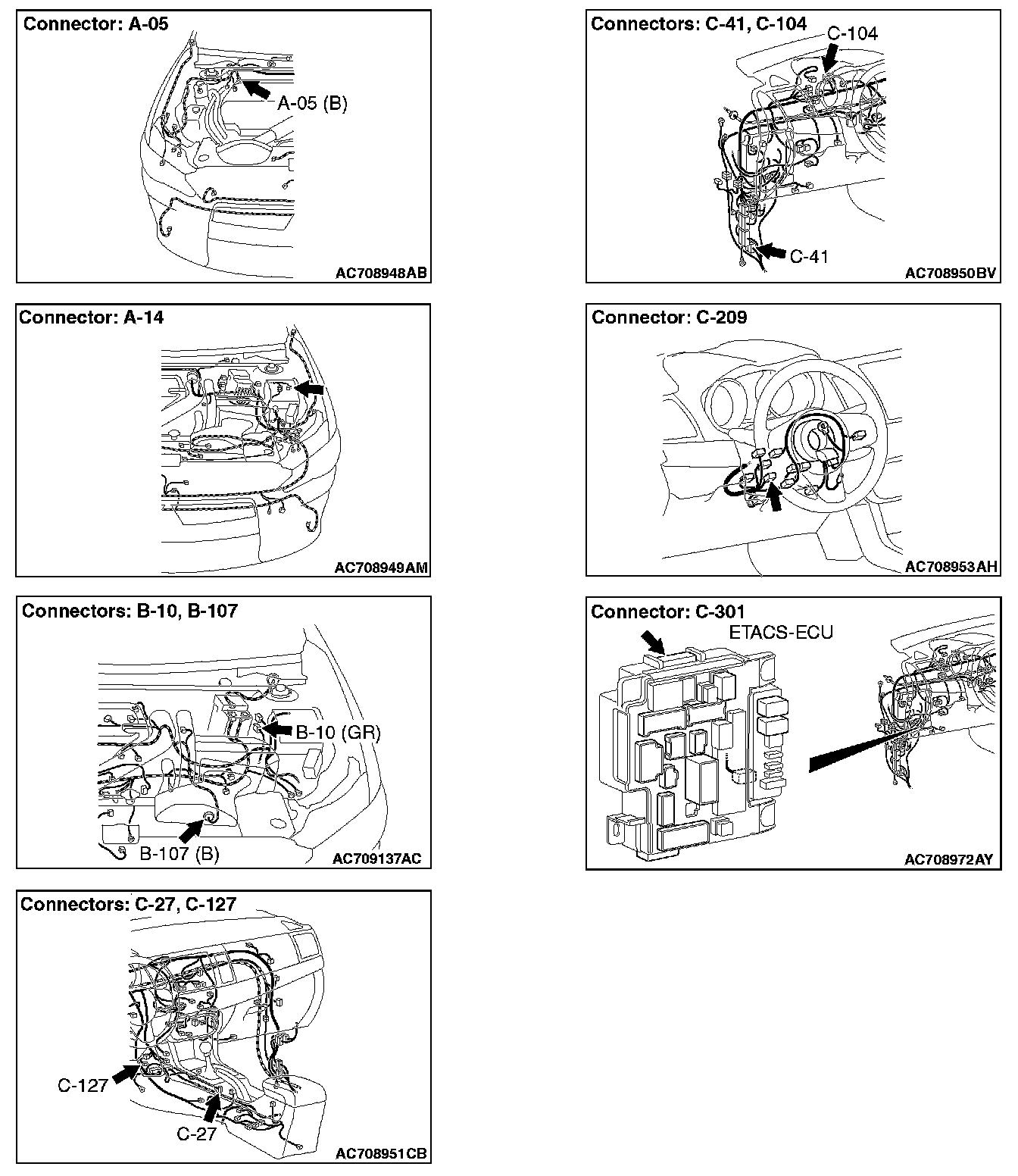

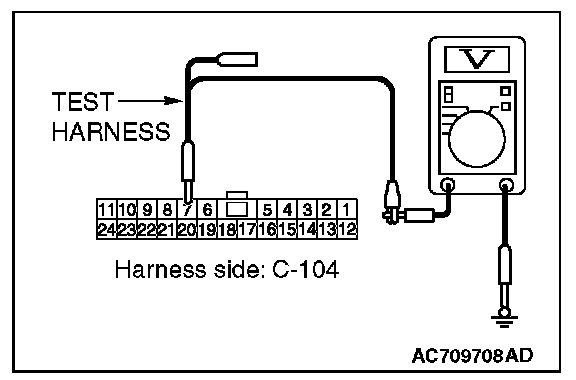

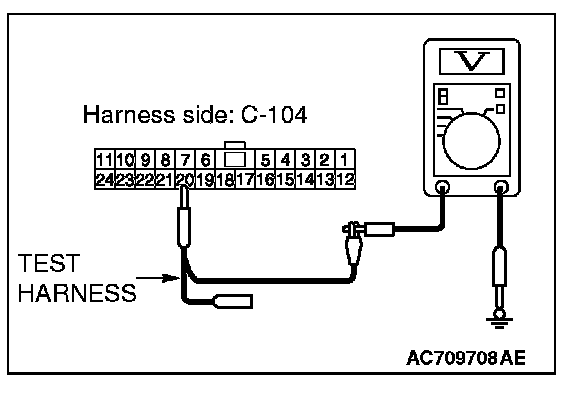

STEP 1. Check the wiring harness between joint connector (CAN2) C-104 and steering wheel sensor connector C-209 for a short to power supply. Measure the voltage at joint connector (CAN2) C-104.

1. Disconnect joint connector (CAN2), and measure the voltage at the wiring harness side of joint connector (CAN2).

2. Turn the ignition switch to the ON position.
3. Measure the voltage between joint connector (CAN2) terminal 7 and body ground.

OK: 4.7 V or less

4. Measure the voltage between joint connector (CAN2) terminal 20 and body ground.

OK: 4.7 V or less

Q: Do all the voltages measure 4.7 V or less?

YES : Go to Step 2.

NO : Go to Step 10.

STEP 2. Check the wiring harness between joint connector (CAN2) C-104 and AWC-ECU connector C-46 for a short to power supply. Measure the voltage at joint connector (CAN2) C-104.

1. Disconnect joint connector (CAN2), and measure the voltage at the wiring harness side of joint connector (CAN2).

2. Turn the ignition switch to the ON position.

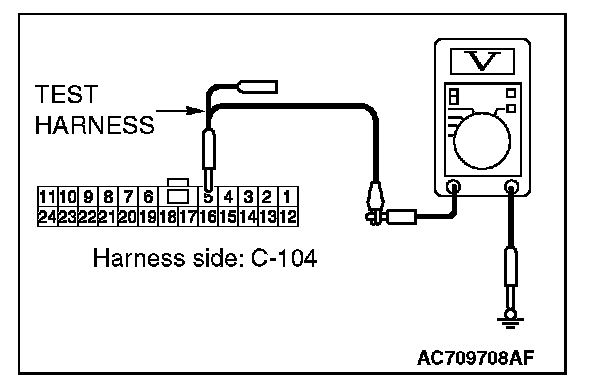

3. Measure the voltage between joint connector (CAN2) terminal 5 and body ground.

OK: 4.7 V or less

4. Measure the voltage between joint connector (CAN2) terminal 16 and body ground.

OK: 4.7 V or less

Q: Do all the voltages measure 4.7 V or less?

YES : Go to Step 3.

NO : Go to Step 11.

STEP 3. Check the wiring harness between joint connector (CAN2) C-104 and ETACS-ECU connector C-301 for a short to power supply. Measure the voltage at joint connector (CAN2) C-104.

1. Disconnect joint connector (CAN2), and measure the voltage at the wiring harness side of joint connector (CAN2).

2. Turn the ignition switch to the ON position.

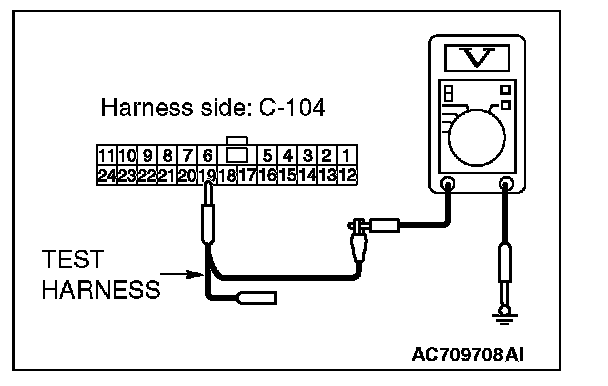

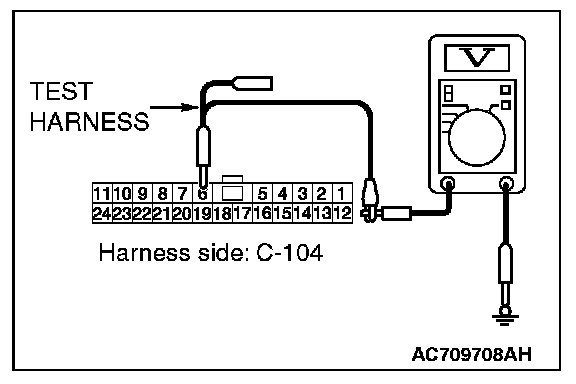

3. Measure the voltage between joint connector (CAN2) terminal 6 and body ground.

OK: 4.7 V or less

4. Measure the voltage between joint connector (CAN2) terminal 19 and body ground.

OK: 4.7 V or less

Q: Do all the voltages measure 4.7 V or less?

YES : Go to Step 4.

NO : Go to Step 12.

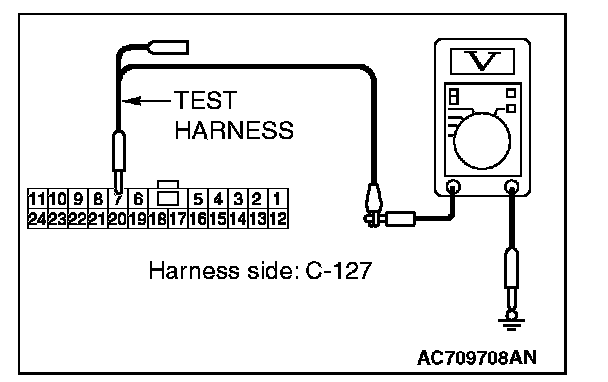

STEP 4. Check the wiring harness between joint connector (CAN3) C-127 and ASC-ECU connector A-05 for a short to power supply. Measure the voltage at joint connector (CAN3) C-127.

1. Disconnect joint connector (CAN3), and measure the voltage at the wiring harness side of joint connector (CAN3).

2. Turn the ignition switch to the ON position.
3. Measure the voltage between joint connector (CAN3) terminal 6 and body ground.

OK: 4.7 V or less

4. Measure the voltage between joint connector (CAN3) terminal 19 and body ground.

OK: 4.7 V or less

Q: Do all the voltages measure 4.7 V or less?

YES [M/T] : Go to Step 5.
YES [TC-SST] : Go to Step 6.

NO : Go to Step 13.

STEP 5. Check the wiring harness between joint connector (CAN3) C-127 and ECM connector B-10 [M/T] for a short to power supply. Measure the voltage at joint connector (CAN3) C-127.

1. Disconnect joint connector (CAN3), and measure the voltage at the wiring harness side of joint connector (CAN3).

2. Turn the ignition switch to the ON position.

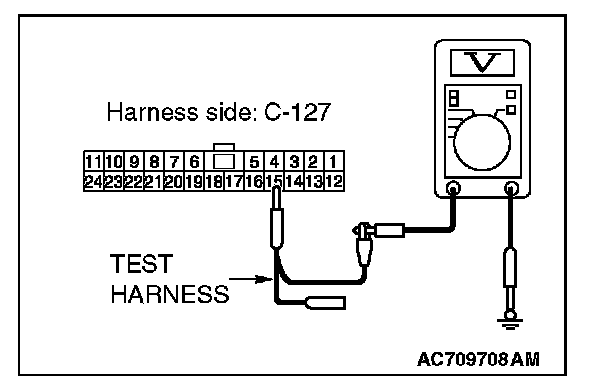

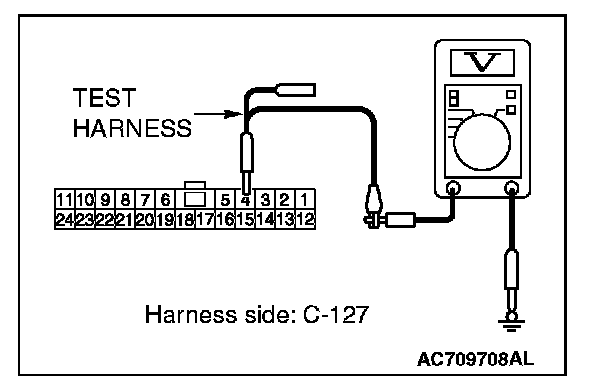

3. Measure the voltage between joint connector (CAN3) terminal 4 and body ground.

OK: 4.7 V or less

4. Measure the voltage between joint connector (CAN3) terminal 15 and body ground.

OK: 4.7 V or less

Q: Do all the voltages measure 4.7 V or less?

YES : Check intermediate connector C-131, and repair if necessary. If the intermediate connector is in good condition, repair the wiring harness between joint connector (CAN2) C-104 and joint connector (CAN3) C-127.

NO : Go to Step 14.

STEP 6. Check the wiring harness between joint connector (CAN3) C-127 and shift lever connector C-27 for a short to power supply. Measure the voltage at joint connector (CAN3) C-127.

1. Disconnect joint connector (CAN3), and measure the voltage at the wiring harness side of joint connector (CAN3).

2. Turn the ignition switch to the ON position.

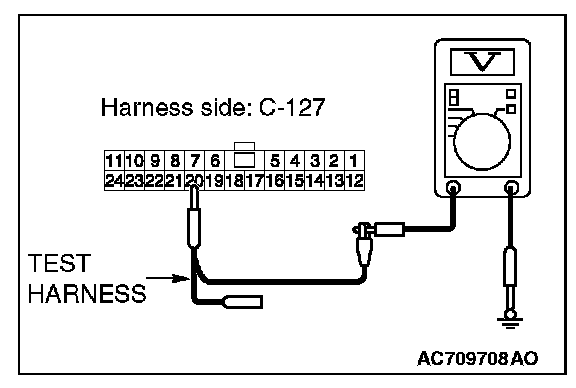

3. Measure the voltage between joint connector (CAN3) terminal 7 and body ground.

OK: 4.7 V or less

4. Measure the voltage between joint connector (CAN3) terminal 20 and body ground.

OK: 4.7 V or less

Q: Do all the voltages measure 4.7 V or less?

YES : Go to Step 7.

NO : Go to Step 15.

STEP 7. Check the wiring harness between joint connector (CAN4) A-14 and ECM connector B-10 [TC-SST] for a short to power supply. Measure the voltage at joint connector (CAN4) A-14.

1. Disconnect joint connector (CAN4), and measure the voltage at the wiring harness side of joint connector (CAN4).

2. Turn the ignition switch to the ON position.

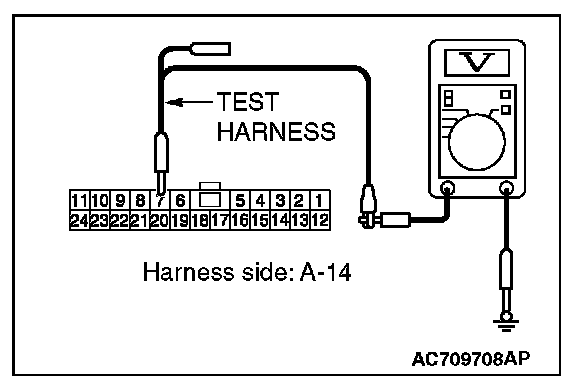

3. Measure the voltage between joint connector (CAN4) terminal 7 and body ground.

OK: 4.7 V or less

4. Measure the voltage between joint connector (CAN4) terminal 20 and body ground.

OK: 4.7 V or less

Q: Do all the voltages measure 4.7 V or less?

YES : Go to Step 8.

NO : Go to Step 14.

STEP 8. Check the wiring harness between joint connector (CAN4) A-14 and transaxle assembly connector B-107 for a short to power supply. Measure the voltage at joint connector (CAN4) A-14.

1. Disconnect joint connector (CAN4), and measure the voltage at the wiring harness side of joint connector (CAN4).

2. Turn the ignition switch to the ON position.

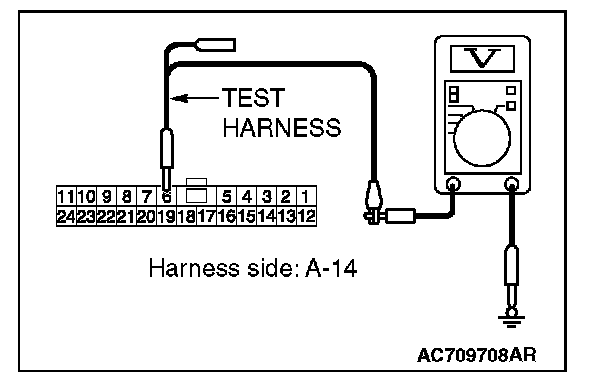

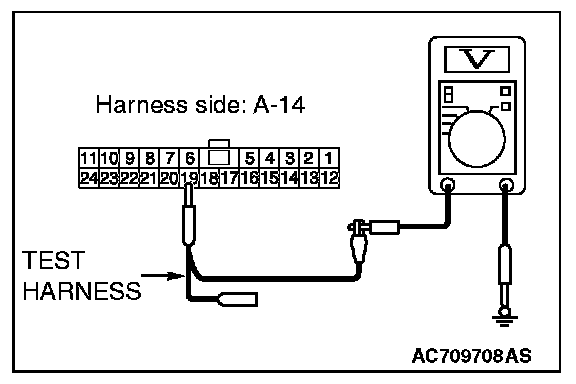

3. Measure the voltage between joint connector (CAN4) terminal 6 and body ground.

OK: 4.7 V or less

4. Measure the voltage between joint connector (CAN4) terminal 19 and body ground.

OK: 4.7 V or less

Q: Do all the voltages measure 4.7 V or less?

YES : Go to Step 9.

NO : Go to Step 16.

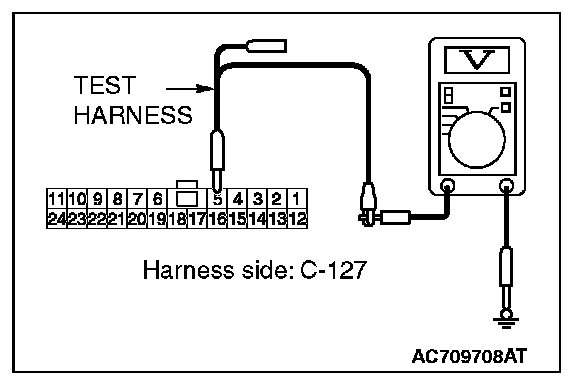

STEP 9. Check the wiring harness between joint connector (CAN3) C-127 and joint connector (CAN2) C-104 for a short to ground. Measure the resistance at joint connector (CAN3) C-127.

CAUTION:
- Disconnect the negative battery terminal.
- A digital multimeter should be used.
- The test wiring harness should be used.

1. Disconnect joint connector (CAN3), and measure the resistance at the wiring harness side of joint connector (CAN3).

2. Turn the ignition switch to the ON position.
3. Measure the voltage between joint connector (CAN3) terminal 5 and body ground.

OK: 4.7 V or less

4. Measure the voltage between joint connector (CAN3) terminal 16 and body ground.

OK: 4.7 V or less

Q: Do all the voltages measure 4.7 V or less?

YES : Check intermediate connector A-13, and repair if necessary. If the intermediate connector is in good condition, repair the wiring harness between joint connector (CAN3) C-127 and joint connector (CAN4) A-14.

NO : Check intermediate connector C-131, and repair if necessary. If the intermediate connector is in good condition, repair the wiring harness between joint connector (CAN3) C-127 and joint connector (CAN2) C-104.

STEP 10. Using scan tool MB991958, diagnose the CAN bus line. (checking the steering wheel sensor for internal short to ground)

CAUTION:
- Strictly observe the specified wiring harness repair procedure.
- To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Disconnect ETACS-ECU connector C-301.

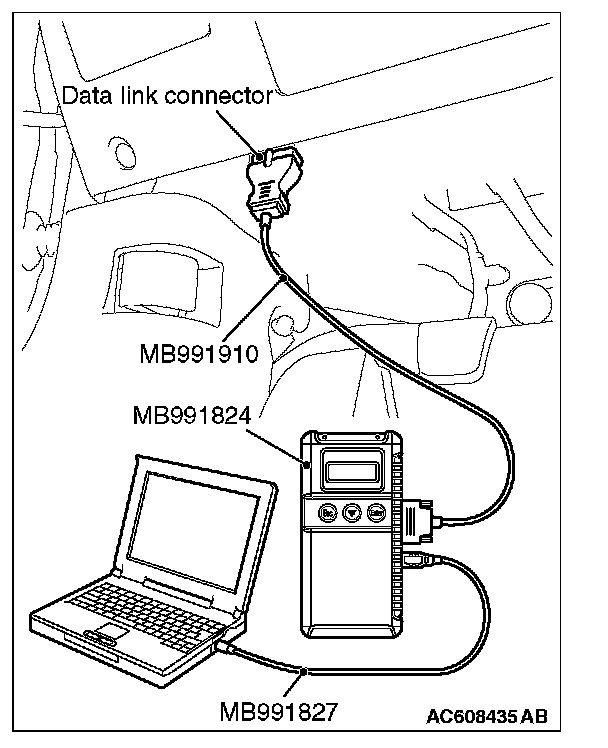

2. Connect scan tool MB991958 to the data link connector
3. Turn the ignition switch to the "ON" position.

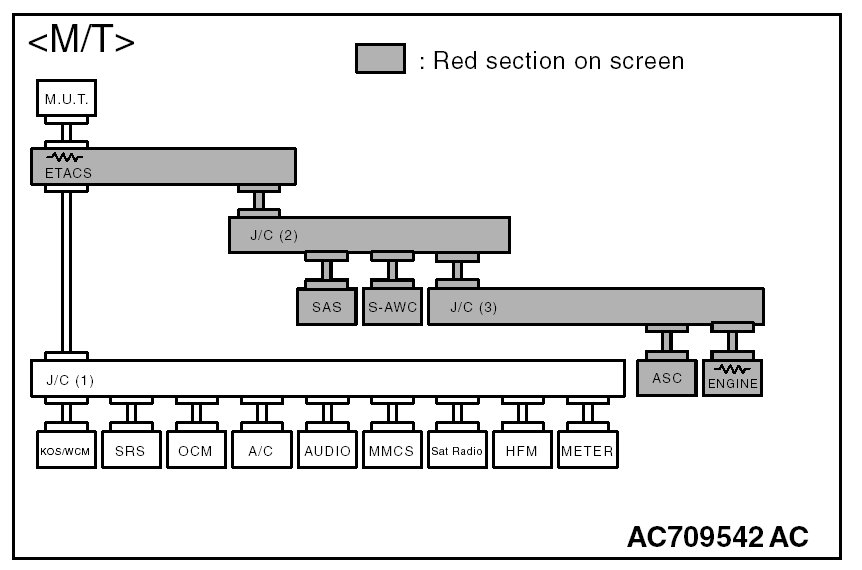

4. Diagnose CAN bus lines, and check if the scan tool MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as shown in the figure.

Q: Does scan tool MB991958 screen correspond to the illustration?

YES : Repair the wiring harness between steering wheel sensor connector C-209 and joint connector (CAN2) C-104.

NO : Check steering wheel sensor connector C-209, and repair if necessary. If the steering wheel sensor connector is in good condition, replace the steering wheel sensor.

STEP 11. Using scan tool MB991958, diagnose the CAN bus line. (checking the AWC-ECU for internal short to ground)

CAUTION:
- Strictly observe the specified wiring harness repair procedure.
- To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Disconnect AWC-ECU connector C-46.

2. Connect scan tool MB991958 to the data link connector
3. Turn the ignition switch to the "ON" position.

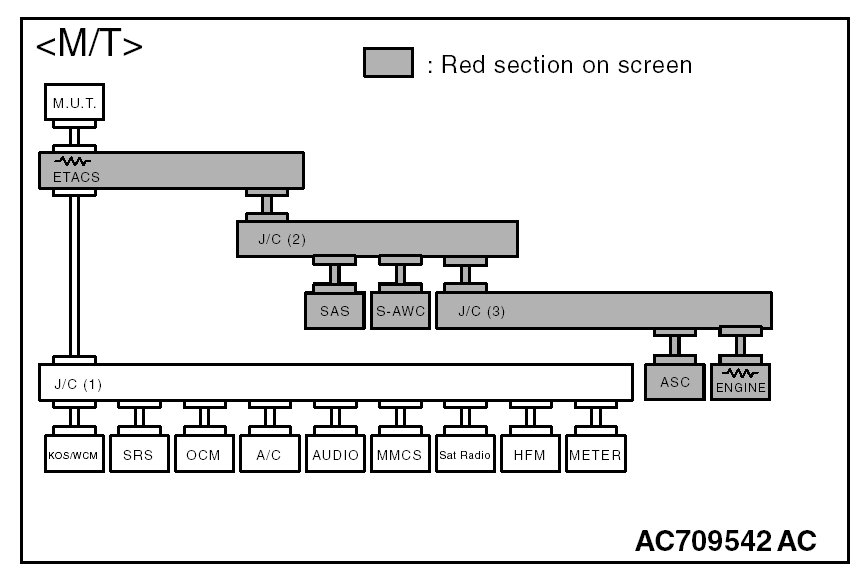

4. Diagnose CAN bus lines, and check if the scan tool MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as shown in the figure.

Q: Does scan tool MB991958 screen correspond to the illustration?

YES : Repair the wiring harness between AWC-ECU connector C-46 and joint connector (CAN2) C-104.

NO : Check AWC-ECU connector C-46, and repair if necessary. If the AWC-ECU connector is in good condition, replace the AWC-ECU.

STEP 12. Check the wiring harness between joint connector (CAN2) C-104 and ETACS-ECU connector C-301 for short to power supply (voltage measurement).

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.
- Strictly observe the specified wiring harness repair procedure.

1. Disconnect ETACS-ECU connector and joint connector (CAN2), and measure at the wiring harness side

2. Turn the ignition switch to the ON position.
3. Measure the voltage between joint connector (CAN2) terminal 6 and body ground.

OK: 1 V or less

4. Measure the voltage between joint connector (CAN2) terminal 19 and body ground.

OK: 1 V or less

Q: Do all the voltages measure 1 V or less?

YES : Check ETACS-ECU connector C-301, and repair if necessary. If the ETACS-ECU connector is in good condition, replace the ETACS-ECU.

NO : Repair the wiring harness between ETACS-ECU connector C-301 and joint connector (CAN2) C-104.

STEP 13. Using scan tool MB991958, diagnose the CAN bus line. (checking the ASC-ECU for internal short to ground)

CAUTION:
- Strictly observe the specified wiring harness repair procedure.
- To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Disconnect ASC-ECU connector A-05.

2. Connect scan tool MB991958 to the data link connector
3. Turn the ignition switch to the "ON" position.

4. Diagnose CAN bus lines, and check if the scan tool MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as shown in the figure.

Q: Does scan tool MB991958 screen correspond to the illustration?

YES : Repair the wiring harness between ASC-ECU connector A-05 and joint connector (CAN3) C-127.

NO : Check ASC-ECU connector A-05, and repair if necessary. If the ASC-ECU connector is in good condition, replace the ASC-ECU.

STEP 14. Using scan tool MB991958, diagnose the CAN bus line. (checking the ECM for internal short to ground)

CAUTION:
- Strictly observe the specified wiring harness repair procedure.
- To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Disconnect ECM connector B-10.

2. Connect scan tool MB991958 to the data link connector
3. Turn the ignition switch to the "ON" position.

4. Diagnose CAN bus lines, and check if the scan tool MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as shown in the figure.

Q: Does scan tool MB991958 screen correspond to the illustration?

YES : Repair the wiring harness between ECM connector B-10 and joint connector (CAN3) C-127 [M/T], or check intermediate connector A-13, and repair if necessary. If the intermediate connector is in good condition, repair the wiring harness between ECM connector B-10 and joint connector (CAN4) A-14 [TC-SST].

NO : Check ECM connector B-10, and repair if necessary. If the ECM connector is in good condition, replace the ECM.

STEP 15. Using scan tool MB991958, diagnose the CAN bus line. (checking the shift lever for internal short to ground)

CAUTION:
- Strictly observe the specified wiring harness repair procedure.
- To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Disconnect shift lever connector C-27.

2. Connect scan tool MB991958 to the data link connector
3. Turn the ignition switch to the "ON" position.

4. Diagnose CAN bus lines, and check if the scan tool MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as shown in the figure.

Q: Does scan tool MB991958 screen correspond to the illustration?

YES : Repair the wiring harness between shift lever connector C-27 and joint connector (CAN3) C-127.

NO : Check shift lever connector C-27, and repair if necessary. If the shift lever connector is in good condition, replace the shift lever.

STEP 16. Using scan tool MB991958, diagnose the CAN bus line. (checking the TC-SST-ECU for internal short to ground)

CAUTION:
- Strictly observe the specified wiring harness repair procedure.
- To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Disconnect transaxle assembly connector B-107

2. Connect scan tool MB991958 to the data link connector
3. Turn the ignition switch to the "ON" position.
