Part 3

STEP 46. Check The Wiring Harness Between Joint Connector (CAN1) C-105 And Satellite Radio Tuner Connector C-18 For Open Circuit.

1. Disconnect joint connector (CAN1) C-105 and satellite radio tuner connector C-18, and check the wiring harness

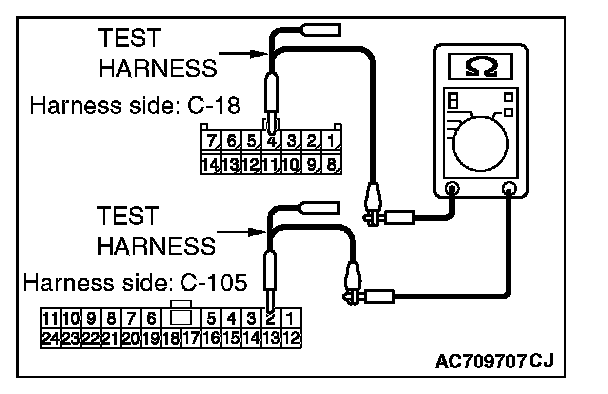

2. Check the wiring harness between joint connector (CAN1) C-105 (terminal 2) and satellite radio tuner connector C-18 (terminal 4)

OK: Continuity exists (2 ohms or less)

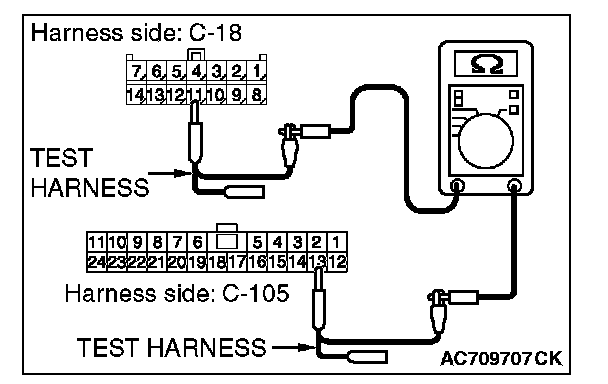

3. Check the wiring harness between joint connector (CAN1) C-105 (terminal 13) and satellite radio tuner connector C-18 (terminal 11)

OK: Continuity exists (2 ohms or less)

Q: Is the wiring harness between joint connector (CAN1) C-105 and satellite radio tuner connector C-18 in good condition?

YES : Go to Step 47.

NO : Go to Step 57.

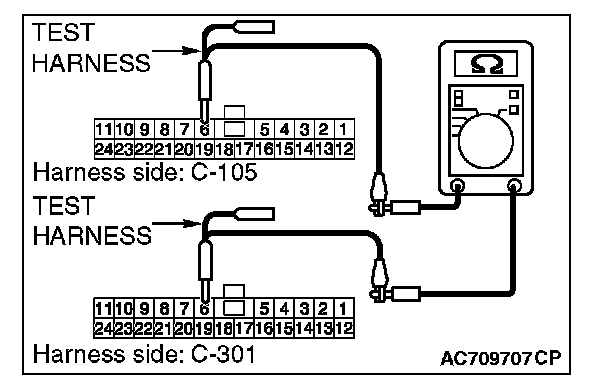

STEP 47. Check the wiring harness between joint connector (CAN1) C-105 and ETACS-ECU connector C-301 for open circuit.

1. Disconnect joint connector (CAN1) C-105 and ETACS-ECU connector C-301, and check the wiring harness.

2. Check the wiring harness between joint connector (CAN1) C-105 (terminal 6) and ETACS-ECU connector C-301 (terminal 6)

OK: Continuity exists (2 ohms or less)

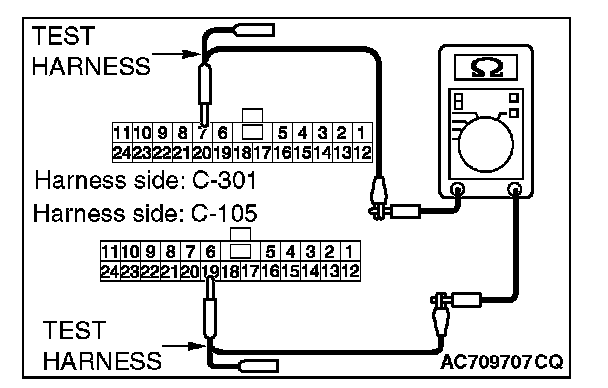

3. Check the wiring harness between joint connector (CAN1) C-105 (terminal 19) and ETACS-ECU connector C-301 (terminal 7)

OK: Continuity exists (2 ohms or less)

Q: Is the wiring harness between joint connector (CAN1) C-105 and ETACS-ECU connector C-301 in good condition?

YES : Go to Step 58.

NO : Repair the wiring harness between joint connector (CAN1) C-105 and ETACS-ECU connector C-301.

STEP 48. Using scan tool MB991958, diagnose the CAN bus line. (checking the combination meter for internal failure)

CAUTION:
- Strictly observe the specified wiring harness repair procedure.
- To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Disconnect combination meter connector C-04.

2. Connect scan tool MB991958 to the data link connector
3. Turn the ignition switch to the "ON" position.

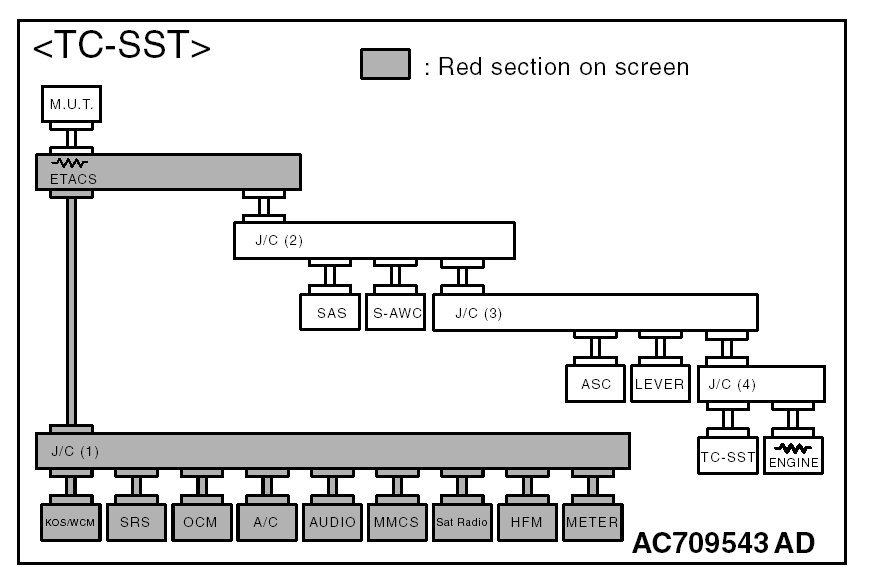

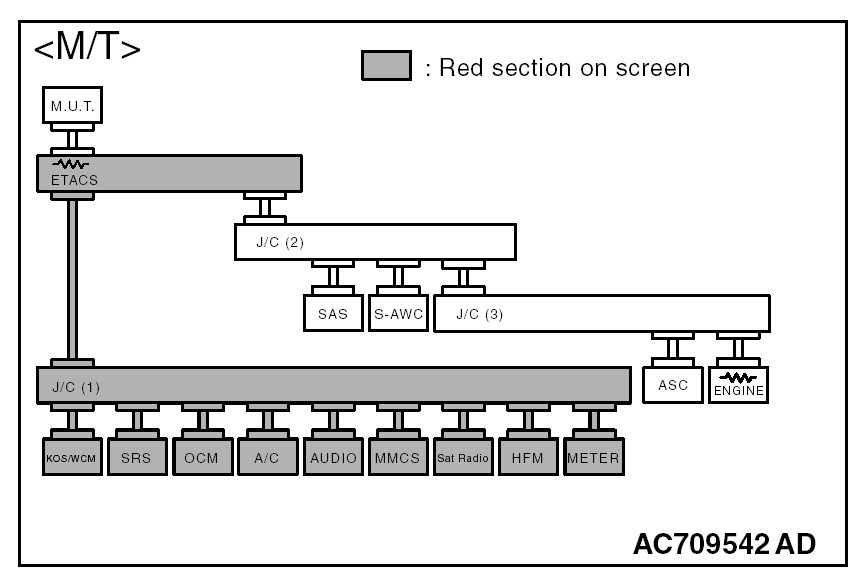

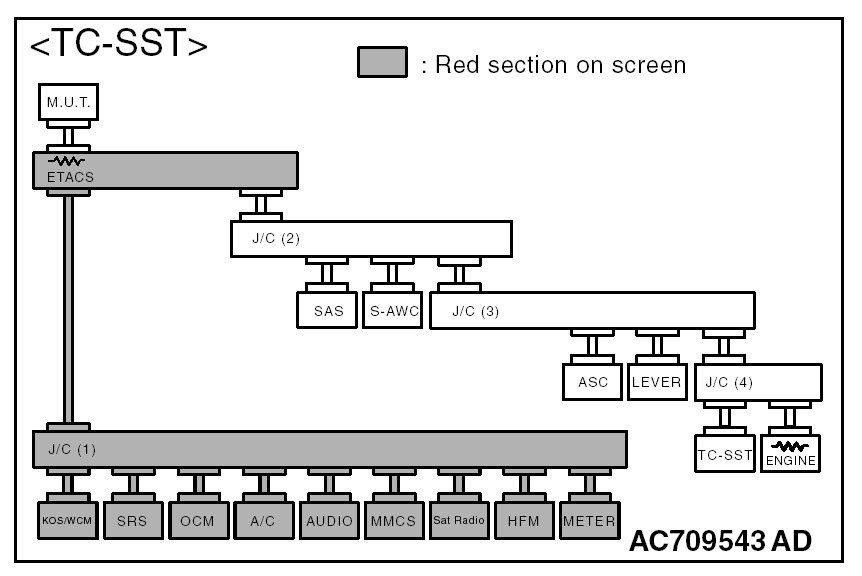

4. Diagnose CAN bus lines, and check if the scan tool MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as shown in the figure.

Q: Does scan tool MB991958 screen correspond to the illustration?

YES : Repair the wiring harness between joint connector (CAN1) C-105 and combination meter connector C-04.

NO : Check combination meter connector C-04, and repair if necessary. If the combination meter connector is in good condition, replace the combination meter.

STEP 49. Using scan tool MB991958, diagnose the CAN bus line. (checking the KOS-ECU for internal failure)

CAUTION:
- Strictly observe the specified wiring harness repair procedure.
- To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Disconnect KOS-ECU connector C-05.

2. Connect scan tool MB991958 to the data link connector
3. Turn the ignition switch to the "ON" position.

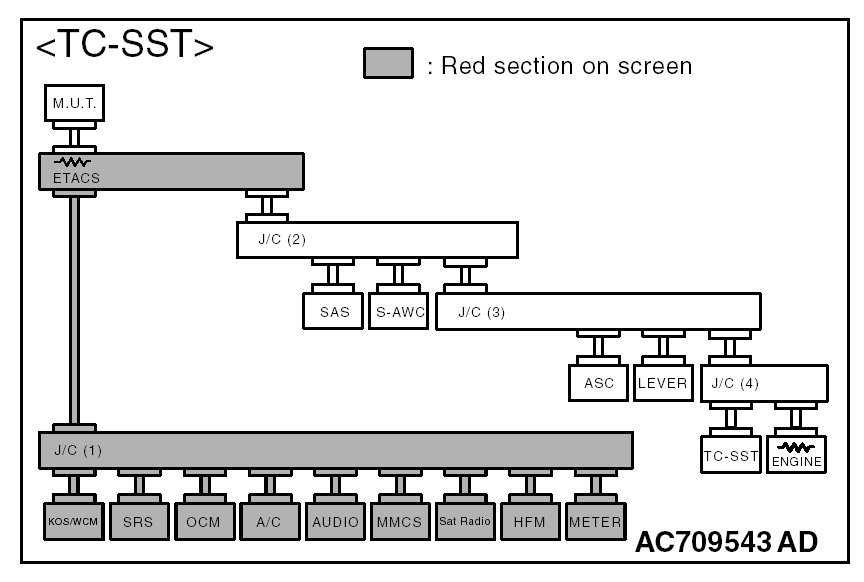

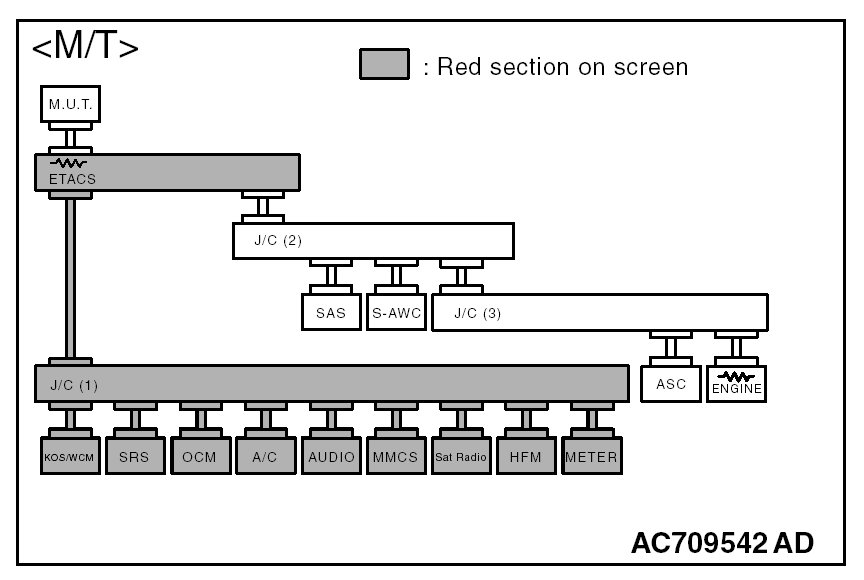

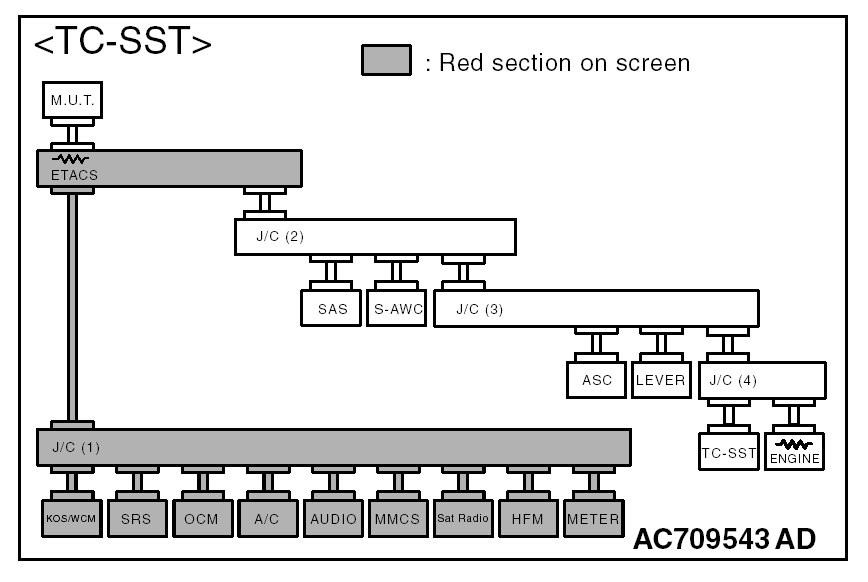

4. Diagnose CAN bus lines, and check if the scan tool MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as shown in the figure.

Q: Does scan tool MB991958 screen correspond to the illustration?

YES : Repair the wiring harness between joint connector (CAN1) C-105 and SRS-ECU connector C-37.

NO : Check SRS-ECU connector C-37, and repair if necessary. If the SRS-ECU connector is in good condition, replace the SRS-ECU.

STEP 52. Using scan tool MB991958, diagnose the CAN bus line. (checking the occupant classification-ECU for internal failure)

CAUTION:
- Strictly observe the specified wiring harness repair procedure.
- To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Disconnect occupant classification-ECU connector D-39-2

2. Connect scan tool MB991958 to the data link connector
3. Turn the ignition switch to the "ON" position.

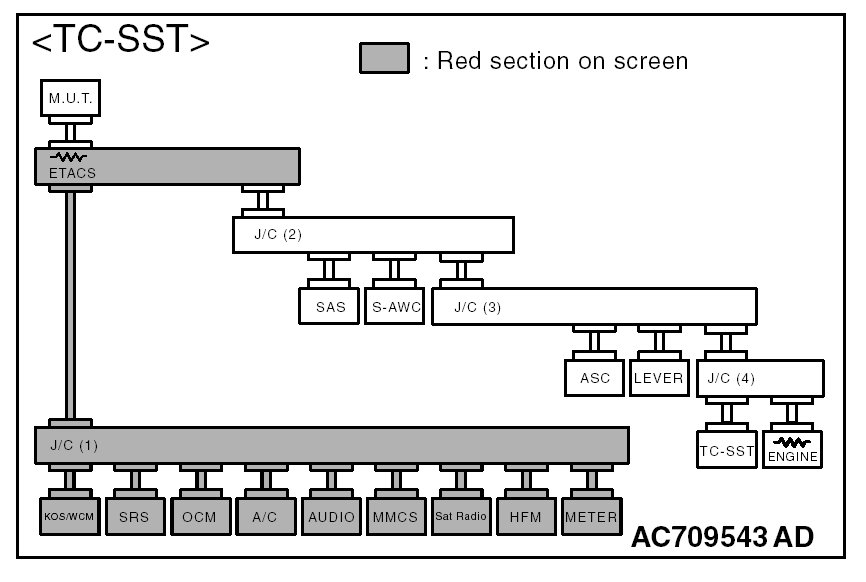

4. Diagnose CAN bus lines, and check if the scan tool MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as shown in the figure.

Q: Does scan tool MB991958 screen correspond to the illustration?

YES : Repair the wiring harness between joint connector (CAN1) C-105 and occupant classification-ECU connector D-39-2.

NO : Check occupant classification-ECU connector D-39-2, and repair if necessary. If the occupant classification-ECU connector is in good condition, replace the occupant classification-ECU.

STEP 53. Using scan tool MB991958, diagnose the CAN bus line. (checking the hands free module for internal failure)

CAUTION:
- Strictly observe the specified wiring harness repair procedure.
- To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Disconnect hands free module connector C-11.

2. Connect scan tool MB991958 to the data link connector
3. Turn the ignition switch to the "ON" position.

4. Diagnose CAN bus lines, and check if the scan tool MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as shown in the figure.

Q: Does scan tool MB991958 screen correspond to the illustration?

YES : Repair the wiring harness between joint connector (CAN1) C-105 and hands free module connector C-11.

NO : Check hands free module connector C-11, and repair if necessary. If the hands free module connector is in good condition, replace the hands free module.

STEP 54. Using scan tool MB991958, diagnose the CAN bus line. (checking the A/C-ECU [vehicles with A/C] or heater control unit [vehicles without A/C] for internal failure)

CAUTION:
- Strictly observe the specified wiring harness repair procedure.
- To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Disconnect A/C-ECU connector C-22 [vehicles with A/C] or heater control unit connector C-53 [vehicles without A/C].

2. Connect scan tool MB991958 to the data link connector
3. Turn the ignition switch to the "ON" position.

4. Diagnose CAN bus lines, and check if the scan tool MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as shown in the figure.

Q: Does scan tool MB991958 screen correspond to the illustration?

YES : Repair the wiring harness between joint connector (CAN1) C-105 and A/C-ECU connector C-22 [vehicles with A/C] or heater control unit connector C-53 [vehicles without A/C].

NO : Check A/C-ECU connector C-22 [vehicles with A/C] or heater control unit connector C-53 [vehicles without A/C], and repair if necessary. If the A/C-ECU connector [vehicles with A/C] or heater control unit connector [vehicles without A/C] is in good condition, replace the A/C-ECU [vehicles with A/C] or heater control unit [vehicles without A/C].

STEP 55. Using scan tool MB991958, diagnose the CAN bus line. (checking the radio and CD player or CD changer for internal failure)

CAUTION:
- Strictly observe the specified wiring harness repair procedure.
- To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Disconnect radio and CD player or CD changer connector C-107.

2. Connect scan tool MB991958 to the data link connector
3. Turn the ignition switch to the "ON" position.

4. Diagnose CAN bus lines, and check if the scan tool MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as shown in the figure.

Q: Does scan tool MB991958 screen correspond to the illustration?

YES : Repair the wiring harness between joint connector (CAN1) C-105 and radio and CD player or CD changer connector C-107.

NO : Check radio and CD player or CD changer connector C-107, and repair if necessary. If the radio and CD player or CD changer connector is in good condition, replace the radio and CD player or CD changer.

STEP 56. Using scan tool MB991958, diagnose the CAN bus line. (checking the CAN box unit for internal failure)

CAUTION:
- Strictly observe the specified wiring harness repair procedure.
- To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Disconnect CAN box unit connector C-15.

2. Connect scan tool MB991958 to the data link connector
3. Turn the ignition switch to the "ON" position.

4. Diagnose CAN bus lines, and check if the scan tool MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as shown in the figure.

Q: Does scan tool MB991958 screen correspond to the illustration?

YES : Repair the wiring harness between joint connector (CAN1) C-105 and CAN box unit connector C-15.

NO : Check CAN box unit connector C-15, and repair if necessary. If the CAN box unit connector is in good condition, replace the CAN box unit.

STEP 57. Using scan tool MB991958, diagnose the CAN bus line. (checking the satellite radio tuner for internal failure)

CAUTION:
- Strictly observe the specified wiring harness repair procedure.
- To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Disconnect satellite radio tuner connector C-18.

2. Connect scan tool MB991958 to the data link connector
3. Turn the ignition switch to the "ON" position.

4. Diagnose CAN bus lines, and check if the scan tool MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as shown in the figure.

Q: Does scan tool MB991958 screen correspond to the illustration?

YES : Repair the wiring harness between joint connector (CAN1) C-105 and satellite radio tuner connector C-18.

NO : Check satellite radio tuner connector C-18, and repair if necessary. If the satellite radio tuner connector is in good condition, replace the satellite radio tuner.

STEP 58. Using scan tool MB991958, diagnose the CAN bus line. (trouble symptom check)

CAUTION:
- Strictly observe the specified wiring harness repair procedure.
- To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Connect scan tool MB991958 to the data link connector

2. Turn the ignition switch to the "ON" position.

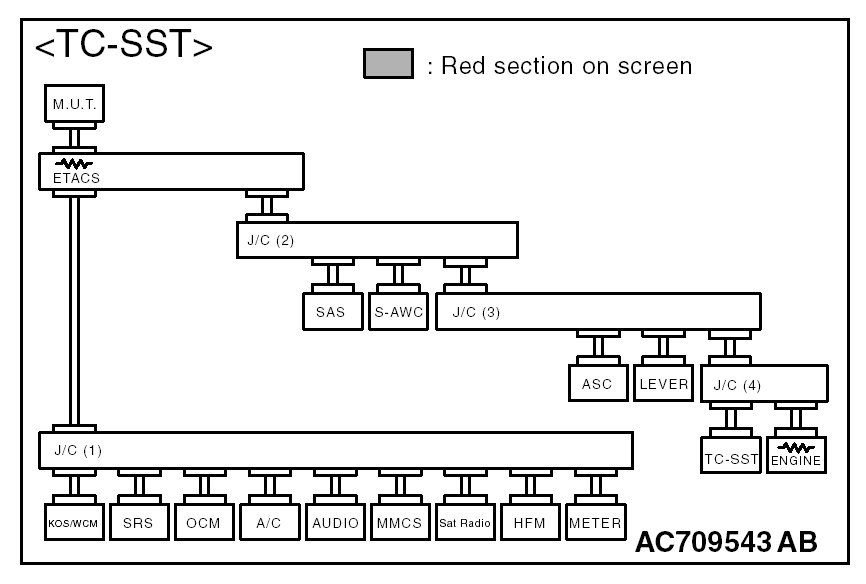

3. Diagnose CAN bus lines, and check if the scan tool MB991958 screen is as shown in the figure.

OK: The display of the scan tool MB991958 is as shown in the figure.

Q: Does scan tool MB991958 screen correspond to the illustration?

YES : The trouble can be an intermittent malfunction.

NO : Check the ETACS-ECU connector C-301, and repair if necessary. If the ETACS-ECU connector is in good condition, replace the ETACS-ECU.
