Diagnostic Item 24

DIAGNOSTIC ITEM 24: Diagnose When The Scan Tool Cannot Receive The Data Sent By Combination Meter.

CAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

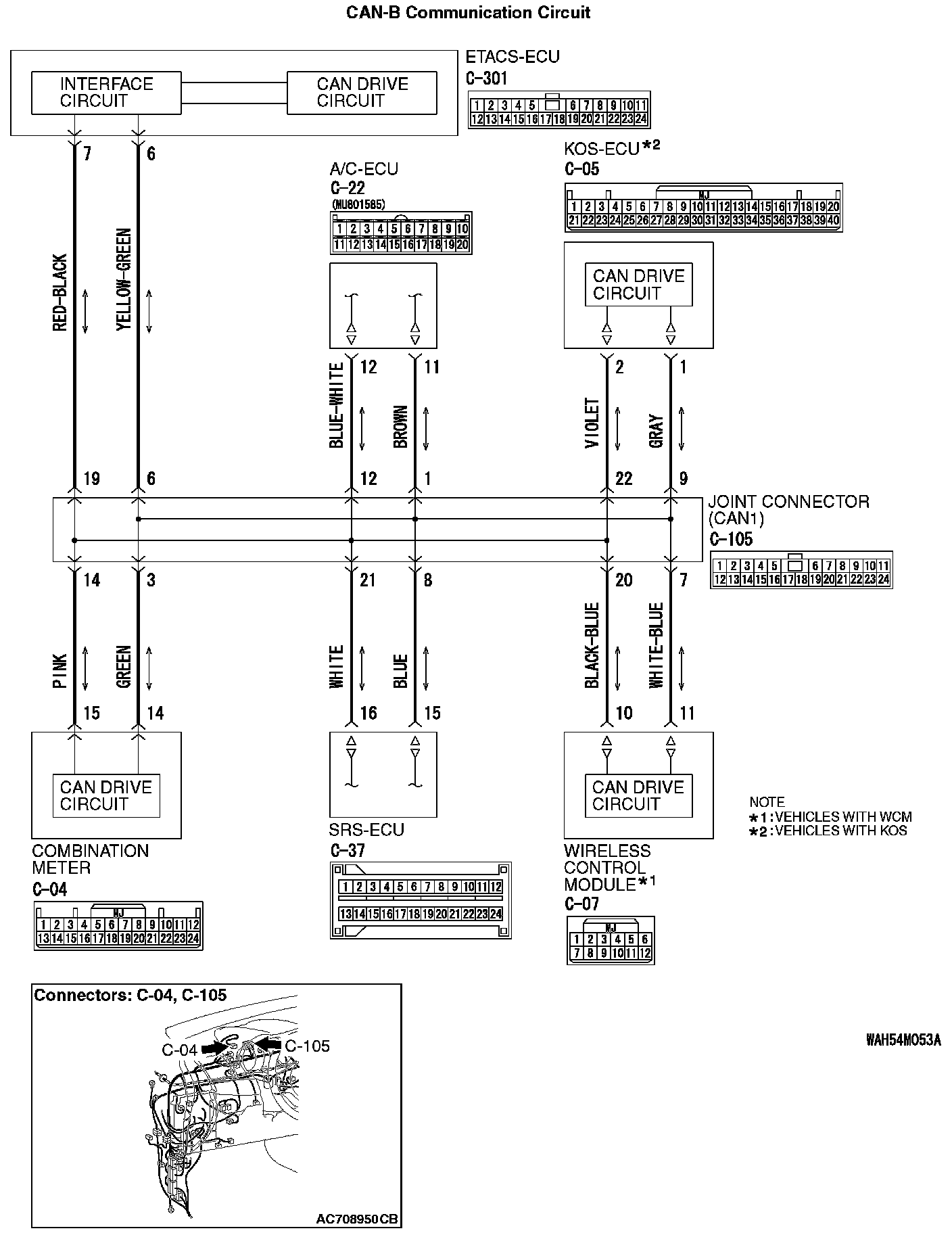

CAN-B Communication Circuit:

FUNCTION
If the scan tool MB991958 cannot communicate with the combination meter, this diagnosis result will be set.

TROUBLE JUDGMENT CONDITIONS
If a communication flag is not set for the combination meter, the ETACS-ECU determines that there is a failure.

TROUBLESHOOTING HINTS
- Malfunction of the connector [joint connector (CAN1), combination meter connector improperly connected]
- Malfunction of the wiring harness [open circuit between the combination meter connector and the joint connector (CAN1), power supply circuit to the combination meter]
- Malfunction of the combination meter

DIAGNOSIS

Required Special Tools:
- MB991223: Harness Set
- MB992006: Extra Fine Probe

STEP 1. Check joint connector (CAN1) C-105 and combination meter connector C-04 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

CAUTION: The strand end of the twisted wire should be within 10 cm (4 inches) from the connector.

Q: Are joint connector (CAN1) C-105 and combination meter connector C-04 in good condition?

YES : Go to Step 2.

NO : Repair the damaged parts.

STEP 2. Check the wiring harness between joint connector (CAN1) C-105 and combination meter connector C-04.

CAUTION: Strictly observe the specified wiring harness repair procedure.

1. Disconnect joint connector (CAN1) C-105 and combination meter connector C-04, and check the wiring harness

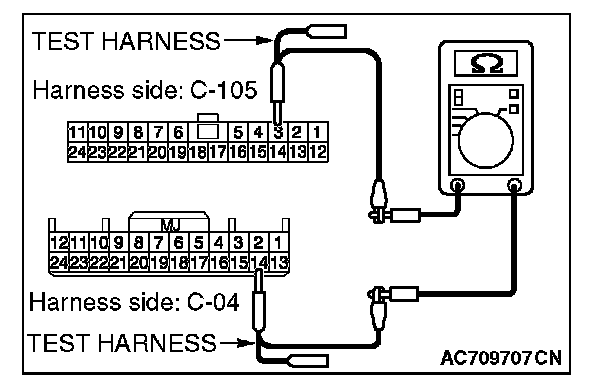

2. Check the wiring harness between joint connector (CAN1) C-105 (terminal 3) and combination meter connector C-04 (terminal 14)

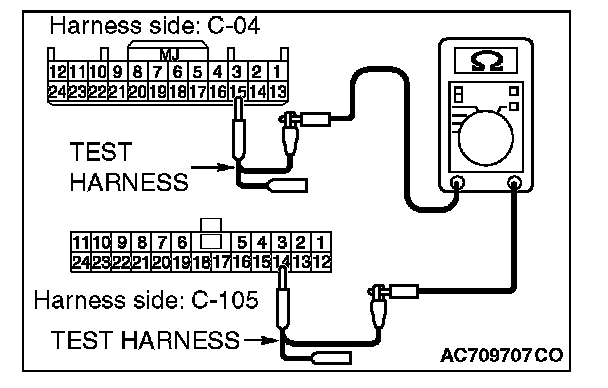

3. Check the wiring harness between joint connector (CAN1) C-105 (terminal 14) and combination meter connector C-04 (terminal 15)

Q: Is the wiring harness between joint connector (CAN1) C-105 and combination meter connector C-04 in good condition?

YES : Check the power supply circuit of the combination meter. Refer to combination meter - Diagnosis. Symptom Chart

NO : Repair the wiring harness between joint connector (CAN1) C-105 and combination meter connector C-04.
