Controller Area Network (CAN)

GENERAL INFORMATION

CAN, an abbreviation for Controller Area Network, is an ISO-certified international standard for a serial multiplex communication protocol*. A communication circuit employing the CAN protocol connects each ECU, and sensor data can be shared among, which enables more reduction in wiring.

NOTE: *: The regulations have been decided in detail, from software matters such as the necessary transmission rate for communication, the system, data format, and communication timing control method to hardware matters such as the harness type and length and the resistance values.

CAN offers the following advantages.
- Transmission rates are much faster than those in conventional communication (up to 1 Mbps), allowing much more data to be sent.
- It is exceptionally immune to noise, and the data obtained from each error detection device is more reliable.
- Each ECU connected via the CAN communicates independently, therefore if the ECU enters damaged mode, communications can be continued in some cases.

STRUCTURE

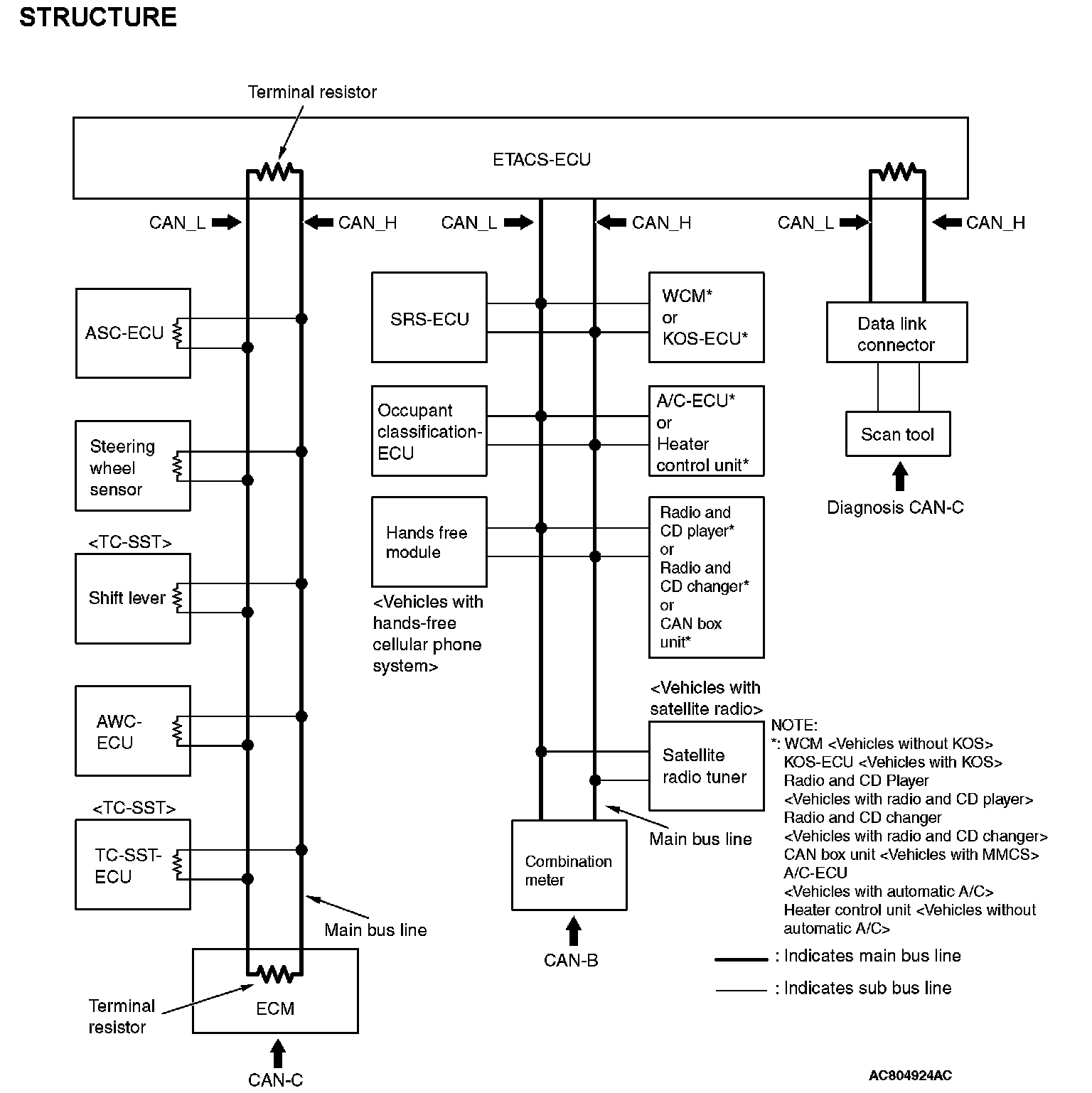

Structure:

- A gateway function has been integrated to ETACS-ECU as the network central ECU.
- The CAN system consists of the following three networks: CAN-B (middle-speed body network), CAN-C (high-speed power train network), and the diagnosis CAN-C (diagnosis exclusive network). Each ECU is connected to one of the networks depending on its functions.
- The CAN bus line consists of two lines, CAN_L and CAN_H (CAN Low and CAN High, respectively), as well as two terminal resistors (A twisted-pair cable, highly resistant to noise, is used for the communications line).
- The CAN bus line connecting two dominant ECUs is the main bus line, and the CAN bus line connecting each ECU is the sub-bus line.
- With CAN-C, the terminal resistors are incorporated in ECU. Resistors with approximately 120 ohms is used for the dominant ECU, and that with 3.0 kilo ohms is used for the non-dominant ECU.

NOTE:
- Dominant ECU: ETACS-ECU and engine ECU
- Non-dominant ECU: ECU and sensor on CAN-C network, excluding ETACS-ECU and engine ECU

- To the CAN bus line, ECU, sensor, and data link connector are connected as follows for each network.

CAN-B
- Wireless control module (WCM) [vehicles without KOS]
- KOS-ECU [vehicles with KOS]
- SRS-ECU
- Occupant classification-ECU
- A/C-ECU [vehicles with automatic A/C]
- Heater control unit [vehicles without automatic A/C]
- Radio and CD player [vehicles with radio and CD player]
- Radio and CD changer [vehicles with radio and CD changer]
- CAN box unit [vehicles with MMCS]
- Hands free module [vehicles with hands-free cellular phone system]
- Satellite radio tuner [vehicles with satellite radio]
- Combination meter

CAN-C
- ASC-ECU
- TC-SST-ECU [TC-SST]
- Shift lever [TC-SST]
- AWC-ECU
- Steering wheel sensor
- Engine control module (ECM)

DIAGNOSIS CAN-C
- Data link connector
