How to Perform Vehicle Identification Number (VIN) Writing
HOW TO PERFORM VEHICLE IDENTIFICATION NUMBER (VIN) WRITINGCAUTION:
The F.A.S.T-Key (Free-hand Advanced Security Transmitter) is described as the Keyless Operation System (KOS) in this manual. (KOS is indicated as F.A.S.T. in the scan tool display.)
Follow the procedure below to register the VIN of the Wireless Control Module (WCM) and the Keyless Operation System (KOS).
The VIN is stored in the engine control module (ECM), WCM, and the KOS-ECU. If the VIN is improperly erased, the engine warning light or the keyless operation system warning indicator illuminate, and the diagnostic trouble code is displayed. When the ECM, WCM, and the KOS-ECU are replaced, follow the procedure below to write the VIN.

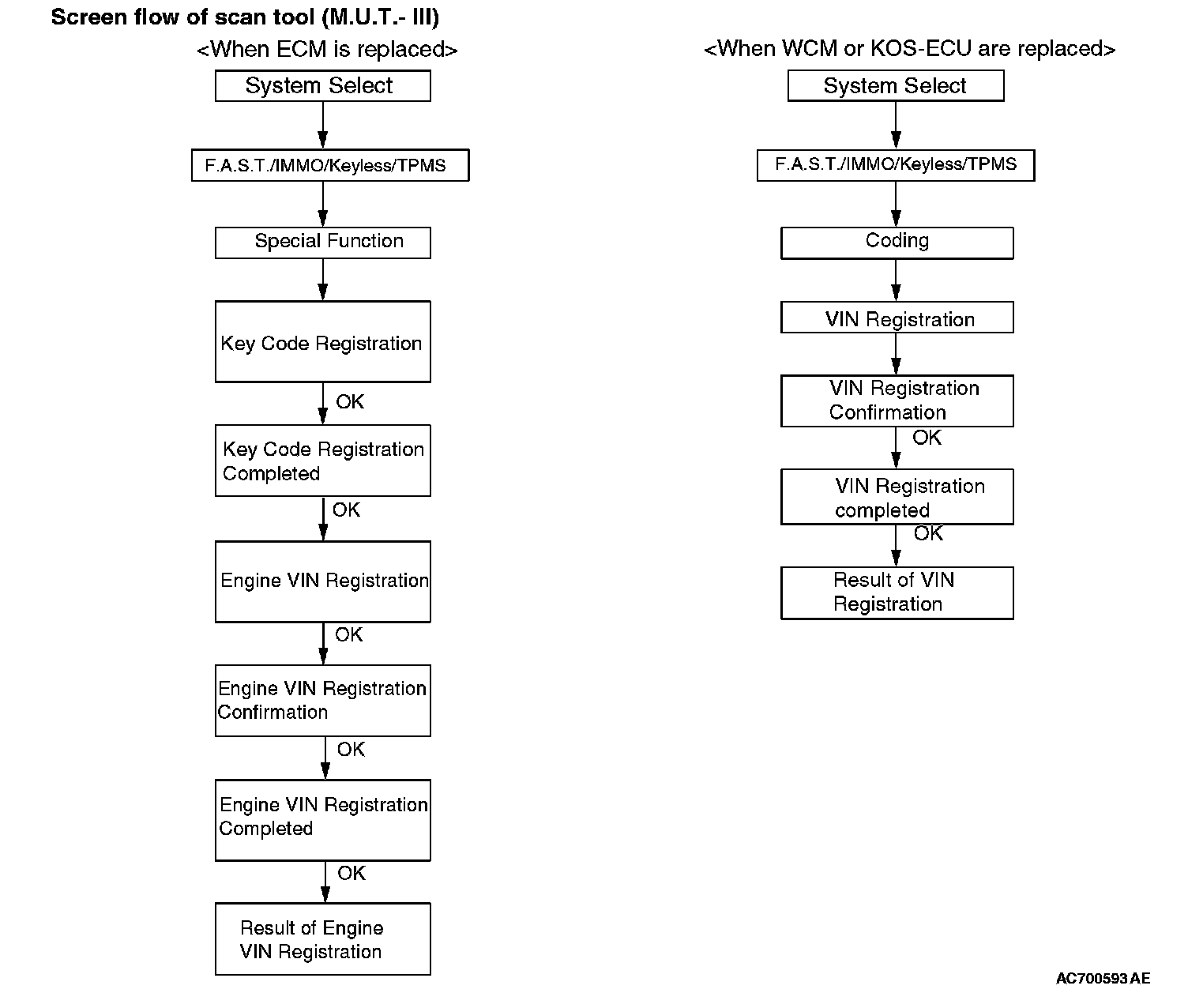

WRITING PROCEDURE
Required Special Tools:
^ MB991958: Scan Tool (M.U.T.-III Sub Assembly)
^ MB991824: V.C.I.
^ MB991827: M.U.T.-III USB Cable

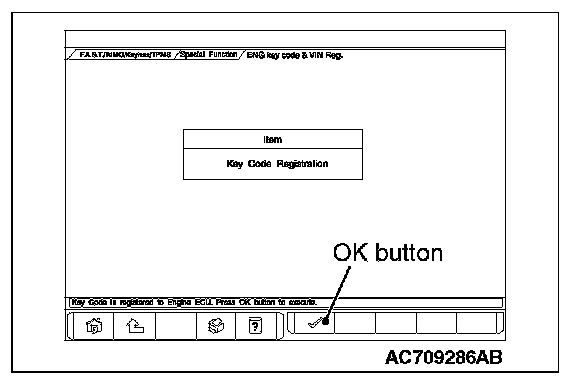

^ MB991910: M.U.T.-III Main Harness A
CAUTION:
Check that diagnostic trouble code P0603 "EEPROM fail" is not set. When diagnostic trouble code P0603 "EEPROM fail" is set, the ECM cannot store the key code even if the key code is registered. If this diagnostic trouble code is set, troubleshoot the ECM and repair. Then register the key code to the ECM.
CAUTION:
Before connecting or disconnecting the MB991958: Scan Tool, turn the ignition switch to the "LOCK" (OFF) position.

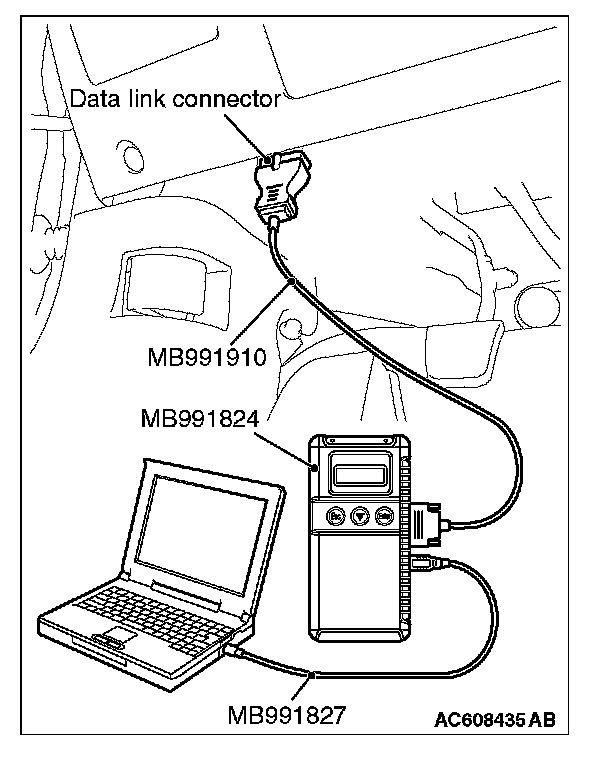

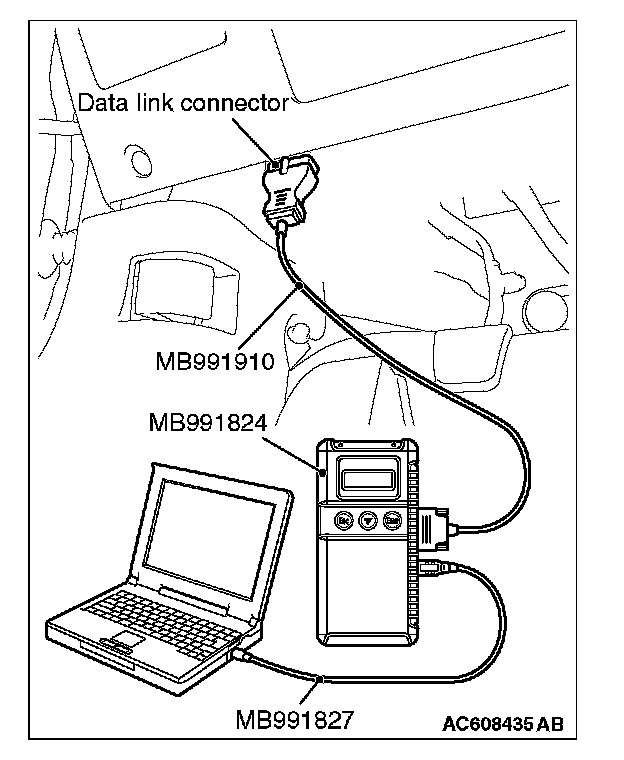

Connect scan tool MB991958 to the 16-pin data link connector as follows.
NOTE: For details on how to use scan tool MB991958, refer to the "M.U.T. Owner's Manual."
1. Ensure that the ignition switch is at the "LOCK" (OFF) position.
2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824 and the personal computer.
4. Connect special tool MB991910 to the special tool MB991824.
5. Connect special tool MB991910 to the data link connector of the vehicle.
6. Turn the special tool MB991824 power switch to the "ON" position.
NOTE: When the special tool MB991824 is energized, the special tool MB991824 indicator light will be illuminated in a green color.
7. Start the "M.U.T.-III system" on the personal computer and turn the ignition switch to the "ON" position.
8. Select "F.A.S.T./IMMO/Keyless/TPMS" button from the "System Select" screen. Then, select the applicable option code item and push the OK button.

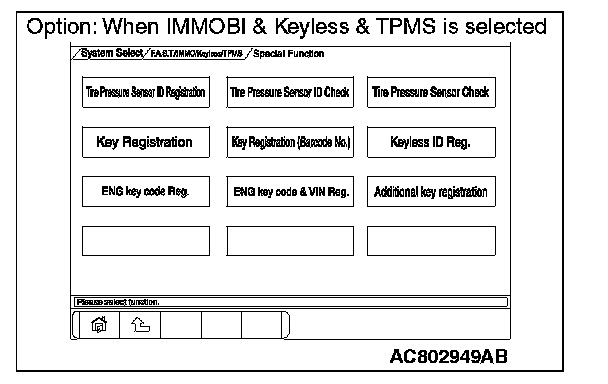

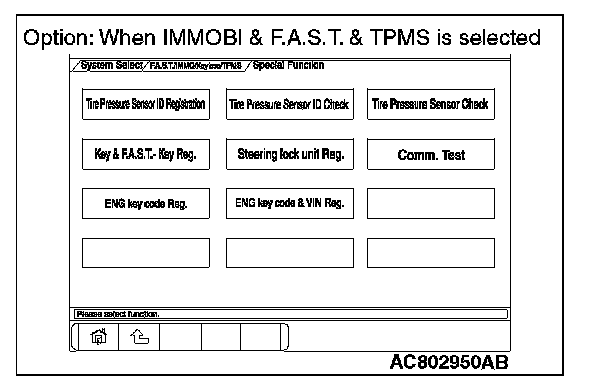

9. Select "Special Function" on the next screen.
10. Select "ENG key code & VIN Reg." from the "Special Function" screen.
11. Push the OK button after "ENG key code & VIN Reg." is displayed.
12. Push the OK button after "Completed. Press the OK button and move to VIN writing function." is displayed.

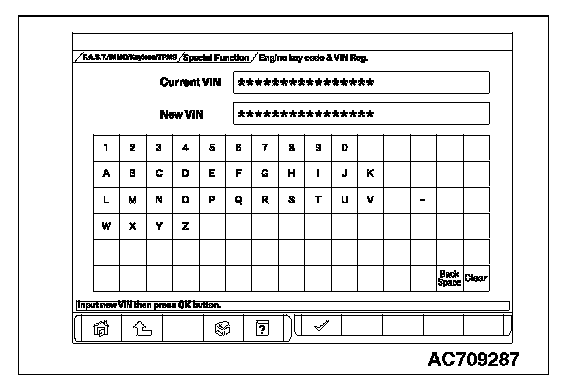

13. Enter the VIN of registering vehicle and push the OK button.
14. Push the OK button after "VIN Writing will start. Are you sure?" is displayed.
15. Return to the previous screen and "In Progress" is displayed at the lower-left corner on the screen.
16. Push the OK button after "Completed." is displayed.

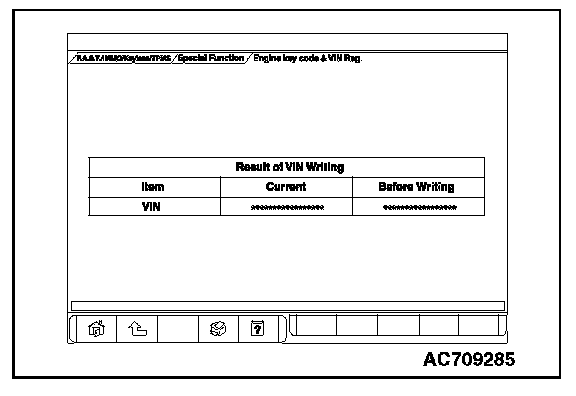

17. VIN writing result is displayed.
18. Complete the scan tool MB991958.
19. Disconnecting the scan tool MB991958 is the reverse of the connecting sequence, making sure that the ignition switch is at the "LOCK" (OFF).
20. Push the OK button after "Completed." is displayed.
21. Terminate the scan tool MB991958.
22. Turn the ignition switch to the "LOCK" (OFF) position and then disconnect scan tool MB991958.
VIN WRITING STEPS FOR WCM AND KOS-ECU
CAUTION:
Before the VIN registration to WCM and KOS-ECU, check that the VIN of ECM and vehicle are matched.
CAUTION:
Check that diagnostic trouble code B2416 "ECU internal error" is not set. When diagnostic trouble code B2416 "ECU internal error" is set, the WCM and the KOS-ECU cannot store the VIN even if the VIN is written. If this diagnostic trouble code is set, troubleshoot the WCM or the KOS-ECU and repair. Then write the VIN to the WCM or the KOS-ECU.
CAUTION:
Before connecting or disconnecting the MB991958: Scan Tool, turn the ignition switch to the "LOCK" (OFF) position.
Connect scan tool MB991958 to the 16-pin data link connector as follows.
NOTE: For details on how to use scan tool MB991958, refer to the "M.U.T. Owner's Manual."
1. Ensure that the ignition switch is at the "LOCK" (OFF) position.
2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824 and the personal computer.
4. Connect special tool MB991910 to the special tool MB991824.
5. Connect special tool MB991910 to the data link connector of the vehicle.
6. Turn the special tool MB991824 power switch to the "ON" position.
NOTE: When the special tool MB991824 is energized, the special tool MB991824 indicator light will be illuminated in a green color.
7. Start the "M.U.T.-III system" on the personal computer and turn the ignition switch to the "ON" position.
8. Select "F.A.S.T./IMMO/Keyless/TPMS" button from the "System Select" screen. Then, select the applicable option code item and push the OK button.
9. Select "Coding" on the next screen.

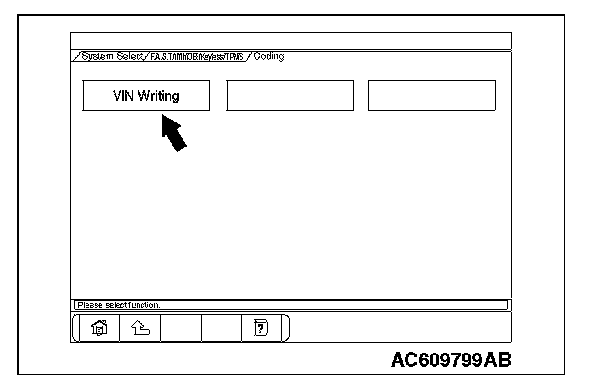

10. Select "VIN Writing" on "Coding" screen.

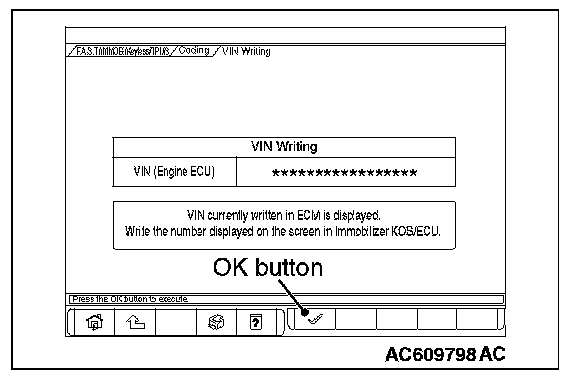

11. Push the OK button after the VIN written in the engine control module is displayed.
12. Push the OK button after "VIN Writing will start. Are you sure?" is displayed.
13. Push the OK button after "Completed." is displayed.

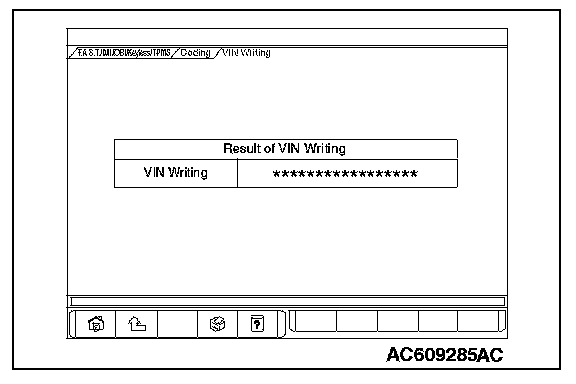

14. Result of VIN writing is displayed.
15. Resister the other ID code. (Refer to Troubleshooting -ID Code Registration Judgment Table ID Codes Registration Judgment Table [Vehicles with KOS] or Troubleshooting -ID Code Registration Judgment Table ID Codes Registration Judgment Table [Vehicles with WCM].)
CODING LIST
CAUTION:
With the ETACS functions being customized, if any of the ETACS-ECU variant coding and option coding items are changed, the customized contents are reset. In such case, the functions need to be recustomized.

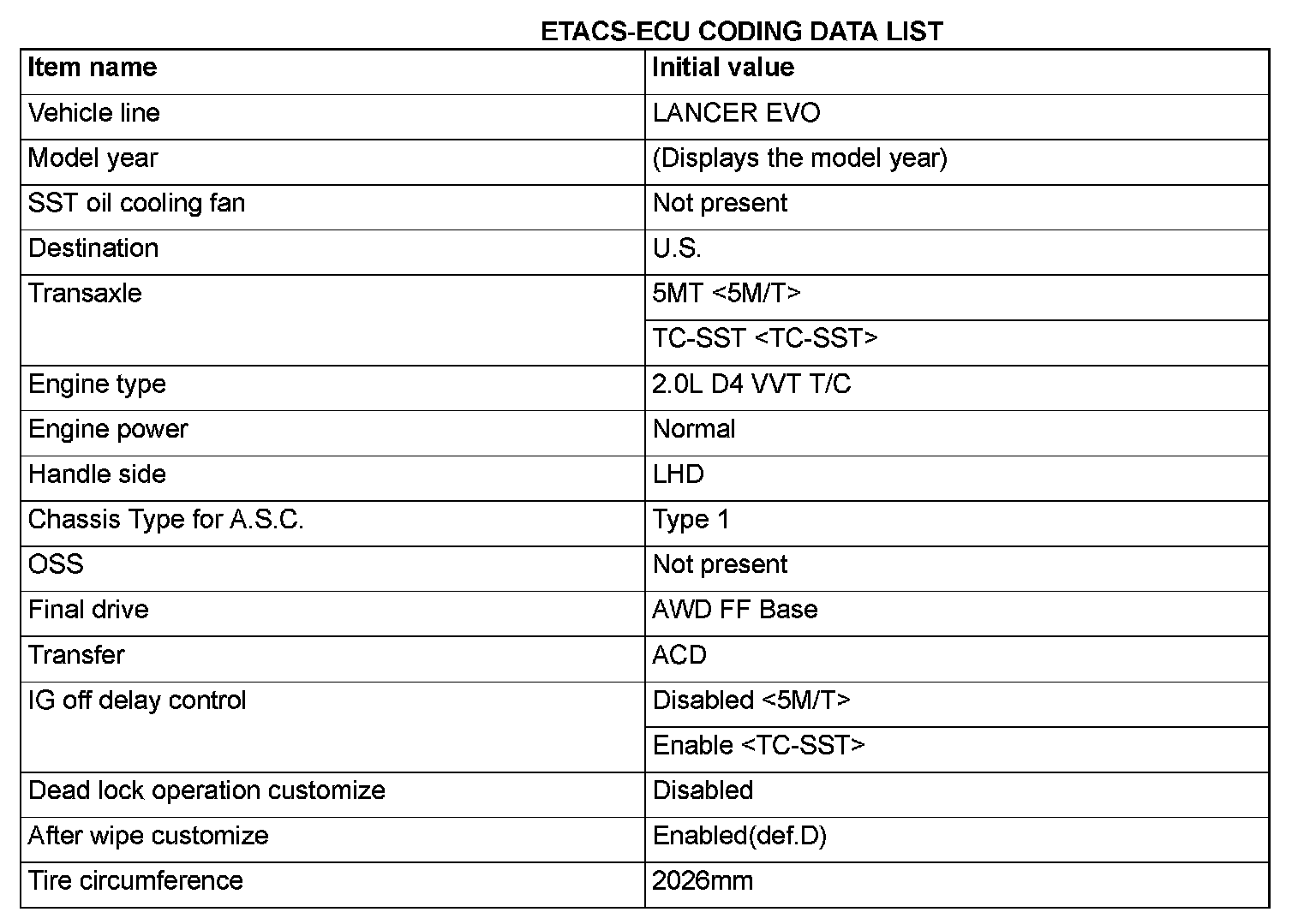

Before troubleshooting, check that the coding data written into the engine control module, TC-SST-ECU and ETACS-ECU are normal. If they are not the same as the initial settings, various functions and systems will not work correctly.
VARIANT CODING
Required Special Tools:
^ MB991958: Scan Tool (M.U.T.-III Sub Assembly)
^ MB991824: Vehicle Communication Interface (V.C.I.)
^ MB991827: M.U.T.-III USB Cable
^ MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
The coding data can be checked by operating scan tool MB991958.
NOTE: For details on how to use the scan tool MB991958, refer to the "M.U.T.-III Owner's manual".
CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF) position.
2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824 and the personal computer.
4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON" position.
NOTE: When special tool MB991824 is energized, special tool MB991824 indicator light will be illuminated in a green color.
7. Start the "M.U.T.-III system" on the personal computer.
8. Turn the ignition switch to the "ON" position.

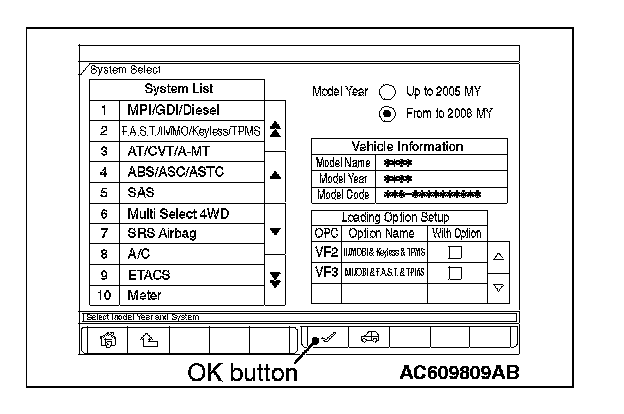

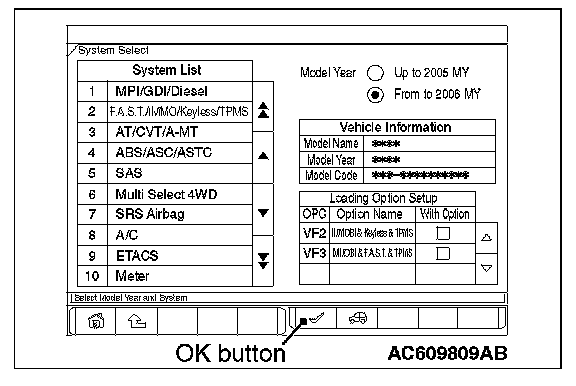

9. Select "System select" from the start-up screen.
10. Select "From 2006 MY" under "Model Year". Check that "Vehicle Information" contents are correct.

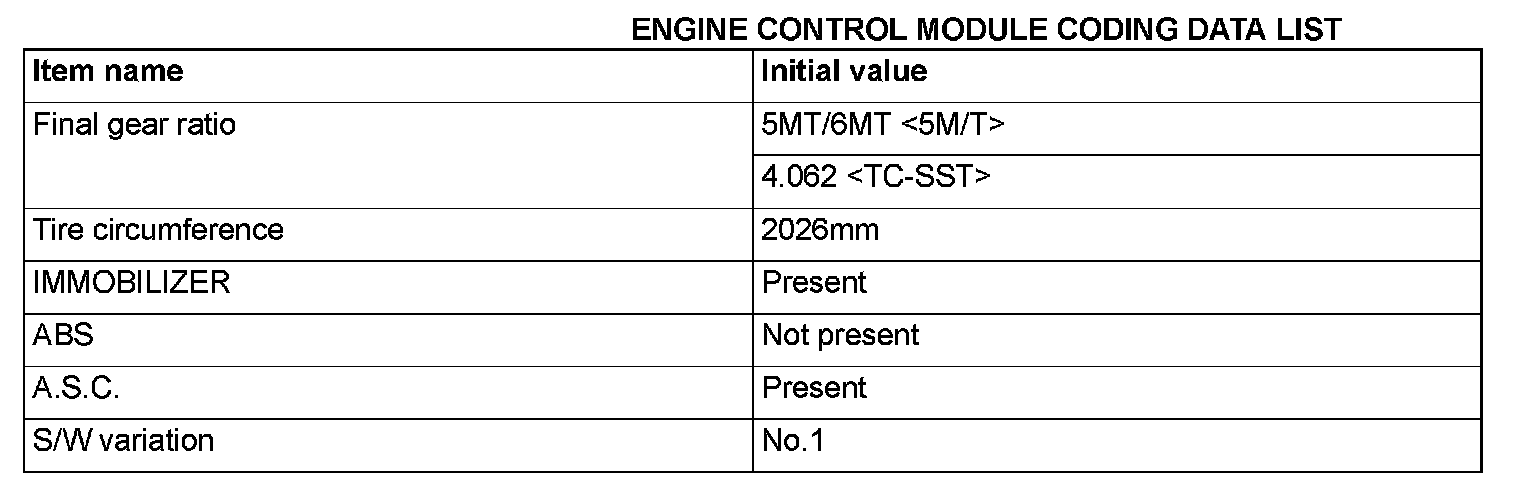

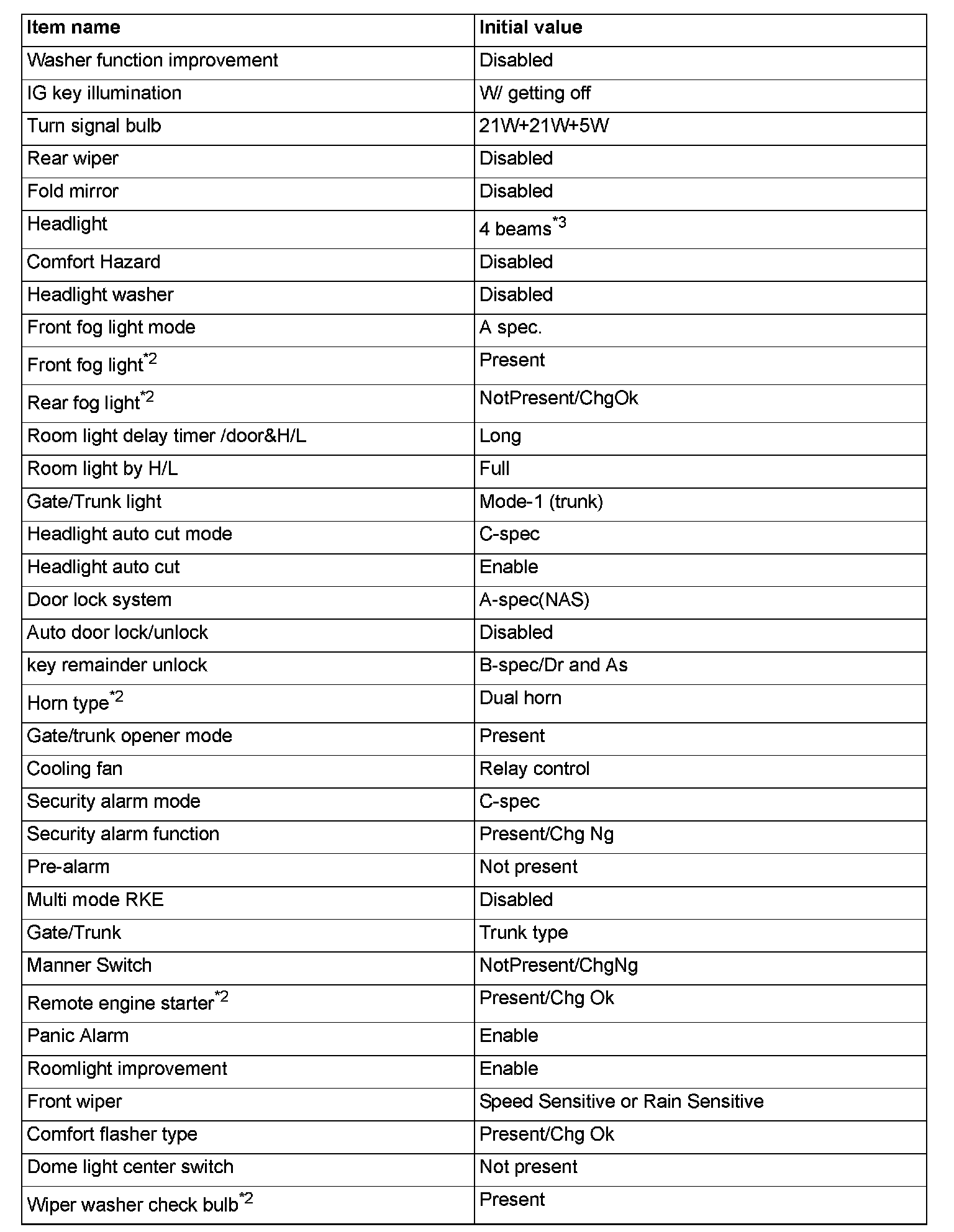

11. On the system list screen, select "MPI/GDI/DIESEL" to check the engine control module data, "AT/CVT/A-MT/TC-SST" to check the TC-SST-ECU data, and "ETACS" to check the ETACS-ECU data.
NOTE: If "Loading Option Setup" list is shown, click appropriate box.
12. Select "Coding."
13. Select "Coding information & copy."

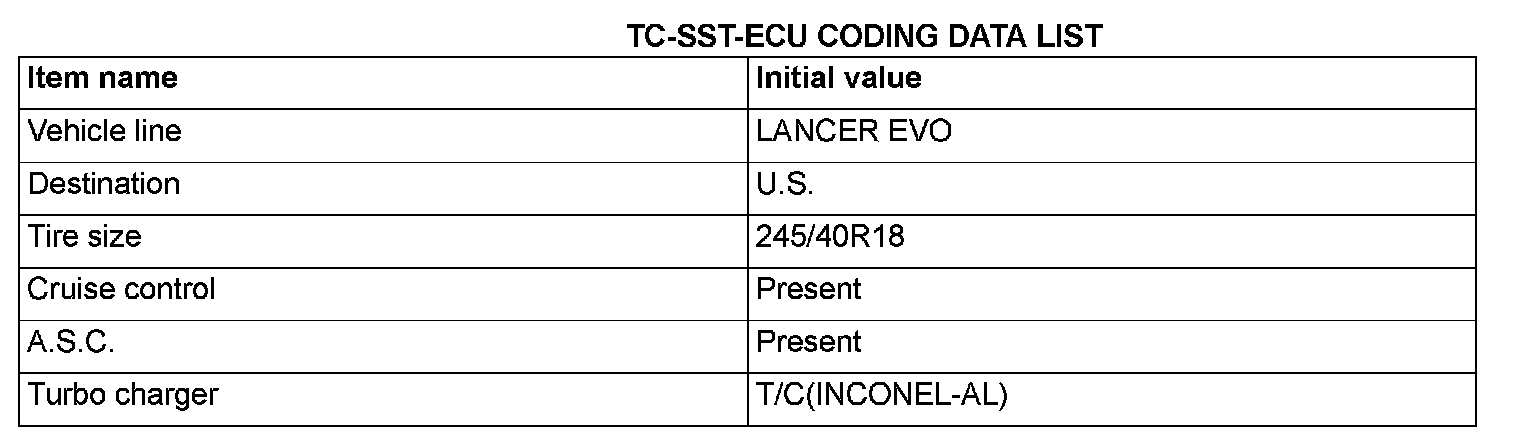

14. If the displayed coding information is different from the corresponding initial setting in the list, replace the ECU with a correctly coded one.
NOTE: *: TC-SST-ECU cannot be disassembled. Thus, replace the transaxle assembly.

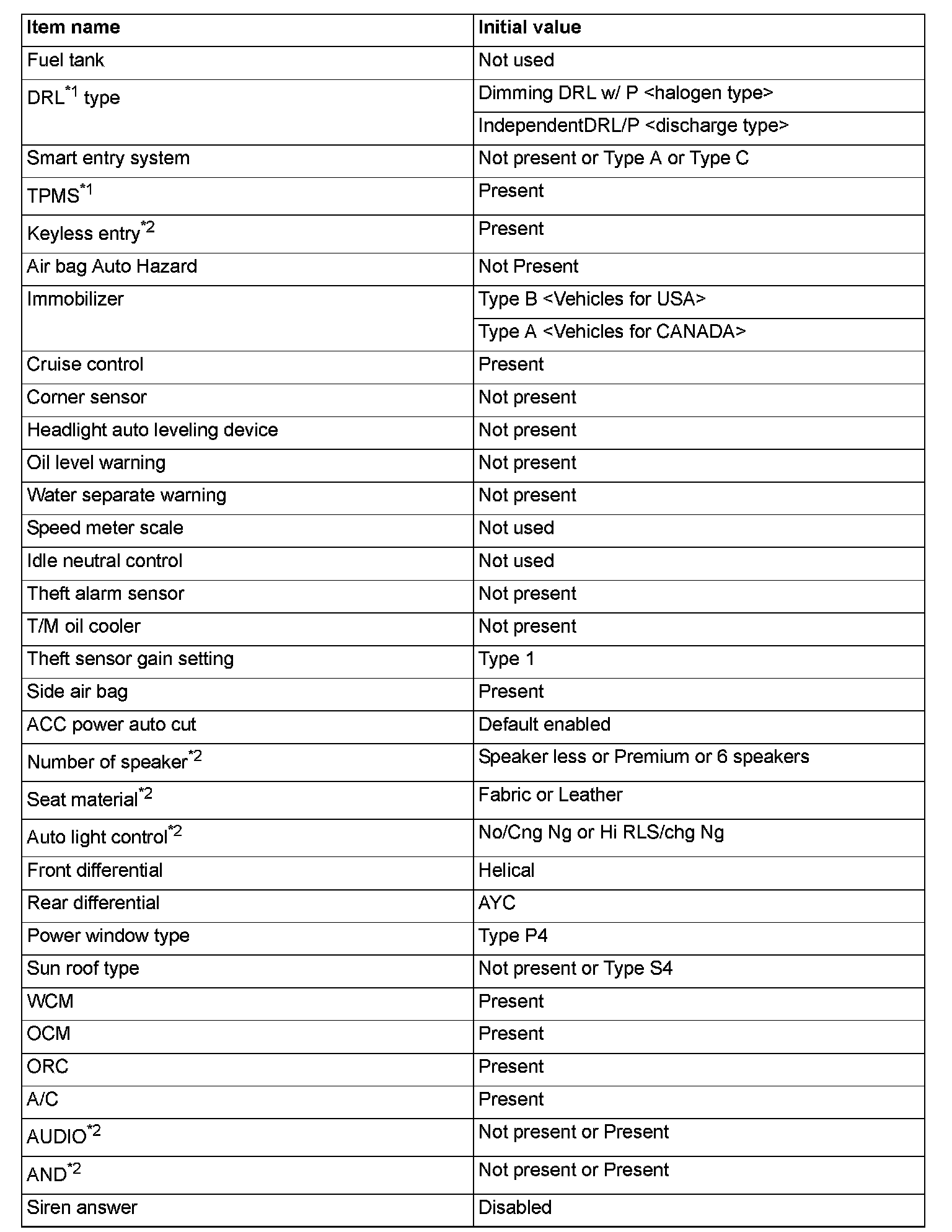

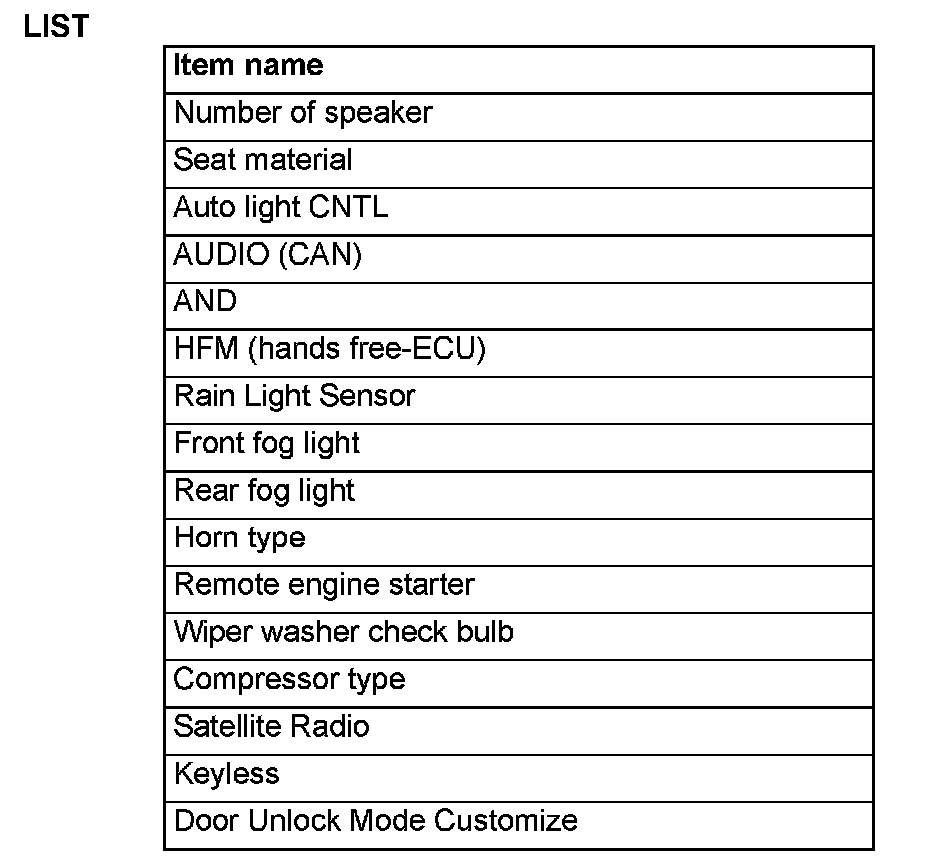

OPTION CODING
CAUTION:

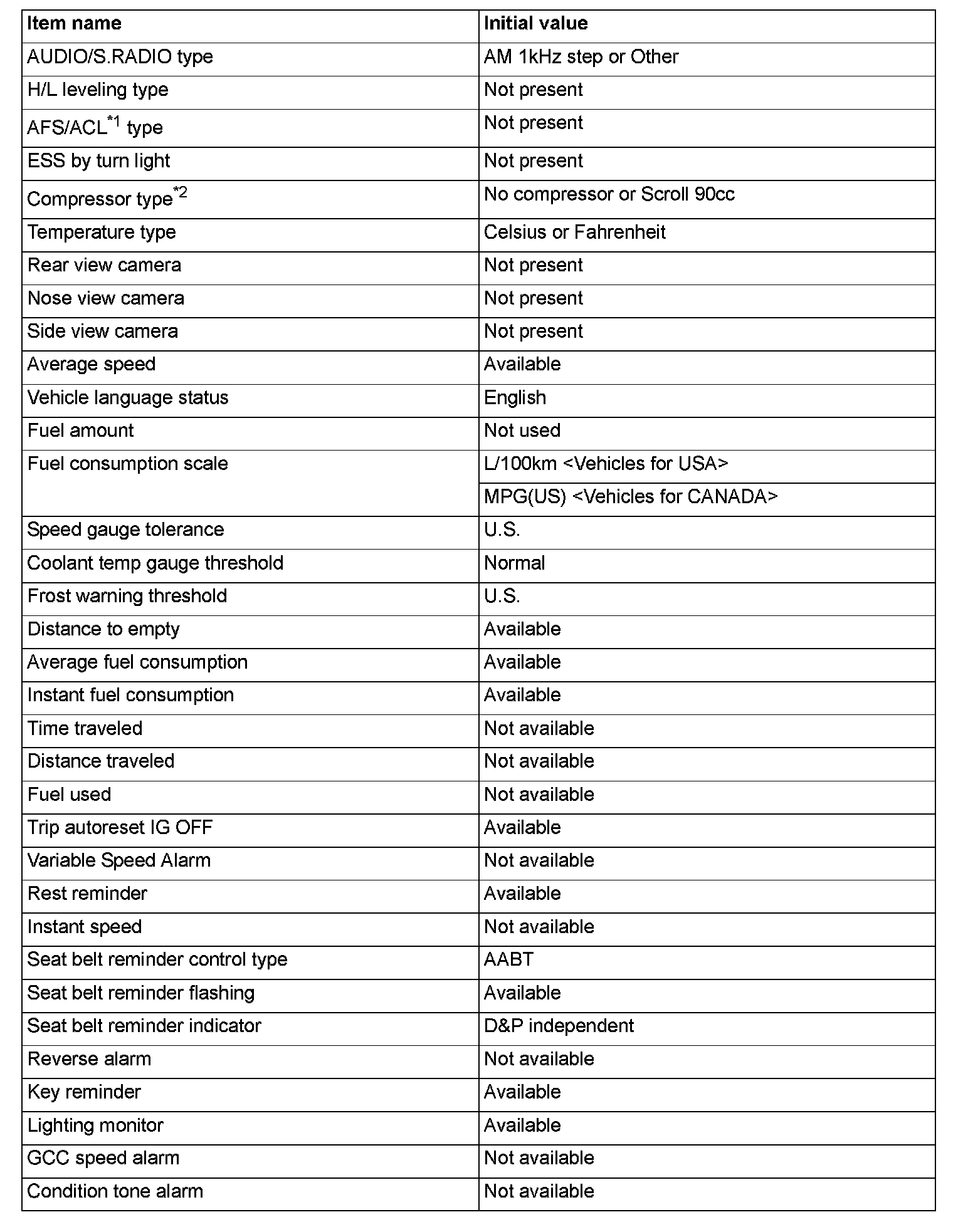

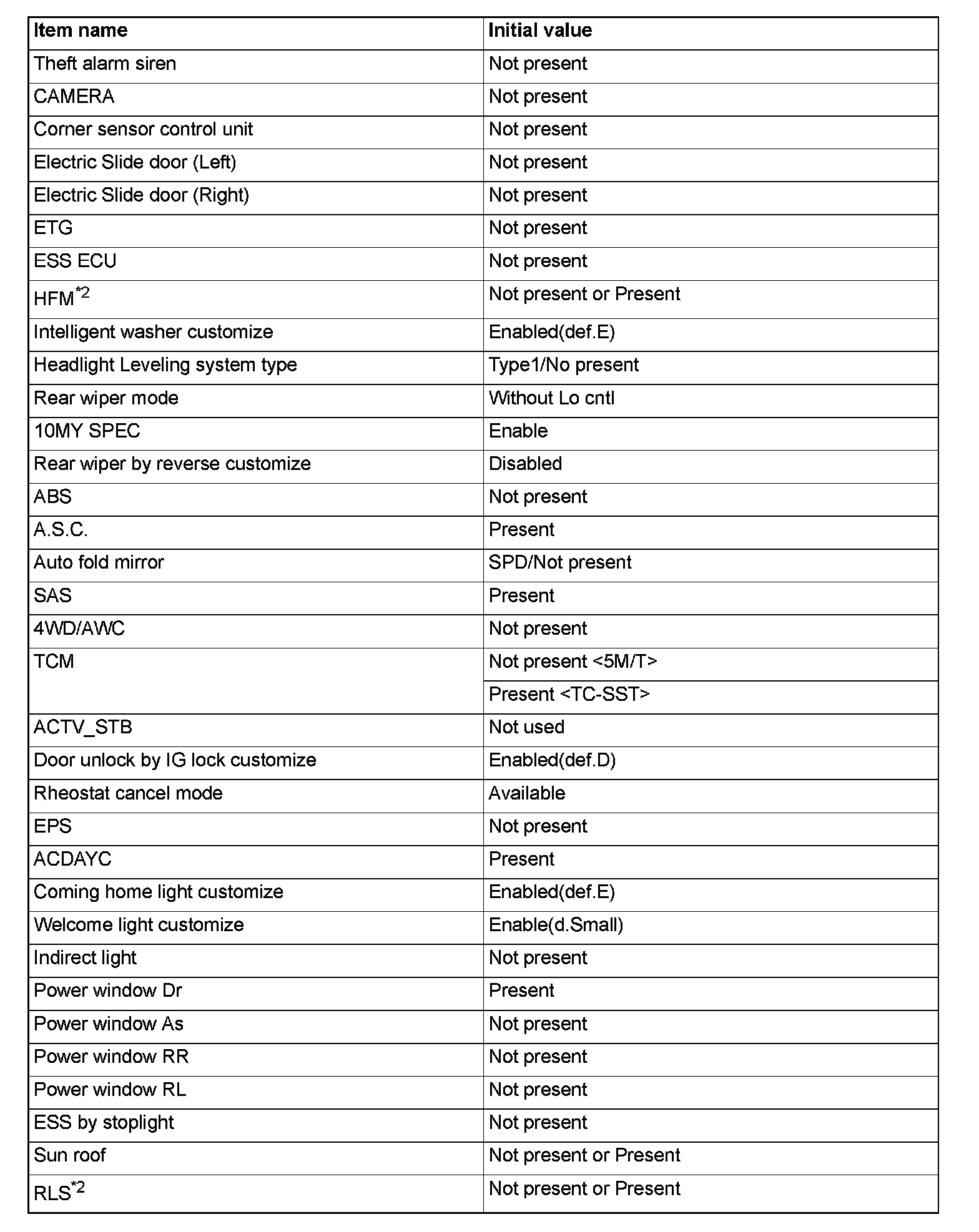

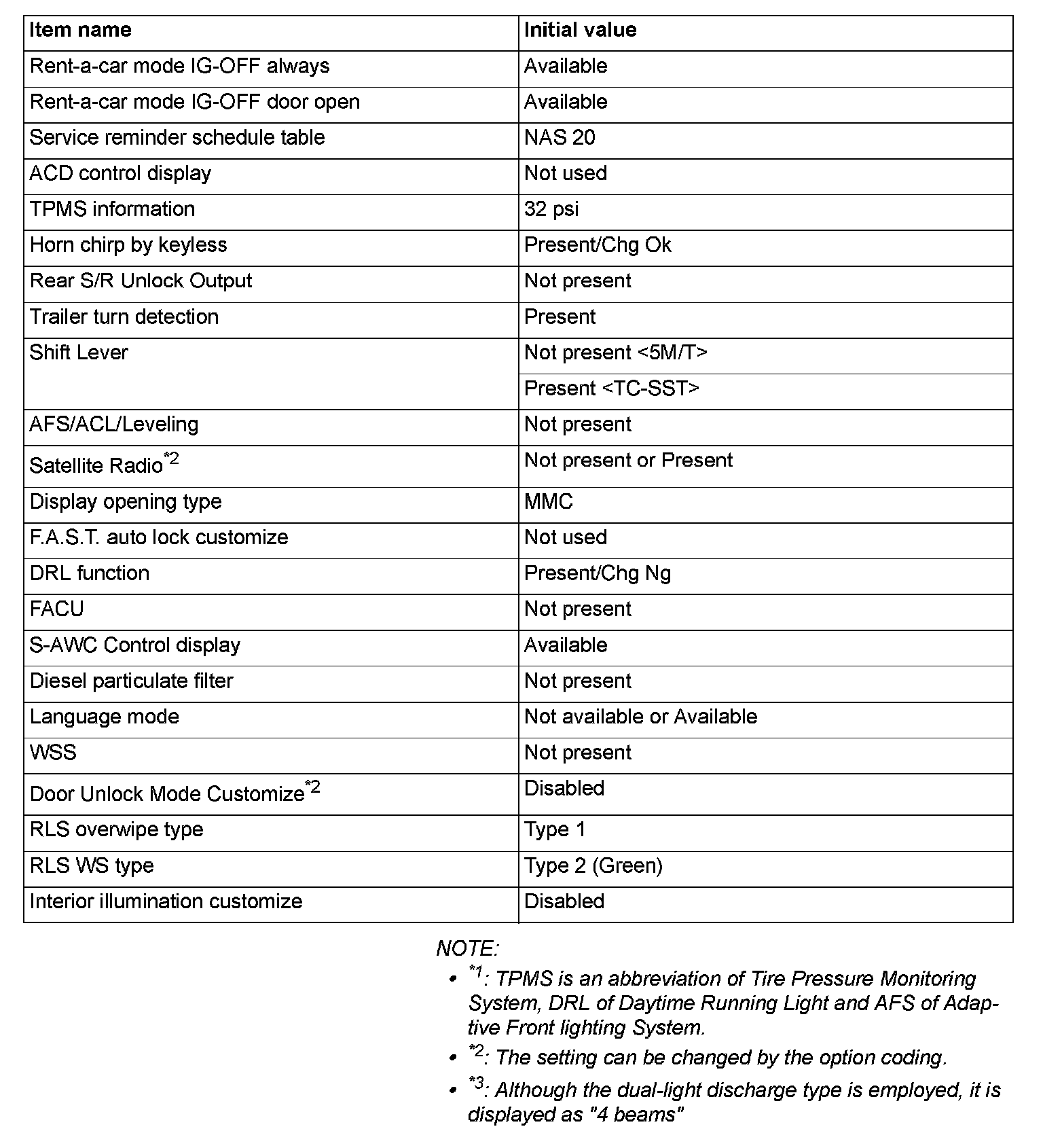

^ If there is any item indicated by the option coding after equipment change, set ETACS-ECU so that the option coding data corresponds with the equipment content. Functions and systems do not work normally if the setting does not correspond with the equipment.
^ With the ETACS functions being customized, if any of the ETACS-ECU variant coding and option coding items are changed, the customized contents are reset. In such case, the functions need to be recustomized. The ETACS-ECU option coding data can be checked or changed by operating scan tool MB991958.
^ How to check option coding data
1. Connect the scan tool MB991958.
2. Turn the ignition switch to the "ON" position.
3. Select "System select" from the start-up screen.
4. Select "From 2006 MY" under "Model Year". Check that "Vehicle Information" contents are correct.
5. Select "ETACS" from "System List", and then press "OK" button.
NOTE: If "Loading Option Setup" list is shown, click appropriate box.
6. Select "Coding."
7. Select "Option Coding Information."
8. Check the displayed option coding information.
^ How to change option coding data
1. Connect the scan tool MB991958.
2. Turn the ignition switch to the "ON" position.
3. Select "System select" from the start-up screen.
4. Select "From 2006 MY" under "Model Year". Check that "Vehicle Information" contents are correct.
5. Select "ETACS" from "System List", and then press "OK" button.
NOTE: If "Loading Option Setup" list is shown, click appropriate box.
6. Select "Coding."
7. Select "Option Coding."
8. Change to correct option coding data.
