Home >> Mitsubishi >> 2010 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Application and ID

Relay Box: Application and ID

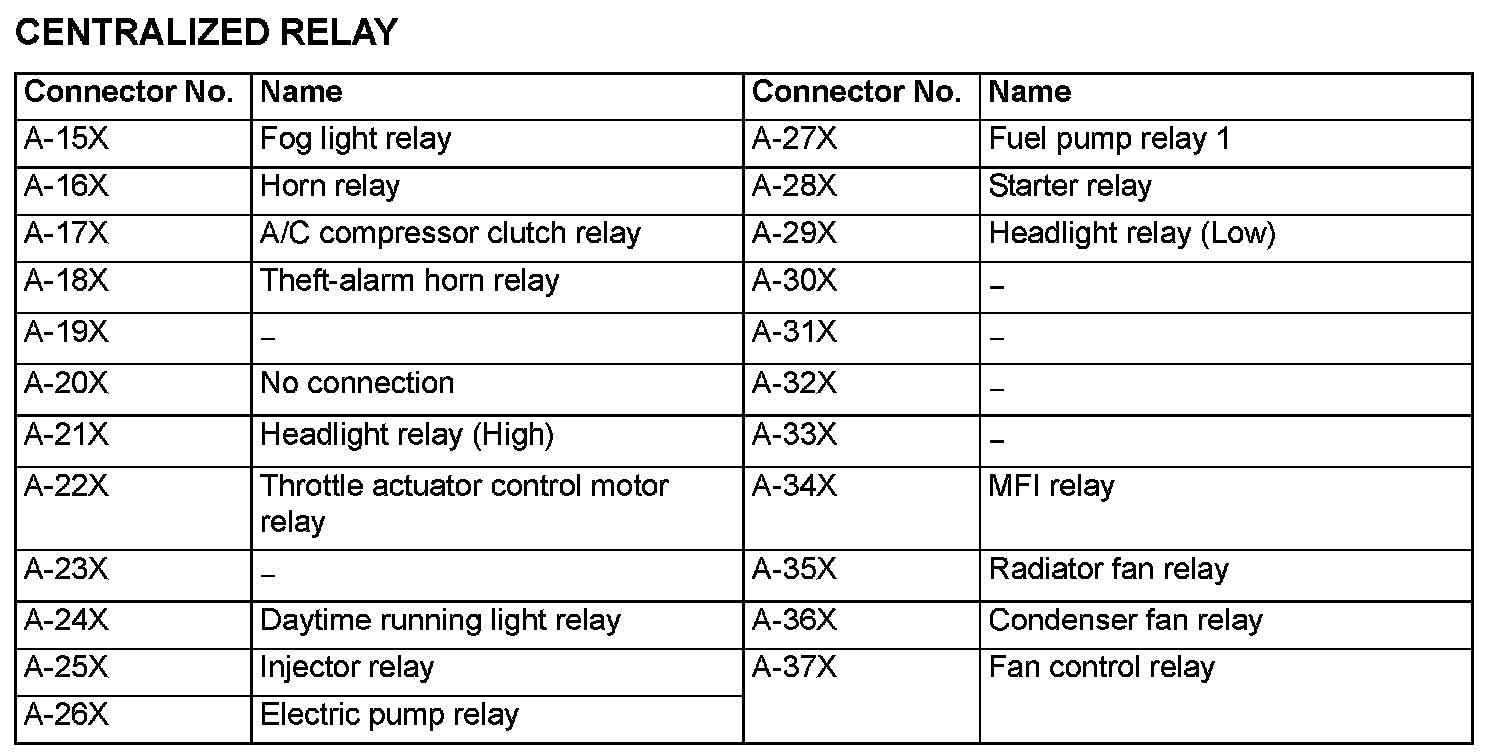

Application Table:

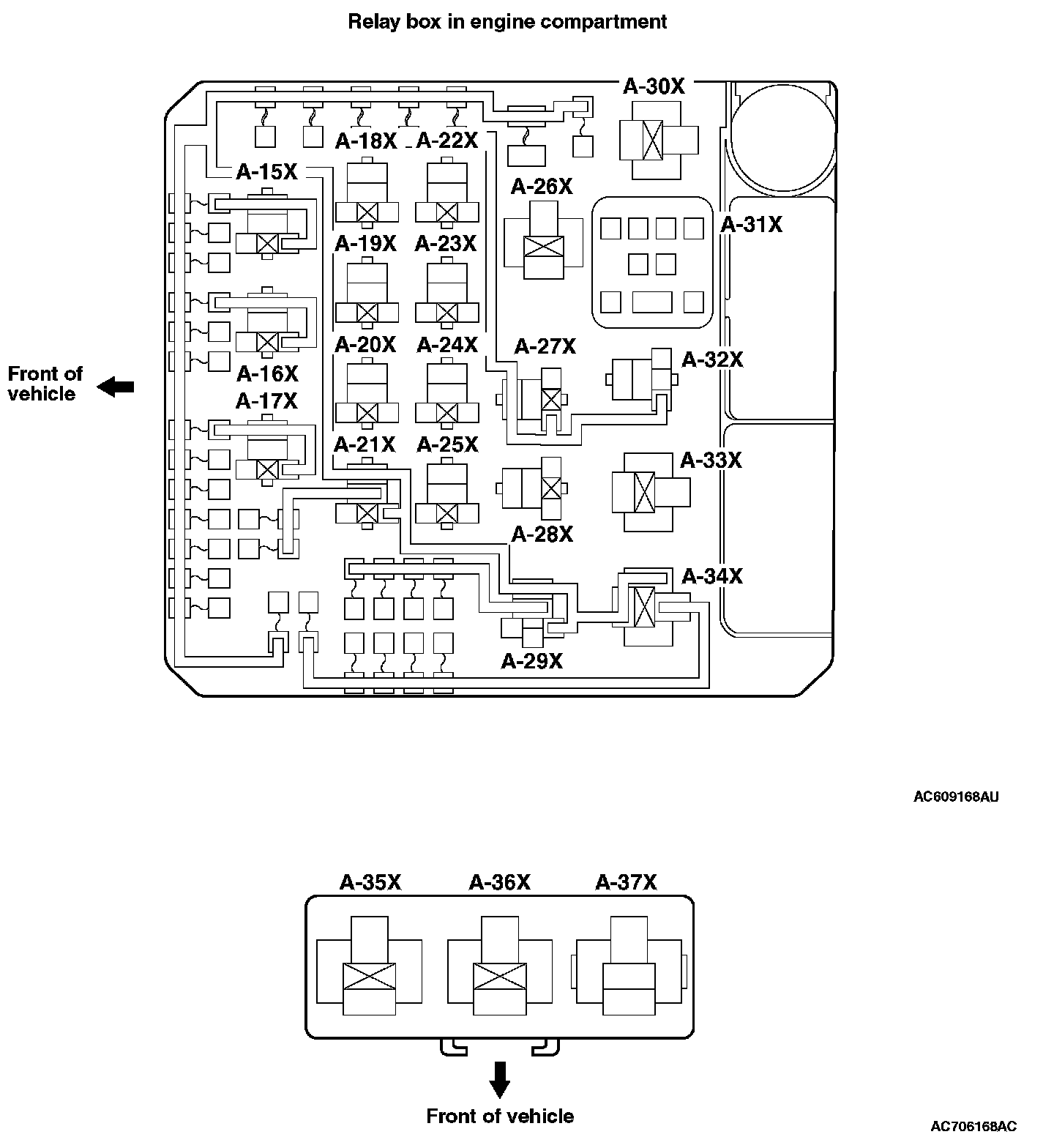

Location View:
