Wheel Bearing End Play Check

WHEEL BEARING END PLAY CHECK
1. Remove the rear brake disk.

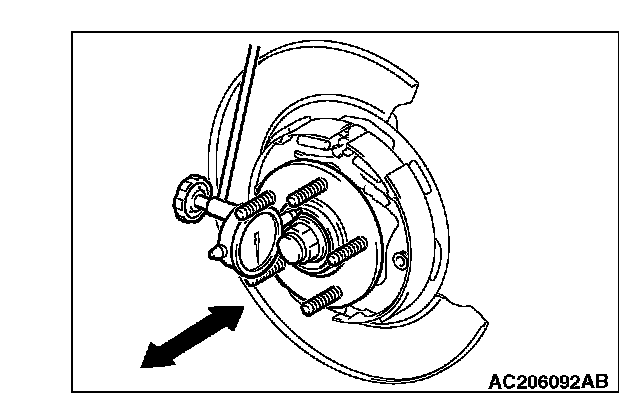

2. Set a dial gauge as shown in the figure. Move the rear wheel hub assembly in the axial direction and measure the looseness.
Limit: 0.05 mm (0.002 inch)
3. When the looseness exceeds the limit value, replace the rear wheel hub assembly.
4. After checking, install the rear brake disk.
