For Differential

REAR AXLE OIL (FOR DIFFERENTIAL PART) (CHANGE)

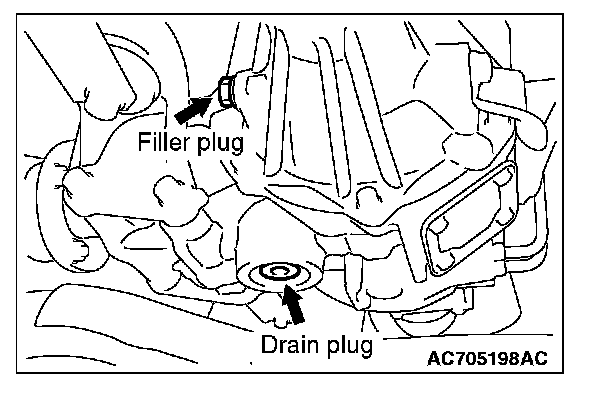

1. Remove the filler plug.
2. Remove the drain plug and drain oil.
3. Install the drain plug, and tighten it to the specified torque.
Tightening torque: 32 ± 2 Nm (23 ± 2 ft-lb)
4. Fill the specified gear oil up to the bottom of the filler plug hole.
Specified gear oil: MITSUBISHI Genuine DIA QUEEN Multi gear oil LS
Amount to use: 0.55 ± 0.02 dm3 (0.58 ± 0.02 qt)
5. Install the filler plug, and tighten it to the specified torque.
Tightening torque: 49 ± 10 Nm (37 ± 7 ft-lb)
