Drive Belt: Testing and Inspection

DRIVE BELT TENSION CHECK
1. Remove the radiator condenser tank.

CAUTION:
Check the drive belt tension after turning the crankshaft clockwise one turn or more.

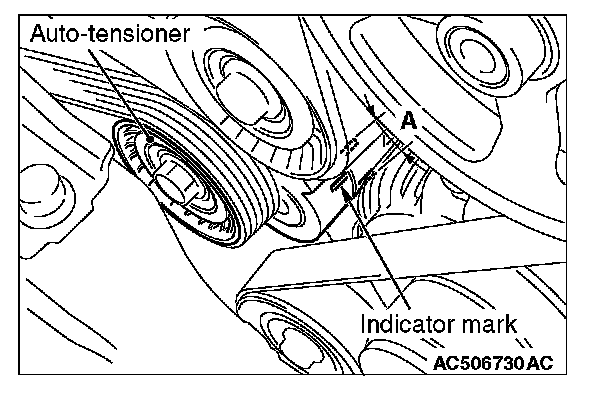

2. Make sure that the indicator mark on the auto-tensioner is within the area marked with A in the illustration.
3. If the mark is out of the area A, replace the drive belt.

NOTE: The drive belt tension check is not necessary as the auto-tensioner is adopted.

4. Install the radiator condenser tank.
