Lancer Evolution L4-2.0L Turbo (4B11T/C)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
C Connectors - Dash Panel
>>
C-301 to C-317
C-301 to C-317

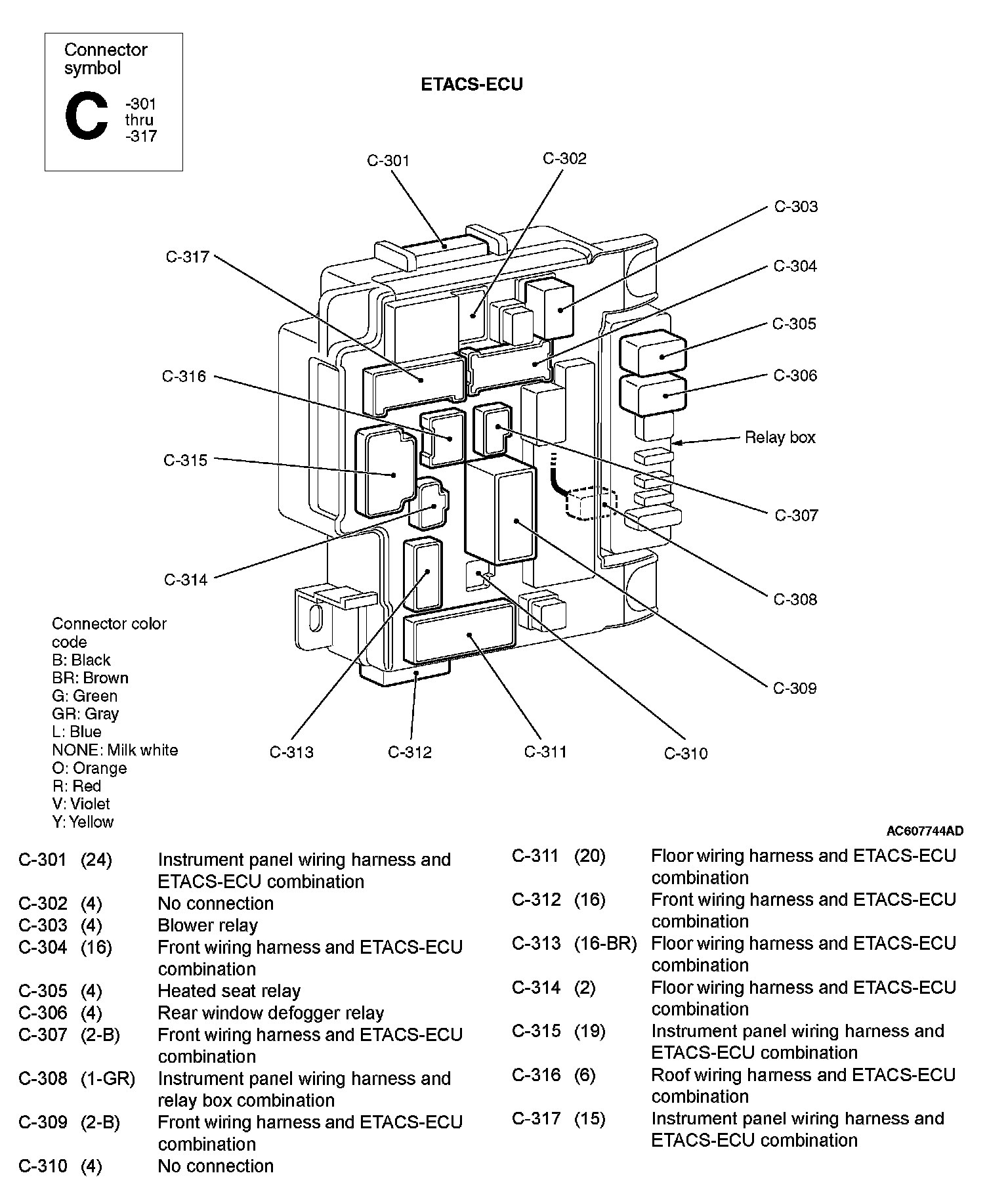

C-301 To C-317:
